Isuzu WW
▶
TRUCKS
▶
FSR
▶
11729 - FSR MIDDLE EAST EURO1
▶
0 - Engine, Emission, Engine Electrical
▶
0-31 - THERMOSTAT AND HOUSING
▶

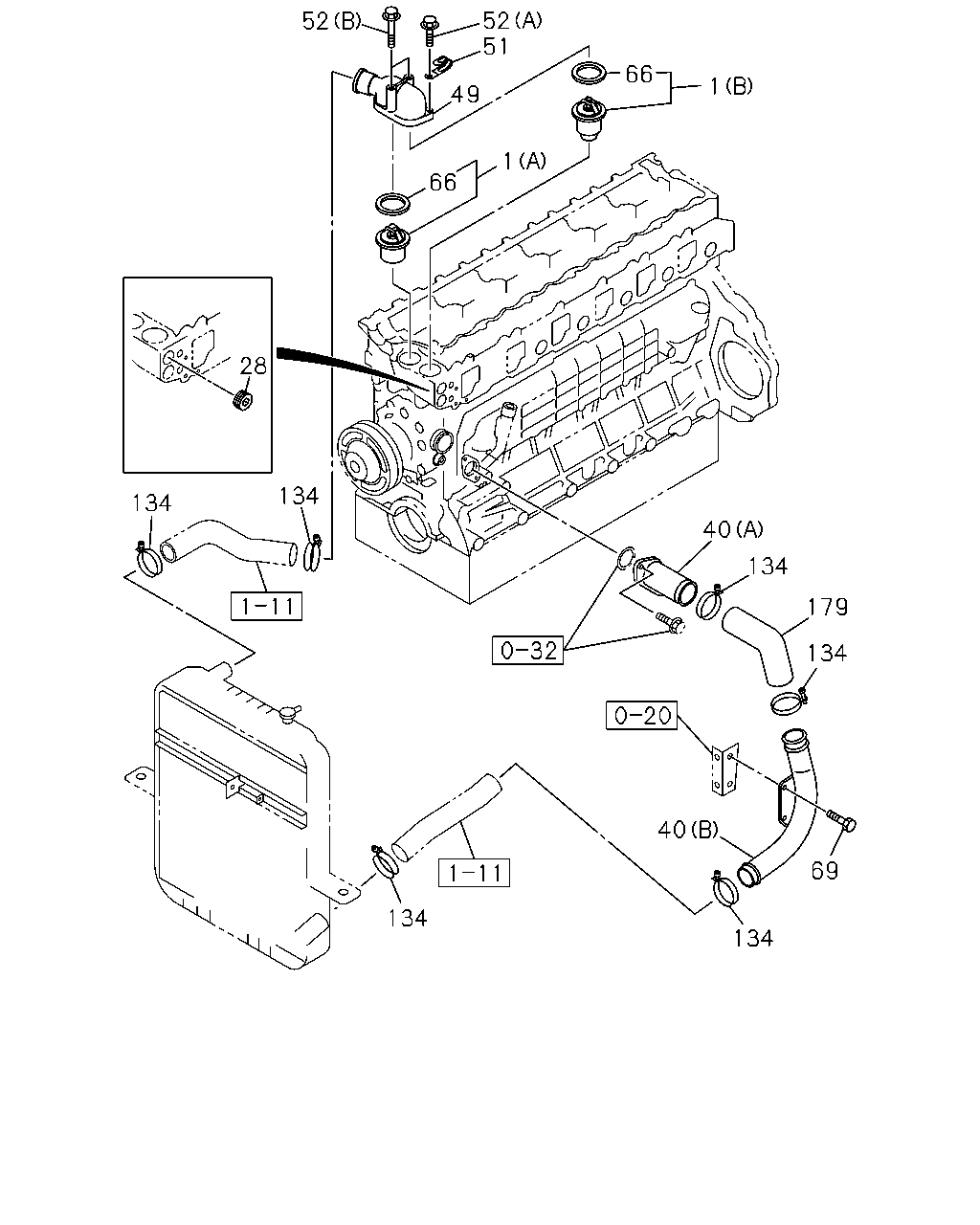

0-31 — THERMOSTAT AND HOUSING
(#170484) — 13 parça
52
52
49
51
66
1
1
66
134
134
40
134
179
134
69
134
40
134
28
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
THERMOSTAT
(A) 82 CELSIUS
8-97602-048-3
01
1
1511-
1
THERMOSTAT
(B) 82 CELSIUS
8-98295-921-0
01
1
1511-
28
PLUG; HTR
PT3/4
1-09605-020-0
01
1
1511-
40
DUCT; WATER,SUCTION
(A)
8-94391-091-1
01
1
1511-
40
DUCT; WATER,SUCTION
(B)
8-94394-404-1
01
1
1511-
49
PIPE; WATER OUTLET
8-97602-047-0
01
1
1511-
51
CLIP; JOINT,THERMOSTAT
ID=18 L=44
8-97367-985-1
01
1
1511-
52
BOLT; JOINT,THERMOSTAT
(B) M8X80 FLANGE
0-28050-880-0
02
1
1511-
52
BOLT; JOINT,THERMOSTAT
(A) M8X25 FLANGE
0-28650-825-0
02
1
1511-
66
GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=49.5 OD=56.5
8-98280-281-0
02
1
1511-
69
BOLT; DUCT,WATER OUTLET
M8X20 FLANGE
0-28650-820-0
02
1
1511-
134
CLIP; RUBBER HOSE
ID=63
1-09704-067-0
06
1
1511-
179
HOSE; RUBBER,WATER DUCT
8-94390-400-3
01
1
1511-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
