Isuzu WW
▶
TRUCKS
▶
FSR
▶
11729 - FSR MIDDLE EAST EURO1
▶
0 - Engine, Emission, Engine Electrical
▶
0-15 - CRANKSHAFT,PISTON AND FLYWHEEL
▶

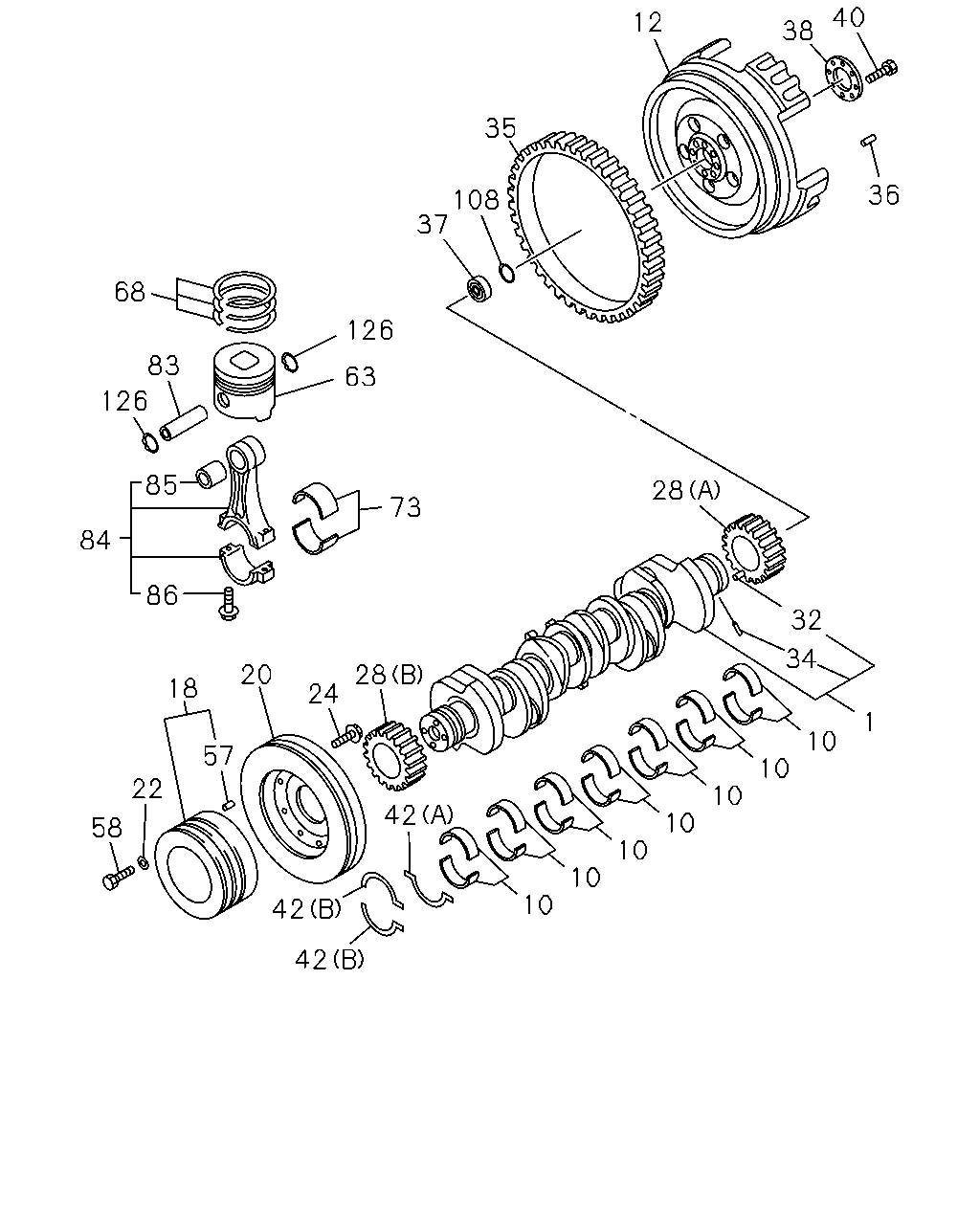

0-15 — CRANKSHAFT,PISTON AND FLYWHEEL
(#170477) — 32 parça
40
38
12
35
108
37
126
63
68
83
126
85
84
86
73
28
24
20
18
57
22
58
42
42
42
10
10
10
10
10
10
10
1
34
32
28
36
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
CRANKSHAFT
8-97603-003-1
01
1
1511-
10
METAL SET; CRANKSHAFT,STANDARD
BLUE
8-97372-076-1
07
1
1511-
10
METAL SET; CRANKSHAFT,STANDARD
BLACK
8-97372-077-1
07
1
1511-
10
METAL SET; CRANKSHAFT,STANDARD
BROWN
8-97372-078-1
07
1
1511-
12
FLYWHEEL
8-94393-849-2
01
1
1511-
18
PULLEY; CR/SHF
3-GROOVE
8-94394-296-3
01
1
1511-
20
DAMPER; CR/SHF
8-94392-276-3
01
1
1511-
22
PLATE; PULLEY
ID=17 OD=30
9-09851-935-0
04
1
1511-
24
BOLT; DAMPER
M10X16 FLANGE
0-28151-016-0
06
1
1511-
28
GEAR; CR/SHF
(A) Z=42
8-94394-342-4
01
1
1511-
28
GEAR; CR/SHF
(B) Z=41
8-94396-954-2
01
1
1511-
32
PIN; FLYWHEEL
OD=8 L=16
9-08150-816-0
02
1
1511-
34
PIN; GEAR SETTING
OD=5 L=6
9-09878-626-0
01
1
1511-
35
GEAR; RING
Z=140
8-94396-784-1
01
1
1511-
36
PIN; FLYWHEEL
OD=10 L=22
9-08151-022-0
02
1
1511-
37
BEARING; PILOT,TOP GEAR SHAFT
8-94392-288-0
01
1
1511-
37
BEARING; PILOT,TOP GEAR SHAFT
BEST VALUE PARTS
1-87610-157-0
01
1
1511-
38
WASHER; FLYWHEEL
ID=55 OD=110
8-94397-496-1
01
1
1511-
40
BOLT; FLYWHEEL
M16X62
8-94393-070-2
08
1
1511-
42
WASHER; THRUST,CR/SHF
(A)
8-97386-548-0
01
1
1511-
42
WASHER; THRUST,CR/SHF
(B)
8-97386-549-0
02
1
1511-
57
PIN; PULLEY
OD=8 L=16
8-94391-156-0
01
1
1511-
58
BOLT; CR/SHF PULLEY
M16X50
0-20951-650-0
04
1
1511-
63
PISTON
ALSO INCLUDED IN LINER SET. NON GRADE
8-94391-606-1
06
1
1511-
68
RING SET; PISTON,STANDARD
ALSO INCLUDED IN LINER SET.
8-94390-799-2
06
1
1511-
73
METAL SET; CONN ROD,STANDARD
8-94393-328-0
06
1
1511-
83
PIN; PISTON
ALSO INCLUDED IN LINER SET.
8-94396-589-1
06
1
1511-
84
ROD ASM; CONN
8-94396-394-8
06
1
1511-
85
BUSHING; CONNROD
ALSO INCLUDED IN LINER SET.
8-98121-309-0
06
1
1511-
86
BOLT; CONNROD
M13X57 FLANGE
8-98091-141-0
12
1
1511-
108
RING; SNAP,BRG SET
OD=59.2
9-09180-155-0
01
1
1511-
126
RING; SNAP,PISTON PIN
ALSO INCLUDED IN LINER SET.
8-94318-798-2
12
1
1511-
