Isuzu WW
▶
TRUCKS
▶
FSR
▶
11729 - FSR MIDDLE EAST EURO1
▶
0 - Engine, Emission, Engine Electrical
▶
0-13 - OIL PAN AND LEVEL GAUGE
▶

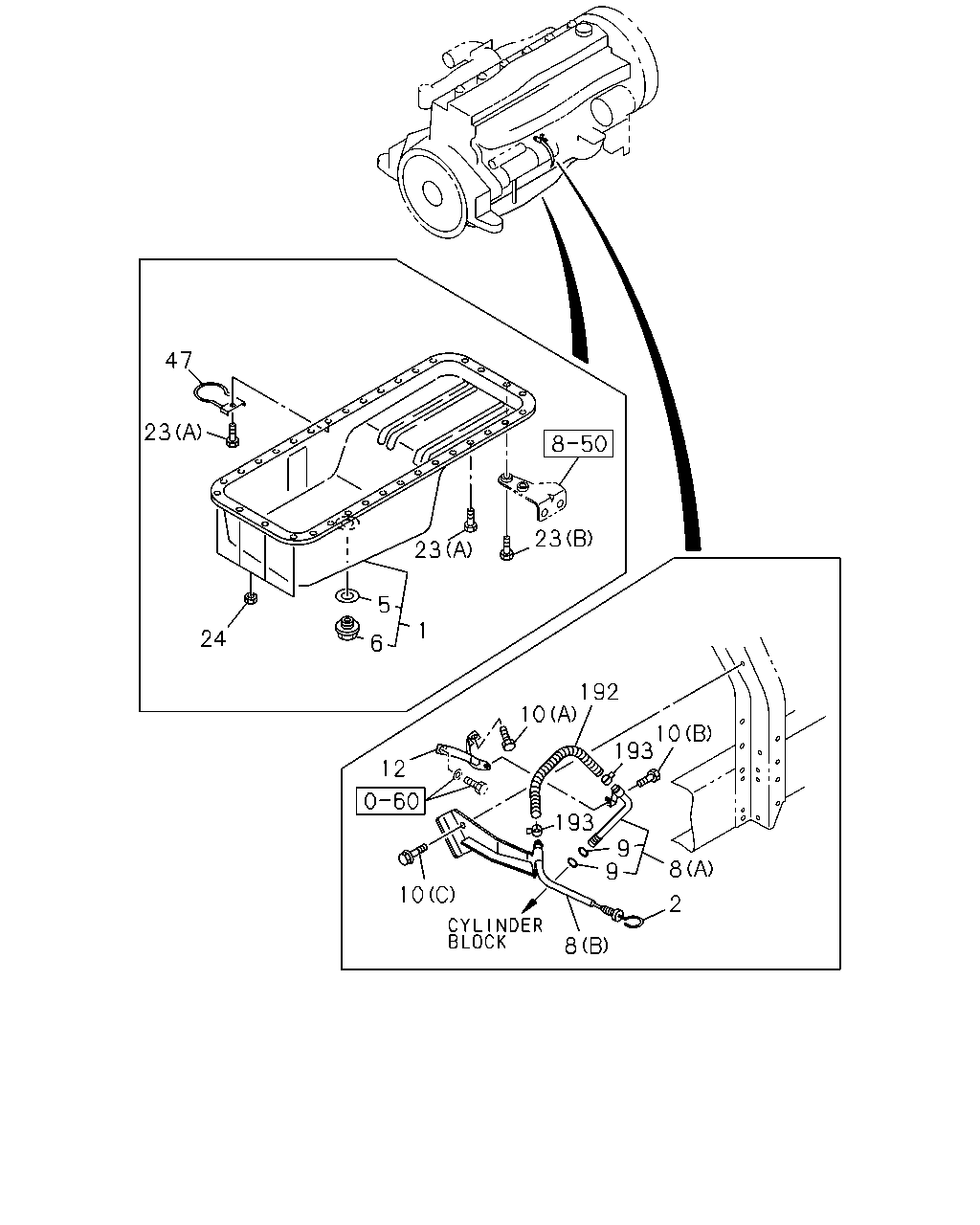

0-13 — OIL PAN AND LEVEL GAUGE
(#170475) — 18 parça
47
23
24
5
6
23
1
23
192
10
12
10
10
193
8
2
9
9
193
8
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
PAN ASM; OIL
8-94395-608-2
01
1
1511-
2
GAUGE; OIL LEVEL
8-98145-373-0
01
1
1511-
5
GASKET; PLUG,OIL DRAIN
ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.4
1-09623-057-0
01
1
1511-
6
PLUG; OIL DRAIN
M20X16.5
9-09662-012-0
01
1
1511-
8
TUBE; GUIDE,OIL LEVEL GAUGE
(A)
8-94395-114-3
01
1
1511-
8
TUBE; GUIDE,OIL LEVEL GAUGE
(B)
8-98106-228-2
01
1
1511-
9
GASKET; GUIDE TUBE,OIL LEVEL GAUGE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=11
1-09623-469-0
02
1
1511-
10
BOLT; GUIDE TUBE
(B) M8X16 FLANGE
0-28050-816-0
01
1
1511-
10
BOLT; GUIDE TUBE
(A) M8X30 FLANGE
0-28050-830-0
02
1
1511-
10
BOLT; GUIDE TUBE
(C) M8X20 FLANGE
0-28650-820-0
01
1
1511-
12
BRACKET; TUBE,OIL LEVEL GAUGE
8-94394-903-0
01
1
1511-
23
BOLT; OIL PAN
AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X18 FLANGE
0-28080-818-0
28
1
1511-
23
BOLT; OIL PAN
AIR CONDITIONER MANUAL CONTROL(C60) (B) M8X28 FLANGE
8-97329-626-0
02
1
1511-
23
BOLT; OIL PAN
EXC. AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X18 FLANGE
0-28080-818-0
30
1
1511-
24
NUT; OIL PAN
M8 FLANGE
0-91180-108-0
04
1
1511-
47
CLIP; HOSE,AIR BREATHER
8-98303-447-0
01
1
1511-
192
HOSE; GUIDE TUBE
8-98150-454-1
01
1
1511-
193
CLIP; HOSE,GUIDE TUBE
ID=17
1-09707-158-0
02
1
1511-
