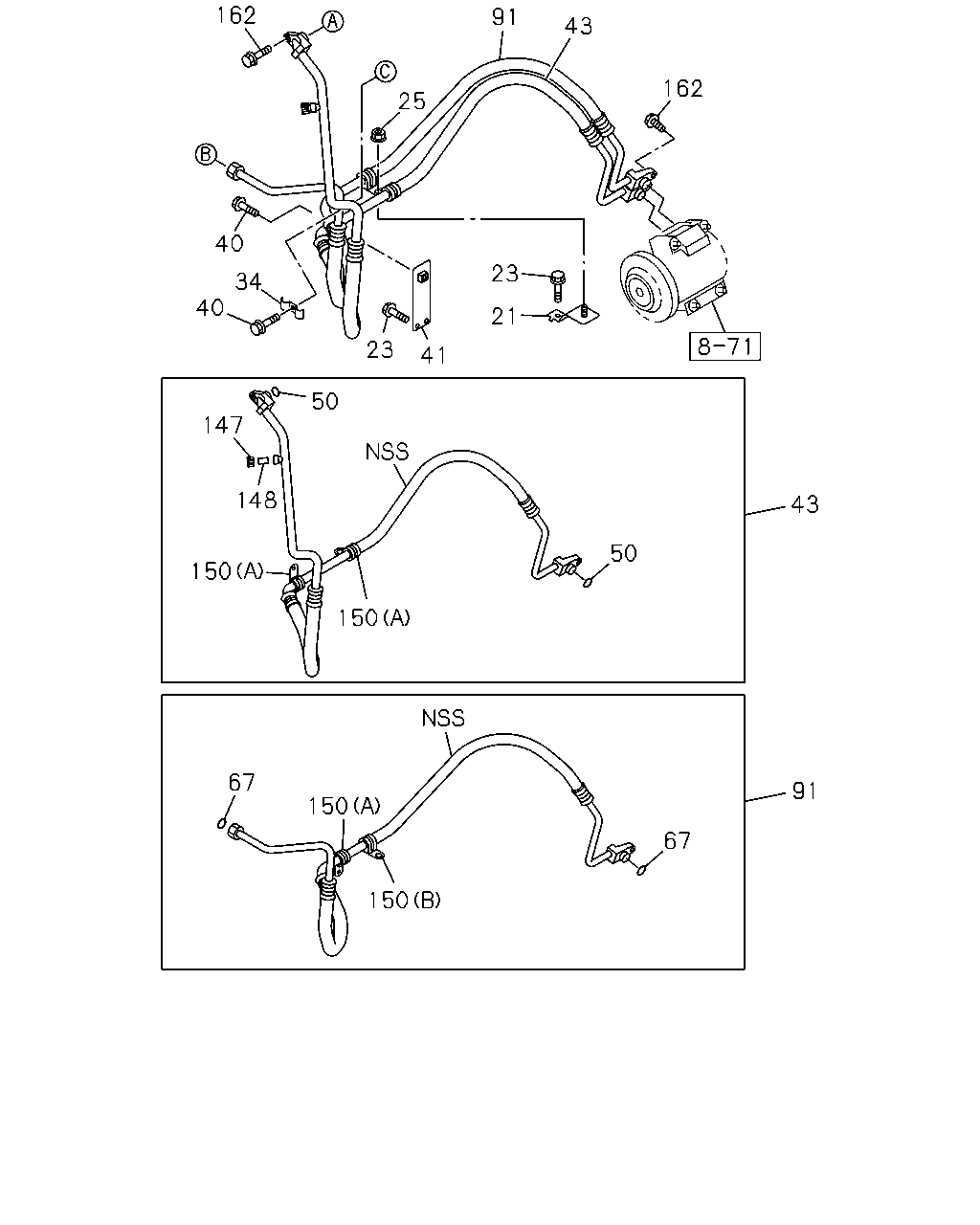

8-52 — PIPING; AIR CONDITIONING (#170461) — 29 parça

174 27 27 158 27 33 116 156 116 158 116 158 33 202 171 12

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
12	PIPE; COOLER,EVAP TO TANK AIR CONDITIONER MANUAL CONTROL(C60)	8-98062-772-0	01	1	1511-
27	CLIP; COOLER PIPE AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=9 H=20 L=20	0-95207-308-0	01	1	1511-
27	CLIP; COOLER PIPE AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=16 H=24 L=20	0-95207-315-0	01	1	1511-
27	CLIP; COOLER PIPE AIR CONDITIONER MANUAL CONTROL(C60) (C) ID=11.8 & 7.5	1-09709-182-0	01	1	1511-
33	BOLT; CLIP AIR CONDITIONER MANUAL CONTROL(C60) M6X16 FLANGE	0-28650-616-0	02	1	1511-
116	GASKET; PIPE AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=7.4	8-97095-906-0	02	1	1511-
116	GASKET; PIPE AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=11.7	8-97095-907-0	01	1	1511-
156	VALVE; PIPE AIR CONDITIONER MANUAL CONTROL(C60)	8-98151-702-0	01	1	1511-
158	BOLT; PIPE FIX AIR CONDITIONER MANUAL CONTROL(C60) M6X25 FLANGE	0-28050-625-0	03	1	1511-
171	CAP; PIPE AIR CONDITIONER MANUAL CONTROL(C60) CAP MARK H	8-97095-911-0	01	1	1511-
174	PIPE; COOLER,CONDENSER TO FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60)	8-98062-774-0	01	1	1511-
202	SWITCH; PRESSURE AIR CONDITIONER MANUAL CONTROL(C60)	1-83564-391-0	01	1	1511-

150 150 67 67 91 43 50 150 150 148 147 50 41 23 23 21 43 162 91 25 162 40 34 40

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
21	BRACKET; COOLER HOSE AIR CONDITIONER MANUAL CONTROL(C60)	8-98010-187-0	01	1	1511-
23	BOLT; BRKT AIR CONDITIONER MANUAL CONTROL(C60) M8X25 FLANGE	0-28650-825-0	01	1	1511-
23	BOLT; BRKT AIR CONDITIONER MANUAL CONTROL(C60) M8X25 FLANGE	0-28650-825-0	02	1	1511-
25	NUT; BRKT AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE	0-91180-108-0	01	1	1511-
34	CLIP; COOLER PIPE EXC. HEATER & DEFROSTER(C41)	8-98043-673-0	01	1	1511-
40	BOLT; CLIP BRKT AIR CONDITIONER MANUAL CONTROL(C60) M8X25 FLANGE	0-28650-825-0	02	1	1511-
41	BRACKET; PIPE CLIP AIR CONDITIONER MANUAL CONTROL(C60)	8-98032-049-0	01	1	1511-
43	HOSE; FLEX,A/C,EVAP TO CMPR EXC. HEATER & DEFROSTER(C41)	8-98065-050-0	01	1	1511-
50	GASKET; FLEX HOSE,A/C EXC. HEATER & DEFROSTER(C41) ID=14.5	8-97095-908-0	02	1	1511-
67	GASKET; FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60) ID=11.7	8-97095-907-0	02	1	1511-
91	HOSE; FLEX,CMPR AIR CONDITIONER MANUAL CONTROL(C60)	8-98065-049-2	01	1	1511-
147	CAP; FLEX HOSE EXC. HEATER & DEFROSTER(C41) CAP MARK L	1-83539-331-0	01	1	1511-
148	VALVE; FLEX HOSE EXC. HEATER & DEFROSTER(C41)	8-97095-909-0	01	1	1511-
150	CLIP; HOSE AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83574-264-0	01	1	1511-
150	CLIP; HOSE EXC. HEATER & DEFROSTER(C41) (A)	1-83574-264-0	02	1	1511-
150	CLIP; HOSE AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83574-249-0	01	1	1511-
162	BOLT; FLEX HOSE EXC. HEATER & DEFROSTER(C41) M6X25 FLANGE	0-28050-625-0	03	1	1511-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
