Isuzu WW
▶
TRUCKS
▶
FSR
▶
11724 - FSR LHD EURO5 EXC.SPACECAB
▶
7 - Interior Trim, Emblems / Labels, Seats, Mirrors
▶
7-70 - SEPARATER AND BED
▶

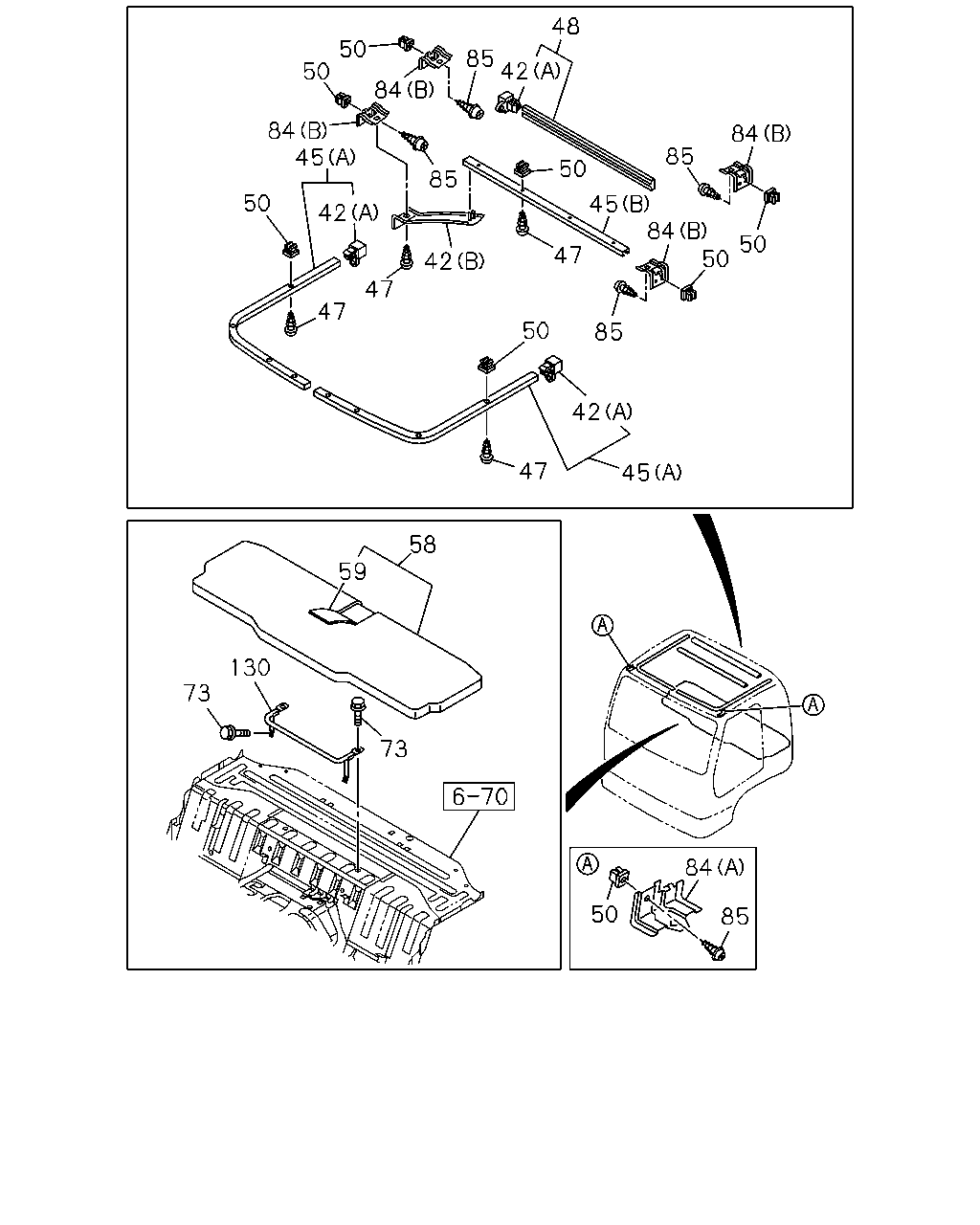

7-70 — SEPARATER AND BED
(#170447) — 21 parça
50
50
85
84
84
50
45
42
85
42
47
47
50
47
45
50
42
48
85
84
50
50
84
85
42
45
47
58
59
130
73
73
50
84
85
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
42
STOPPER; CURTAIN RAIL
(B) DARK GRAY
8-97407-972-2
01
1
1511-
42
STOPPER; CURTAIN RAIL
(B) DARK GRAY
8-97407-499-2
01
1
1511-
42
STOPPER; CURTAIN RAIL
ROUND CURTAIN RAIL<EDH> (A) LIGHT GRAY
8-97408-038-0
01
1
1511-
42
STOPPER; CURTAIN RAIL
ROUND CURTAIN RAIL<EDH> (A) LIGHT GRAY
8-97408-038-0
02
1
1511-
45
RAIL; CURTAIN,FRT
(B) DARK GRAY
8-97407-485-0
01
1
1511-
45
RAIL; CURTAIN,FRT
ROUND CURTAIN RAIL<EDH> (A) LIGHT GRAY
8-97415-672-0
01
1
1511-
45
RAIL; CURTAIN,FRT
ROUND CURTAIN RAIL<EDH> (A) LIGHT GRAY
8-97415-671-0
01
1
1511-
47
SCREW; CURTAIN RAIL
M5X20
5-09981-059-0
06
1
1511-
47
SCREW; CURTAIN RAIL
ROUND CURTAIN RAIL<EDH> M5X20
5-09981-059-0
14
1
1511-
48
RAIL; CURTAIN,BACK
ROUND CURTAIN RAIL<EDH> DARK GRAY
8-97407-866-2
01
1
1511-
50
GROMMET; SCREW,CURTAIN RAIL
EXC. ROUND CURTAIN RAIL<EDH> D=8.6X7.7 L=7.5
8-94279-078-0
04
1
1511-
50
GROMMET; SCREW,CURTAIN RAIL
D=8.6X7.7 L=7.5
8-94279-078-0
06
1
1511-
50
GROMMET; SCREW,CURTAIN RAIL
ROUND CURTAIN RAIL<EDH> D=8.6X7.7 L=7.5
8-94279-078-0
20
1
1511-
58
BED; MAT
MATTRESS SLEEPER CAB<E40> DARK GRAY
8-97407-382-2
01
1
1511-
59
COVER ASM; TRIM,BED MAT
MATTRESS SLEEPER CAB<E40> DARK GRAY
8-97412-045-1
01
1
1511-
73
BOLT; GUARD PIPE
MATTRESS SLEEPER CAB<E40> M8X20 FLANGE
0-28450-820-0
04
1
1511-
84
BRACKET; CURTAIN RAIL
(B)
8-98042-152-0
04
1
1511-
84
BRACKET; CURTAIN RAIL
ROUND CURTAIN RAIL<EDH> (A)
8-98028-326-1
02
1
1511-
85
SCREW; BRKT
ROUND CURTAIN RAIL<EDH> M5X20
5-09981-059-0
06
1
1511-
85
SCREW; BRKT
EXC. ROUND CURTAIN RAIL<EDH> M5X20
5-09981-059-0
04
1
1511-
130
PIPE; GUARD,BED
MATTRESS SLEEPER CAB<E40>
8-98014-968-0
01
1
1511-
