◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 11724 - FSR LHD EURO5 EXC.SPACECAB ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-50 - FRONT SEAT ▶
7-50 — FRONT SEAT (#170445) — 124 parça

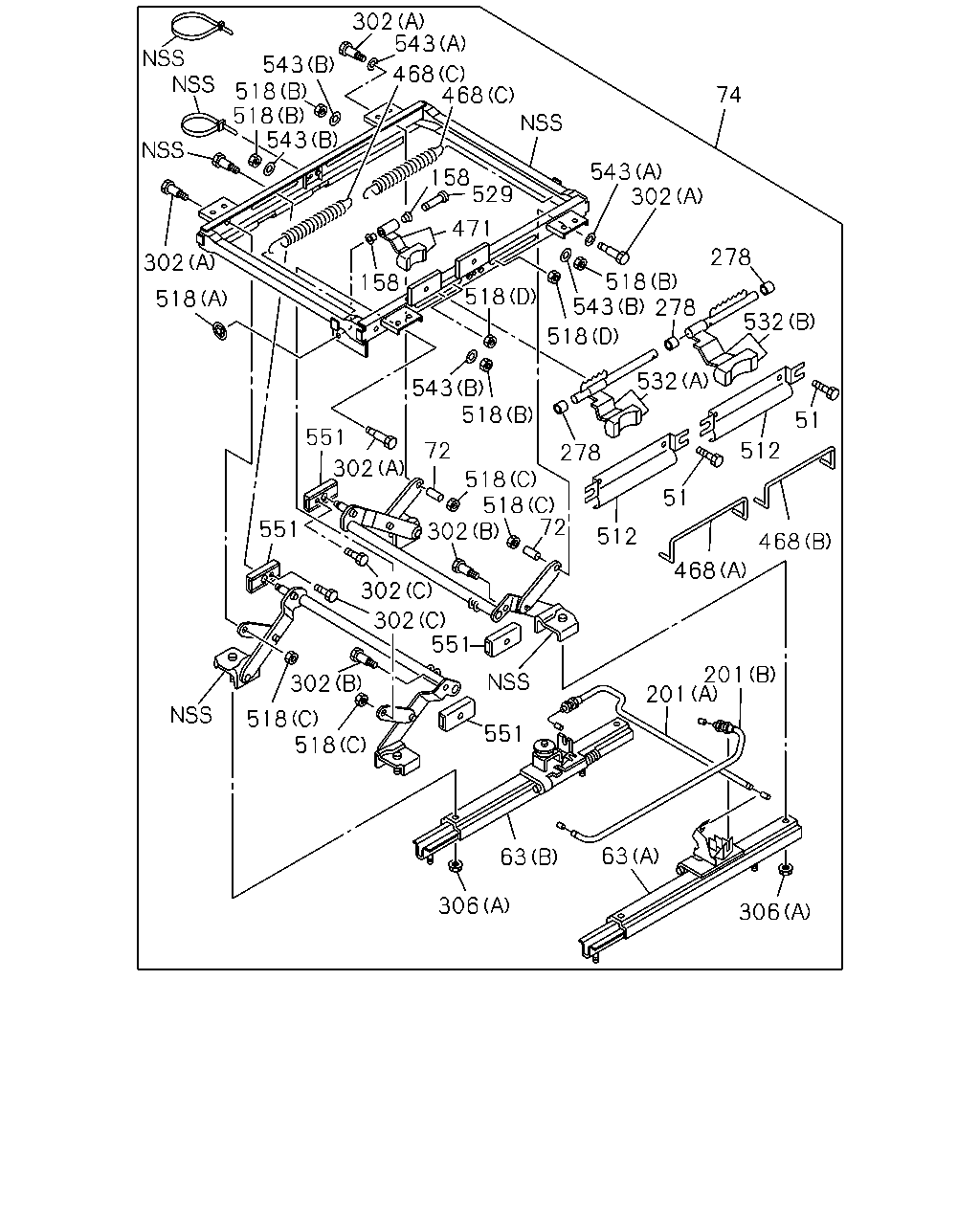

çizim 501858
302 543 518 302 518 543 543 518 158 158 468 529 471 518 543 74 302 518 543 518 543 72 551 551 302 518 518 518 302 302 302 551 302 518 518 468 72 512 551 63 306 63 201 306 201 468 51 512 51 468 278 532 532 278 278
BalonParca AdiParca NoAdetTipApplied Date
51 SCREW; COVER 1-75518-325-1 04 1 1511-
63 ADJUSTER; SEAT SLIDE
(B) 		1-75518-227-1 01 1 1511-
63 ADJUSTER; SEAT SLIDE
(A) 		1-75518-324-0 01 1 1511-
72 SPACER; SEAT ADJ 8-98291-668-0 02 1 1511-
74 ADJUSTER; FRT SEAT,HEIGHT CONT 8-98291-641-0 01 1 1511-
158 BUSHING; LINK ARM 1-75518-209-0 02 1 1511-
201 CABLE; ADJ
(A) L=667 		1-75518-288-0 01 1 1511-
201 CABLE; ADJ
(B) L=605 		1-75518-289-1 01 1 1511-
278 COLLAR; FRT SEAT 1-75518-244-0 03 1 1511-
302 BOLT; ADJ,HEIGHT CONT
(B) 		1-75518-266-2 02 1 1511-
302 BOLT; ADJ,HEIGHT CONT
(C) 		1-75518-336-1 02 1 1511-
302 BOLT; ADJ,HEIGHT CONT
(A) 		8-98291-667-0 04 1 1511-
306 NUT; SEAT ADJ
(B) M10 FLANGE 		0-91180-110-0 02 1 1511-
306 NUT; SEAT ADJ
(A) M8 FLANGE 		1-75538-207-0 06 1 1511-
468 SPRING; RETURN
(A) 		1-75518-206-0 01 1 1511-
468 SPRING; RETURN
(B) 		1-75518-207-0 01 1 1511-
468 SPRING; RETURN
(C) 		1-75518-208-0 02 1 1511-
468 SPRING; RETURN
(D) 		1-75538-132-0 01 1 1511-
471 LEVER; SEAT ADJ 8-98107-870-0 01 1 1511-
512 COVER; LEVER 1-75518-245-1 02 1 1511-
518 NUT; TILT ADJ
(A) 		1-75518-263-0 01 1 1511-
518 NUT; TILT ADJ
(C) M8 		1-75518-264-0 04 1 1511-
518 NUT; TILT ADJ
(E) M8 FLANGE 		1-75538-207-0 04 1 1511-
518 NUT; TILT ADJ
(D) M6 LOCK NUT 		5-09984-020-0 02 1 1511-
518 NUT; TILT ADJ
(B) M8 FLANGE 		8-94152-886-0 04 1 1511-
529 PIN; LINK 1-75518-262-0 01 1 1511-
532 LEVER ASM; TILT
(A) 		1-75518-221-0 01 1 1511-
532 LEVER ASM; TILT
(B) 		1-75518-222-1 01 1 1511-
543 WASHER; HEIGHT ADJUSTER
(A) ID=13 OD=19 		8-98291-669-0 02 1 1511-
543 WASHER; HEIGHT ADJUSTER
(B) ID=8.4 		9-09160-508-0 04 1 1511-
551 SLIDER; HEIGHT ADJ 1-75518-265-0 04 1 1511-

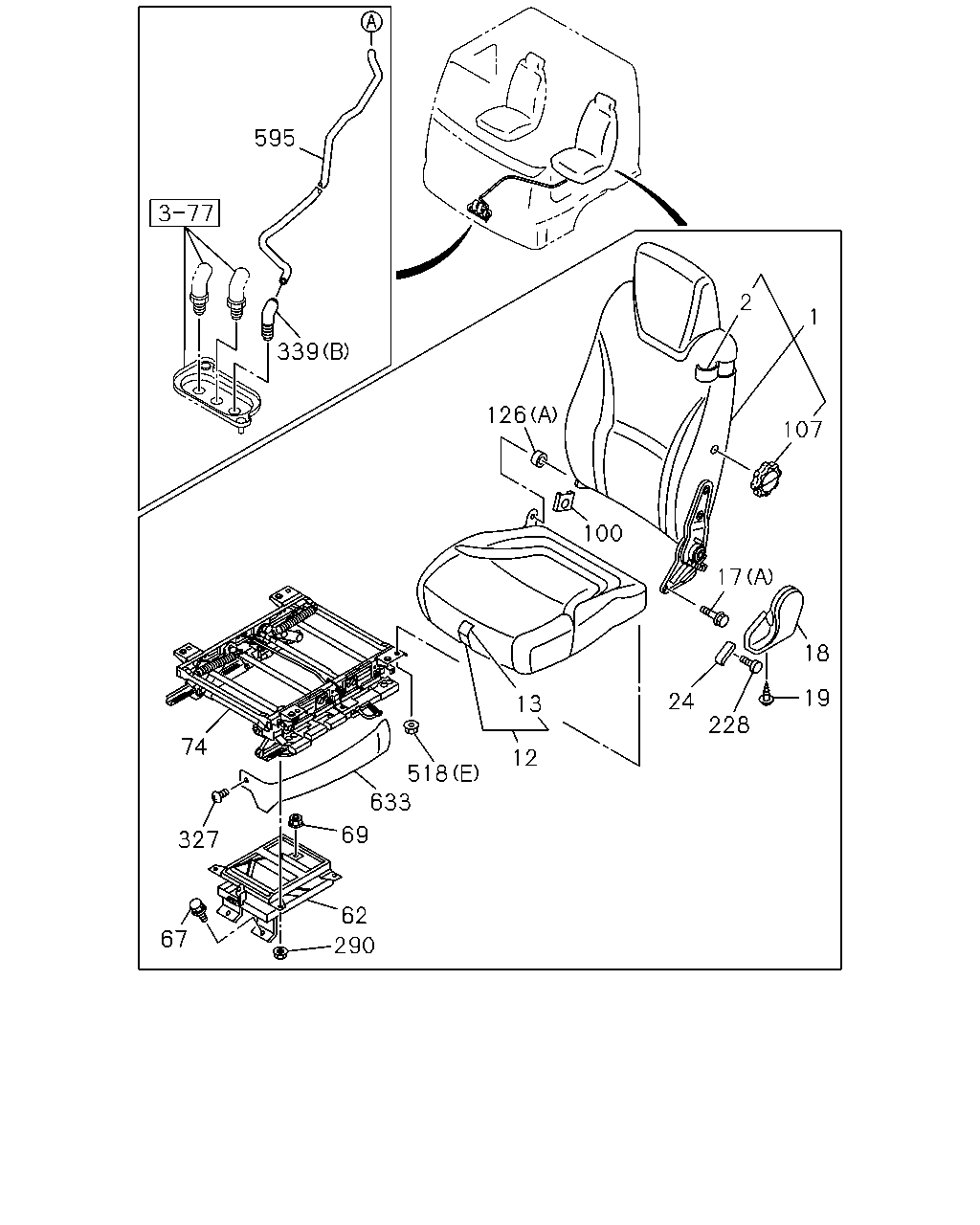

çizim 502695
595 339 126 107 24 228 18 19 17 62 290 67 327 74 633 69 518 13 12 100 2 1
BalonParca AdiParca NoAdetTipApplied Date
1 BACK ASM; SEAT
DARK GRAY 		8-97421-408-1 01 1 1511-
2 COVER; TRIM,FRT SEAT,BACK
DARK GRAY 		8-97421-413-0 01 1 1511-
12 CUSHION; SEAT,FRT
DARK GRAY 		8-97421-400-2 01 1 1511-
13 COVER; TRIM,FRT SEAT,CUSHION
DARK GRAY 		8-97421-404-2 01 1 1511-
17 BOLT; RECLINING
(A) M10X20 		8-98062-661-0 02 1 1511-
17 BOLT; RECLINING
(B) M8X20 		8-98092-334-0 02 1 1511-
18 COVER; RECLINING
GRAY 		8-97409-361-0 01 1 1511-
19 SCREW; COVER
M5 		8-98062-663-0 01 1 1511-
24 KNOB; RECLINING,FRT,SEAT
GRAY 		8-97409-362-0 01 1 1511-
62 DAMPER ASM; SEAT SUSP 8-98261-451-0 01 1 1511-
67 BOLT; FRT SEAT TO BODY
M10X20 FLANGE 		0-28451-020-0 02 1 1511-
69 NUT; FRT SEAT
M10 FLANGE 		0-91180-110-0 02 1 1511-
74 ADJUSTER; FRT SEAT,HEIGHT CONT 8-98291-641-0 01 1 1511-
100 COVER; HINGE 8-98203-070-0 01 1 1511-
107 DIAL; SEAT RECLINING 8-98063-174-0 01 1 1511-
126 BUSHING; HINGE,RECLINING
(A) 		8-98063-218-0 01 1 1511-
126 BUSHING; HINGE,RECLINING
SEAT ASM - WITH CENTER SEAT<7BC> (B) 		8-97854-900-0 01 1 1511-
228 SCREW; KNOB
M4 		8-98062-662-0 01 1 1511-
290 NUT; ADJ TO SUSP
M8 FLANGE 		1-75538-207-0 04 1 1511-
327 CLIP; COVER
ID=459 		1-09987-273-0 01 1 1511-
339 UNION; DRIVER SEAT
(A) 		1-75538-131-3 01 1 1511-
339 UNION; DRIVER SEAT
(B) 		8-98014-971-0 01 1 1511-
518 NUT; TILT ADJ
(A) 		1-75518-263-0 01 1 1511-
518 NUT; TILT ADJ
(C) M8 		1-75518-264-0 04 1 1511-
518 NUT; TILT ADJ
(E) M8 FLANGE 		1-75538-207-0 04 1 1511-
518 NUT; TILT ADJ
(D) M6 LOCK NUT 		5-09984-020-0 02 1 1511-
518 NUT; TILT ADJ
(B) M8 FLANGE 		8-94152-886-0 04 1 1511-
595 TUBE; NYLON 8-98067-762-0 01 1 1511-
633 COVER; ADJ,TILT
GRAY 		8-97414-118-0 01 1 1511-

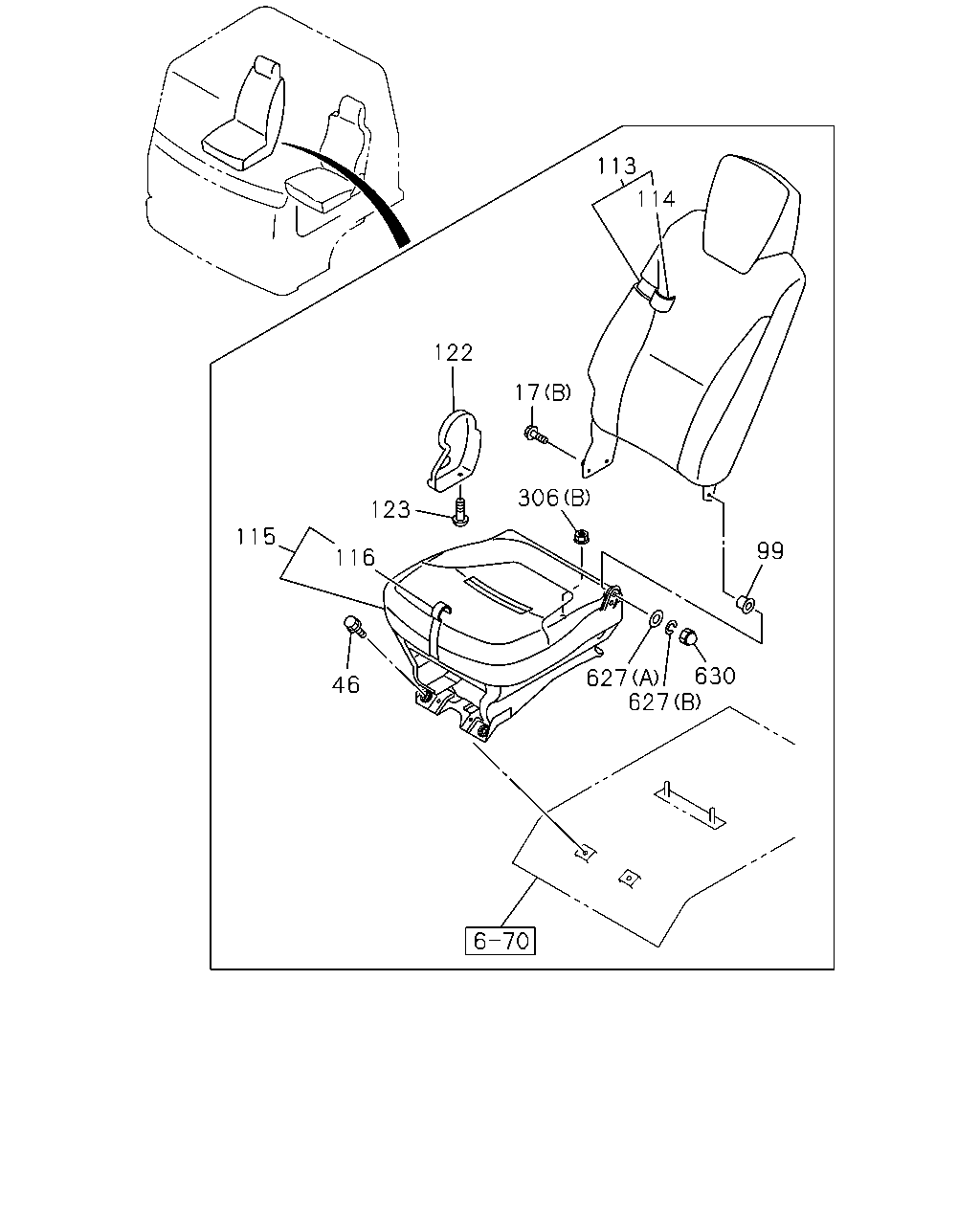

çizim 503125
114 113 306 17 122 123 116 115 46 627 627 630 99
BalonParca AdiParca NoAdetTipApplied Date
17 BOLT; RECLINING
(A) M10X20 		8-98062-661-0 02 1 1511-
17 BOLT; RECLINING
(B) M8X20 		8-98092-334-0 02 1 1511-
46 BOLT; STAND TO FLOOR
M10X20 FLANGE 		0-28451-020-0 02 1 1511-
99 BUSHING; SEAT BACK 8-98112-751-0 01 1 1511-
113 BACK ASM; SEAT
DARK GRAY 		8-97421-423-0 01 1 1511-
114 COVER; TRIM,PASSENGER SEAT,BACK
DARK GRAY 		8-97421-425-0 01 1 1511-
115 CUSHION ASM; PASSENGER SEAT
DARK GRAY 		8-97421-419-1 01 1 1511-
116 COVER; TRIM,PASSENGER SEAT,CUSHION
DARK GRAY 		8-97421-421-0 01 1 1511-
122 COVER; ADJ,RECLINING
GRAY 		8-97414-043-0 01 1 1511-
123 SCREW; COVER,RECLINING 8-98070-026-0 01 1 1511-
306 NUT; SEAT ADJ
(B) M10 FLANGE 		0-91180-110-0 02 1 1511-
306 NUT; SEAT ADJ
(A) M8 FLANGE 		1-75538-207-0 06 1 1511-
627 WASHER; FRT SEAT
(A) 		8-98063-223-0 01 1 1511-
627 WASHER; FRT SEAT
(B) 		8-98063-224-0 01 1 1511-
630 NUT; CAP
M8 		8-98063-225-0 01 1 1511-

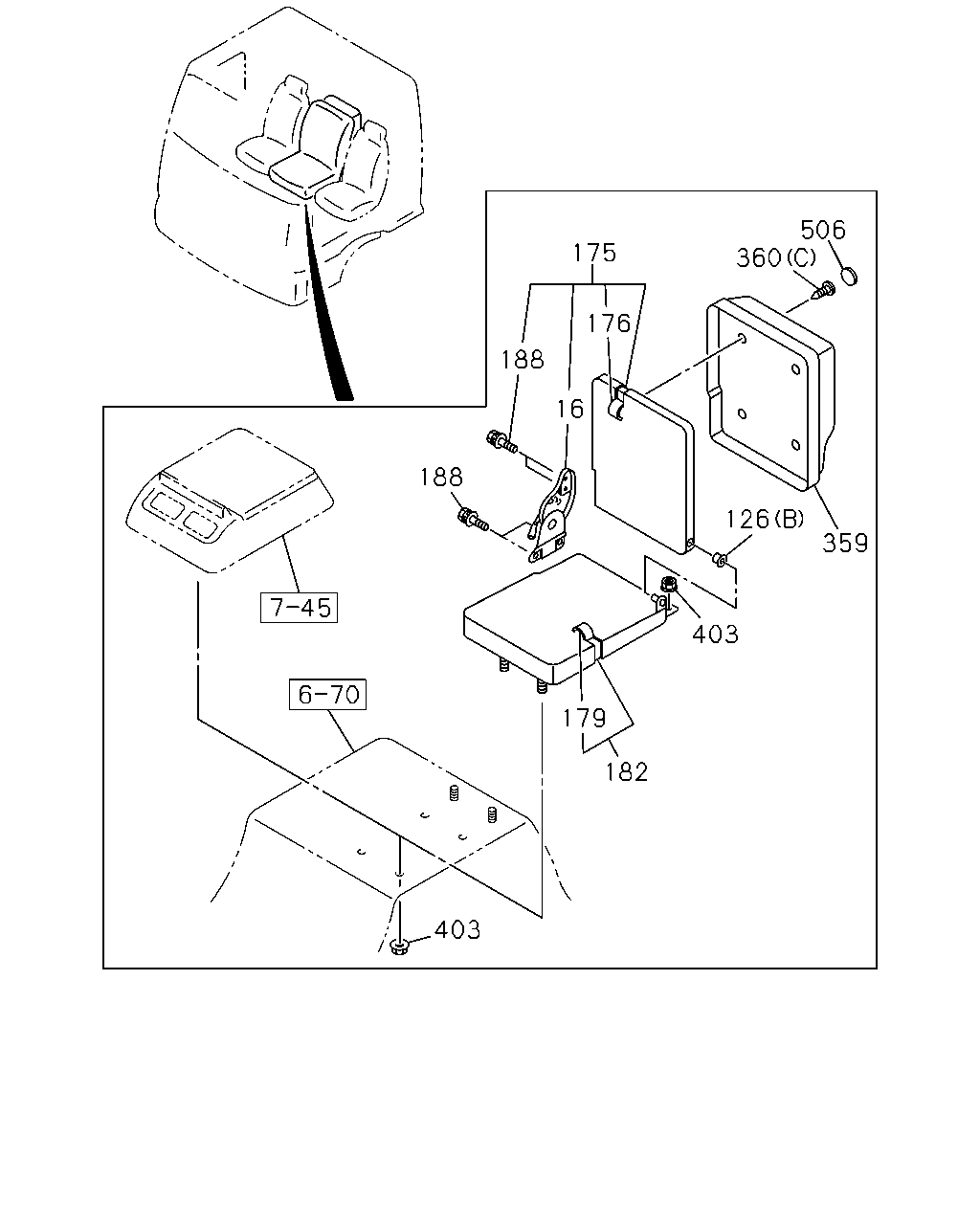

çizim 503318
403 182 179 403 359 126 506 360 175 176 188 188 16
BalonParca AdiParca NoAdetTipApplied Date
16 ADJUSTER ASM; RECLINING
SEAT ASM - WITH CENTER SEAT<7BC> 		1-75418-062-1 01 1 1511-
126 BUSHING; HINGE,RECLINING
(A) 		8-98063-218-0 01 1 1511-
126 BUSHING; HINGE,RECLINING
SEAT ASM - WITH CENTER SEAT<7BC> (B) 		8-97854-900-0 01 1 1511-
175 BACK ASM; PASSENGER CENTER SEAT
SEAT ASM - WITH CENTER SEAT<7BC> DARK GRAY 		8-97421-434-1 01 1 1511-
176 COVER; TRIM,PASSENGER SEAT CENTER,BACK
SEAT ASM - WITH CENTER SEAT<7BC> DARK GRAY 		8-97421-435-1 01 1 1511-
179 COVER; TRIM,PASSENGER SEAT CENTER,CUSH
SEAT ASM - WITH CENTER SEAT<7BC> DARK GRAY 		8-97421-433-1 01 1 1511-
182 CUSHION ASM; CENTER SEAT
SEAT ASM - WITH CENTER SEAT<7BC> DARK GRAY 		8-97421-431-3 01 1 1511-
188 BOLT; BACK TO CUSHION
SEAT ASM - WITH CENTER SEAT<7BC> M10X16 FLANGE 		1-75198-053-0 04 1 1511-
359 BOX; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> GRAY 		8-97417-261-0 01 1 1511-
360 SCREW; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> (B) M4X16 		0-70040-416-0 06 1 1511-
360 SCREW; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> (A) M5X14 TAPPING CK-HEAD 		0-70040-514-0 02 1 1511-
360 SCREW; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> (C) M5 		8-98062-663-0 04 1 1511-
403 NUT; CENTER SEAT
SEAT ASM - WITH CENTER SEAT<7BC> M8 FLANGE 		0-91180-108-0 04 1 1511-
506 CAP; PARCEL BOX
SEAT ASM - WITH CENTER SEAT<7BC> GRAY 		8-97409-980-1 02 1 1511-

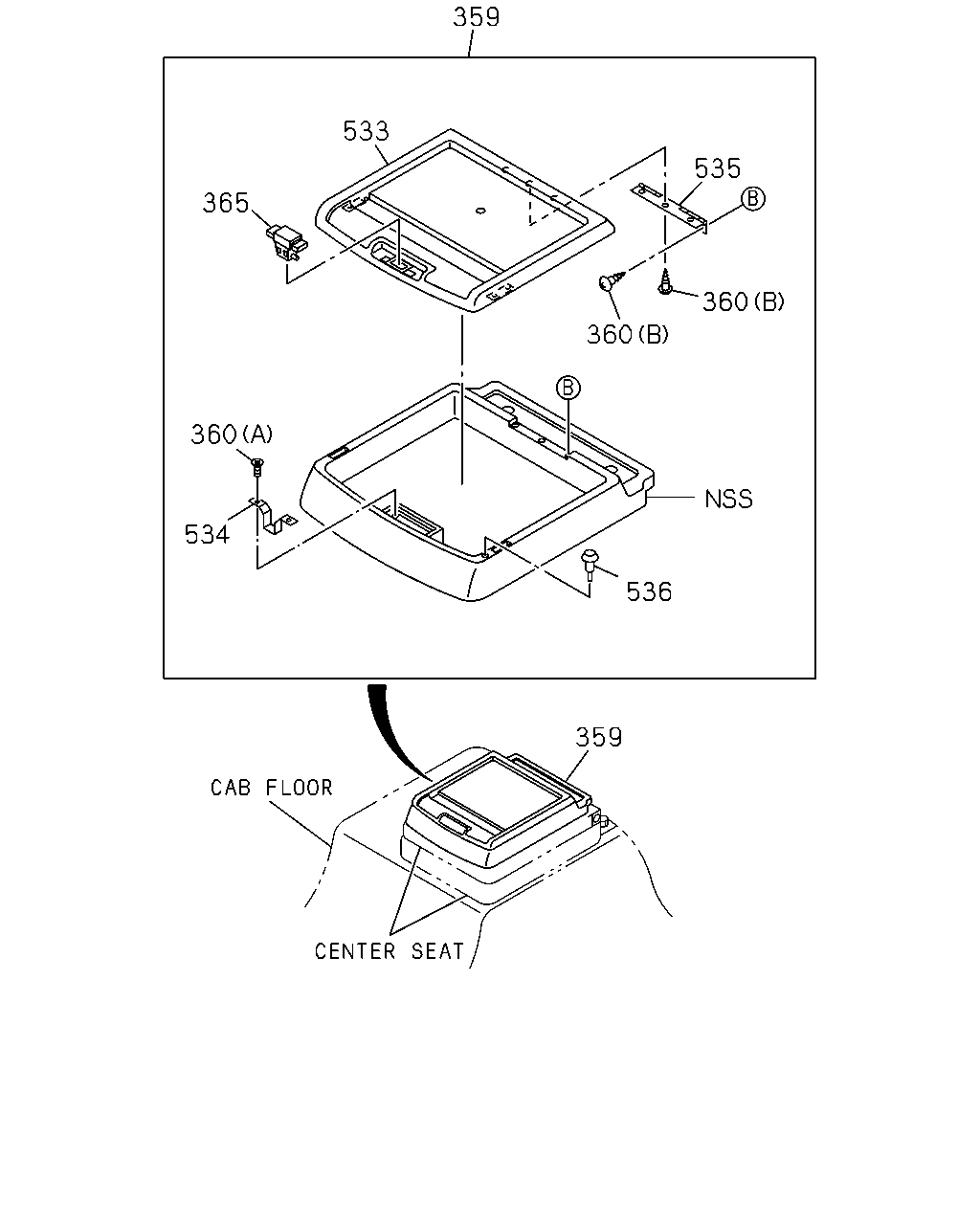

çizim 503431
359 533 365 360 534 535 360 360 536 359
BalonParca AdiParca NoAdetTipApplied Date
359 BOX; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> GRAY 		8-97417-261-0 01 1 1511-
360 SCREW; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> (B) M4X16 		0-70040-416-0 06 1 1511-
360 SCREW; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> (A) M5X14 TAPPING CK-HEAD 		0-70040-514-0 02 1 1511-
360 SCREW; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> (C) M5 		8-98062-663-0 04 1 1511-
365 LOCK ASM; SEAT
SEAT ASM - WITH CENTER SEAT<7BC> 		1-72538-312-0 01 1 1511-
533 LID; PARCEL BOX
SEAT ASM - WITH CENTER SEAT<7BC> GRAY 		8-97417-263-0 01 1 1511-
534 STRIKER; PARCEL BOX
SEAT ASM - WITH CENTER SEAT<7BC> 		1-72538-190-0 01 1 1511-
535 HINGE; PARCEL BOX
SEAT ASM - WITH CENTER SEAT<7BC> 		1-72447-391-1 01 1 1511-
536 RUBBER; CUSHION
SEAT ASM - WITH CENTER SEAT<7BC> 		1-72538-187-0 02 1 1511-

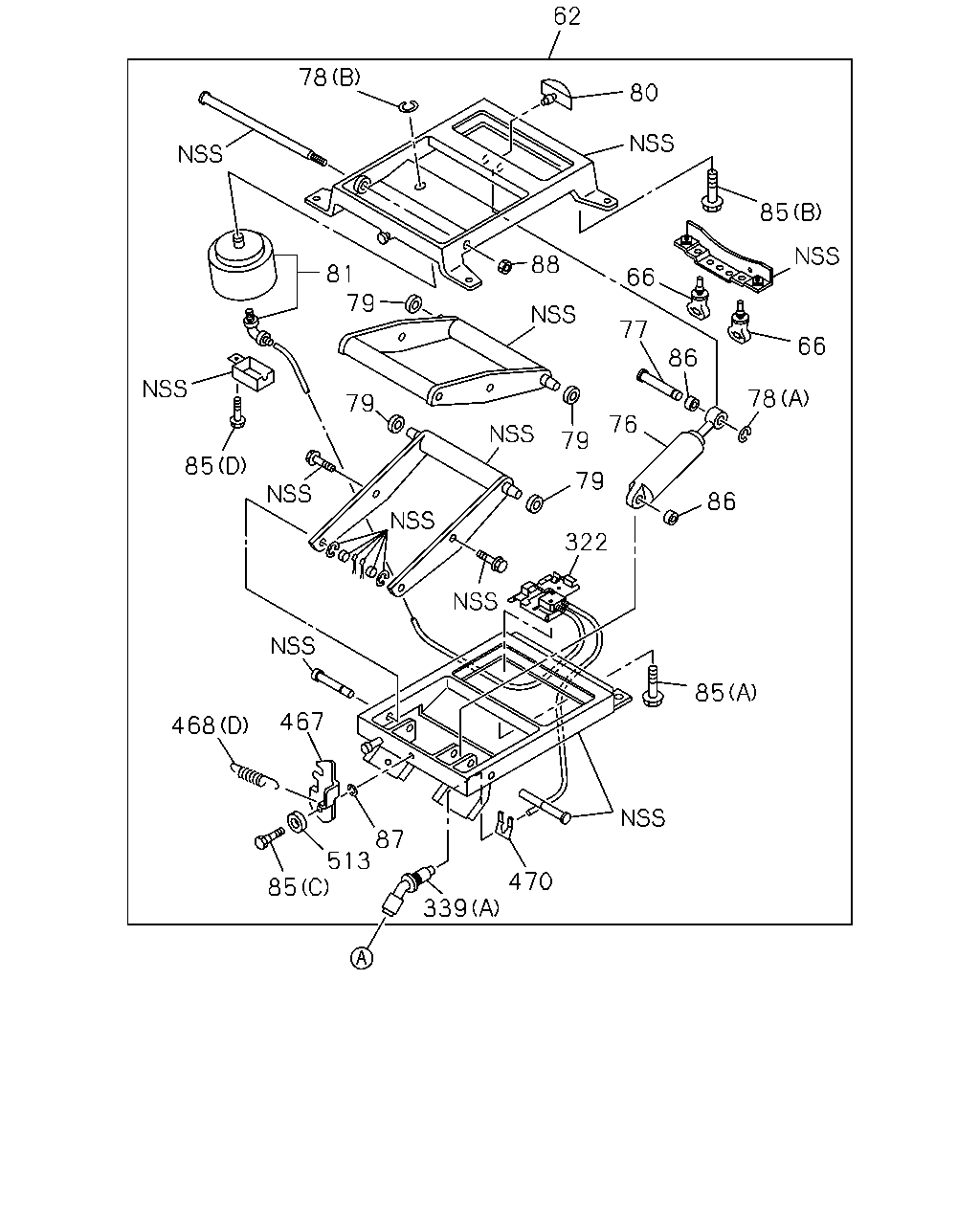

çizim 503546
62 80 78 81 79 79 85 467 468 85 87 513 339 85 470 85 322 79 79 76 77 78 66 85 66 88 86
BalonParca AdiParca NoAdetTipApplied Date
62 DAMPER ASM; SEAT SUSP 8-98261-451-0 01 1 1511-
66 RUBBER; LWR STOPPER 1-75538-145-0 02 1 1511-
76 DAMPER; AIR SUSP 1-75538-139-0 01 1 1511-
77 PIN; DAMPER 1-75538-138-2 01 1 1511-
78 RING; SNAP
(A) ID=8 		9-09185-408-0 01 1 1511-
78 RING; SNAP
(B) ID=15 		9-09185-415-0 01 1 1511-
79 ROLLER ASM; AIR SUSP 8-98261-489-0 04 1 1511-
80 RUBBER; STOPPER 1-09987-123-0 01 1 1511-
81 SPRING; AIR 8-98242-816-0 01 1 1511-
85 BOLT; AIR SUSP
(C) 		1-09980-577-1 01 1 1511-
85 BOLT; AIR SUSP
(A) M6X12 		1-75538-208-1 02 1 1511-
85 BOLT; AIR SUSP
(B) M8X22 W/LK&PL WASHER 		1-75538-209-0 02 1 1511-
85 BOLT; AIR SUSP
(D) M8X25 W/LK&PL WASHER 		8-98243-394-0 01 1 1511-
86 BUSHING; GUIDE
OD=6.2 LIGHT GRAY 		1-09983-173-1 02 1 1511-
87 WASHER; AIR SUSP
ID=8.2 		0-91510-508-0 01 1 1511-
88 NUT; AIR SUSP
M10 		1-75537-273-1 01 1 1511-
322 VALVE; AIR SPRING 1-75538-187-3 01 1 1511-
339 UNION; DRIVER SEAT
(A) 		1-75538-131-3 01 1 1511-
339 UNION; DRIVER SEAT
(B) 		8-98014-971-0 01 1 1511-
467 LEVER; LOCK 1-75538-134-0 01 1 1511-
468 SPRING; RETURN
(A) 		1-75518-206-0 01 1 1511-
468 SPRING; RETURN
(B) 		1-75518-207-0 01 1 1511-
468 SPRING; RETURN
(C) 		1-75518-208-0 02 1 1511-
468 SPRING; RETURN
(D) 		1-75538-132-0 01 1 1511-
470 CLIP; HOSE 1-75538-137-0 01 1 1511-
513 SPACER; LEVER 1-75538-133-0 01 1 1511-
