Isuzu WW
▶
TRUCKS
▶
FSR
▶
11724 - FSR LHD EURO5 EXC.SPACECAB
▶
7 - Interior Trim, Emblems / Labels, Seats, Mirrors
▶
7-43 - SUN VISOR AND ASSIST GRIP
▶
7-43 — SUN VISOR AND ASSIST GRIP
(#170443) — 50 parça
◀

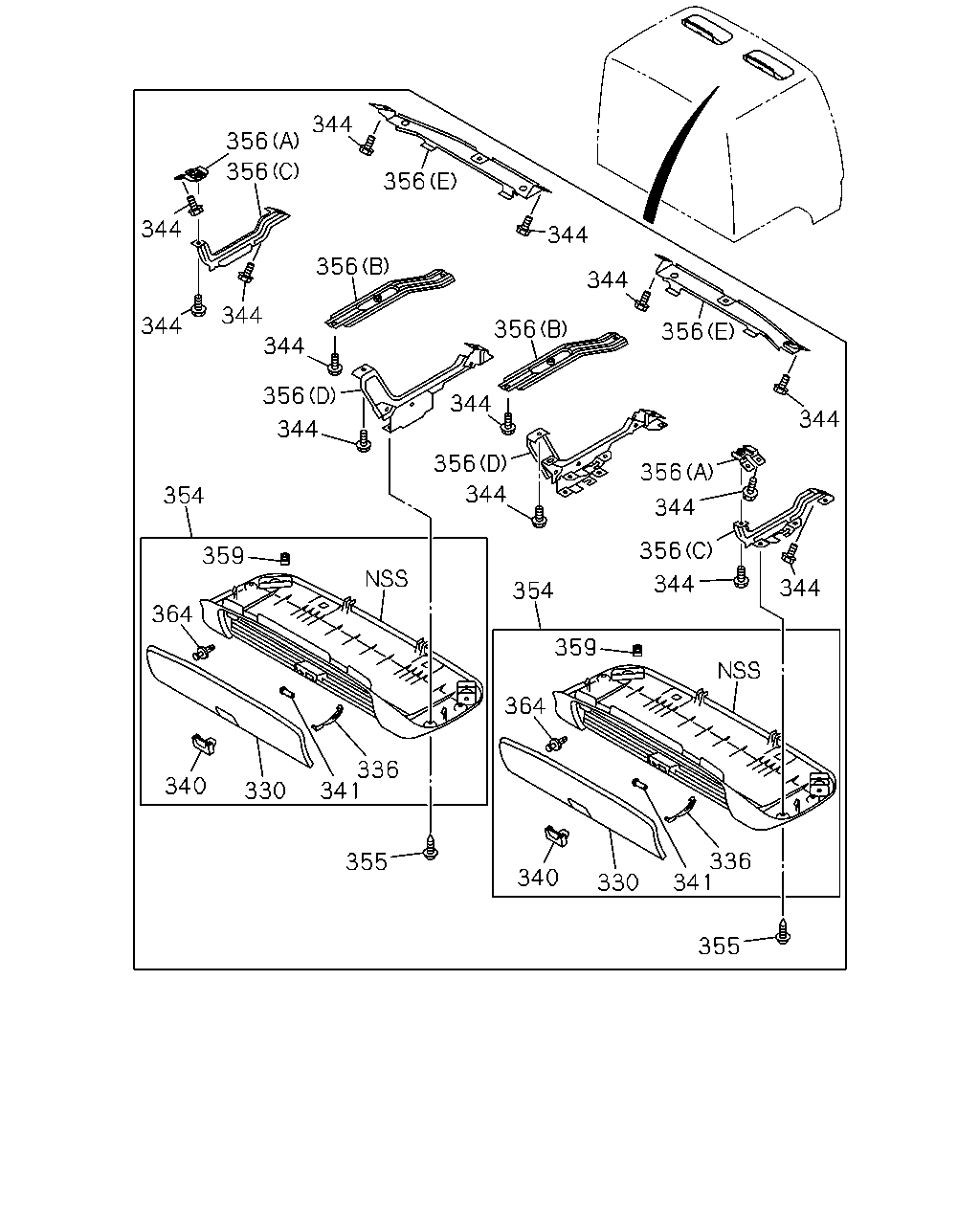

[743A] TRAY; HEADER ROOF (17 parça)

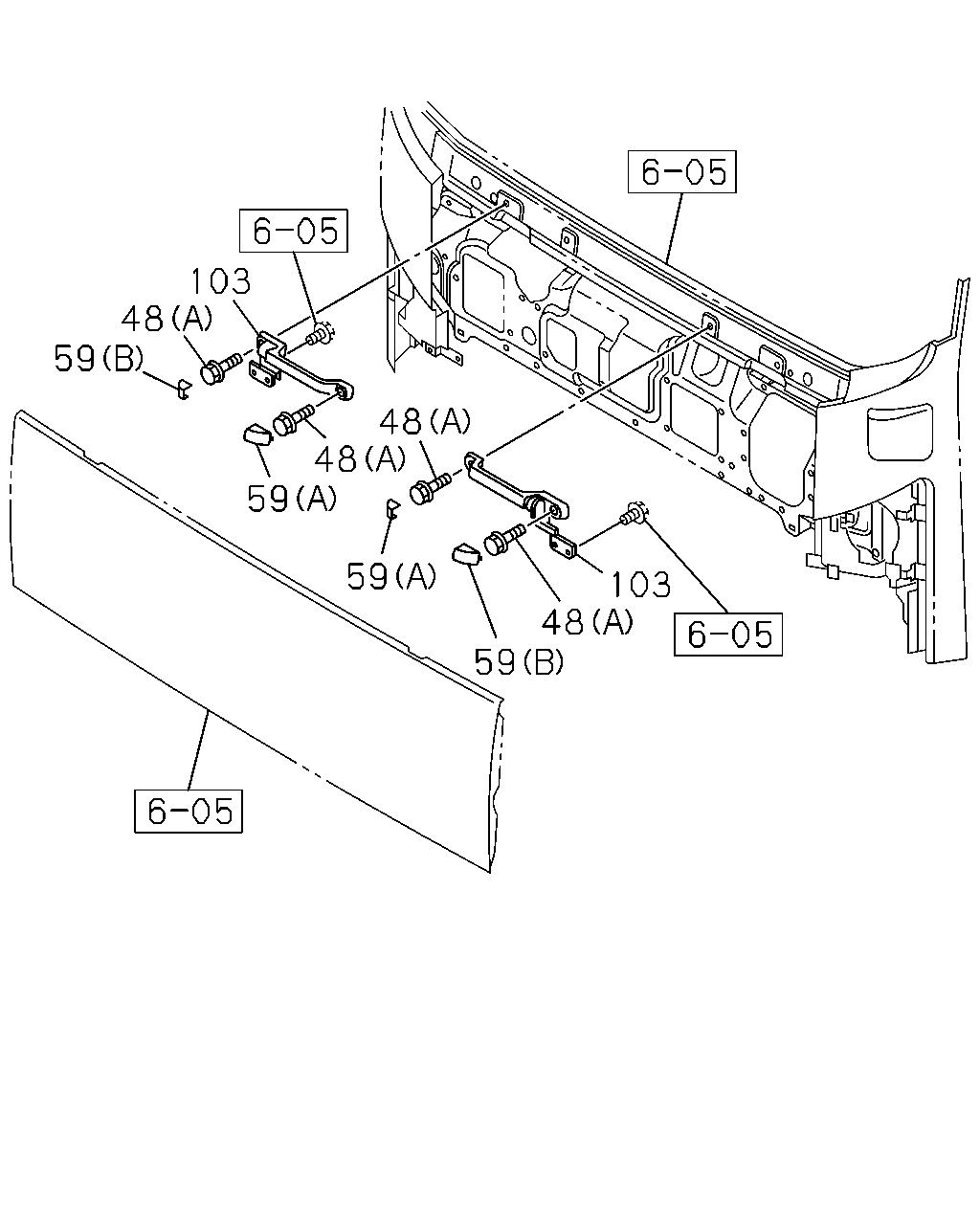

[743A] ASSIST GRIP; CAB OUTSIDE (7 parça)

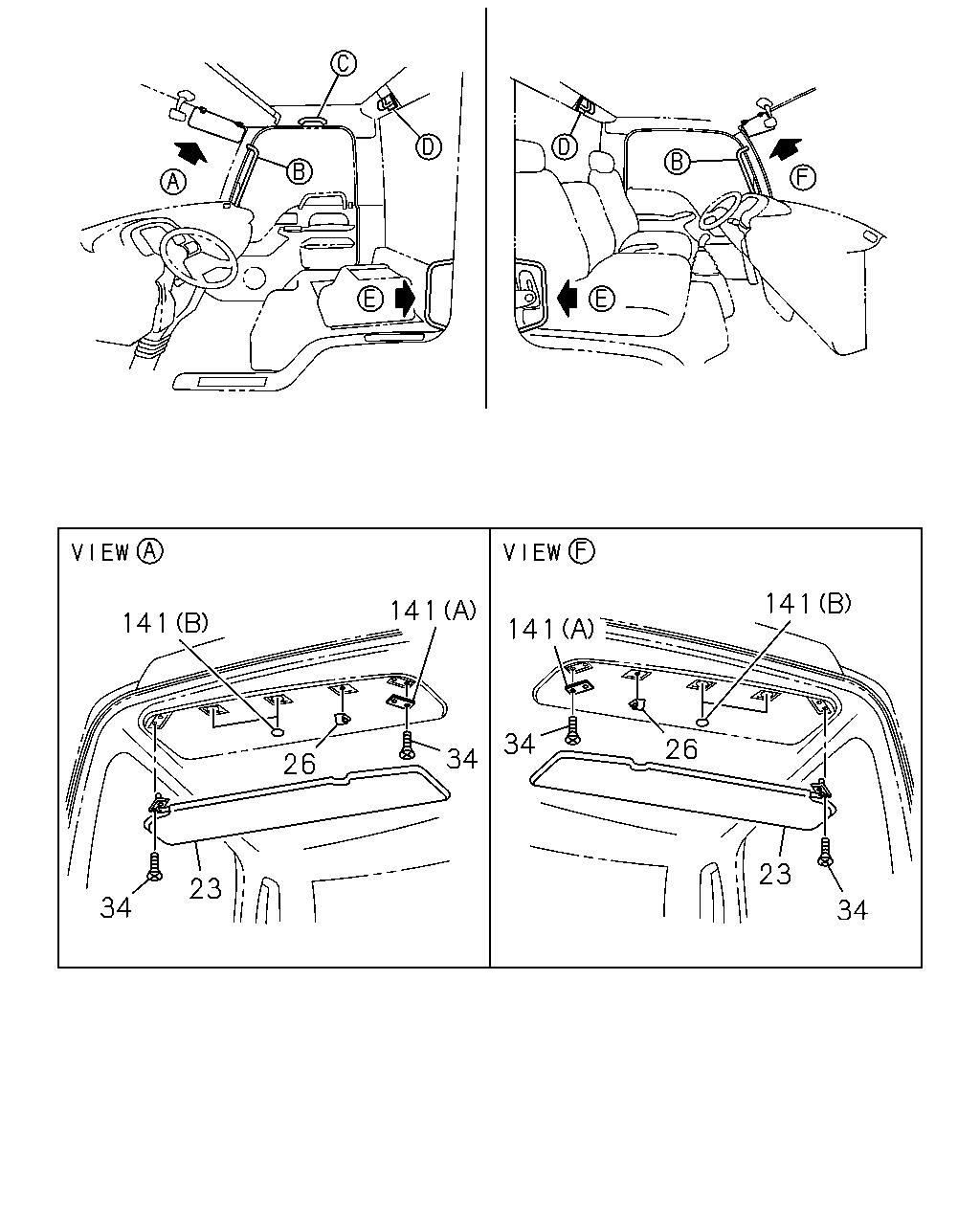

[743A] SUN VISOR (7 parça)

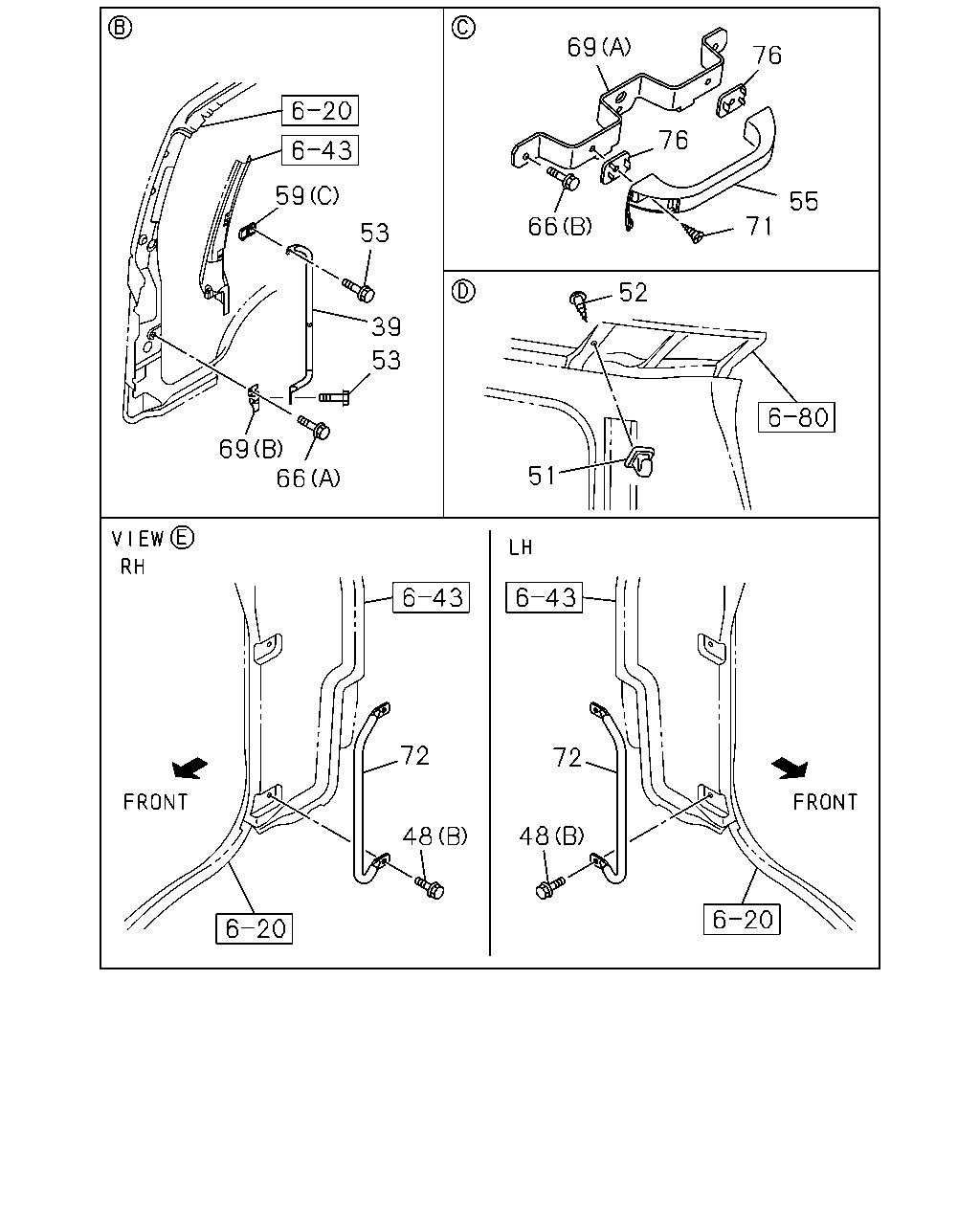

[743A] ASSIST GRIP; CAB INSIDE (19 parça)
▶
344
356
356
344
344
344
356
356
344
356
344
354
359
364
340
330
341
355
364
359
340
330
341
355
336
344
344
344
356
344
356
344
354
344
356
356
344
344
356
336
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
330
LID; HEADER SHELF
HEADER CONSOLE DRIVER & PASSENGER<EDG> DARK GRAY
8-97407-834-1
02
1
1511-
336
STAY; LID
HEADER CONSOLE DRIVER & PASSENGER<EDG>
1-72448-379-3
04
1
1511-
340
LOCK; HEADER SHELF
HEADER CONSOLE DRIVER & PASSENGER<EDG>
1-72448-376-0
02
1
1511-
341
HINGE; LID,HEADER SHELF
HEADER CONSOLE DRIVER & PASSENGER<EDG>
8-98025-428-2
04
1
1511-
344
BOLT; BRKT,FRT
HEADER CONSOLE DRIVER & PASSENGER<EDG> M6X12 FLANGE
8-97108-669-0
20
1
1511-
354
TRAY; HEADER ROOF
HEADER CONSOLE DRIVER & PASSENGER<EDG> DARK GRAY
8-97428-821-0
02
1
1511-
355
SCREW; TRAY
HEADER CONSOLE DRIVER & PASSENGER<EDG> M5X16 TAPPING HEXALOBULAR
0-72380-516-0
08
1
1511-
356
BRACKET; ROOF OUTER
HEADER CONSOLE DRIVER & PASSENGER<EDG> (A)
8-97386-874-1
02
1
1511-
356
BRACKET; ROOF OUTER
HEADER CONSOLE DRIVER & PASSENGER<EDG> (B)
8-98010-059-0
02
1
1511-
356
BRACKET; ROOF OUTER
HEADER CONSOLE DRIVER & PASSENGER<EDG> (C)
8-98016-871-3
01
1
1511-
356
BRACKET; ROOF OUTER
HEADER CONSOLE DRIVER & PASSENGER<EDG> (D)
8-98042-009-2
01
1
1511-
356
BRACKET; ROOF OUTER
HEADER CONSOLE DRIVER & PASSENGER<EDG> (E)
8-98042-016-3
01
1
1511-
356
BRACKET; ROOF OUTER
HEADER CONSOLE DRIVER & PASSENGER<EDG> (C)
8-98014-088-3
01
1
1511-
356
BRACKET; ROOF OUTER
HEADER CONSOLE DRIVER & PASSENGER<EDG> (D)
8-98023-257-2
01
1
1511-
356
BRACKET; ROOF OUTER
HEADER CONSOLE DRIVER & PASSENGER<EDG> (E)
8-98042-015-3
01
1
1511-
359
HOLDER; HEADER TRAY
HEADER CONSOLE DRIVER & PASSENGER<EDG>
8-98041-754-0
08
1
1511-
364
STOPPER; LID
HEADER CONSOLE DRIVER & PASSENGER<EDG>
8-98010-867-1
06
1
1511-
103
48
59
48
59
48
103
48
59
59
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
48
BOLT; ASSIST GRIP
(B) M8X16 FLANGE
0-28060-816-0
04
1
1511-
48
BOLT; ASSIST GRIP
(A) M8X30 FLANGE
0-28660-830-0
04
1
1511-
59
COVER; ASSIST GRIP
(B)
1-71998-789-2
02
1
1511-
59
COVER; ASSIST GRIP
(A)
1-71998-790-2
02
1
1511-
59
COVER; ASSIST GRIP
(C) DARK GRAY
8-97407-417-1
02
1
1511-
103
GRIP; ASSIST,FRT PNL
8-98036-565-1
01
1
1511-
103
GRIP; ASSIST,FRT PNL
8-98036-566-1
01
1
1511-
141
141
34
26
23
34
34
141
141
34
23
26
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
23
SUN VISOR
HEADER CONSOLE DRIVER & PASSENGER<EDG> DARK GRAY
8-97405-170-3
01
1
1511-
23
SUN VISOR
HEADER CONSOLE DRIVER & PASSENGER<EDG> DARK GRAY
8-97407-373-2
01
1
1511-
26
HOLDER; SUN VISOR
HEADER CONSOLE DRIVER & PASSENGER<EDG> DARK GRAY
8-97405-171-0
02
1
1511-
34
SCREW; SUN VISOR
HEADER CONSOLE DRIVER & PASSENGER<EDG> M6X26
8-98033-674-0
04
1
1511-
34
SCREW; SUN VISOR
HEADER CONSOLE DRIVER & PASSENGER<EDG> M6X26
8-98033-674-0
04
1
1511-
141
COVER; SUN VISOR
HEADER CONSOLE DRIVER & PASSENGER<EDG> (A) L=66 B=30 DARK GRAY
8-97408-029-0
02
1
1511-
141
COVER; SUN VISOR
HEADER CONSOLE DRIVER & PASSENGER<EDG> (B) OD=30 T=0.05 DARK GRAY
8-97408-030-0
04
1
1511-
59
53
39
53
69
66
72
48
48
72
51
52
71
55
76
69
76
66
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
39
HANDLE; ASSIST,A-POST
DARK GRAY
8-97407-943-2
01
1
1511-
39
HANDLE; ASSIST,A-POST
DARK GRAY
8-97407-942-2
01
1
1511-
48
BOLT; ASSIST GRIP
(B) M8X16 FLANGE
0-28060-816-0
04
1
1511-
48
BOLT; ASSIST GRIP
(A) M8X30 FLANGE
0-28660-830-0
04
1
1511-
51
HOOK; COAT HANGER
DARK GRAY
8-97409-845-0
02
1
1511-
52
SCREW; HOOK
M4X20 TAPPING OVAL-HEAD
0-70540-420-0
02
1
1511-
53
SCREW; ASSIST HANDLE
M8X20 FLANGE
0-28650-820-0
04
1
1511-
55
GRIP; ASSIST,CAB SIDE UPR
DARK GRAY
8-97405-285-2
01
1
1511-
59
COVER; ASSIST GRIP
(B)
1-71998-789-2
02
1
1511-
59
COVER; ASSIST GRIP
(A)
1-71998-790-2
02
1
1511-
59
COVER; ASSIST GRIP
(C) DARK GRAY
8-97407-417-1
02
1
1511-
66
BOLT; ASSIST GRIP BRKT
(A) M8X16 FLANGE
0-28050-816-0
04
1
1511-
66
BOLT; ASSIST GRIP BRKT
(B) M6X12 FLANGE
8-97108-669-0
06
1
1511-
69
BRACKET; ASSIST GRIP
(A)
8-98014-094-0
02
1
1511-
69
BRACKET; ASSIST GRIP
(B)
8-98057-974-3
01
1
1511-
69
BRACKET; ASSIST GRIP
(B)
8-98057-973-3
01
1
1511-
71
SCREW
M6X28
8-98004-344-0
02
1
1511-
72
GRIP; ASSIST,CAB ENTRY,BACK
8-97386-939-0
02
1
1511-
76
SPACER; ASSIST GRIP
DARK GRAY
8-97405-286-0
02
1
1511-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
