7-40 — INSTRUMENT PANEL AND BOX (#170441) — 105 parça

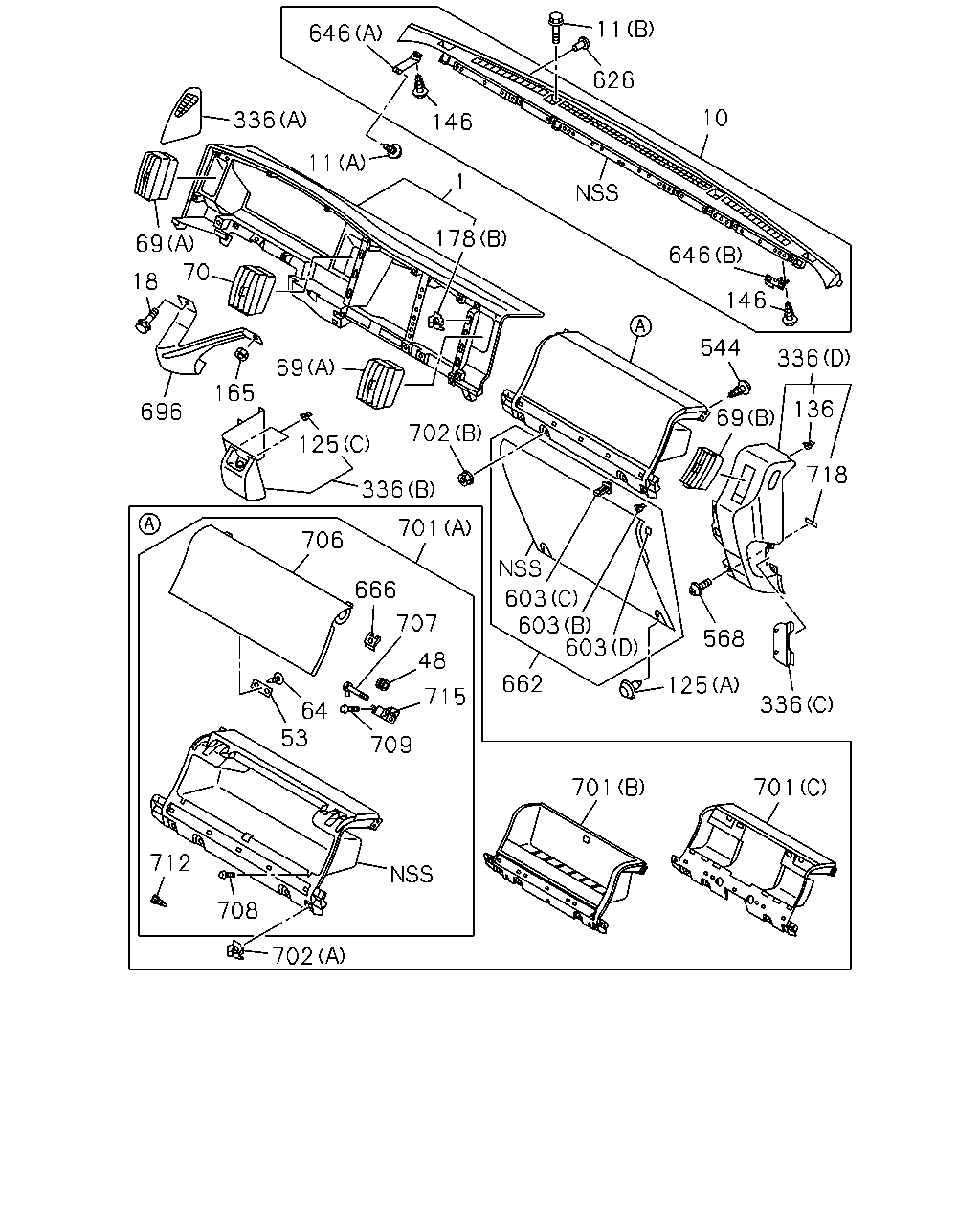

çizim 501061
11 626 10 146 646 11 336 69 18 70 696 165 69 125 702 336 701 706 666 707 48 715 709 64 53 712 708 702 701 701 125 336 568 603 603 603 662 718 69 136 336 146 646 178 1 544
BalonParca AdiParca NoAdetTipApplied Date
1 PANEL; INST
GRAY 		8-97409-777-3 01 1 1511-
10 PANEL ASM; GARNISH
GRAY 		8-97422-096-1 01 1 1511-
11 BOLT; INST PNL
(A) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 08 1 1511-
11 BOLT; INST PNL
(B) M6X25 W/LK&PL WASHER 		8-98018-440-0 04 1 1511-
18 BOLT; BRKT
M6X12 W/LK&PL WASHER 		0-52000-612-0 01 1 1511-
48 SPRING; GLOVE BOX LID
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> 		8-98270-763-0 01 1 1511-
48 SPRING; GLOVE BOX LID
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> 		8-98270-764-0 01 1 1511-
53 STRIKER; GLOVE BOX
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> 		8-98270-765-0 01 1 1511-
64 SCREW; STRIKER
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> M4X85 		8-97926-404-0 02 1 1511-
69 GRILLE; SIDE,AIR OUTLET
(B) 		8-98028-562-2 01 1 1511-
69 GRILLE; SIDE,AIR OUTLET
(A) 		8-98028-563-2 02 1 1511-
70 GRILLE; CENTER,AIR OUTLET 8-98028-561-2 01 1 1511-
125 CLIP; INST PANEL
(B) GRAY 		8-97408-817-0 04 1 1511-
125 CLIP; INST PANEL
(A) GRAY 		8-97419-968-1 02 1 1511-
125 CLIP; INST PANEL
(C) 		8-98021-271-0 02 1 1511-
136 CLIP; INST COVER 8-98076-254-0 02 1 1511-
146 SCREW; TAP
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 03 1 1511-
165 NUT; BRKT KNEE PAD
M6 FLANGE 		0-91180-106-0 01 1 1511-
178 NUT; INST PANEL
(A) M6 FLANGE 		0-91180-106-0 01 1 1511-
178 NUT; INST PANEL
(B) 		8-98037-629-0 15 1 1511-
336 COVER; INST PANEL SIDE
(A) GRAY 		8-97409-779-0 01 1 1511-
336 COVER; INST PANEL SIDE
(B) GRAY 		8-97409-780-3 01 1 1511-
336 COVER; INST PANEL SIDE
(C) GRAY 		8-97411-635-2 01 1 1511-
336 COVER; INST PANEL SIDE
(D) GRAY 		8-97424-712-0 01 1 1511-
544 SCREW; TRAY
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 03 1 1511-
568 BOLT; COVER
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1511-
603 CLIP; COVER
(A) 		8-98004-025-0 01 1 1511-
603 CLIP; COVER
(B) 		8-98021-271-0 01 1 1511-
603 CLIP; COVER
(B) 		8-98021-271-0 05 1 1511-
603 CLIP; COVER
(C) 		8-98162-058-1 02 1 1511-
603 CLIP; COVER
(D) 		8-98167-222-0 02 1 1511-
626 RETAINER
OD=15 BLACK 		8-94279-804-0 02 1 1511-
646 BRACKET; GARNISH PANEL
(A) 		8-98066-952-1 01 1 1511-
646 BRACKET; GARNISH PANEL
(B) 		8-98066-953-1 01 1 1511-
662 COVER; LWR,INST PANEL
GRAY 		8-97419-960-2 01 1 1511-
666 INSERT; INST PANEL
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> M5 		8-97926-400-0 04 1 1511-
696 BRACKET; KNEE 8-98098-126-1 01 1 1511-
701 TRAY; INST
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> (A) GRAY 		8-97429-703-1 01 1 1511-
701 TRAY; INST
EXC. COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN>, COMPARTMENT - I/P ASSIST SIDE WITHOUT LID<JDP> (C) GRAY 		8-97417-196-2 01 1 1511-
701 TRAY; INST
COMPARTMENT - I/P ASSIST SIDE WITHOUT LID<JDP> (B) GRAY 		8-97421-976-1 01 1 1511-
702 NUT; TRAY
(B) M6 FLANGE 		0-91180-106-0 02 1 1511-
702 NUT; TRAY
(A) 		8-98037-629-0 01 1 1511-
706 LID; TRAY INST
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> GRAY 		8-97429-992-0 01 1 1511-
707 SHAFT; TRAY INST LID
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> 		8-97926-393-0 02 1 1511-
708 STOPPER; TRAY INST LID
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> 		8-98010-867-1 02 1 1511-
709 SCREW; TRAY INST
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> M5X16 TAPPING 		0-71040-516-0 04 1 1511-
712 LOCK; TRAY INST LID
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> 		8-98031-846-0 01 1 1511-
715 SUPPORT; TRAY,HINGE
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> 		8-97926-396-0 01 1 1511-
715 SUPPORT; TRAY,HINGE
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> 		8-97926-397-0 01 1 1511-
718 SEAL; COVER 8-98185-153-0 01 1 1511-

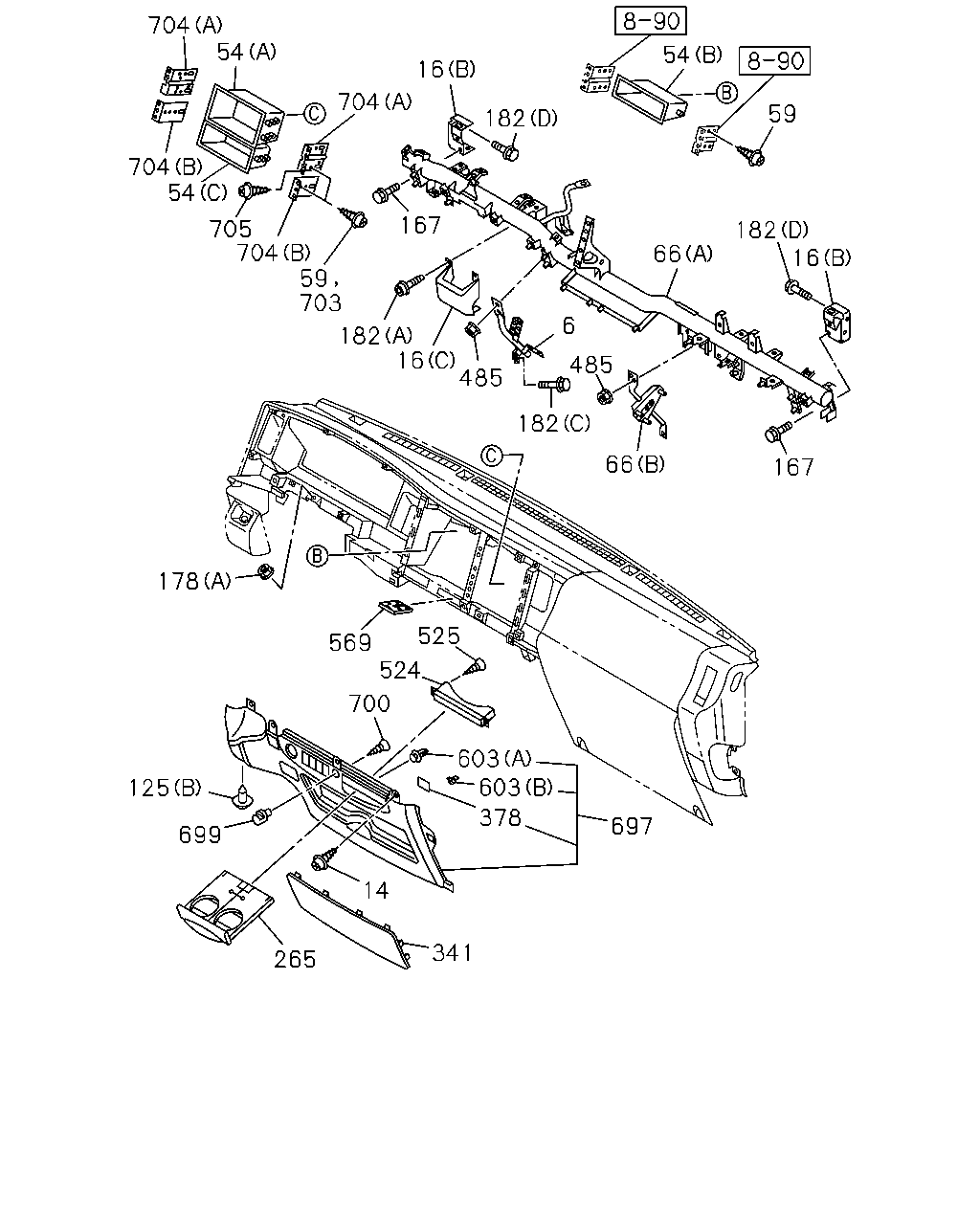

çizim 501390
704 54 704 54 705 704 59 703 182 16 485 182 66 167 16 182 66 182 16 704 167 54 59 525 524 569 700 603 603 378 697 14 341 265 699 125 178 6 485
BalonParca AdiParca NoAdetTipApplied Date
6 SUPPORT; INST PANEL 8-98064-936-1 01 1 1511-
14 SCREW; INST PNL
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 04 1 1511-
16 BRACKET; INST PNL
(C) 		8-98063-326-0 01 1 1511-
16 BRACKET; INST PNL
(B) 		8-98017-204-1 01 1 1511-
16 BRACKET; INST PNL
(B) 		8-98017-202-1 01 1 1511-
16 BRACKET; INST PNL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) 		8-97585-612-2 01 1 1511-
16 BRACKET; INST PNL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (D) 		8-98017-527-0 01 1 1511-
54 POCKET; CENTER CLUSTER
(A) H=108.4 BLACK 		8-97407-129-3 01 1 1511-
54 POCKET; CENTER CLUSTER
(B) H=58.4 BLACK 		8-97408-864-3 01 1 1511-
54 POCKET; CENTER CLUSTER
(C) H=69.8 BLACK 		8-97408-865-3 01 1 1511-
59 SCREW; CLUSTER POCKET
T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 1511-
59 SCREW; CLUSTER POCKET
T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 1511-
66 REINFORCEMENT; INST PANEL
(B) 		8-97585-581-1 01 1 1511-
66 REINFORCEMENT; INST PANEL
(A) 		8-98240-606-0 01 1 1511-
125 CLIP; INST PANEL
(B) GRAY 		8-97408-817-0 04 1 1511-
125 CLIP; INST PANEL
(A) GRAY 		8-97419-968-1 02 1 1511-
125 CLIP; INST PANEL
(C) 		8-98021-271-0 02 1 1511-
167 BOLT; REINF TO INST
M8X23 FLANGE 		8-97264-766-0 04 1 1511-
178 NUT; INST PANEL
(A) M6 FLANGE 		0-91180-106-0 01 1 1511-
178 NUT; INST PANEL
(B) 		8-98037-629-0 15 1 1511-
182 BOLT; BRKT,INST PANEL
(D) M8X16 FLANGE 		0-28050-816-0 04 1 1511-
182 BOLT; BRKT,INST PANEL
(A) M6X12 W/LK&PL WASHER 		0-52000-612-0 02 1 1511-
182 BOLT; BRKT,INST PANEL
(C) M8X25 W/LK&PL WASHER 		8-98018-439-0 01 1 1511-
182 BOLT; BRKT,INST PANEL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1511-
265 HOLDER; CUP
GRAY 		8-97418-528-0 01 1 1511-
341 LID; FUSE BOX
GRAY 		8-97422-209-0 01 1 1511-
378 SEAL; INST PANEL
5X30 		8-98176-199-0 01 1 1511-
485 NUT; SUPPORT CLIP,HARNESS
M6 FLANGE 		0-91180-106-0 04 1 1511-
524 STAND ASM; CUP,INST 8-98054-414-0 01 1 1511-
525 SCREW; CUP STAND
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 03 1 1511-
569 HOLDER; CARD 8-97410-276-1 01 1 1511-
603 CLIP; COVER
(A) 		8-98004-025-0 01 1 1511-
603 CLIP; COVER
(B) 		8-98021-271-0 01 1 1511-
603 CLIP; COVER
(B) 		8-98021-271-0 05 1 1511-
603 CLIP; COVER
(C) 		8-98162-058-1 02 1 1511-
603 CLIP; COVER
(D) 		8-98167-222-0 02 1 1511-
697 PANEL; INST CENTER
GRAY 		8-97422-208-1 01 1 1511-
699 HOOK; INST PANEL
GRAY 		8-97408-927-0 01 1 1511-
700 BOLT; HOOK
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1511-
703 SCREW; CENTER POCKET
T25 L=10 HEXALOBULAR 		8-98058-632-0 04 1 1511-
704 BRACKET; CENTER POCKET
(B) 		8-97585-616-2 02 1 1511-
704 BRACKET; CENTER POCKET
(A) 		8-97585-618-2 02 1 1511-
705 SCREW; BRACKET CENTER POCKET
M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 04 1 1511-
705 SCREW; BRACKET CENTER POCKET
M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 04 1 1511-

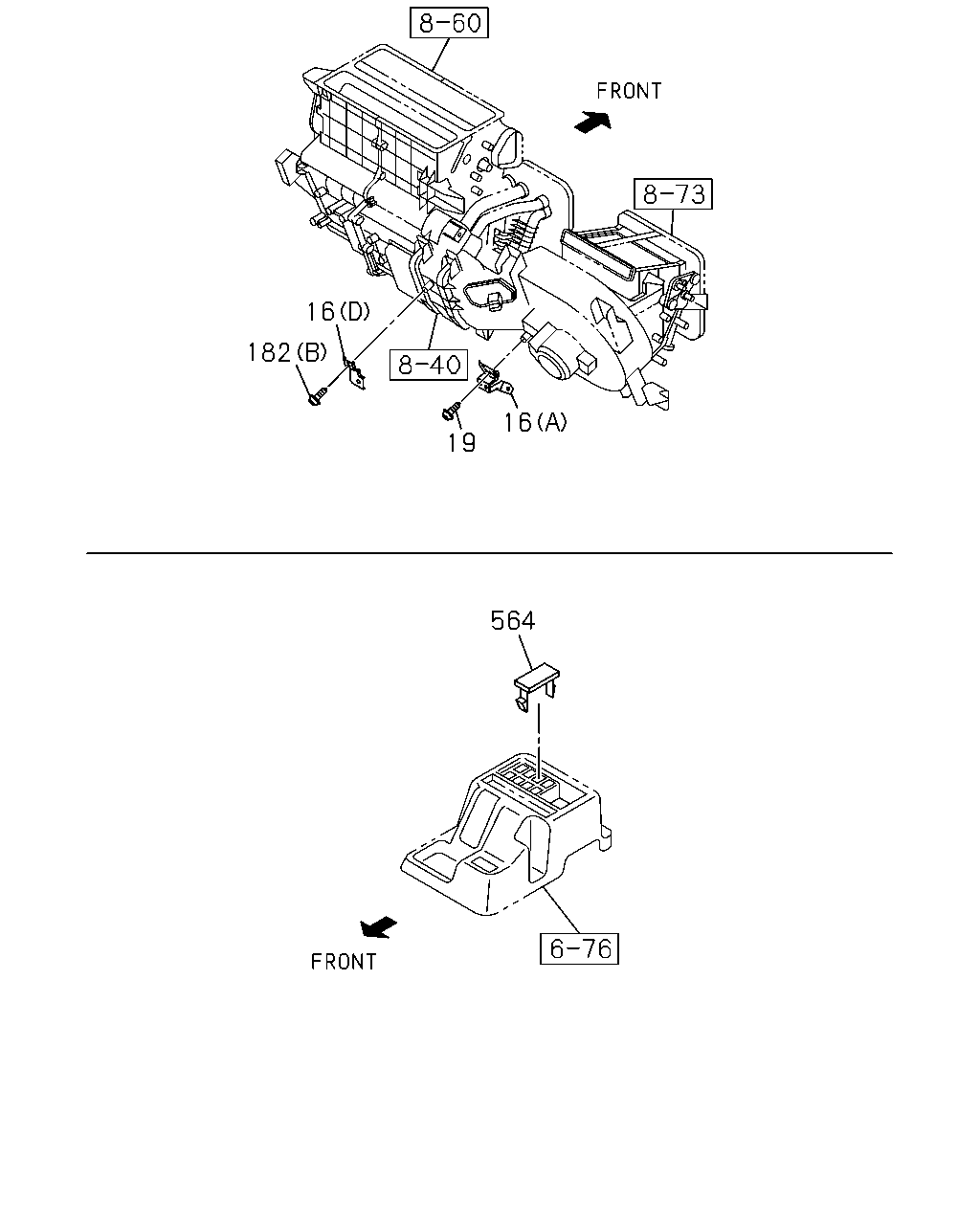

çizim 502767
19 16 182 16 564
BalonParca AdiParca NoAdetTipApplied Date
16 BRACKET; INST PNL
(C) 		8-98063-326-0 01 1 1511-
16 BRACKET; INST PNL
(B) 		8-98017-204-1 01 1 1511-
16 BRACKET; INST PNL
(B) 		8-98017-202-1 01 1 1511-
16 BRACKET; INST PNL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) 		8-97585-612-2 01 1 1511-
16 BRACKET; INST PNL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (D) 		8-98017-527-0 01 1 1511-
19 SCREW; BRKT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1511-
182 BOLT; BRKT,INST PANEL
(D) M8X16 FLANGE 		0-28050-816-0 04 1 1511-
182 BOLT; BRKT,INST PANEL
(A) M6X12 W/LK&PL WASHER 		0-52000-612-0 02 1 1511-
182 BOLT; BRKT,INST PANEL
(C) M8X25 W/LK&PL WASHER 		8-98018-439-0 01 1 1511-
182 BOLT; BRKT,INST PANEL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1511-
564 COVER; SW 8-97043-732-1 06 1 1511-
