◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 11724 - FSR LHD EURO5 EXC.SPACECAB ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-30 - LOCK CYLINDER SET ▶
7-30 — LOCK CYLINDER SET (#170440) — 17 parça

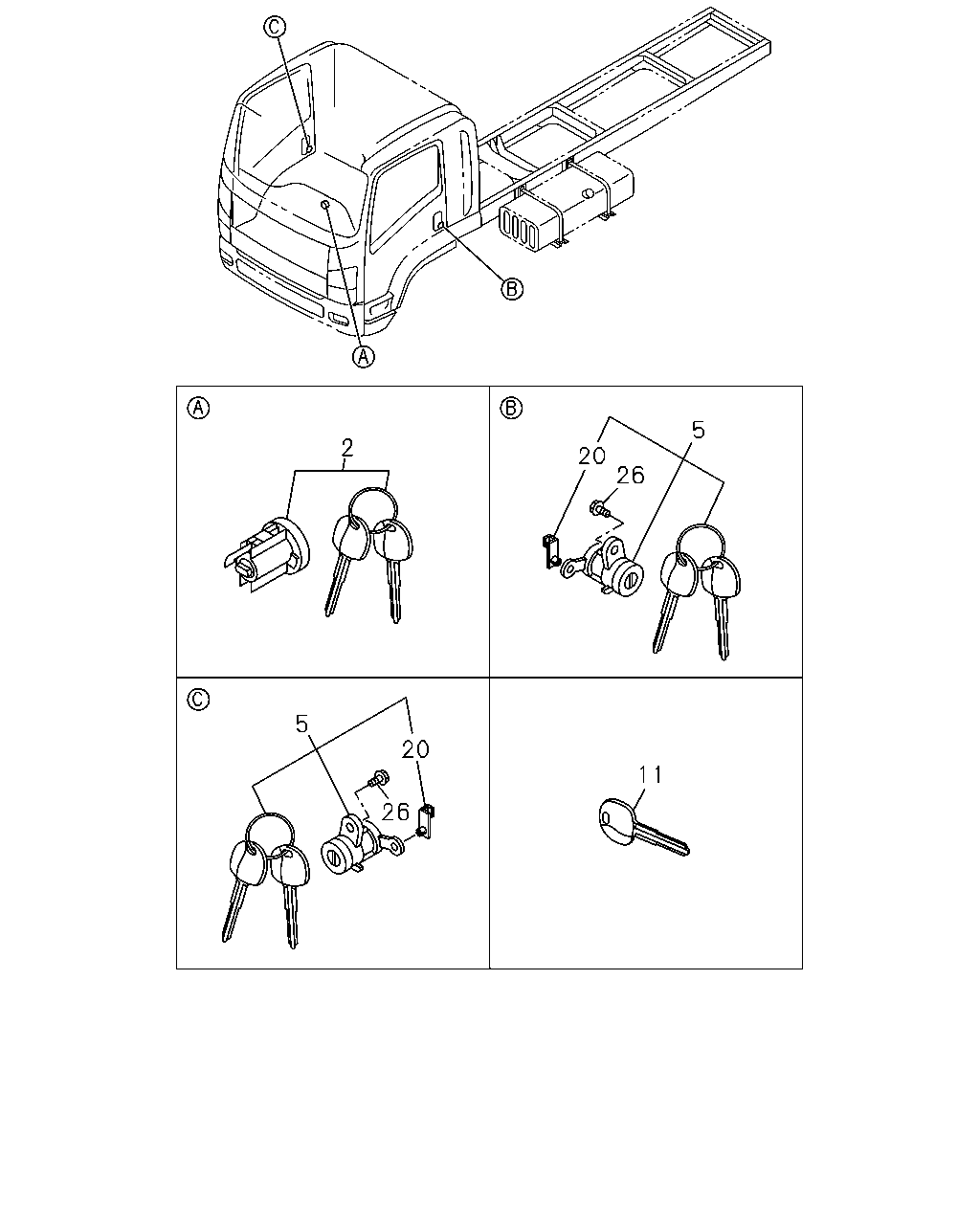

çizim 501014
2 20 5 26 11 20 26 5
BalonParca AdiParca NoAdetTipApplied Date
2 BARREL ASM; W/KEY,STRG LOCK 8-98201-342-0 01 1 1511-
5 CYLINDER ASM; DOOR LOCK 8-98055-149-0 01 1 1511-
5 CYLINDER ASM; DOOR LOCK 8-98055-150-0 01 1 1511-
11 KEY; BLANK 8-98055-170-0 AR 1 1511-
20 SNAP; DOOR LOCK CYL 8-98055-181-0 01 1 1511-
20 SNAP; DOOR LOCK CYL 8-98055-182-0 01 1 1511-
26 BOLT; KEY CYL,DOOR
M6X8 FLANGE 		8-98031-839-0 02 1 1511-

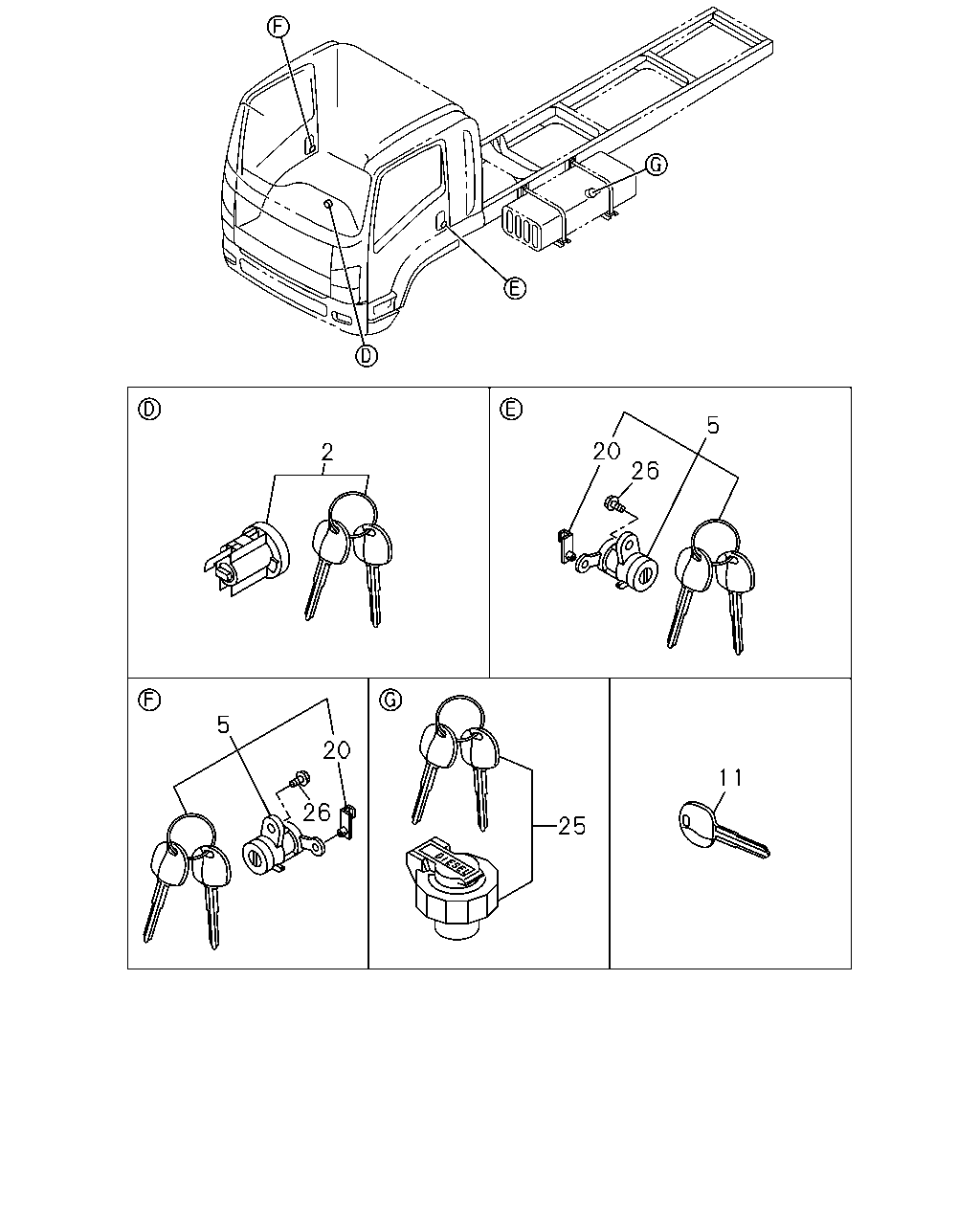

çizim 503032
2 26 20 5 11 25 20 26 5
BalonParca AdiParca NoAdetTipApplied Date
2 BARREL ASM; W/KEY,STRG LOCK 8-98201-342-0 01 1 1511-
5 CYLINDER ASM; DOOR LOCK 8-98055-149-0 01 1 1511-
5 CYLINDER ASM; DOOR LOCK 8-98055-150-0 01 1 1511-
11 KEY; BLANK 8-98055-170-0 AR 1 1511-
20 SNAP; DOOR LOCK CYL 8-98055-181-0 01 1 1511-
20 SNAP; DOOR LOCK CYL 8-98055-182-0 01 1 1511-
25 CAP; FUEL TANK,W/KEY
FUEL TANK CAP KEY LOCK<N05> 		8-98146-010-0 01 1 1511-
26 BOLT; KEY CYL,DOOR
M6X8 FLANGE 		8-98031-839-0 02 1 1511-
çizim 503061
1 1
BalonParca AdiParca NoAdetTipApplied Date
1 CYLINDER SET; CAR LOCK
EXC. FUEL TANK CAP KEY LOCK<N05> (B) 		8-98201-161-0 01 1 1511-
1 CYLINDER SET; CAR LOCK
FUEL TANK CAP KEY LOCK<N05> (A) 		8-98201-216-0 01 1 1511-
