◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 11724 - FSR LHD EURO5 EXC.SPACECAB ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-10 - CAUTION PLATE AND LABEL ▶
7-10 — CAUTION PLATE AND LABEL (#170438) — 10 parça
çizim 501425
6 9 49 35
BalonParca AdiParca NoAdetTipApplied Date
6 PLATE; CAUTION,SPARE TIRE
CAUTIONS RUSSIAN<SL6> 		8-98138-684-0 01 1 1511-
6 PLATE; CAUTION,SPARE TIRE
EXC. CAUTIONS RUSSIAN<SL6> 		8-98082-437-0 01 1 1511-
9 PLATE; NAME,SPD RANGE
SPEED LIMITER 90KM(NMJ) 		8-98306-950-0 01 1 1511-
35 PLATE; CAUTION,CAB
CAUTIONS RUSSIAN<SL6> 		8-98212-191-0 01 1 1511-
35 PLATE; CAUTION,CAB
EXC. CAUTIONS RUSSIAN<SL6> 		8-98065-363-0 01 1 1511-
49 PLATE; CAUTION,FUSE BOX
CAUTIONS RUSSIAN<SL6> 		8-98305-919-0 01 1 1511-

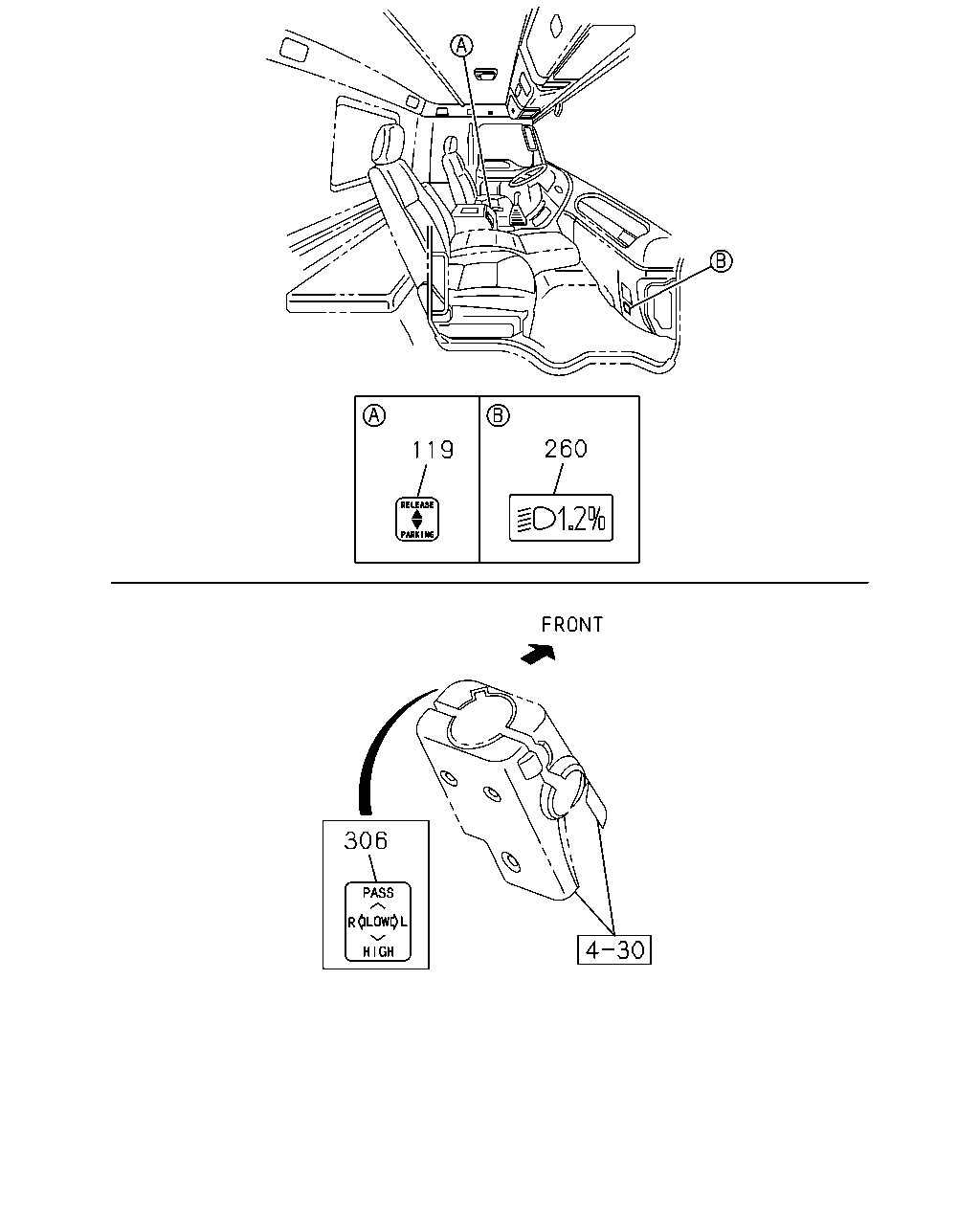

çizim 503028
260 119 306
BalonParca AdiParca NoAdetTipApplied Date
119 PLATE; CAUTION,HAND BRK LEVER
CAUTIONS RUSSIAN<SL6> 		8-98212-434-0 01 1 1511-
119 PLATE; CAUTION,HAND BRK LEVER
EXC. CAUTIONS RUSSIAN<SL6> 		1-85881-759-0 01 1 1511-
260 PLATE; CAUTION,HEAD LAMP LEVELING 1-85878-416-1 01 1 1511-
306 LABEL; BEAM & PASS 8-98070-239-0 01 1 1511-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
