Isuzu WW
▶
TRUCKS
▶
FSR
▶
11724 - FSR LHD EURO5 EXC.SPACECAB
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-76 - FLOOR EQUIPMENT AND SEALING
▶

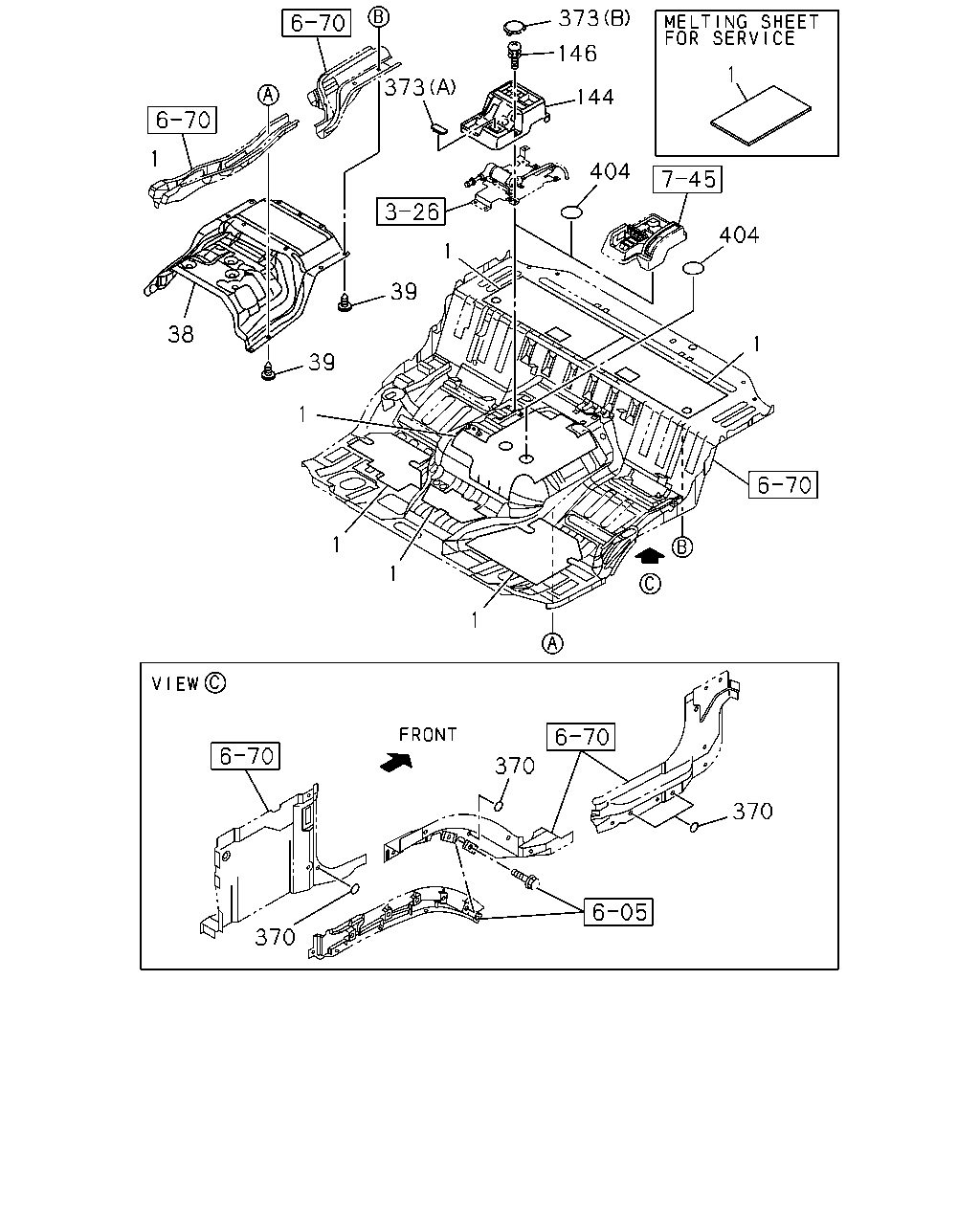

6-76 — FLOOR EQUIPMENT AND SEALING
(#170431) — 9 parça
373
144
146
373
1
38
39
1
1
1
1
1
404
404
1
39
1
370
370
370
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
SHEET; MELTING,FLOOR
NON ASBESTOS 1000X600 T=1.5; PARTS ONLY
8-94262-093-0
AR
1
1511-
38
INSULATOR; ENG COVER
8-98240-137-1
01
1
1511-
39
CLIP; INSULATOR,COVER
ID=6.2 L=11.4
8-97808-623-0
24
1
1511-
144
COVER; HAND BRK VLV
GRAY
8-97407-974-0
01
1
1511-
146
BOLT; COVER BRKT
M6X16
0-38050-616-0
04
1
1511-
370
SEAL; LOCATION HOLE
OD=30 T=0.8
8-98230-420-0
08
1
1511-
373
COVER; HOLE
(B) GRAY
8-97407-951-0
04
1
1511-
373
COVER; HOLE
(A) GRAY
8-97409-339-0
01
1
1511-
404
SEAL; FLOOR,HOLE
OD=25 BLACK
1-76798-019-0
12
1
1511-
