◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 11724 - FSR LHD EURO5 EXC.SPACECAB ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-70 - FLOOR PANEL ▶
6-70 — FLOOR PANEL (#170429) — 60 parça

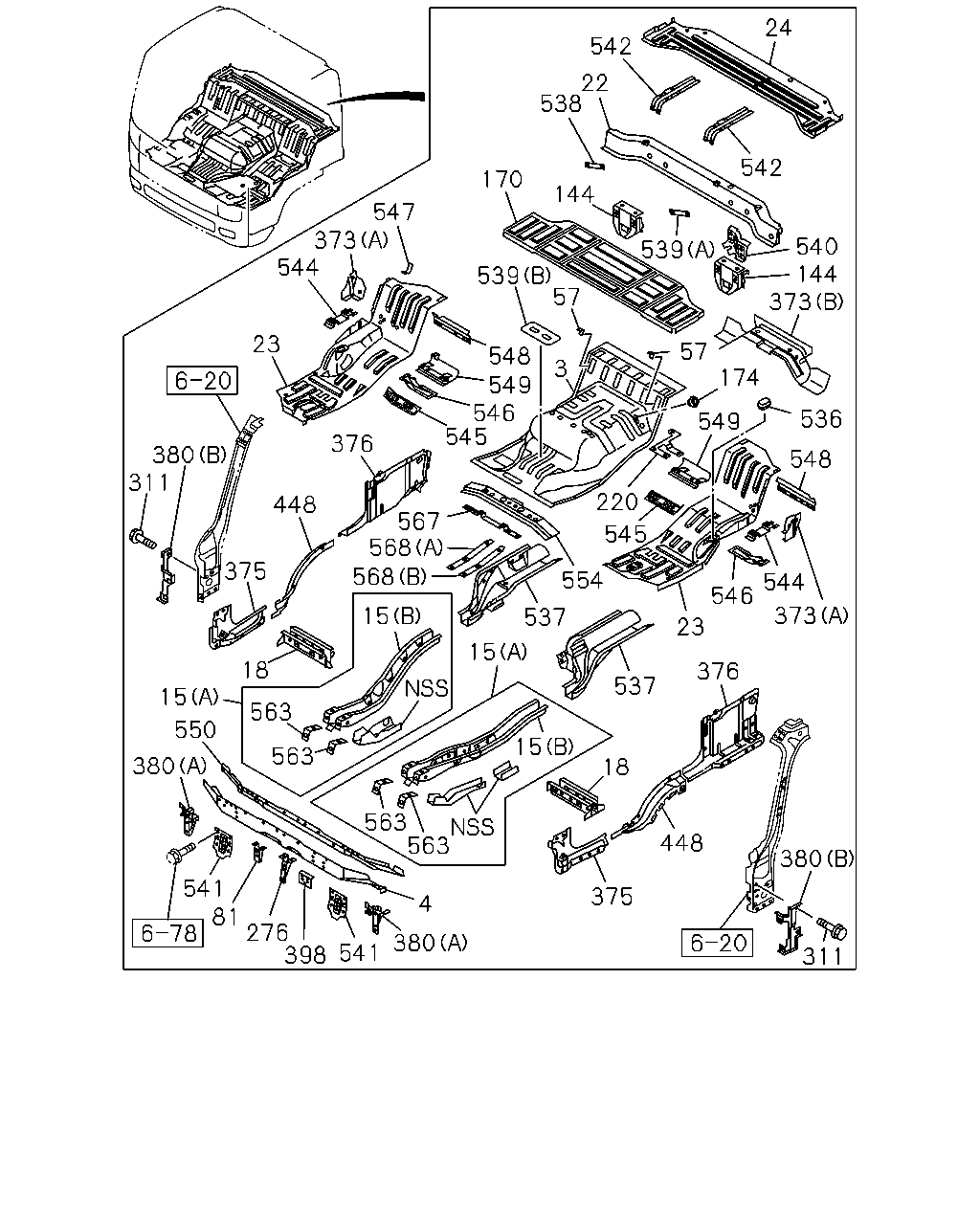

çizim 501384
373 23 376 546 548 536 373 144 540 542 24 542 538 22 170 539 144 57 549 544 537 18 375 15 15 554 537 563 563 276 81 541 380 15 375 380 539 548 546 545 376 448 23 311 373 547 380 448 380 57 3 174 311 4 563 563 18 220 545 549 567 568 568 15 544 398 541 550
BalonParca AdiParca NoAdetTipApplied Date
3 HOOD ASM; ENG 8-98036-244-5 01 1 1511-
4 FRAME; FLOOR,FRT 8-98077-806-1 01 1 1511-
15 FRAME; UNDER
(A) 		8-97584-387-9 01 1 1511-
15 FRAME; UNDER
(B) 		8-97584-388-9 01 1 1511-
15 FRAME; UNDER
(A) 		8-97584-411-9 01 1 1511-
15 FRAME; UNDER
(B) 		8-97584-412-7 01 1 1511-
18 FRAME; FLOOR,CENTER SIDE 8-97584-420-4 01 1 1511-
18 FRAME; FLOOR,CENTER SIDE 8-98017-380-2 01 1 1511-
22 FRAME; FLOOR REAR 8-97584-430-5 01 1 1511-
23 PANEL; FLOOR,SIDE 8-98284-875-0 01 1 1511-
23 PANEL; FLOOR,SIDE 8-98080-738-0 01 1 1511-
24 PANEL; BED PAN 8-97584-377-6 01 1 1511-
57 BRACKET; SPARE TIRE 8-98038-970-1 02 1 1511-
81 BRACKET; HARNESS SUPPORT 8-98041-333-3 01 1 1511-
144 BRACKET; MTG,RR 8-97584-432-6 01 1 1511-
144 BRACKET; MTG,RR 8-97589-666-6 01 1 1511-
170 EXTENSION; RR FLOOR 8-97589-205-4 01 1 1511-
174 GROMMET; AIR PIPE
OD=35 		8-94122-971-0 01 1 1511-
220 PATCH 8-97589-704-0 01 1 1511-
276 BRACKET; RAD GRILLE 8-98253-712-0 01 1 1511-
311 BOLT; BRKT
M6X16 FLANGE 		0-28650-616-0 04 1 1511-
373 REINFORCEMENT; SEAT BELT
(A) 		8-97584-367-2 01 1 1511-
373 REINFORCEMENT; SEAT BELT
(A) 		8-97584-375-2 01 1 1511-
373 REINFORCEMENT; SEAT BELT
(B) 		8-98017-308-4 01 1 1511-
375 CLOSING; PILLAR 8-98044-897-3 01 1 1511-
375 CLOSING; PILLAR 8-98044-898-3 01 1 1511-
376 CLOSING; PILLAR,LWR 8-97589-556-5 01 1 1511-
376 CLOSING; PILLAR,LWR 8-98199-228-0 01 1 1511-
380 BRACKET; HEAD LAMP
(A) 		8-97589-707-1 01 1 1511-
380 BRACKET; HEAD LAMP
(A) 		8-97589-708-1 01 1 1511-
380 BRACKET; HEAD LAMP
(B) 		8-98032-615-1 01 1 1511-
380 BRACKET; HEAD LAMP
(B) 		8-98032-614-1 01 1 1511-
398 BRACKET; PIPE SUPPORT 8-97589-681-3 01 1 1511-
448 CLOSING; ROCKER 8-97589-551-2 01 1 1511-
448 CLOSING; ROCKER 8-97589-552-2 01 1 1511-
536 PLUG; CABLE,PTO 8-97612-074-1 01 1 1511-
537 SUPPORT ASM; MTG RR 8-97584-391-4 01 1 1511-
537 SUPPORT ASM; MTG RR 8-97584-417-4 01 1 1511-
538 REINFORCEMENT ASM; AIR INT DUCT 8-97610-207-2 01 1 1511-
539 PATCH ASM; SAFTY HOOK
(A) 		8-97584-440-2 01 1 1511-
539 PATCH ASM; SAFTY HOOK
KD PREPARATORY PACK VAR.4<7TV> (B) 		8-98131-661-0 01 1 1511-
540 BRACKET ASM; CAB LOCK LEVER 8-97584-438-1 01 1 1511-
541 REINFORCEMENT; MTG,FRT 8-98067-903-0 02 1 1511-
542 BOLSTER; BED PAN 8-97589-685-1 02 1 1511-
544 BRACKET; DUMP CONT 8-97584-363-1 01 1 1511-
544 BRACKET; DUMP CONT 8-98049-529-0 01 1 1511-
545 BRACKET; SEAT FRT 8-97589-705-0 01 1 1511-
545 BRACKET; SEAT FRT 8-97589-706-0 01 1 1511-
546 REINFORCEMENT; FLOOR SIDE 8-97584-426-0 02 1 1511-
547 BRACKET; JACK HANDLE 8-97588-843-1 01 1 1511-
548 BRACKET; MUD GUARD 8-97588-964-1 01 1 1511-
548 BRACKET; MUD GUARD 8-97588-965-1 01 1 1511-
549 BRACKET; SEAT RR 8-98017-363-1 01 1 1511-
549 BRACKET; SEAT RR 8-98017-370-1 01 1 1511-
550 CLOSING ASM; MTG,FRT 8-97589-709-3 01 1 1511-
554 REINFORCEMENT; FLOOR CENTER 8-98017-330-1 01 1 1511-
563 REINFORCEMENT; MTG FRT,RR 8-97589-579-2 04 1 1511-
567 REINFORCEMENT; CONT LEVER 8-98046-522-3 01 1 1511-
568 BRACKET; ACCEL STOPPER
(A) 		8-98089-177-0 01 1 1511-
568 BRACKET; ACCEL STOPPER
(B) 		8-98089-178-0 01 1 1511-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
