◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 11724 - FSR LHD EURO5 EXC.SPACECAB ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-66 - HEAD LINING AND TRIM ▶
6-66 — HEAD LINING AND TRIM (#170428) — 9 parça

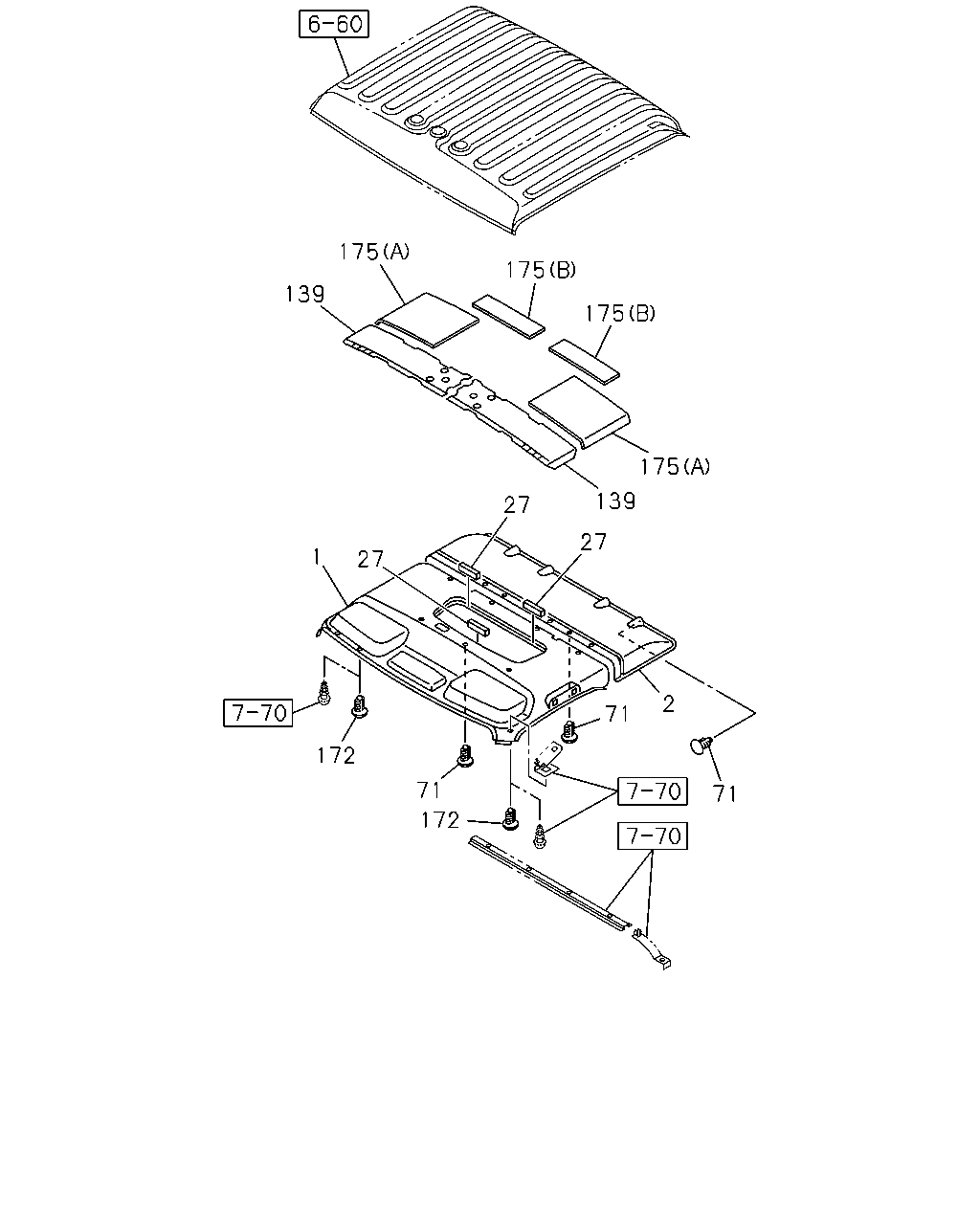

çizim 502926
175 175 175 175 139 27 139 27 27 1 172 71 172 71 2 71
BalonParca AdiParca NoAdetTipApplied Date
1 LINING; HD
HEADER CONSOLE DRIVER & PASSENGER<EDG> FLUORESCENT LAMP<6UC> DARK GRAY 		8-97426-691-0 01 1 1511-
1 LINING; HD
HEADER CONSOLE DRIVER & PASSENGER<EDG> EXC. FLUORESCENT LAMP<6UC> DARK GRAY 		8-97426-692-0 01 1 1511-
2 LINING; HD,ROOF RR
DARK GRAY 		8-97415-673-0 01 1 1511-
27 INSULATION; ROOF
FLUORESCENT LAMP<6UC> 		8-98046-638-2 03 1 1511-
71 FASTENER; HD LINING
DARK GRAY 		8-97405-282-0 07 1 1511-
139 SEAL; ROOF 8-98169-116-0 02 1 1511-
172 RETAINER; HEAD LINING
EXC. ROUND CURTAIN RAIL<EDH> DARK GRAY 		8-97411-875-0 14 1 1511-
175 CUSHION; HEAD LINING
(A) 		8-98030-965-2 02 1 1511-
175 CUSHION; HEAD LINING
(B) 		8-98082-685-1 02 1 1511-
