Isuzu WW
▶
TRUCKS
▶
FSR
▶
11724 - FSR LHD EURO5 EXC.SPACECAB
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-60 - ROOF PANEL
▶

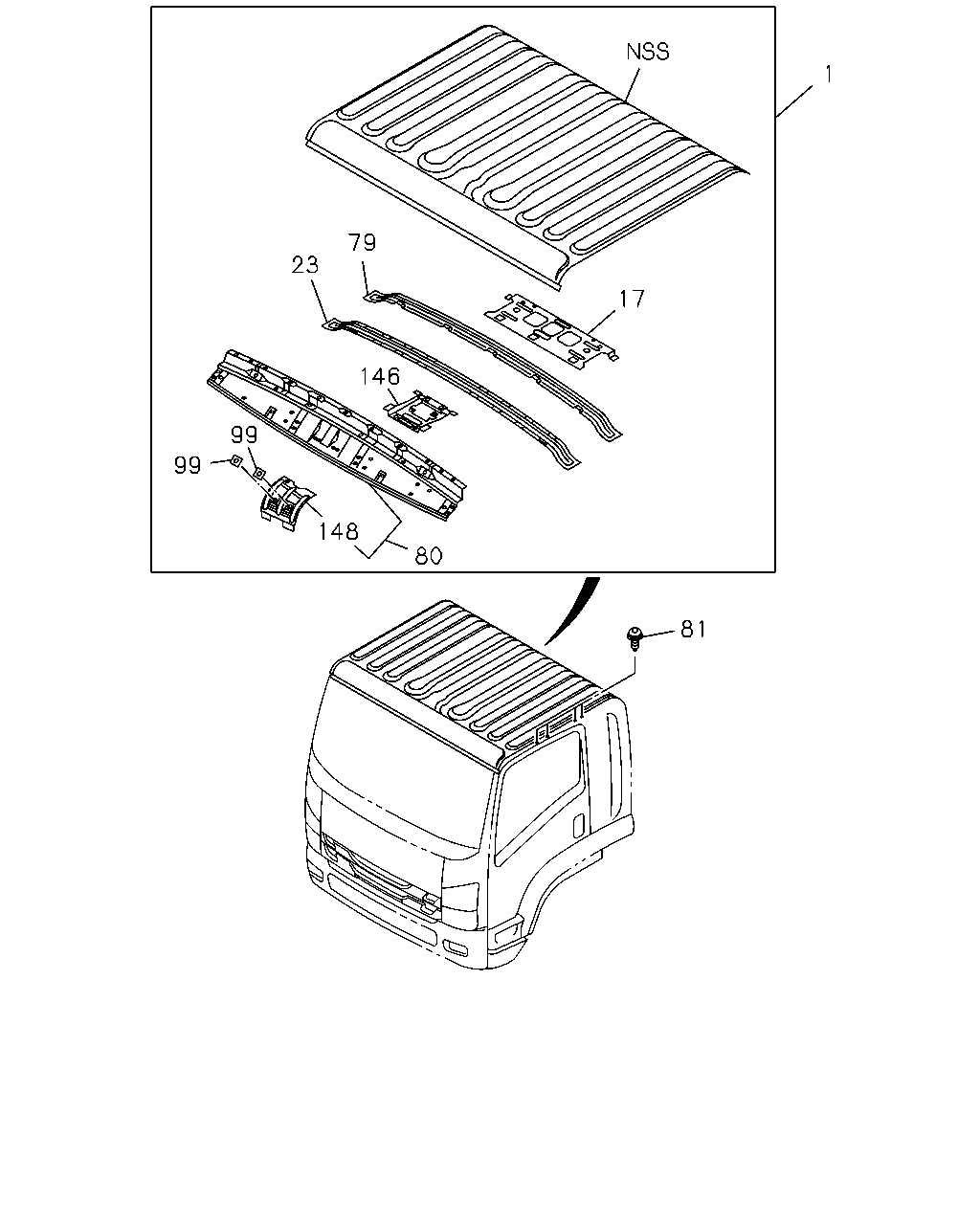

6-60 — ROOF PANEL
(#170427) — 10 parça
1
17
79
23
146
99
99
148
80
81
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
PANEL; ROOF
FLUORESCENT LAMP<6UC>
8-98048-037-4
01
1
1511-
1
PANEL; ROOF
EXC. FLUORESCENT LAMP<6UC>
8-98152-803-1
01
1
1511-
17
REINFORCEMENT; ROOF PNL CENTER
FLUORESCENT LAMP<6UC>
8-97584-203-5
01
1
1511-
23
REINFORCEMENT; ROOF PANEL,FRT
8-98019-310-0
01
1
1511-
79
REINFORCEMENT; ROOF PANEL,RR
8-97584-199-1
01
1
1511-
80
PANEL; HEADER,ROOF
8-98047-270-2
01
1
1511-
81
BOLT; ROOF
M8X15.5 HEXALOBULAR
8-98141-874-0
08
1
1511-
99
SEAL; BODY,METAL
30X30 ID=20 T=0.7
1-61281-380-2
02
1
1511-
146
REINFORCEMENT; ROOM LAMP
8-98075-827-0
01
1
1511-
148
REINFORCEMENT; MIRROR
8-97411-013-0
01
1
1511-
