◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 11724 - FSR LHD EURO5 EXC.SPACECAB ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-05 - FRONT PANEL ▶
6-05 — FRONT PANEL (#170418) — 239 parça

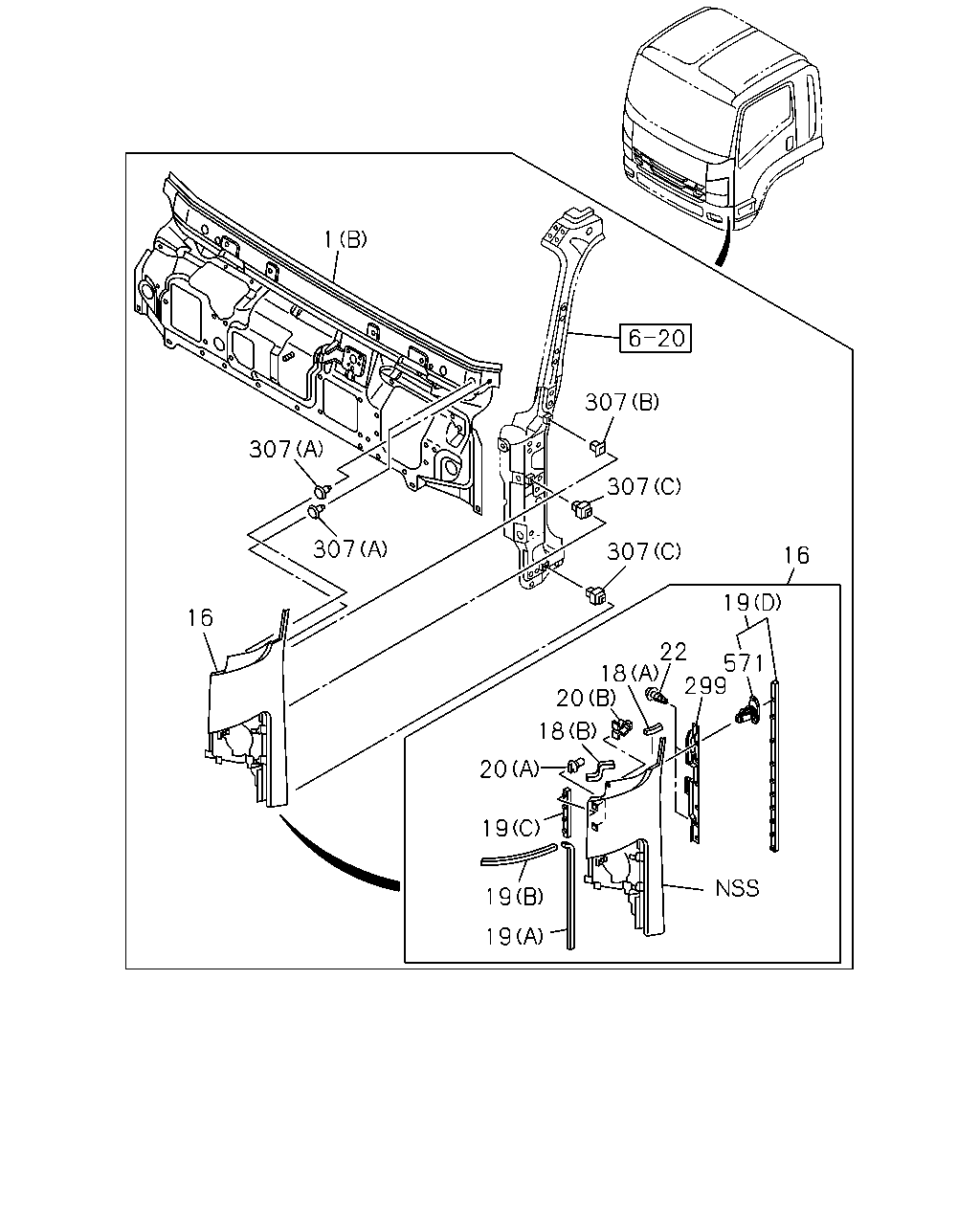

çizim 502775
1 307 307 307 16 19 571 299 22 18 20 18 20 19 19 19 307 307 16
BalonParca AdiParca NoAdetTipApplied Date
1 PANEL ASM; FRT
(B) 		8-97585-959-7 01 1 1511-
1 PANEL ASM; FRT
(A) 		8-98030-230-3 01 1 1511-
16 PANEL; FRONT,SIDE
BODY COLOR AL GRAY(517) GRAY 		8-97417-654-4 01 1 1511-
16 PANEL; FRONT,SIDE
BODY COLOR AL GRAY(517) GRAY 		8-97413-576-4 01 1 1511-
16 PANEL; FRONT,SIDE
BODY COLOR ARC WHITE(729) WHITE 		8-97409-901-4 01 1 1511-
16 PANEL; FRONT,SIDE
BODY COLOR ARC WHITE(729) WHITE 		8-97407-509-4 01 1 1511-
16 PANEL; FRONT,SIDE
BODY COLOR CARDINAL RED(736) RED 		8-97411-298-4 01 1 1511-
16 PANEL; FRONT,SIDE
BODY COLOR CARDINAL RED(736) RED 		8-97411-292-4 01 1 1511-
16 PANEL; FRONT,SIDE
BODY COLOR DARK BLUE(695) BLUE 		8-97415-030-4 01 1 1511-
16 PANEL; FRONT,SIDE
BODY COLOR DARK BLUE(695) BLUE 		8-97413-579-4 01 1 1511-
16 PANEL; FRONT,SIDE
BODY COLOR FIRE RED(915) RED 		8-97411-301-4 01 1 1511-
16 PANEL; FRONT,SIDE
BODY COLOR FIRE RED(915) RED 		8-97411-295-4 01 1 1511-
16 PANEL; FRONT,SIDE
BODY COLOR GERANIUM RED(681) RED 		8-97417-656-4 01 1 1511-
16 PANEL; FRONT,SIDE
BODY COLOR GERANIUM RED(681) RED 		8-97413-578-4 01 1 1511-
16 PANEL; FRONT,SIDE
BODY COLOR GOLDEN YELLOW(904) YELLOW 		8-97411-302-4 01 1 1511-
16 PANEL; FRONT,SIDE
BODY COLOR GOLDEN YELLOW(904) YELLOW 		8-97411-296-4 01 1 1511-
16 PANEL; FRONT,SIDE
BODY COLOR GREEN(989) GREEN 		8-97417-660-4 01 1 1511-
16 PANEL; FRONT,SIDE
BODY COLOR GREEN(989) GREEN 		8-97413-585-4 01 1 1511-
16 PANEL; FRONT,SIDE
BODY COLOR HIGHWAY ORANGE(944) ORANGE 		8-97417-658-4 01 1 1511-
16 PANEL; FRONT,SIDE
BODY COLOR HIGHWAY ORANGE(944) ORANGE 		8-97413-583-4 01 1 1511-
16 PANEL; FRONT,SIDE
BODY COLOR MARINE BLUE(890) BLUE 		8-97417-657-4 01 1 1511-
16 PANEL; FRONT,SIDE
BODY COLOR MARINE BLUE(890) BLUE 		8-97413-582-4 01 1 1511-
16 PANEL; FRONT,SIDE
BODY COLOR POLAR WHITE(982) WHITE 		8-97417-659-4 01 1 1511-
16 PANEL; FRONT,SIDE
BODY COLOR POLAR WHITE(982) WHITE 		8-97417-653-4 01 1 1511-
16 PANEL; FRONT,SIDE
BODY COLOR PURPLISH BLUE(668) BLUE 		8-97417-655-4 01 1 1511-
16 PANEL; FRONT,SIDE
BODY COLOR PURPLISH BLUE(668) BLUE 		8-97413-577-4 01 1 1511-
16 PANEL; FRONT,SIDE
BODY COLOR SAHARA BEIGE(829) BEIGE 		8-97411-299-4 01 1 1511-
16 PANEL; FRONT,SIDE
BODY COLOR SAHARA BEIGE(829) BEIGE 		8-97411-293-4 01 1 1511-
16 PANEL; FRONT,SIDE
BODY COLOR TRANS BLUE(999) BLUE 		8-97411-303-4 01 1 1511-
16 PANEL; FRONT,SIDE
BODY COLOR TRANS BLUE(999) BLUE 		8-97411-297-4 01 1 1511-
16 PANEL; FRONT,SIDE
BODY COLOR WHEATLAND YELLOW(812) YELLOW 		8-97415-032-4 01 1 1511-
16 PANEL; FRONT,SIDE
BODY COLOR WHEATLAND YELLOW(812) YELLOW 		8-97413-581-4 01 1 1511-
16 PANEL; FRONT,SIDE
BODY COLOR WOODLAND GREEN(807) DARK GREEN 		8-97415-031-4 01 1 1511-
16 PANEL; FRONT,SIDE
BODY COLOR WOODLAND GREEN(807) DARK GREEN 		8-97413-580-4 01 1 1511-
18 SEAL; A-POST UPR,FRT SIDE PANEL
(A) 		8-98038-608-0 01 1 1511-
18 SEAL; A-POST UPR,FRT SIDE PANEL
(A) 		8-98038-608-0 01 1 1511-
18 SEAL; A-POST UPR,FRT SIDE PANEL
(B) 		8-98043-511-1 01 1 1511-
18 SEAL; A-POST UPR,FRT SIDE PANEL
(B) 		8-98043-511-1 01 1 1511-
19 SEAL; FRT SIDE PANEL
(B) 		8-98035-268-0 01 1 1511-
19 SEAL; FRT SIDE PANEL
(B) 		8-98035-268-0 01 1 1511-
19 SEAL; FRT SIDE PANEL
(A) 		8-98062-215-0 01 1 1511-
19 SEAL; FRT SIDE PANEL
(A) 		8-98062-215-0 01 1 1511-
19 SEAL; FRT SIDE PANEL
(C) 		8-98036-581-0 01 1 1511-
19 SEAL; FRT SIDE PANEL
(D) 		8-98041-359-2 01 1 1511-
19 SEAL; FRT SIDE PANEL
(C) 		8-98036-580-0 01 1 1511-
19 SEAL; FRT SIDE PANEL
(D) 		8-98041-358-2 01 1 1511-
20 CLIP; FRT PANEL SIDE
(A) 		8-97410-739-1 02 1 1511-
20 CLIP; FRT PANEL SIDE
(A) 		8-97410-739-1 02 1 1511-
20 CLIP; FRT PANEL SIDE
(B) 		8-97410-740-3 01 1 1511-
20 CLIP; FRT PANEL SIDE
(B) 		8-97410-740-3 01 1 1511-
22 SCREW; FRT PANEL SIDE
M4X10 TAPPING W/PL WASHER 		0-74360-410-0 03 1 1511-
22 SCREW; FRT PANEL SIDE
M4X10 TAPPING W/PL WASHER 		0-74360-410-0 03 1 1511-
299 COVER; FRT PANEL SIDE 8-98034-814-1 01 1 1511-
299 COVER; FRT PANEL SIDE 8-98034-813-1 01 1 1511-
307 GROMMET; FRT PANEL
(B) 		8-97410-738-0 02 1 1511-
307 GROMMET; FRT PANEL
(C) 		8-98021-300-1 04 1 1511-
307 GROMMET; FRT PANEL
(A) OD=20 		8-98034-363-1 04 1 1511-
571 CLIP; SEAL
NATURAL 		8-98027-457-0 10 1 1511-
571 CLIP; SEAL
NATURAL 		8-98027-457-0 10 1 1511-

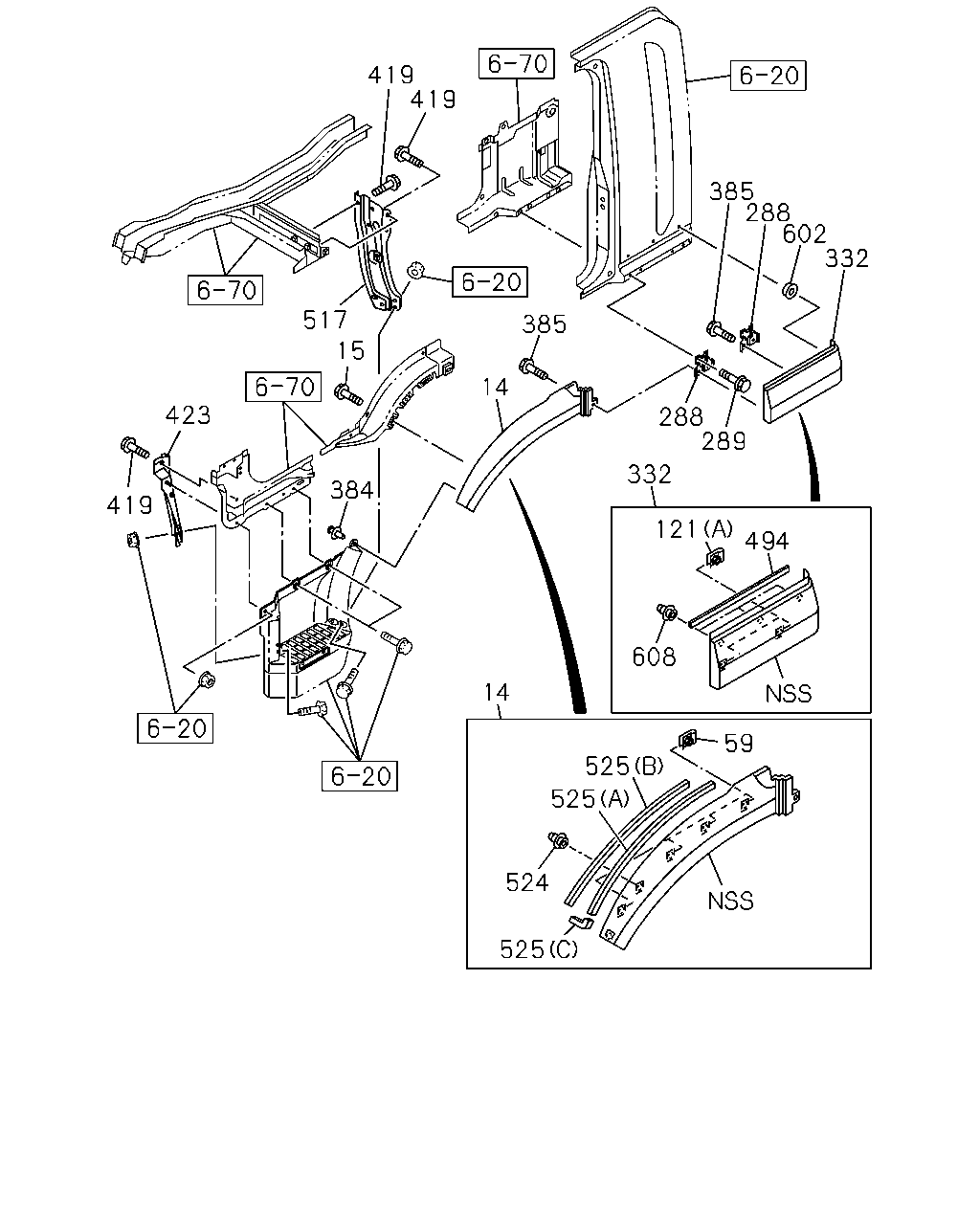

çizim 502862
419 419 385 385 288 602 332 289 288 332 121 494 608 59 525 525 524 525 14 14 15 517 423 384 419
BalonParca AdiParca NoAdetTipApplied Date
14 FENDER; FRT
BLACK 		8-98041-399-3 01 1 1511-
14 FENDER; FRT
BLACK 		8-98041-398-3 01 1 1511-
15 BOLT; FENDER
M6X20 W/PL WASHER 		8-98059-504-0 06 1 1511-
59 GROMMET; SCREW 8-94279-723-0 02 1 1511-
59 GROMMET; SCREW 8-94279-723-0 08 1 1511-
121 GROMMET; FENDER
(C) D=8.6X7.7 L=7.5 		8-94279-078-0 06 1 1511-
121 GROMMET; FENDER
(A) 		8-94279-723-0 04 1 1511-
121 GROMMET; FENDER
(D) OD=8.3 		8-94279-989-0 10 1 1511-
121 GROMMET; FENDER
(B) H=15 		8-94463-268-1 04 1 1511-
121 GROMMET; FENDER
(E) 		8-98073-421-0 01 1 1511-
121 GROMMET; FENDER
(E) 		8-98073-420-0 01 1 1511-
288 BRACKET; FENDER SKIRT 8-98041-162-1 04 1 1511-
289 BOLT; FENDER SKIRT BRKT
M6X16 FLANGE 		0-28650-616-0 08 1 1511-
332 FENDER; RR
BODY COLOR AL GRAY(517) GRAY 		8-97413-606-2 01 1 1511-
332 FENDER; RR
BODY COLOR AL GRAY(517) GRAY 		8-97413-596-2 01 1 1511-
332 FENDER; RR
BODY COLOR ARC WHITE(729) WHITE 		8-97407-507-2 01 1 1511-
332 FENDER; RR
BODY COLOR ARC WHITE(729) WHITE 		8-97407-506-2 01 1 1511-
332 FENDER; RR
BODY COLOR CARDINAL RED(736) RED 		8-97411-310-2 01 1 1511-
332 FENDER; RR
BODY COLOR CARDINAL RED(736) RED 		8-97411-304-2 01 1 1511-
332 FENDER; RR
BODY COLOR DARK BLUE(695) BLUE 		8-97413-609-2 01 1 1511-
332 FENDER; RR
BODY COLOR DARK BLUE(695) BLUE 		8-97413-599-2 01 1 1511-
332 FENDER; RR
BODY COLOR FIRE RED(915) RED 		8-97411-313-2 01 1 1511-
332 FENDER; RR
BODY COLOR FIRE RED(915) RED 		8-97411-307-2 01 1 1511-
332 FENDER; RR
BODY COLOR GERANIUM RED(681) RED 		8-97413-608-2 01 1 1511-
332 FENDER; RR
BODY COLOR GERANIUM RED(681) RED 		8-97413-598-2 01 1 1511-
332 FENDER; RR
BODY COLOR GOLDEN YELLOW(904) YELLOW 		8-97411-314-2 01 1 1511-
332 FENDER; RR
BODY COLOR GOLDEN YELLOW(904) YELLOW 		8-97411-308-2 01 1 1511-
332 FENDER; RR
BODY COLOR GREEN(989) GREEN 		8-97413-615-2 01 1 1511-
332 FENDER; RR
BODY COLOR GREEN(989) GREEN 		8-97413-605-2 01 1 1511-
332 FENDER; RR
BODY COLOR HIGHWAY ORANGE(944) ORANGE 		8-97413-613-2 01 1 1511-
332 FENDER; RR
BODY COLOR HIGHWAY ORANGE(944) ORANGE 		8-97413-603-2 01 1 1511-
332 FENDER; RR
BODY COLOR MARINE BLUE(890) BLUE 		8-97413-612-2 01 1 1511-
332 FENDER; RR
BODY COLOR MARINE BLUE(890) BLUE 		8-97413-602-2 01 1 1511-
332 FENDER; RR
BODY COLOR POLAR WHITE(982) WHITE 		8-97417-675-2 01 1 1511-
332 FENDER; RR
BODY COLOR POLAR WHITE(982) WHITE 		8-97417-674-2 01 1 1511-
332 FENDER; RR
BODY COLOR PURPLISH BLUE(668) BLUE 		8-97413-607-2 01 1 1511-
332 FENDER; RR
BODY COLOR PURPLISH BLUE(668) BLUE 		8-97413-597-2 01 1 1511-
332 FENDER; RR
BODY COLOR SAHARA BEIGE(829) BEIGE 		8-97411-311-2 01 1 1511-
332 FENDER; RR
BODY COLOR SAHARA BEIGE(829) BEIGE 		8-97411-305-2 01 1 1511-
332 FENDER; RR
BODY COLOR TRANS BLUE(999) BLUE 		8-97411-315-2 01 1 1511-
332 FENDER; RR
BODY COLOR TRANS BLUE(999) BLUE 		8-97411-309-2 01 1 1511-
332 FENDER; RR
BODY COLOR WHEATLAND YELLOW(812) YELLOW 		8-97413-611-2 01 1 1511-
332 FENDER; RR
BODY COLOR WHEATLAND YELLOW(812) YELLOW 		8-97413-601-2 01 1 1511-
332 FENDER; RR
BODY COLOR WOODLAND GREEN(807) DARK GREEN 		8-97413-610-2 01 1 1511-
332 FENDER; RR
BODY COLOR WOODLAND GREEN(807) DARK GREEN 		8-97413-600-2 01 1 1511-
384 CLIP; FENDER LWR
D8X13.5 		1-09987-248-1 02 1 1511-
385 SCREW; FENDER LWR
M6X20 W/PL WASHER 		8-98059-504-0 04 1 1511-
419 BOLT; STEP
M8X20 FLANGE 		0-28650-820-0 08 1 1511-
423 SUPPORT ASM; STEP 8-98037-336-1 01 1 1511-
423 SUPPORT ASM; STEP 8-98037-335-1 01 1 1511-
494 FINISHER; FENDER 8-98072-723-0 01 1 1511-
494 FINISHER; FENDER 8-98041-172-1 01 1 1511-
517 SUPPORT; STEP PANEL 8-98037-339-2 01 1 1511-
517 SUPPORT; STEP PANEL 8-98037-338-2 01 1 1511-
524 CLIP; FENDER COVER
OD=7.9 BLACK 		8-94279-974-1 02 1 1511-
525 SEAL; FENDER
(A) 		8-98061-760-0 02 1 1511-
525 SEAL; FENDER
(B) 		8-98061-761-0 02 1 1511-
525 SEAL; FENDER
(C) 		8-98061-762-0 02 1 1511-
602 RETAINER; COVER
ID=5.4 OD=6.8 		8-98241-984-0 06 1 1511-
608 CLIP
D5.4X8 		1-09983-154-0 06 1 1511-

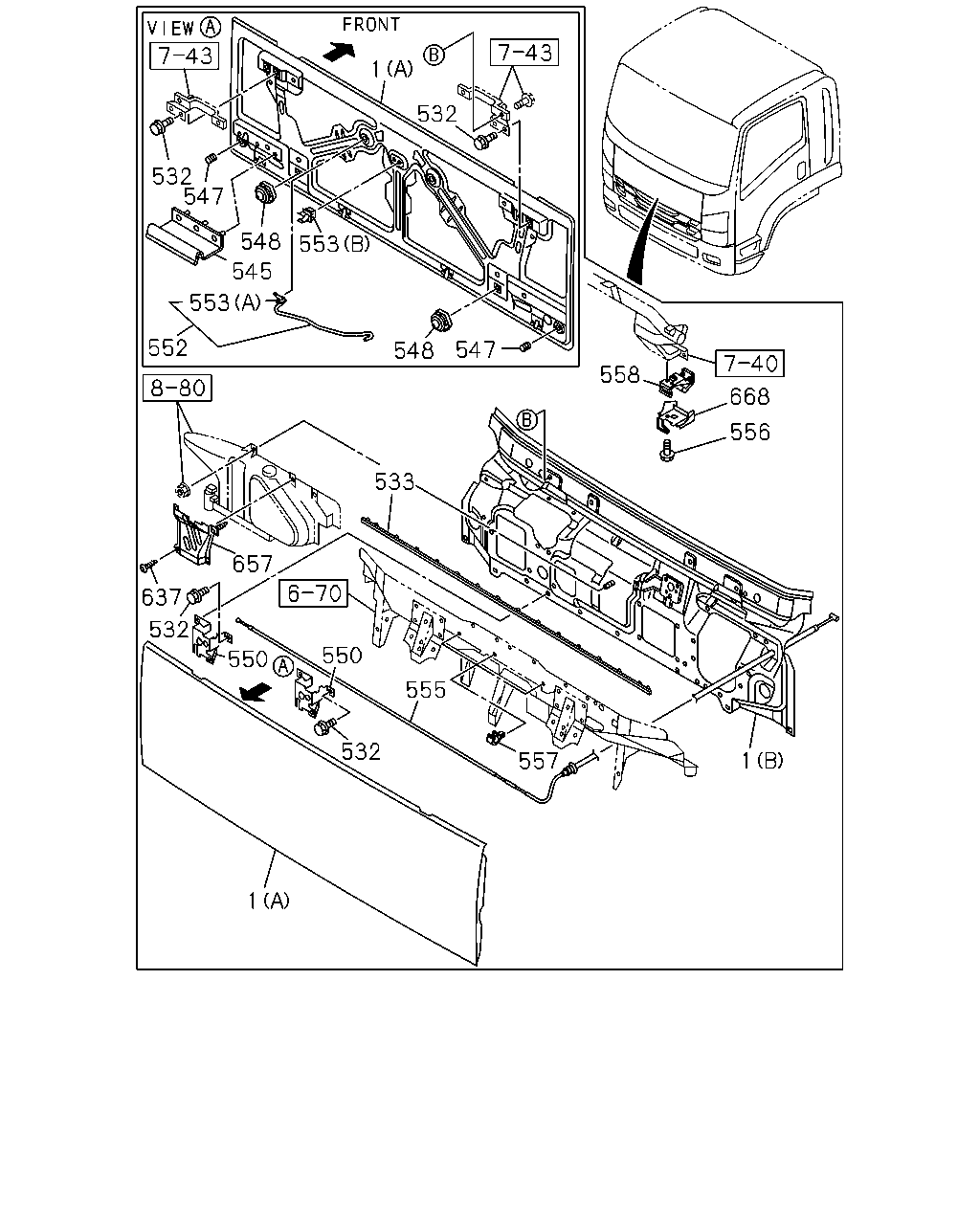

çizim 502910
1 1 557 555 550 532 550 532 637 657 533 556 668 558 547 548 552 553 545 548 553 547 532 532 1
BalonParca AdiParca NoAdetTipApplied Date
1 PANEL ASM; FRT
(B) 		8-97585-959-7 01 1 1511-
1 PANEL ASM; FRT
(A) 		8-98030-230-3 01 1 1511-
532 BOLT; FRT PANEL
M8X20 FLANGE 		0-28650-820-0 08 1 1511-
533 SEAL; FRT PANEL 8-98096-288-0 01 1 1511-
545 SEAL; FRT LID 8-98123-264-0 01 1 1511-
547 RUBBER; CUSHION
OD=22 L=29 		8-94324-556-2 02 1 1511-
548 STRIKER; FRT LID PANEL 8-98068-145-1 02 1 1511-
550 LOCK ASM; FRT LID 8-98036-568-2 02 1 1511-
552 STAY; FRT LID 8-98089-837-1 01 1 1511-
553 CLIP; STAY
(B) 		8-97031-428-0 01 1 1511-
553 CLIP; STAY
(A) 		8-98094-541-0 01 1 1511-
555 CABLE; FRT LID 8-98036-573-1 01 1 1511-
556 BOLT; CABLE
M6X16 FLANGE 		0-28650-616-0 01 1 1511-
557 CLIP; CABLE
ID=4.8 		8-94128-483-0 03 1 1511-
558 LEVER; FRT LID 8-97865-110-0 01 1 1511-
637 CLIP; COVER
OD=16 L=11 		1-76378-155-0 02 1 1511-
657 COVER; WIPER IDLER 8-98060-907-0 01 1 1511-
668 COVER; LEVER,FRT LID 8-98076-339-1 01 1 1511-

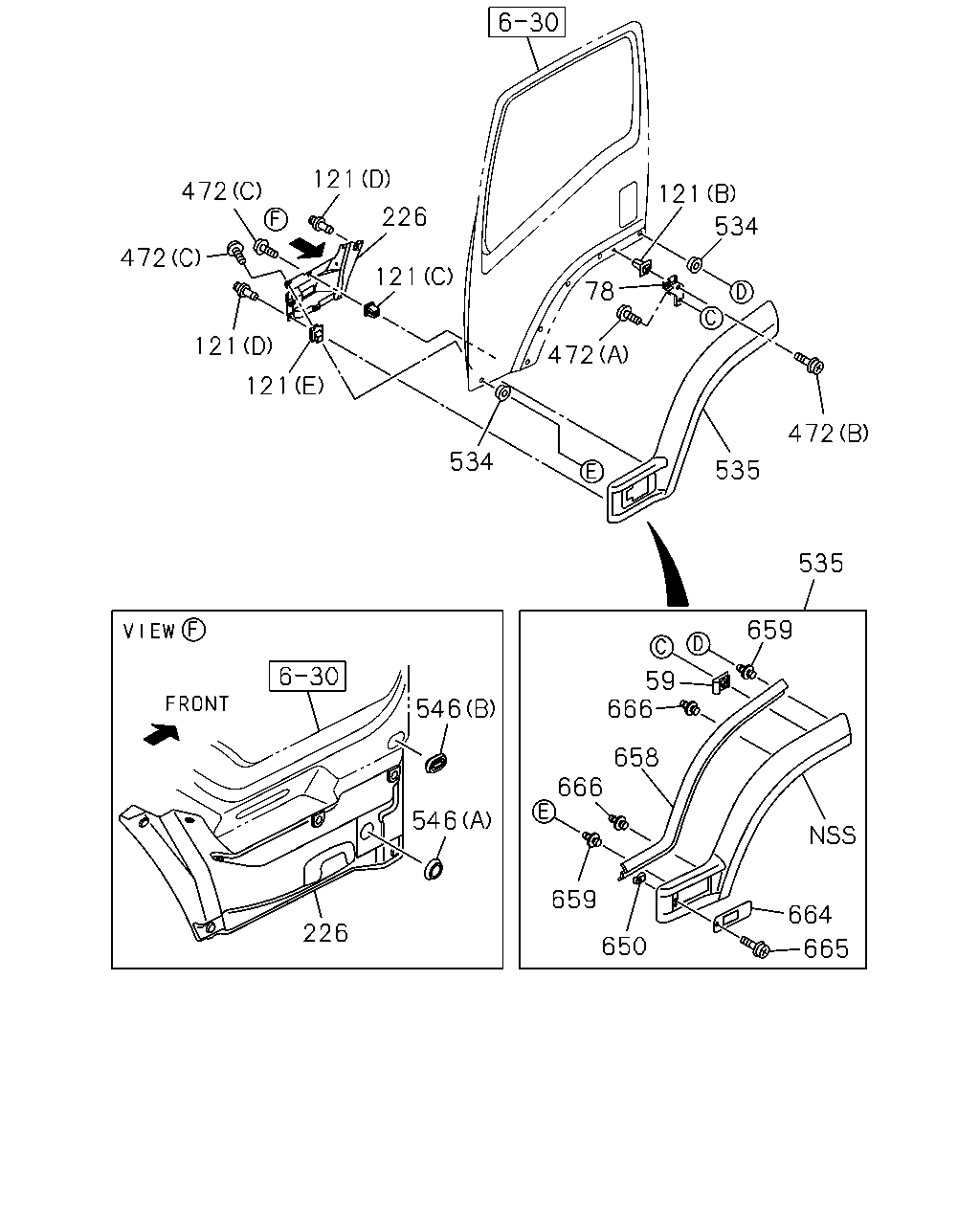

çizim 503018
472 472 121 121 121 226 121 121 534 472 535 535 472 78 534 659 59 666 658 666 659 650 665 664 546 226 546
BalonParca AdiParca NoAdetTipApplied Date
59 GROMMET; SCREW 8-94279-723-0 02 1 1511-
59 GROMMET; SCREW 8-94279-723-0 08 1 1511-
78 BRACKET; FENDER 8-98041-166-1 01 1 1511-
78 BRACKET; FENDER 8-98041-165-1 01 1 1511-
121 GROMMET; FENDER
(C) D=8.6X7.7 L=7.5 		8-94279-078-0 06 1 1511-
121 GROMMET; FENDER
(A) 		8-94279-723-0 04 1 1511-
121 GROMMET; FENDER
(D) OD=8.3 		8-94279-989-0 10 1 1511-
121 GROMMET; FENDER
(B) H=15 		8-94463-268-1 04 1 1511-
121 GROMMET; FENDER
(E) 		8-98073-421-0 01 1 1511-
121 GROMMET; FENDER
(E) 		8-98073-420-0 01 1 1511-
226 PROTECTOR; FRT 8-98037-713-2 01 1 1511-
226 PROTECTOR; FRT 8-98037-712-2 01 1 1511-
472 SCREW; FENDER TO CAB
(A) M6X18 TAPPING 		8-98059-505-0 02 1 1511-
472 SCREW; FENDER TO CAB
(C) M5X16 		8-98090-737-0 08 1 1511-
472 SCREW; FENDER TO CAB
(B) M5X12 		8-98093-669-0 04 1 1511-
534 FASTENER
ID=5.4 OD=6.8 		8-98241-984-0 12 1 1511-
535 FENDER; BLISTER
BODY COLOR AL GRAY(517) GRAY 		8-97415-340-1 01 1 1511-
535 FENDER; BLISTER
BODY COLOR AL GRAY(517) GRAY 		8-97415-320-1 01 1 1511-
535 FENDER; BLISTER
BODY COLOR ARC WHITE(729) WHITE 		8-97415-345-1 01 1 1511-
535 FENDER; BLISTER
BODY COLOR ARC WHITE(729) WHITE 		8-97415-325-1 01 1 1511-
535 FENDER; BLISTER
BODY COLOR CARDINAL RED(736) RED 		8-97415-342-1 01 1 1511-
535 FENDER; BLISTER
BODY COLOR CARDINAL RED(736) RED 		8-97415-322-1 01 1 1511-
535 FENDER; BLISTER
BODY COLOR DARK BLUE(695) BLUE 		8-97415-334-1 01 1 1511-
535 FENDER; BLISTER
BODY COLOR DARK BLUE(695) BLUE 		8-97415-314-1 01 1 1511-
535 FENDER; BLISTER
BODY COLOR FIRE RED(915) RED 		8-97415-343-1 01 1 1511-
535 FENDER; BLISTER
BODY COLOR FIRE RED(915) RED 		8-97415-323-1 01 1 1511-
535 FENDER; BLISTER
BODY COLOR GERANIUM RED(681) RED 		8-97415-341-1 01 1 1511-
535 FENDER; BLISTER
BODY COLOR GERANIUM RED(681) RED 		8-97415-321-1 01 1 1511-
535 FENDER; BLISTER
BODY COLOR GOLDEN YELLOW(904) YELLOW 		8-97415-348-1 01 1 1511-
535 FENDER; BLISTER
BODY COLOR GOLDEN YELLOW(904) YELLOW 		8-97415-328-1 01 1 1511-
535 FENDER; BLISTER
BODY COLOR GREEN(989) GREEN 		8-97415-337-1 01 1 1511-
535 FENDER; BLISTER
BODY COLOR GREEN(989) GREEN 		8-97415-317-1 01 1 1511-
535 FENDER; BLISTER
BODY COLOR HIGHWAY ORANGE(944) ORANGE 		8-97415-349-1 01 1 1511-
535 FENDER; BLISTER
BODY COLOR HIGHWAY ORANGE(944) ORANGE 		8-97415-329-1 01 1 1511-
535 FENDER; BLISTER
BODY COLOR MARINE BLUE(890) BLUE 		8-97415-352-1 01 1 1511-
535 FENDER; BLISTER
BODY COLOR MARINE BLUE(890) BLUE 		8-97415-332-1 01 1 1511-
535 FENDER; BLISTER
BODY COLOR POLAR WHITE(982) WHITE 		8-97417-743-1 01 1 1511-
535 FENDER; BLISTER
BODY COLOR POLAR WHITE(982) WHITE 		8-97417-742-1 01 1 1511-
535 FENDER; BLISTER
BODY COLOR PURPLISH BLUE(668) BLUE 		8-97415-333-1 01 1 1511-
535 FENDER; BLISTER
BODY COLOR PURPLISH BLUE(668) BLUE 		8-97415-313-1 01 1 1511-
535 FENDER; BLISTER
BODY COLOR SAHARA BEIGE(829) BEIGE 		8-97415-351-1 01 1 1511-
535 FENDER; BLISTER
BODY COLOR SAHARA BEIGE(829) BEIGE 		8-97415-331-1 01 1 1511-
535 FENDER; BLISTER
BODY COLOR TRANS BLUE(999) BLUE 		8-97415-335-1 01 1 1511-
535 FENDER; BLISTER
BODY COLOR TRANS BLUE(999) BLUE 		8-97415-315-1 01 1 1511-
535 FENDER; BLISTER
BODY COLOR WHEATLAND YELLOW(812) YELLOW 		8-97415-350-1 01 1 1511-
535 FENDER; BLISTER
BODY COLOR WHEATLAND YELLOW(812) YELLOW 		8-97415-330-1 01 1 1511-
535 FENDER; BLISTER
BODY COLOR WOODLAND GREEN(807) DARK GREEN 		8-97415-339-1 01 1 1511-
535 FENDER; BLISTER
BODY COLOR WOODLAND GREEN(807) DARK GREEN 		8-97415-319-1 01 1 1511-
546 PLUG; DUMMY HOLE
(A) OD=38 		8-94159-507-0 02 1 1511-
546 PLUG; DUMMY HOLE
(B) 		8-94430-184-1 02 1 1511-
650 NUT; SPIRE 8-94279-501-0 02 1 1511-
658 FINISHER; BLISTER FENDER 8-98041-169-3 01 1 1511-
658 FINISHER; BLISTER FENDER 8-98041-168-3 01 1 1511-
659 CLIP; FENDER
D5.4X8 		1-09983-154-0 08 1 1511-
664 BASE; DOOR,SIDE TURN
BODY COLOR AL GRAY(517) GRAY 		8-97421-549-0 01 1 1511-
664 BASE; DOOR,SIDE TURN
BODY COLOR AL GRAY(517) GRAY 		8-97421-521-0 01 1 1511-
664 BASE; DOOR,SIDE TURN
BODY COLOR ARC WHITE(729) WHITE 		8-97421-497-0 01 1 1511-
664 BASE; DOOR,SIDE TURN
BODY COLOR ARC WHITE(729) WHITE 		8-97421-485-0 01 1 1511-
664 BASE; DOOR,SIDE TURN
BODY COLOR CARDINAL RED(736) RED 		8-97421-499-0 01 1 1511-
664 BASE; DOOR,SIDE TURN
BODY COLOR CARDINAL RED(736) RED 		8-97421-487-0 01 1 1511-
664 BASE; DOOR,SIDE TURN
BODY COLOR DARK BLUE(695) BLUE 		8-97421-539-0 01 1 1511-
664 BASE; DOOR,SIDE TURN
BODY COLOR DARK BLUE(695) BLUE 		8-97421-511-0 01 1 1511-
664 BASE; DOOR,SIDE TURN
BODY COLOR FIRE RED(915) RED 		8-97421-503-0 01 1 1511-
664 BASE; DOOR,SIDE TURN
BODY COLOR FIRE RED(915) RED 		8-97421-491-0 01 1 1511-
664 BASE; DOOR,SIDE TURN
BODY COLOR GERANIUM RED(681) RED 		8-97421-551-0 01 1 1511-
664 BASE; DOOR,SIDE TURN
BODY COLOR GERANIUM RED(681) RED 		8-97421-523-0 01 1 1511-
664 BASE; DOOR,SIDE TURN
BODY COLOR GOLDEN YELLOW(904) YELLOW 		8-97421-505-0 01 1 1511-
664 BASE; DOOR,SIDE TURN
BODY COLOR GOLDEN YELLOW(904) YELLOW 		8-97421-493-0 01 1 1511-
664 BASE; DOOR,SIDE TURN
BODY COLOR GREEN(989) GREEN 		8-97421-543-0 01 1 1511-
664 BASE; DOOR,SIDE TURN
BODY COLOR GREEN(989) GREEN 		8-97421-515-0 01 1 1511-
664 BASE; DOOR,SIDE TURN
BODY COLOR HIGHWAY ORANGE(944) ORANGE 		8-97421-559-0 01 1 1511-
664 BASE; DOOR,SIDE TURN
BODY COLOR HIGHWAY ORANGE(944) ORANGE 		8-97421-531-0 01 1 1511-
664 BASE; DOOR,SIDE TURN
BODY COLOR MARINE BLUE(890) BLUE 		8-97421-563-0 01 1 1511-
664 BASE; DOOR,SIDE TURN
BODY COLOR MARINE BLUE(890) BLUE 		8-97421-535-0 01 1 1511-
664 BASE; DOOR,SIDE TURN
BODY COLOR POLAR WHITE(982) WHITE 		8-97421-607-0 01 1 1511-
664 BASE; DOOR,SIDE TURN
BODY COLOR POLAR WHITE(982) WHITE 		8-97421-605-0 01 1 1511-
664 BASE; DOOR,SIDE TURN
BODY COLOR PURPLISH BLUE(668) BLUE 		8-97421-537-0 01 1 1511-
664 BASE; DOOR,SIDE TURN
BODY COLOR PURPLISH BLUE(668) BLUE 		8-97421-509-0 01 1 1511-
664 BASE; DOOR,SIDE TURN
BODY COLOR SAHARA BEIGE(829) BEIGE 		8-97421-501-0 01 1 1511-
664 BASE; DOOR,SIDE TURN
BODY COLOR SAHARA BEIGE(829) BEIGE 		8-97421-489-0 01 1 1511-
664 BASE; DOOR,SIDE TURN
BODY COLOR TRANS BLUE(999) BLUE 		8-97421-507-0 01 1 1511-
664 BASE; DOOR,SIDE TURN
BODY COLOR TRANS BLUE(999) BLUE 		8-97421-495-0 01 1 1511-
664 BASE; DOOR,SIDE TURN
BODY COLOR WHEATLAND YELLOW(812) YELLOW 		8-97421-596-0 01 1 1511-
664 BASE; DOOR,SIDE TURN
BODY COLOR WHEATLAND YELLOW(812) YELLOW 		8-97421-533-0 01 1 1511-
664 BASE; DOOR,SIDE TURN
BODY COLOR WOODLAND GREEN(807) DARK GREEN 		8-97421-547-0 01 1 1511-
664 BASE; DOOR,SIDE TURN
BODY COLOR WOODLAND GREEN(807) DARK GREEN 		8-97421-519-0 01 1 1511-
665 SCREW; FENDER
M6X20 W/PL WASHER 		0-36210-620-0 02 1 1511-
666 CLIP; BLISTER FENDER 8-98071-178-0 04 1 1511-

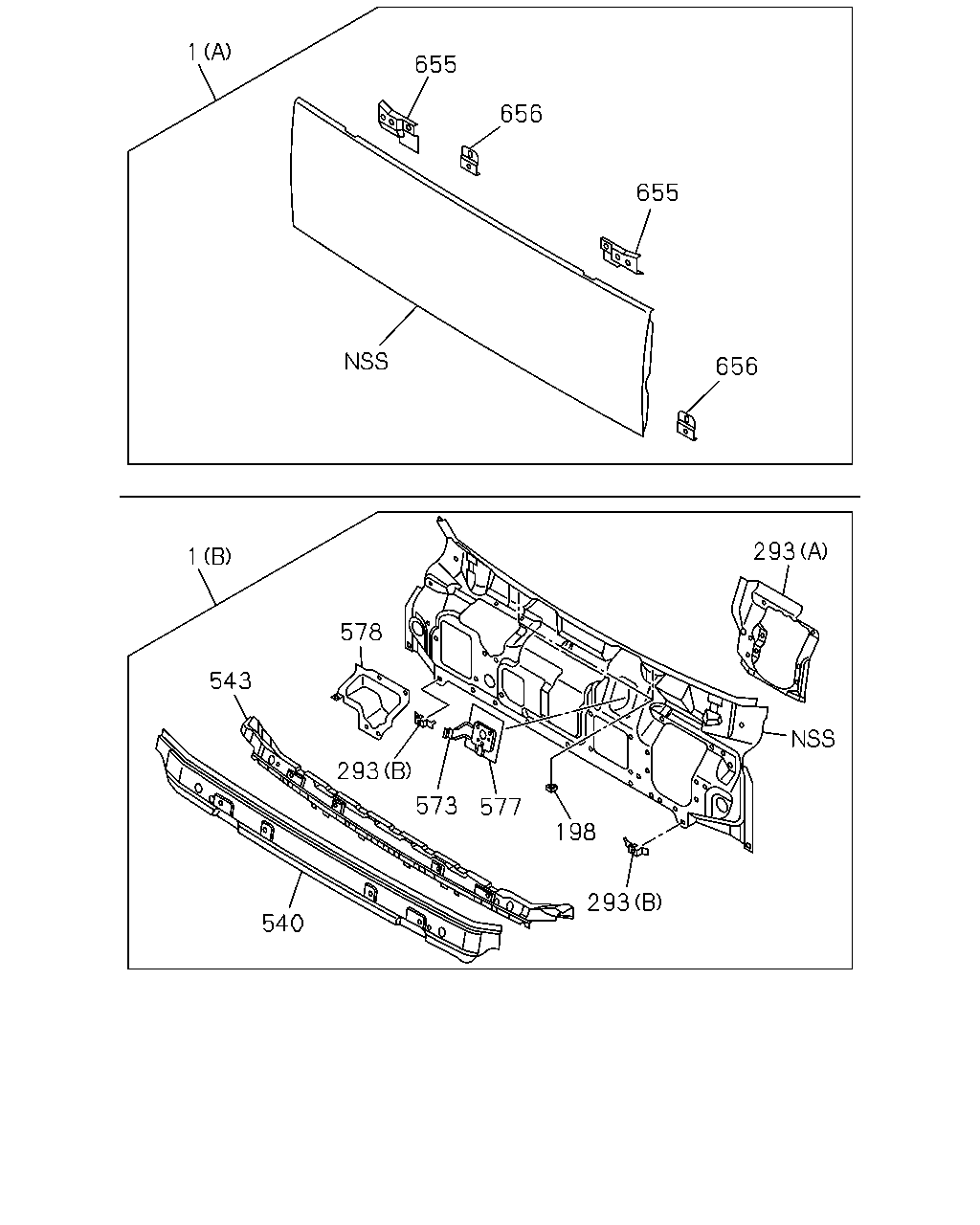

çizim 503042
1 655 656 655 656 293 293 198 577 573 293 578 1 543 540
BalonParca AdiParca NoAdetTipApplied Date
1 PANEL ASM; FRT
(B) 		8-97585-959-7 01 1 1511-
1 PANEL ASM; FRT
(A) 		8-98030-230-3 01 1 1511-
198 NUT; PANEL
M6 		9-09114-086-0 02 1 1511-
293 BRACKET; PANEL
(A) 		8-97586-008-1 01 1 1511-
293 BRACKET; PANEL
(B) 		8-98008-124-1 01 1 1511-
293 BRACKET; PANEL
(B) 		8-98008-126-1 01 1 1511-
540 PANEL; FRONT,OUTER 8-97585-965-2 01 1 1511-
543 CLOSING; FRT MTG RAIL 8-98067-965-2 01 1 1511-
573 BRACKET; SUPPORT 8-98017-700-2 01 1 1511-
577 BRACKET; IDLER 8-97586-019-1 01 1 1511-
578 COVER; WIPER MOTOR 8-98017-702-1 01 1 1511-
655 PATCH; HINGE 8-98031-263-0 01 1 1511-
655 PATCH; HINGE 8-98031-264-0 01 1 1511-
656 PATCH; STRIKER 8-98031-265-0 02 1 1511-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
