Isuzu WW
▶
TRUCKS
▶
FSR
▶
11724 - FSR LHD EURO5 EXC.SPACECAB
▶
5 - Frame, Cab Mounting
▶
5-20 - BATTERY CARRIER
▶

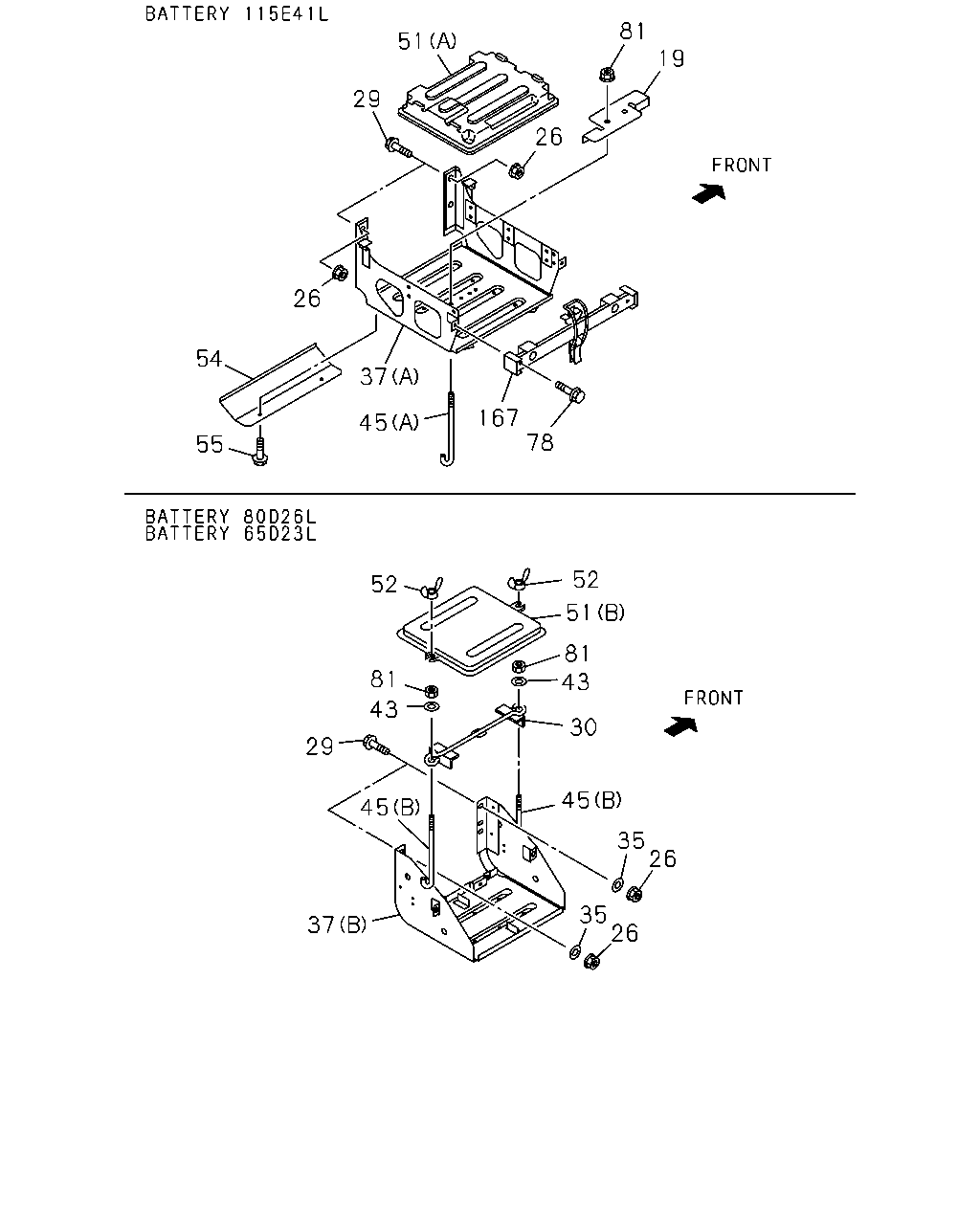

5-20 — BATTERY CARRIER
(#170413) — 22 parça
19
81
51
29
26
54
55
37
45
167
78
26
52
51
81
43
30
45
35
26
35
26
37
45
29
43
81
52
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
19
STAY; BATTERY
BATTERY 115E41L<8MA>
8-98120-443-0
01
1
1511-
26
NUT; BRKT
M10 FLANGE
0-91180-210-0
04
1
1511-
29
BOLT; BRKT TO FRAME
M10X35 FLANGE
0-28651-035-0
04
1
1511-
30
PLATE; BATTERY
EXC. BATTERY 115E41L<8MA>
5-53615-004-1
01
1
1511-
35
WASHER; PL,BATTERY CARRIER
EXC. BATTERY 115E41L<8MA> ID=10.5 OD=22
0-91614-610-0
04
1
1511-
37
BRACKET; BATTERY
BATTERY 115E41L<8MA> EXC. KD PREPARATORY PACK<6HF> (A)
8-98301-050-0
01
1
1511-
37
BRACKET; BATTERY
BATTERY 65D23L<8EJ> (B)
8-97384-068-2
01
1
1511-
37
BRACKET; BATTERY
BATTERY 80D26L<TM1> (B)
8-97384-067-2
01
1
1511-
37
BRACKET; BATTERY
KD PREPARATORY PACK<6HF> BATTERY 115E41L<8MA> (A)
8-98318-032-0
01
1
1511-
43
WASHER; PL,CLAMP
EXC. BATTERY 115E41L<8MA> ID=8.4 OD=22
0-91614-708-0
02
1
1511-
45
ROD; TENSION,BATTERY
BATTERY 115E41L<8MA> EXC. KD PREPARATORY PACK<6HF> (A) L=250
1-53616-108-0
02
1
1511-
45
ROD; TENSION,BATTERY
EXC. BATTERY 115E41L<8MA> (B) L=120
9-53616-615-0
02
1
1511-
45
ROD; TENSION,BATTERY
KD PREPARATORY PACK<6HF> BATTERY 115E41L<8MA> (A) L=235
8-98120-478-0
02
1
1511-
51
COVER; BATTERY
BATTERY 115E41L<8MA> EXC. KD PREPARATORY PACK<6HF> (A)
1-53612-037-2
01
1
1511-
51
COVER; BATTERY
EXC. BATTERY 115E41L<8MA> (B)
8-97120-747-0
01
1
1511-
51
COVER; BATTERY
KD PREPARATORY PACK<6HF> BATTERY 115E41L<8MA> (A)
8-98124-443-0
01
1
1511-
52
NUT; WING,COVER FIX
EXC. BATTERY 115E41L<8MA> M8 WING NUT
0-91118-408-0
02
1
1511-
54
PROTECTOR; HEAT,BATTERY
BATTERY 115E41L<8MA>
8-98113-142-0
01
1
1511-
55
BOLT; HEAT PROTECTOR
BATTERY 115E41L<8MA> M8X10 FLANGE
0-28050-810-0
02
1
1511-
78
BOLT; COVER
BATTERY 115E41L<8MA> M8X20 FLANGE
0-28650-820-0
02
1
1511-
81
NUT; BATTERY
M8 FLANGE
0-91180-108-0
02
1
1511-
167
BRACKET; STOPPER
BATTERY 115E41L<8MA>
8-98204-179-2
01
1
1511-
