Isuzu WW
▶
TRUCKS
▶
FSR
▶
11724 - FSR LHD EURO5 EXC.SPACECAB
▶
5 - Frame, Cab Mounting
▶
5-01 - FRAME AND OTHER PARTS
▶
5-01 — FRAME AND OTHER PARTS
(#170410) — 40 parça
Tümü
A - WHEEL BASE 4300MM
B - WHEEL BASE 4800MM
C - WHEEL BASE 5100MM
◀

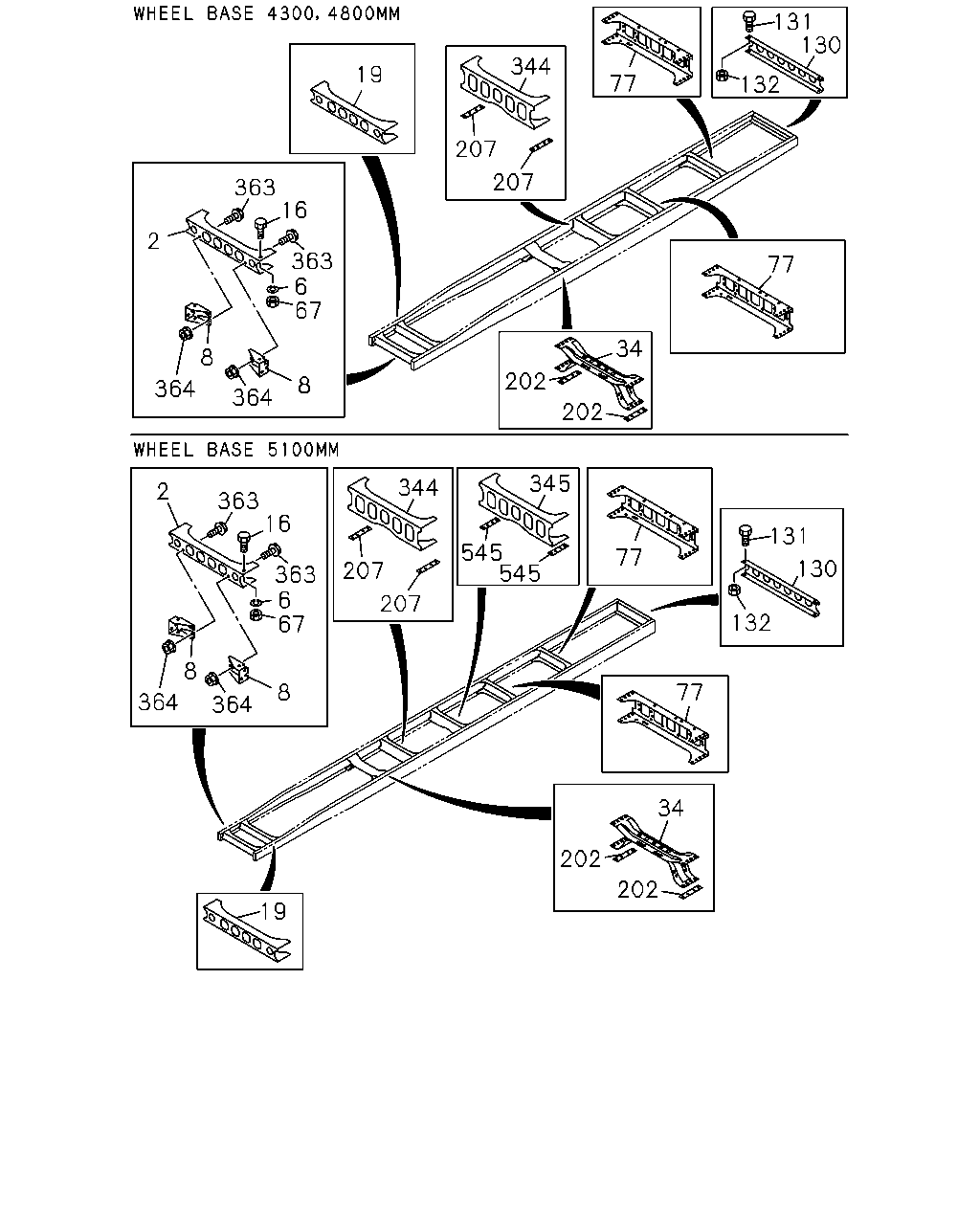

[501A] CROSS MEMBER (19 parça)

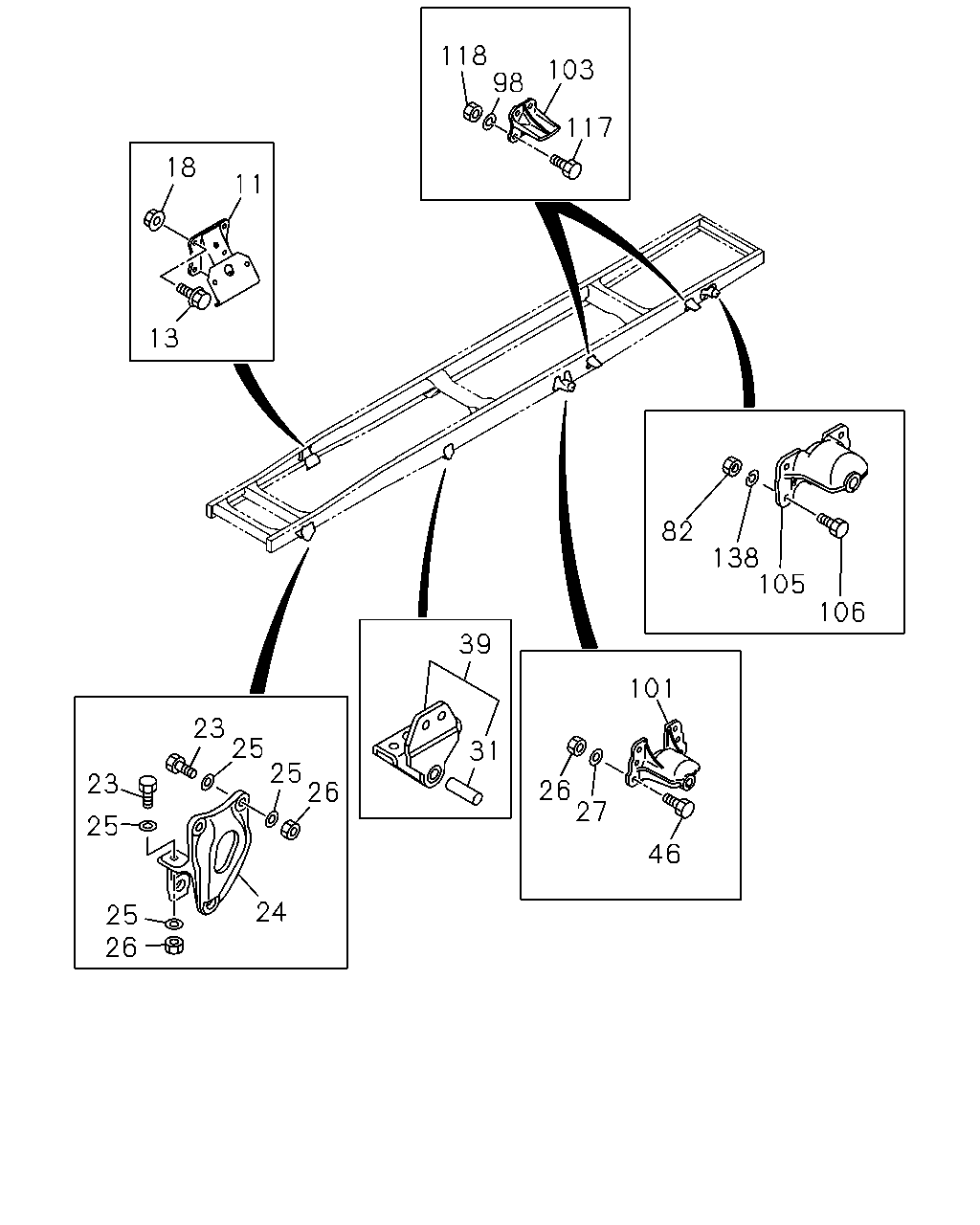

[501A] BRACKET AND OTHER PARTS (21 parça)
▶
19
344
207
207
77
131
130
132
77
34
202
202
345
545
545
77
131
130
132
77
34
202
202
364
364
8
8
67
6
363
16
363
2
364
364
8
8
67
6
363
16
363
2
207
344
207
19
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
2
MEMBER; CROSS,1ST
8-98299-569-1
01
1
1511-
●
●
●
6
WASHER; LK,1ST C/MBR
ID=12.2
0-91510-512-0
02
1
1511-
●
●
●
8
GUSSET; 1ST C/MBR
8-97617-912-2
01
1
1511-
●
●
●
8
GUSSET; 1ST C/MBR
8-97617-913-3
01
1
1511-
●
●
●
16
BOLT; 1ST C/MBR TO S/MBR
M12X30
0-20851-230-0
02
1
1511-
●
●
●
19
MEMBER; CROSS,2ND
8-97629-428-5
01
1
1511-
●
●
●
34
MEMBER; CROSS,3RD
8-98327-872-0
01
1
1511-
●
●
●
67
NUT; C/MBR
M12
0-91110-512-0
02
1
1511-
●
●
●
77
MEMBER; CROSS,TRUNNION RR
8-97609-481-4
02
1
1511-
●
●
●
130
MEMBER; CROSS,END
8-97609-470-0
01
1
1511-
●
●
●
131
BOLT; END C/MBR
M10X25 W/LK WASHER
0-50541-025-0
04
1
1511-
●
●
●
132
NUT; END C/MBR
M10
0-91110-510-0
04
1
1511-
●
●
●
202
SPACER; 3RD C/MBR
8-97609-757-0
02
1
1511-
●
●
●
207
SPACER; 4TH C/MBR
8-97609-758-0
02
1
1511-
●
●
●
344
MEMBER; CROSS,4TH
8-97609-473-2
01
1
1511-
●
●
●
345
MEMBER; CROSS,5TH
8-97609-473-2
01
1
1511-
●
363
BOLT; GUSSET
M12X25 FLANGE
0-28661-225-0
04
1
1511-
●
●
●
364
NUT; GUSSET
M12 FLANGE
0-91180-212-0
04
1
1511-
●
●
●
545
SPACER; 5TH C/MBR
8-97609-758-0
02
1
1511-
●
106
105
138
82
101
26
27
46
31
39
25
23
23
25
25
26
26
25
24
117
103
98
118
11
18
13
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
11
BRACKET; ENG MTG
8-97609-502-0
02
1
1511-
●
●
●
13
BOLT; BRKT,ENG MTG
M12X35 FLANGE
0-28661-235-0
08
1
1511-
●
●
●
18
NUT; BRKT,ENG MTG
M12 FLANGE
0-91180-212-0
08
1
1511-
●
●
●
23
BOLT; BRKT,SPR
M14X50
0-20951-450-0
08
1
1511-
●
●
●
24
BRACKET; FRT SPR,FRT
8-98018-983-0
01
1
1511-
●
●
●
24
BRACKET; FRT SPR,FRT
8-98018-984-0
01
1
1511-
●
●
●
25
WASHER; PL,BRKT
ID=15
8-98010-627-1
16
1
1511-
●
●
●
26
NUT; BRKT,SPR
M14
0-91110-514-0
20
1
1511-
●
●
●
27
WASHER; LK,BRKT,FRT SPR
ID=14.2
0-91510-614-0
12
1
1511-
●
●
●
31
BUSHING; FRT SPR,RR
ID=25
8-98082-176-0
02
1
1511-
●
●
●
39
BRACKET; FRT SPR,RR
1-53352-126-2
02
1
1511-
●
●
●
46
BOLT; BRKT FIX
M14X50
0-20951-450-0
12
1
1511-
●
●
●
82
NUT; BRKT
M14
0-91110-514-0
10
1
1511-
●
●
●
98
WASHER; LK,STOPPER
ID=14.2
0-91510-614-0
16
1
1511-
●
●
●
101
BRACKET; RR SPR,FRT
1-53353-090-4
02
1
1511-
●
●
●
103
STOPPER; SUB SPR
1-53356-059-1
04
1
1511-
●
●
●
105
BRACKET; RR SPR,RR
1-53354-074-0
02
1
1511-
●
●
●
106
BOLT; BRKT
M14X50
0-20951-450-0
10
1
1511-
●
●
●
117
BOLT; STOPPER
M14X50
0-20951-450-0
16
1
1511-
●
●
●
118
NUT; STOPPER
M14
0-91110-514-0
16
1
1511-
●
●
●
138
WASHER; LK,BRKT
ID=14.2
0-91510-614-0
10
1
1511-
●
●
●
