Isuzu WW
▶
TRUCKS
▶
FSR
▶
11724 - FSR LHD EURO5 EXC.SPACECAB
▶
4 - Propeller Shaft, Axles, Steering, Suspension
▶
4-80 - ROAD WHEEL
▶

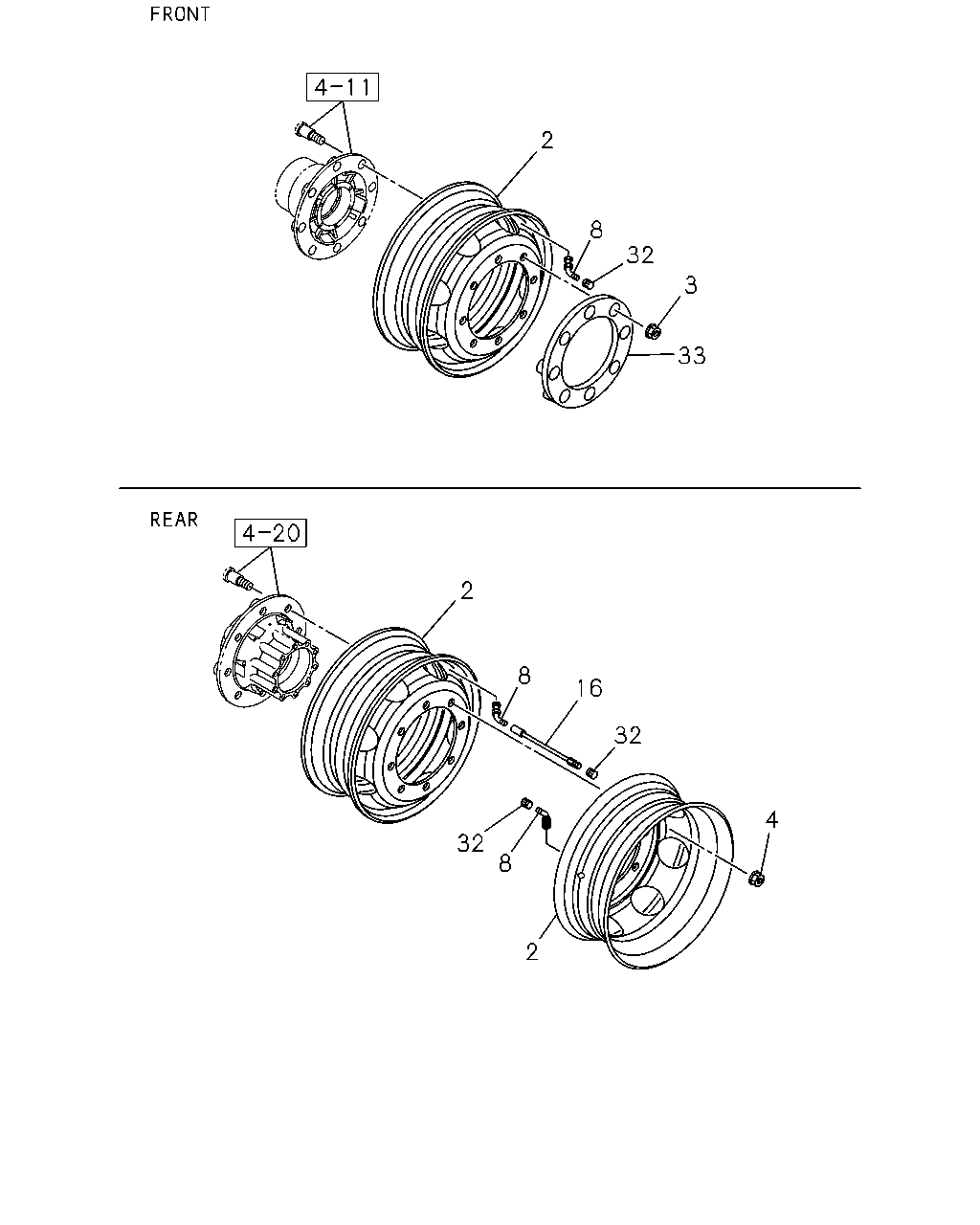

4-80 — ROAD WHEEL
(#170409) — 13 parça
2
8
32
3
33
2
8
16
32
4
32
8
2
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
WHEEL; DISC
FRONT,REAR
8-98222-137-0
06
1
1511-
2
WHEEL; DISC
DISC WHEEL SPARE<N79> EXC. SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> SPARE
8-98222-137-0
01
1
1511-
2
WHEEL; DISC
SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> EXC. DISC WHEEL SPARE<N79> SPARE
8-98222-137-0
01
1
1511-
3
NUT; WHEEL,FRT AXLE
M22X1.5
1-42333-055-0
16
1
1511-
4
NUT; WHEEL,RR AXLE
M22X1.5
1-42333-055-0
16
1
1511-
8
VALVE; TIRE
FRONT,REAR
1-42370-048-0
06
1
1511-
8
VALVE; TIRE
DISC WHEEL SPARE<N79> EXC. SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> SPARE
1-42370-048-0
01
1
1511-
8
VALVE; TIRE
SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> EXC. DISC WHEEL SPARE<N79> SPARE
1-42370-048-0
01
1
1511-
16
HOLDER; TIRE VALVE,DISC WHEEL
L=115
8-98167-051-0
02
1
1511-
32
CAP; VALVE
DISC WHEEL SPARE<N79> EXC. SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2>
1-42374-001-0
05
1
1511-
32
CAP; VALVE
SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> EXC. DISC WHEEL SPARE<N79>
1-42374-001-0
05
1
1511-
32
CAP; VALVE
EXC. DISC WHEEL SPARE<N79>,SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2>
1-42374-001-0
04
1
1511-
33
COVER; WHEEL
8-98285-268-0
02
1
1511-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
