Isuzu WW
▶
TRUCKS
▶
FSR
▶
11724 - FSR LHD EURO5 EXC.SPACECAB
▶
4 - Propeller Shaft, Axles, Steering, Suspension
▶
4-60 - REAR SUSPENSION
▶

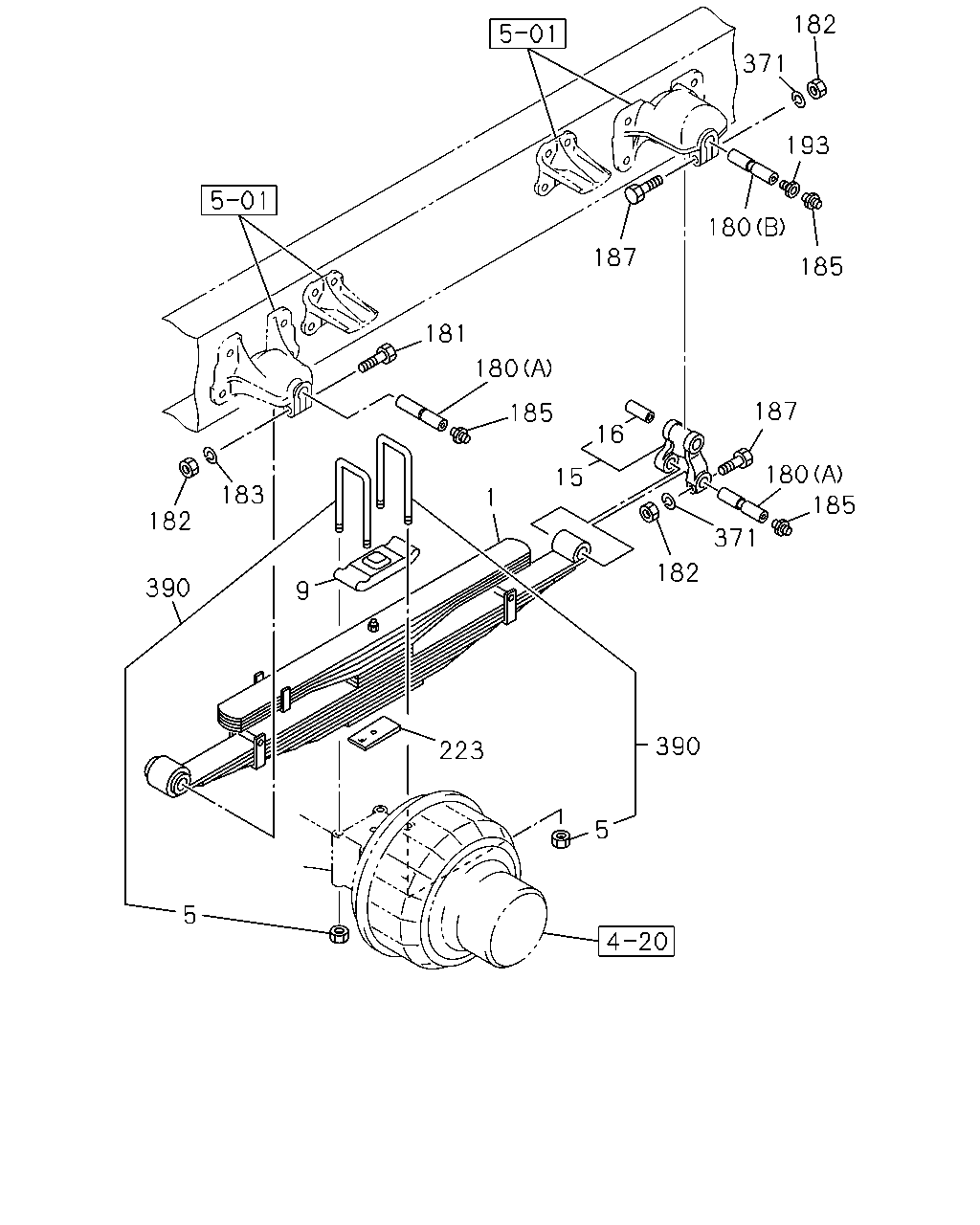

4-60 — REAR SUSPENSION
(#170407) — 18 parça
187
180
371
182
193
185
187
180
185
371
182
15
16
185
180
181
183
182
390
9
223
1
5
390
5
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT.
8-98064-447-0
02
1
1511-
5
NUT; U-BOLT,RR SPR
M20 FLANGE
8-98010-415-0
08
1
1511-
9
PAD; U BOLT,RR SPR
1-51372-059-0
02
1
1511-
15
SHACKLE; RR SPR
1-51362-038-2
02
1
1511-
16
BUSHING; SHACKLE,RR SPR
ID=25
8-98082-176-0
02
1
1511-
180
PIN; RR SPR
(A) DO=25 L=115 PT1/8
1-51361-016-0
04
1
1511-
180
PIN; RR SPR
(B) DO=25 L=115 M12
1-51361-017-0
02
1
1511-
181
BOLT; SPR & SHACKLE
M12X70
0-10961-270-0
02
1
1511-
182
NUT; PIN,RR SPR
M12
0-91110-512-0
06
1
1511-
183
WASHER; LK,PIN,RR SPR
ID=12.2
0-91510-612-0
02
1
1511-
185
NIPPLE; GREASE,PIN,RR SPR
PT1/8 STRAIGHT
0-90301-410-0
06
1
1511-
187
BOLT; SPR & SHACKLE
M12X70
0-10961-270-0
04
1
1511-
193
ATTACHMENT; GREASE NIPPLE
9-43165-001-0
02
1
1511-
223
SPACER; U BOLT,RR SPR
WHEEL BASE 4300MM(43W)
1-51377-333-1
02
1
1511-
223
SPACER; U BOLT,RR SPR
WHEEL BASE 4800MM(48W)
1-51377-329-1
02
1
1511-
223
SPACER; U BOLT,RR SPR
WHEEL BASE 5100MM(51W)
8-98043-891-0
02
1
1511-
371
WASHER; LK,SHACKLE
ID=12.2
0-91510-612-0
04
1
1511-
390
U-BOLT SET; RR SPRING
L=405
1-87870-472-0
04
1
1511-
