◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSS ▶ 10634 - FSS/FTS-RHD ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-90 - RADIO AND TV ▶
8-90 — RADIO AND TV (#1704) — 29 parça

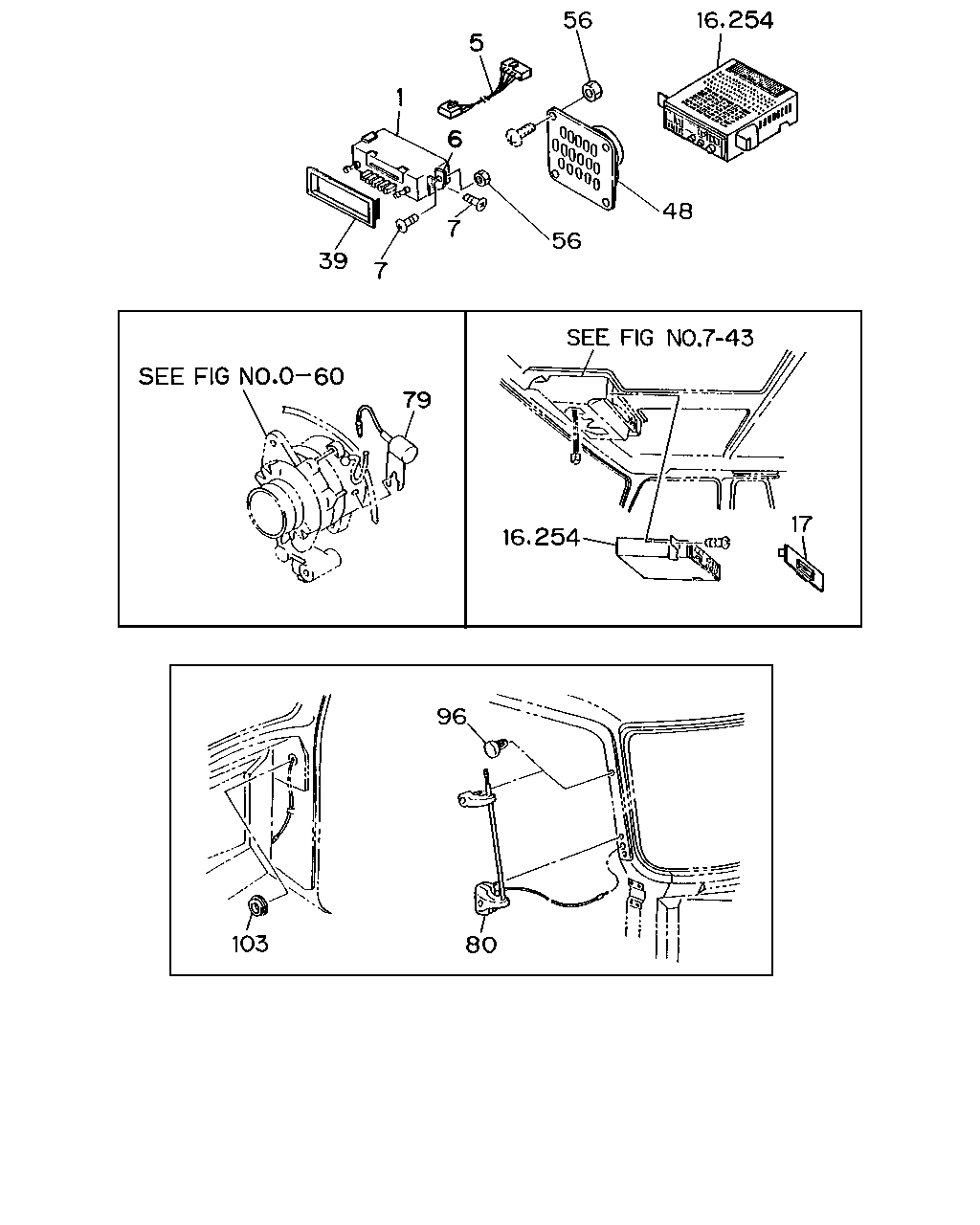

çizim 93974
16 254 56 48 56 5 1 6 7 7 39 79 16 254 17 103 96 80
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 RADIO
RADIO CLARION(SK2),RADIO AM & TAPE PLAYER(UM1) EXC. SPEAKER SYSTEM FRT 2 SPEAKERS<UX6>, ANTENNARADIO<U73> 		1-84112-034-0 01 1 9207- ● ● ● ● ●
1 RADIO
RADIO MATSUSHITA(SM9) EXC. SPEAKER SYSTEM FRT 2 SPEAKERS<UX6>, ANTENNARADIO<U73> 		1-84112-035-0 01 1 9207- ● ● ● ● ●
5 HARNESS; EXT
RADIO MATSUSHITA(SM9) 		1-82622-366-0 01 1 9207- ● ● ● ● ●
6 BRACKET; RADIO TO PANEL
RADIO MATSUSHITA(SM9) 		1-84116-051-0 01 1 9207- ● ● ● ● ●
6 BRACKET; RADIO TO PANEL
RADIO MATSUSHITA(SM9) 		1-84116-050-0 01 1 9207- ● ● ● ● ●
7 SCREW; RADIO
RADIO CLARION(SK2),RADIO MATSUSHITA(SM9) M6X16 W/LK&PL WASHER 		1-09981-141-0 02 1 9207- ● ● ● ● ●
7 SCREW; RADIO
RADIO CLARION(SK2),RADIO MATSUSHITA(SM9),RADIO AM & TAPE PLAYER(UM1) M6X16 W/LK&PL WASHER 		1-09981-141-0 02 1 9207- ● ● ● ● ●
7 SCREW; RADIO
SPEAKER SYSTEM FRT 2 SPEAKERS<UX6> M6X16 W/LK&PL WASHER 		1-09981-141-0 02 1 9207- ●
7 SCREW; RADIO
SPEAKER SYSTEM FRT 2 SPEAKERS<UX6> M6X16 W/LK&PL WASHER 		1-09981-141-0 02 1 9207- ●
7 SCREW; RADIO
RADIO MATSUSHITA(SM9) M5X8 W/LK WASHER 		9-03910-508-0 02 1 9207- ● ● ● ● ●
7 SCREW; RADIO
RADIO AM/FM<U69> M6X16 W/PL WASHER 		1-09981-438-0 03 1 9207- ● ● ●
16 CASSETTE STEREO
RADIO AM & TAPE PLAYER(UM1) EXC. SPEAKER SYSTEM FRT 2 SPEAKERS<UX6>, ANTENNARADIO<U73> 		1-84120-032-1 01 1 9207- ● ● ● ● ●
17 ATTACH KIT; CASSETTE
RADIO AM & TAPE PLAYER(UM1) 		1-84125-015-0 01 1 9207- ● ● ● ● ●
39 ESCUTCHEON
RADIO CLARION(SK2),RADIO AM & TAPE PLAYER(UM1) 		1-84119-034-1 01 1 9207- ● ● ● ● ●
39 ESCUTCHEON
EXC. RADIO CLARION(SK2),RADIO MATSUSHITA(SM9), RADIO AM & TAPE PLAYER(UM1),SPEAKER SYSTEM FRT 2SPEAKERS<UX6>,RADIO AM/FM<U69>,ANTENNA RADIO<U73> 		1-84125-007-2 01 1 9207- ● ● ● ● ●
39 ESCUTCHEON
SPEAKER SYSTEM FRT 2 SPEAKERS<UX6> 		1-84125-007-2 01 1 9207- ●
39 ESCUTCHEON
RADIO MATSUSHITA(SM9) 		1-84119-035-1 01 1 9207- ● ● ● ● ●
48 SPEAKER; AUDIO
RADIO AM & TAPE PLAYER(UM1),RADIO AM/FM<U69> EXC. SPEAKER SYSTEM FRT 2 SPEAKERS<UX6>, ANTENNARADIO<U73> 		1-84114-044-0 02 1 9207- ● ● ● ● ●
48 SPEAKER; AUDIO
RADIO CLARION(SK2) EXC. SPEAKER SYSTEM FRT 2 SPEAKERS<UX6>, ANTENNARADIO<U73> 		1-84114-044-0 01 1 9207- ● ● ● ● ●
48 SPEAKER; AUDIO
RADIO MATSUSHITA(SM9) EXC. SPEAKER SYSTEM FRT 2 SPEAKERS<UX6>, ANTENNARADIO<U73> 		1-84114-035-0 01 1 9207- ● ● ● ● ●
48 SPEAKER; AUDIO
SPEAKER SYSTEM FRT 2 SPEAKERS<UX6> 		1-84114-049-0 02 1 9207- ●
56 NUT; SPEAKER,RADIO OR STEREO
RADIO AM & TAPE PLAYER(UM1),SPEAKER SYSTEM FRT 2 SPEAKERS<UX6>,RADIO AM/FM<U69> 		1-09984-118-0 04 1 9207- ● ● ● ● ●
56 NUT; SPEAKER,RADIO OR STEREO
RADIO CLARION(SK2),RADIO MATSUSHITA(SM9) 		1-09984-118-0 02 1 9207- ● ● ● ● ●
79 CONDENSER; RADIO
RADIO CLARION(SK2),RADIO MATSUSHITA(SM9),RADIO AM & TAPE PLAYER(UM1),RADIO AM/FM<U69> 		1-84132-004-0 01 1 9207- ● ● ● ● ●
80 ANTENNA
RADIO CLARION(SK2),RADIO MATSUSHITA(SM9),RADIO AM & TAPE PLAYER(UM1),RADIO AM/FM<U69> 		1-84115-051-1 01 1 9207- ● ● ● ● ●
96 PLUG; ANTENNA HOLE
EXC. RADIO CLARION(SK2),RADIO MATSUSHITA(SM9), RADIO AM & TAPE PLAYER(UM1),SPEAKER SYSTEM FRT 2SPEAKERS<UX6>,RADIO AM/FM<U69> 		1-09983-094-0 03 1 9207- ● ● ● ● ●
103 GROMMET; ANTENNA HOLE,FRT
RADIO CLARION(SK2),RADIO MATSUSHITA(SM9),RADIO AM & TAPE PLAYER(UM1),SPEAKER SYSTEM FRT 2 SPEAKERS<UX6>,RADIO AM/FM<U69> ID=10 OD=42 T=5 		1-09983-111-0 01 1 9207- ● ● ● ● ●
103 GROMMET; ANTENNA HOLE,FRT
EXC. RADIO CLARION(SK2),RADIO MATSUSHITA(SM9), RADIO AM & TAPE PLAYER(UM1),SPEAKER SYSTEM FRT 2SPEAKERS<UX6>,RADIO AM/FM<U69> 		1-09983-097-0 01 1 9207- ● ● ● ● ●
254 RADIO CONTROL ASM; STEREO,AM-FM
RADIO AM/FM<U69> 		1-84112-053-0 01 1 9207- ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
