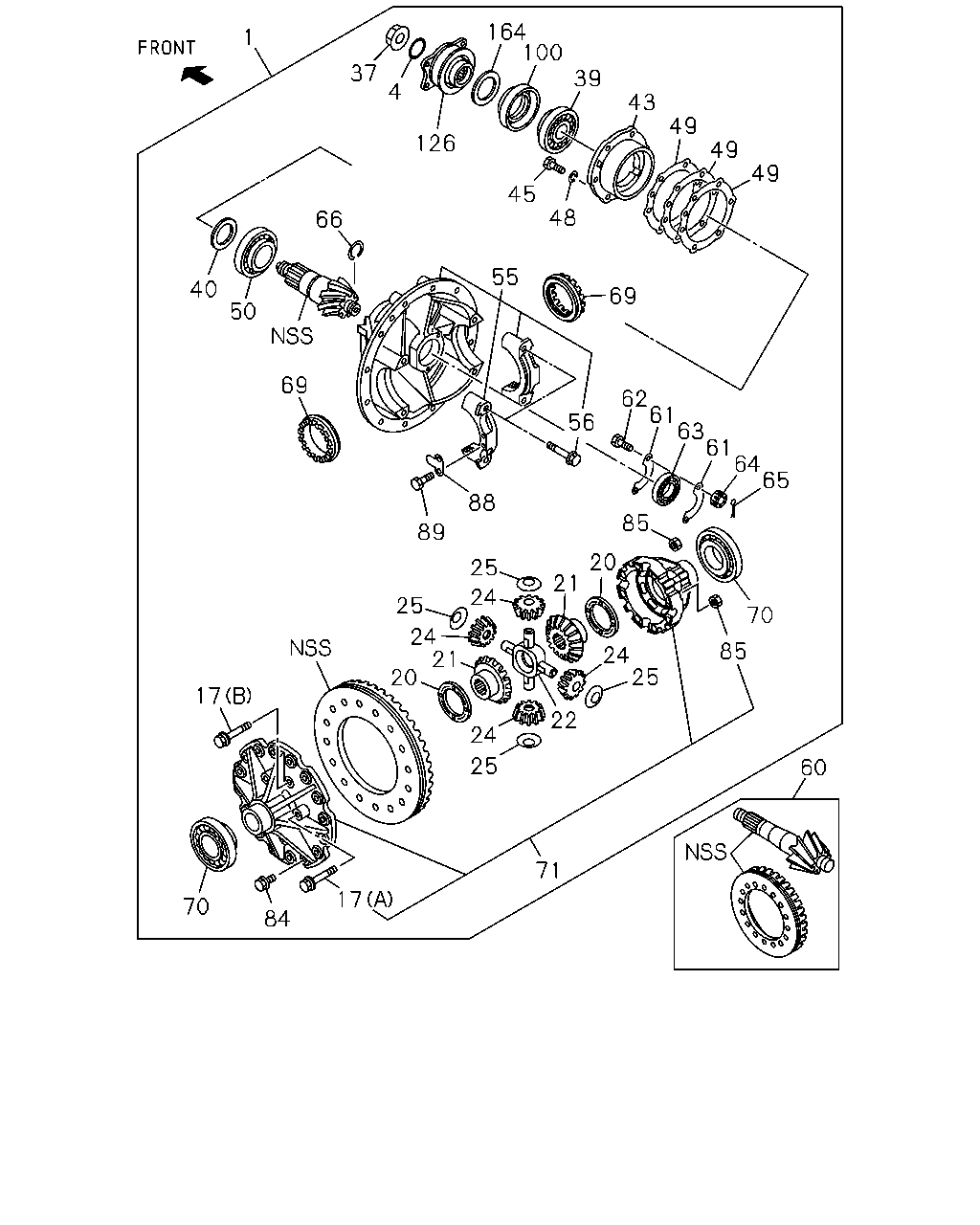

4-25 — REAR FINAL DRIVE (#170397) — 73 parça

40 69 89 56 62 61 61 64 70 65 85 60 22 25 25 24 20 85 21 25 25 24 20 24 24 21 71 84 70 50 55 69 66 45 49 49 49 43 39 100 164 37 126 48 88 63 4 1 17 17

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	DRIVE ASM; FINAL,RR 39/9	1-41003-250-0	01	1	1511-	●
1	DRIVE ASM; FINAL,RR 41/10	1-41003-249-0	01	1	1511-		●
4	GASKET; FLANGE,FINAL PINION ID=37.5 T=4	1-09623-582-0	01	1	1511-	●	●
17	BOLT; DIFF CAGE SETTING (A) M14X121 FLANGE	1-09044-006-0	04	1	1511-	●	●
17	BOLT; DIFF CAGE SETTING (B) M14X95 FLANGE	1-09044-007-0	04	1	1511-	●	●
20	WASHER; THRUST,SIDE GEAR T=2.80	1-41562-061-0	AR	1	1511-	●	●
20	WASHER; THRUST,SIDE GEAR T=3.00	1-41562-062-0	AR	1	1511-	●	●
20	WASHER; THRUST,SIDE GEAR T=3.20	1-41562-063-0	AR	1	1511-	●	●
20	WASHER; THRUST,SIDE GEAR T=3.40	1-41562-064-0	AR	1	1511-	●	●
20	WASHER; THRUST,SIDE GEAR T=2.90	1-41562-080-0	AR	1	1511-	●	●
20	WASHER; THRUST,SIDE GEAR T=3.10	1-41562-081-0	AR	1	1511-	●	●
20	WASHER; THRUST,SIDE GEAR T=3.30	1-41562-082-0	AR	1	1511-	●	●
21	GEAR; SIDE,DIFF Z=16	1-41561-149-0	02	1	1511-	●	●
22	SPIDER; DIFF PINION	1-41521-050-2	01	1	1511-	●	●
24	GEAR; PINION,DIFF Z=10	1-41551-049-0	04	1	1511-	●	●
25	WASHER; THRUST,PINION ID=29 OD=60	1-41562-119-0	04	1	1511-	●	●
37	NUT; DRIVING PINION M36 FLANGE	1-09449-083-0	01	1	1511-	●	●
39	BEARING; FINAL PINION JTEKT	5-09812-062-1	01	1	1511-	●	●
39	BEARING; FINAL PINION NSK	5-09812-063-0	01	1	1511-	●	●
40	SHIM; FINAL PINION T=1.60	1-41229-179-0	AR	1	1511-	●	●
40	SHIM; FINAL PINION T=1.61	1-41229-180-0	AR	1	1511-	●	●
40	SHIM; FINAL PINION T=1.62	1-41229-181-0	AR	1	1511-	●	●
40	SHIM; FINAL PINION T=1.63	1-41229-182-0	AR	1	1511-	●	●
40	SHIM; FINAL PINION T=1.64	1-41229-183-0	AR	1	1511-	●	●
40	SHIM; FINAL PINION T=1.65	1-41229-184-0	AR	1	1511-	●	●
40	SHIM; FINAL PINION T=1.66	1-41229-185-0	AR	1	1511-	●	●
40	SHIM; FINAL PINION T=1.67	1-41229-186-0	AR	1	1511-	●	●
40	SHIM; FINAL PINION T=1.68	1-41229-187-0	AR	1	1511-	●	●
40	SHIM; FINAL PINION T=1.69	1-41229-188-0	AR	1	1511-	●	●
40	SHIM; FINAL PINION T=1.70	1-41229-189-0	AR	1	1511-	●	●
43	CAGE; FINAL PINION	1-41151-027-0	01	1	1511-	●	●
45	BOLT; FINAL PINION CAGE M12X40	9-02361-240-0	06	1	1511-	●	●
48	WASHER; LK,FINAL PINION ID=12.2	0-91510-812-0	06	1	1511-	●	●
49	SHIM; FINAL PINION CAGE T=0.50	1-41154-021-1	AR	1	1511-	●	●
49	SHIM; FINAL PINION CAGE T=0.30	1-41154-051-1	AR	1	1511-	●	●
49	SHIM; FINAL PINION CAGE T=0.40	1-41154-052-1	AR	1	1511-	●	●
49	SHIM; FINAL PINION CAGE T=1.00	1-41154-053-1	AR	1	1511-	●	●
50	BEARING; FINAL PINION NSK	1-09812-041-2	01	1	1511-	●	●
50	BEARING; FINAL PINION JTEKT	1-09812-042-1	01	1	1511-	●	●
55	CARRIER; DIFF	1-41110-129-0	01	1	1511-	●	●
56	BOLT; BRG CAP M16X100 FLANGE	1-09070-047-0	04	1	1511-	●	●
60	GEAR SET; FINAL DRIVE,RR 39/9	1-41210-455-0	01	1	1511-	●
60	GEAR SET; FINAL DRIVE,RR 41/10	1-41210-459-0	01	1	1511-		●
61	RETAINER; PILOT BRG,PINION T=2.3	1-41227-006-0	02	1	1511-	●	●
62	BOLT; RET M8X35 W/PIN HOLE	1-09042-046-0	02	1	1511-	●	●
63	BEARING; PINION PILOT NSK	1-09810-073-2	01	1	1511-	●	●
63	BEARING; PINION PILOT JTEKT	1-09810-074-1	01	1	1511-	●	●
64	NUT; RET M8 SLOTTED	0-91117-508-0	02	1	1511-	●	●
65	PIN; SPLIT,RET	0-81122-012-0	02	1	1511-	●	●
66	RING; SNAP,PILOT BRG OD=34.2	1-09588-214-0	01	1	1511-	●	●
69	NUT; ADJ,DIFF CAGE M128 H=22	1-41121-013-0	01	1	1511-	●	●
69	NUT; ADJ,DIFF CAGE M128 H=30	1-41121-015-0	01	1	1511-	●	●
70	BEARING; DIFF CAGE NSK ID=70 OD=125 T=33.3	1-09812-056-1	01	1	1511-	●	●
70	BEARING; DIFF CAGE NSK ID=70 OD=125 T=26.3	1-09812-058-1	01	1	1511-	●	●
70	BEARING; DIFF CAGE JTEKT ID=70 OD=125 T=33.3	1-09812-062-2	01	1	1511-	●	●
70	BEARING; DIFF CAGE JTEKT ID=70 OD=125 T=26.3	1-09812-249-0	01	1	1511-	●	●
71	CAGE ASM; DIFF,FINAL DRIVE	1-41510-343-0	01	1	1511-	●	●
84	BOLT; FINAL DRIVE GEAR M16X34.5 FLANGE	9-09802-575-1	16	1	1511-	●	●
85	NUT; DIFF CAGE SETTING M14	1-09400-077-1	08	1	1511-	●	●
88	PLATE; LK,ADJ NUT T=2.3	9-41124-015-0	02	1	1511-	●	●
89	BOLT; LK PLATE M8X12 FLANGE	8-94479-696-1	04	1	1511-	●	●
100	SEAL; OIL,FINAL PINION NOK	1-09625-484-1	01	1	1511-	●	●
100	SEAL; OIL,FINAL PINION TKK	1-09625-637-0	01	1	1511-	●	●
126	COUPLING; DRIVING PINION	1-37245-414-0	01	1	1511-	●	●
164	COLLAR; DIST,PINION T=10.7	1-36355-031-0	01	1	1511-	●	●
164	COLLAR; DIST,PINION T=10.90	1-36355-033-0	01	1	1511-	●	●
164	COLLAR; DIST,PINION T=11.10	1-36355-035-0	01	1	1511-	●	●
164	COLLAR; DIST,PINION T=11.30	1-36355-037-0	01	1	1511-	●	●
164	COLLAR; DIST,PINION T=11.50	1-36355-039-0	01	1	1511-	●	●
164	COLLAR; DIST,PINION T=11.70	1-36355-041-0	01	1	1511-	●	●
164	COLLAR; DIST,PINION T=11.9	1-36355-043-0	01	1	1511-	●	●
164	COLLAR; DIST,PINION T=12.10	1-36355-045-0	01	1	1511-	●	●
164	COLLAR; DIST,PINION T=12.30	1-36355-047-0	01	1	1511-	●	●
