Isuzu WW
▶
TRUCKS
▶
FSR
▶
11724 - FSR LHD EURO5 EXC.SPACECAB
▶
4 - Propeller Shaft, Axles, Steering, Suspension
▶
4-20 - REAR AXLE CASE AND SHAFT
▶

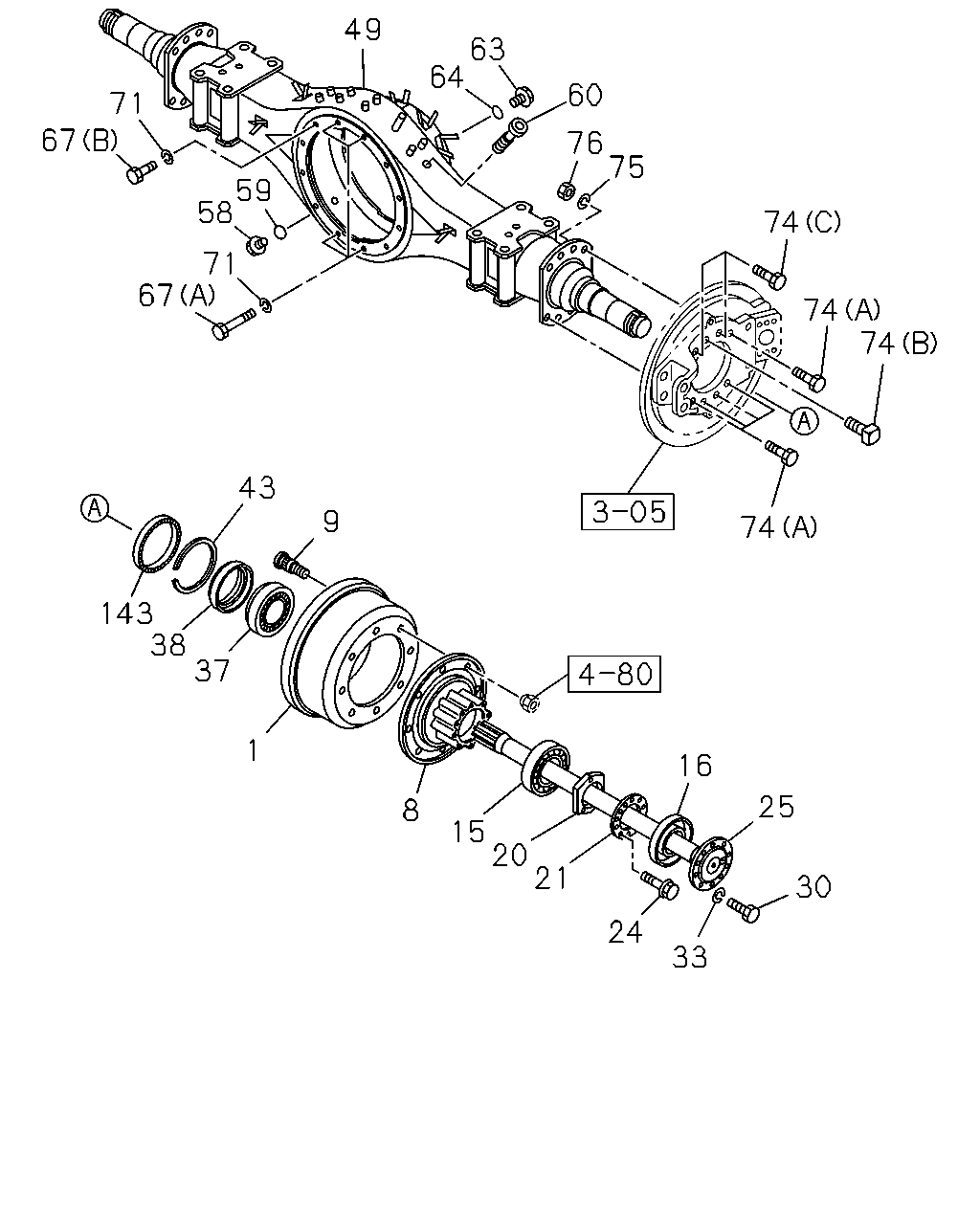

4-20 — REAR AXLE CASE AND SHAFT
(#170396) — 29 parça
49
71
67
59
58
67
43
143
38
37
1
8
15
20
21
24
33
30
25
16
74
74
74
74
75
76
60
63
64
9
71
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
DRUM; BRK,RR
8-98085-727-0
02
1
1511-
8
HUB; RR AXLE
8-98128-140-1
02
1
1511-
9
PIN; WHEEL,RR AXLE
M22X98 RH THREAD
1-42337-095-1
16
1
1511-
15
BEARING; HUB OUTER,RR AXLE
JTEKT
1-09812-222-0
02
1
1511-
16
SEAL; OIL,RR HUB,OUTER
TKK
1-09625-331-1
02
1
1511-
20
NUT; BRG,RR HUB
M64
9-09843-721-2
02
1
1511-
21
WASHER; LK,BRG NUT
ID=64
9-09854-122-0
02
1
1511-
24
BOLT; LK WASHER
M6X16 FLANGE
0-28650-616-0
06
1
1511-
25
SHAFT; AXLE,RR
L=945
8-97380-684-0
02
1
1511-
30
BOLT; HUB TO AXLE SHAFT
M12X45
9-09804-239-1
20
1
1511-
33
WASHER; AXLE SHAFT
ID=12.2
0-91510-812-0
20
1
1511-
37
BEARING; HUB INNER,RR AXLE
JTEKT
1-09812-221-0
02
1
1511-
38
SEAL; OIL,RR HUB,INNER
TKK
1-09625-569-0
02
1
1511-
43
RING; SNAP,HUB SEAL,RR AXLE
9-09950-201-0
02
1
1511-
49
CASE; RR AXLE
8-98286-075-1
01
1
1511-
58
PLUG; DRAIN,AXLE CASE
M24X17 FLANGE
1-09604-023-0
01
1
1511-
59
GASKET; DRAIN PLUG
ID=26.8
9-09920-605-0
01
1
1511-
60
BREATHER; RR AXLE CASE
1-09893-003-0
01
1
1511-
63
PLUG; OIL FILLER,AXLE CASE
M24X17 FLANGE
1-09604-022-0
01
1
1511-
64
GASKET; OIL FILLER,AXLE CASE
ID=26.8
9-09920-605-0
01
1
1511-
67
BOLT; FINAL DRIVE SETTING
(A) M12X60
0-10956-260-0
04
1
1511-
67
BOLT; FINAL DRIVE SETTING
(B) M12X35
0-20951-235-0
08
1
1511-
71
WASHER; LK,FINAL DRIVE SETTING
ID=12.2
0-91510-812-0
12
1
1511-
74
BOLT; RR BRK ASM SETTING
(A) M14X43
1-09040-045-0
10
1
1511-
74
BOLT; RR BRK ASM SETTING
(C) M14X50
1-09040-066-0
04
1
1511-
74
BOLT; RR BRK ASM SETTING
(B) M14X45 SQUARE HEAD
1-09060-015-0
02
1
1511-
75
WASHER; LK,RR BRK ASM SETTING
ID=14.2
0-91510-814-0
16
1
1511-
76
NUT; RR BRK ASM SETTING
M14
0-91110-514-0
16
1
1511-
143
RING; EXCITER
1-42319-169-1
02
1
1511-
