Isuzu WW
▶
TRUCKS
▶
FSR
▶
11724 - FSR LHD EURO5 EXC.SPACECAB
▶
3 - Brakes, Brake System
▶
3-75 - BRAKE PIPING; AIR,FRONT
▶
3-75 — BRAKE PIPING; AIR,FRONT
(#170390) — 35 parça
◀

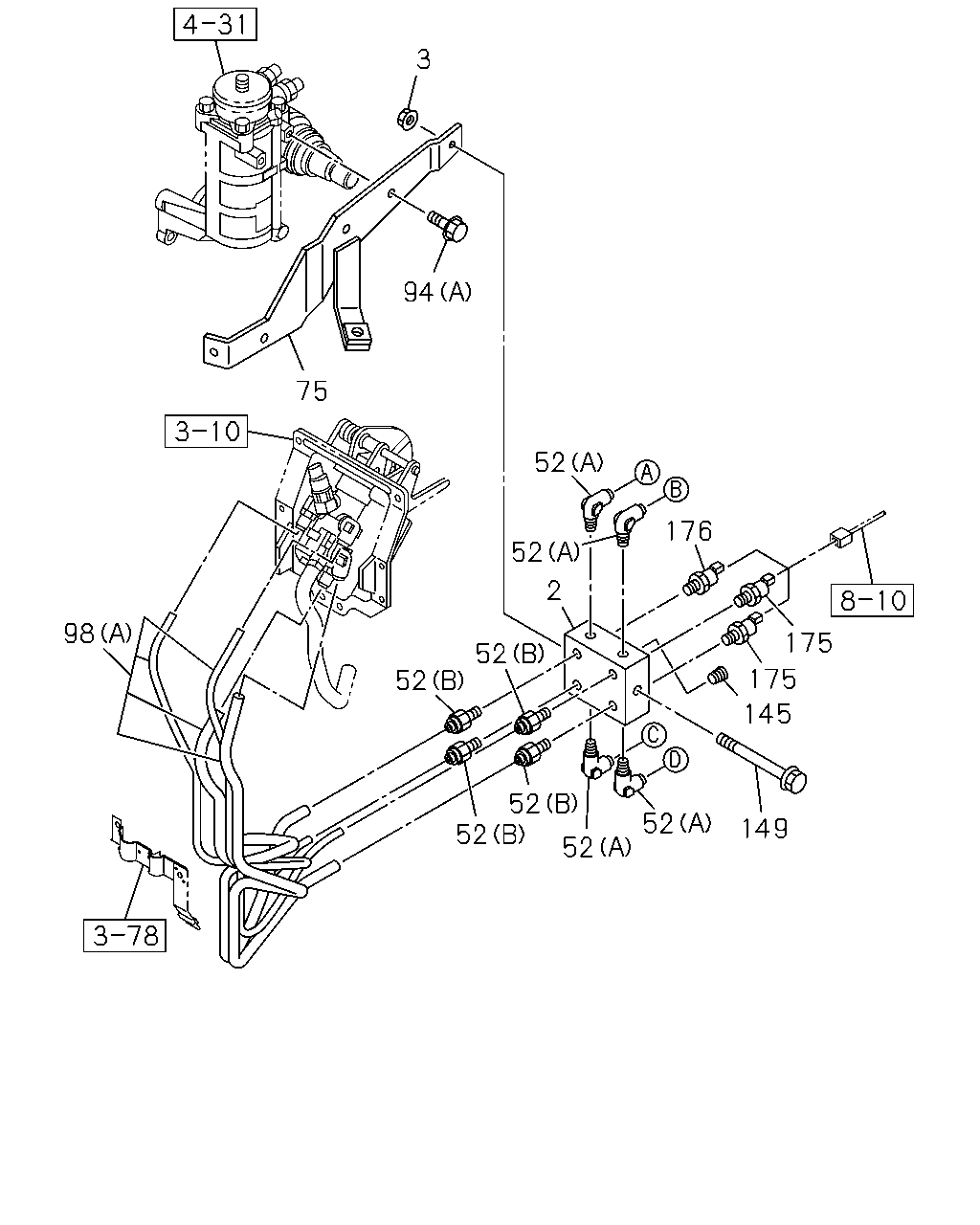

[375A] NO.1 (16 parça)

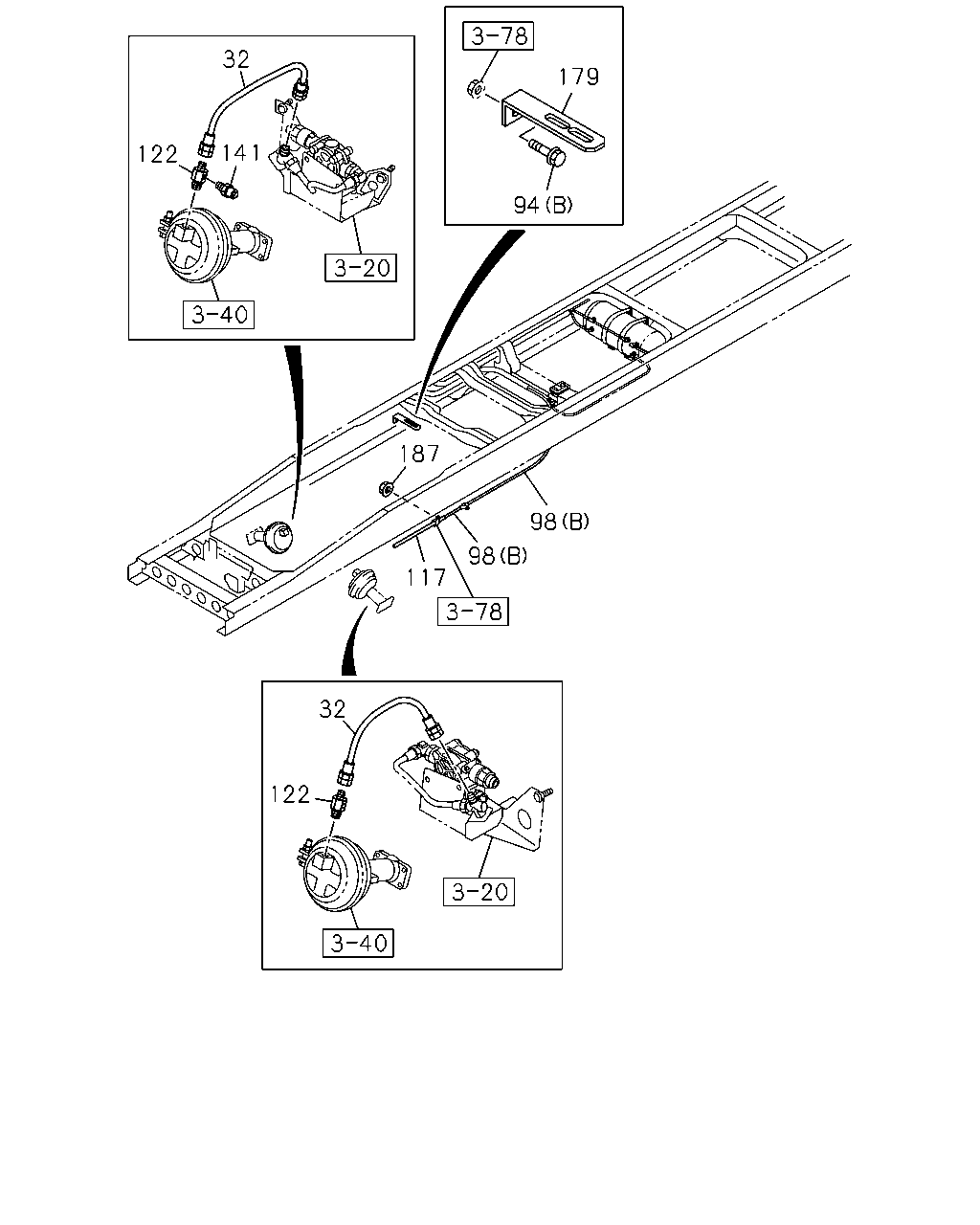

[375A] NO.2 (19 parça)
▶
3
94
75
98
52
52
52
52
52
52
149
145
175
175
176
52
52
2
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
UNION; AIR PIPE
8-98057-394-1
01
1
1511-
3
NUT; PIPE UNION
M8 FLANGE
0-91180-108-0
01
1
1511-
52
CONNECTOR; NYLON TUBE
(A) DIN8 & R1/4 ELBOW
1-09660-956-0
04
1
1511-
52
CONNECTOR; NYLON TUBE
(B) DIN8 R1/4 STRAIGHT
1-09660-963-0
04
1
1511-
75
BRACKET; UNION
8-98281-610-0
01
1
1511-
94
BOLT; BRKT
(A) M10X20 FLANGE
0-28151-020-0
02
1
1511-
94
BOLT; BRKT
(B) M8X25 FLANGE
0-28650-825-0
01
1
1511-
98
TUBE; NYLON
(A)
8-98326-173-0
01
1
1511-
98
TUBE; NYLON
(B) SERVICED BY L=6000 OD=8
1-87411-008-0
AR
1
1511-
98
TUBE; NYLON
(B) SERVICED BY L=8000 OD=8
1-87411-009-0
AR
1
1511-
98
TUBE; NYLON
(B) SERVICED BY L=2000 OD=12
1-87411-011-0
AR
1
1511-
98
TUBE; NYLON
(B) SERVICED BY L=4000 OD=12
1-87411-012-0
AR
1
1511-
145
PLUG
PT1/4
9-99204-513-0
01
1
1511-
149
BOLT; UNION
M8X100 FLANGE
0-28050-800-0
01
1
1511-
175
SENSOR; AIR PRESS
THREAD R1/4
1-80220-023-1
02
1
1511-
176
SWITCH; AIR PRESS
STAMP 0.3
8-98010-857-0
01
1
1511-
32
122
141
179
94
98
98
187
117
32
122
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
32
HOSE; FLEX,FRT
8-98304-002-0
02
1
1511-
94
BOLT; BRKT
(A) M10X20 FLANGE
0-28151-020-0
02
1
1511-
94
BOLT; BRKT
(B) M8X25 FLANGE
0-28650-825-0
01
1
1511-
98
TUBE; NYLON
(A)
8-98326-173-0
01
1
1511-
98
TUBE; NYLON
(B) SERVICED BY L=6000 OD=8
1-87411-008-0
AR
1
1511-
98
TUBE; NYLON
(B) SERVICED BY L=8000 OD=8
1-87411-009-0
AR
1
1511-
98
TUBE; NYLON
(B) SERVICED BY L=2000 OD=12
1-87411-011-0
AR
1
1511-
98
TUBE; NYLON
(B) SERVICED BY L=4000 OD=12
1-87411-012-0
AR
1
1511-
117
TUBE; CORRUGATE
SERVICED BY L=2000 ID=10
1-87411-019-0
AR
1
1511-
117
TUBE; CORRUGATE
SERVICED BY L=4000 ID=10
1-87411-020-0
AR
1
1511-
117
TUBE; CORRUGATE
SERVICED BY L=2000 ID=13
1-87411-022-0
AR
1
1511-
117
TUBE; CORRUGATE
SERVICED BY L=2000 ID=15
1-87411-025-0
AR
1
1511-
117
TUBE; CORRUGATE
SERVICED BY L=2000 ID=19
1-87411-027-0
AR
1
1511-
117
TUBE; CORRUGATE
SERVICED BY L=2000 ID=22
1-87411-029-0
AR
1
1511-
122
CONNECTOR; FLEX HOSE
M16 & PT3/8 STRAIGHT
1-09650-179-1
01
1
1511-
122
CONNECTOR; FLEX HOSE
M16 & PT3/8 STRAIGHT
1-09656-643-1
01
1
1511-
141
CONNECTOR; TEST
R1/4 & M16 TEST CONNECTOR
1-47459-013-1
01
1
1511-
179
BRACKET; CLIP
L=100 H=30
1-47477-645-2
01
1
1511-
187
NUT; CLIP
M8 FLANGE
0-91180-108-0
01
1
1511-
