Isuzu WW
▶
TRUCKS
▶
FSR
▶
11724 - FSR LHD EURO5 EXC.SPACECAB
▶
3 - Brakes, Brake System
▶
3-70 - BRAKE PIPING; AIR,AIR MASTER
▶

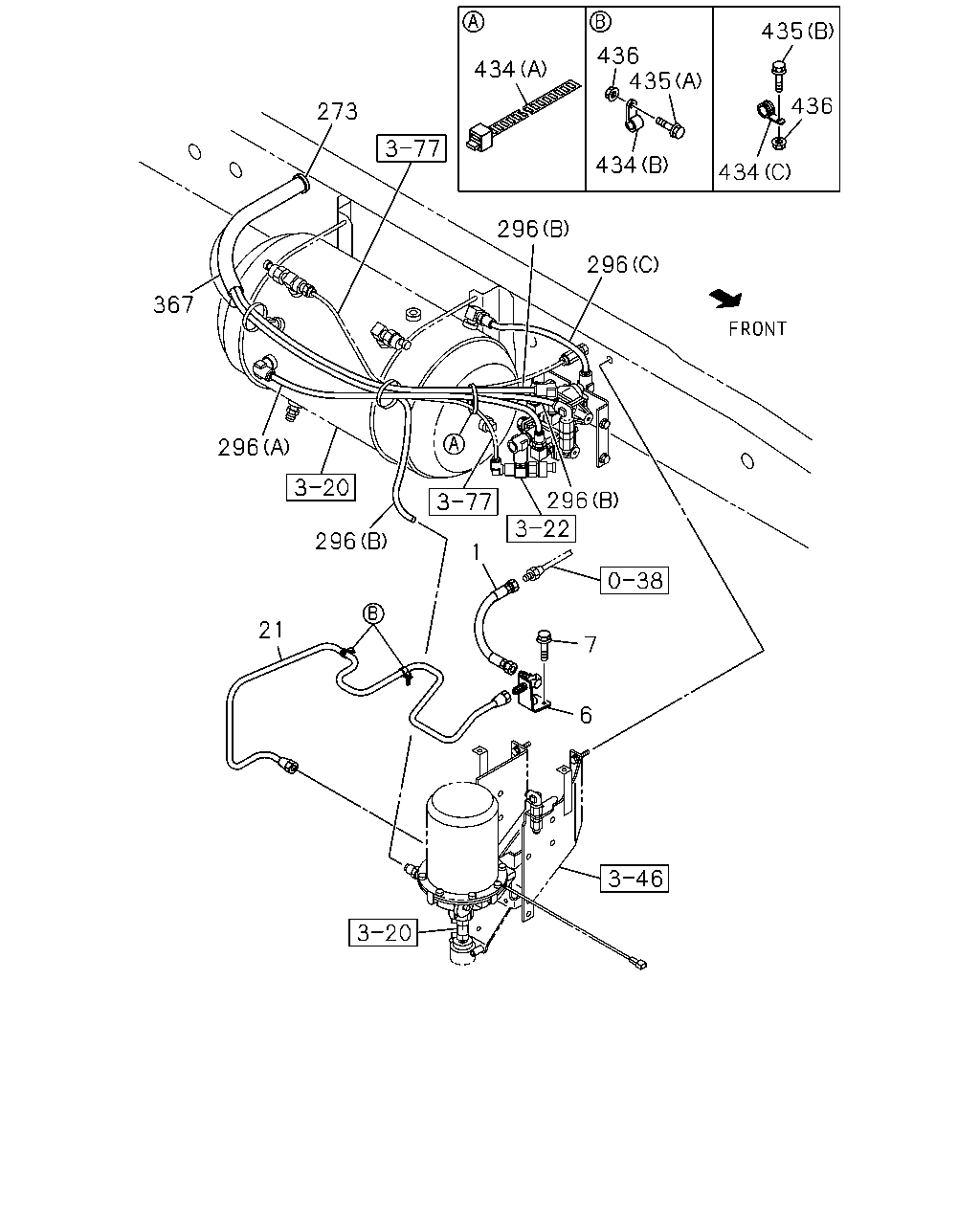

3-70 — BRAKE PIPING; AIR,AIR MASTER
(#170389) — 19 parça
434
436
434
435
434
436
435
296
296
273
367
296
296
21
296
7
6
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
HOSE; FLEX,AIR TANK
1-09363-958-0
01
1
1511-
6
BRACKET; FLEX HOSE,AIR TANK
8-98079-987-1
01
1
1511-
7
BOLT; BRKT,FLEX HOSE,AIR TANK
M8X30 FLANGE
0-28650-830-0
02
1
1511-
21
PIPE; AIR,UNION TO AIR DRYER
L=1843
8-98304-449-0
01
1
1511-
273
GROMMET
ID=28 OD=35 T=17
9-09956-256-2
01
1
1511-
296
TUBE; NYLON
(A) SERVICED BY L=2000 OD=12
1-87410-069-0
AR
1
1511-
296
TUBE; NYLON
(B) SERVICED BY L=4000 OD=8
1-87411-007-0
AR
1
1511-
296
TUBE; NYLON
(B) SERVICED BY L=2000 OD=12
1-87411-011-0
AR
1
1511-
296
TUBE; NYLON
(C)
8-98317-313-0
01
1
1511-
367
TUBE; CORRUGATE
SERVICED BY L=2000 ID=10
1-87411-019-0
AR
1
1511-
367
TUBE; CORRUGATE
SERVICED BY L=4000 ID=10
1-87411-020-0
AR
1
1511-
367
TUBE; CORRUGATE
SERVICED BY L=2000 ID=13
1-87411-022-0
AR
1
1511-
434
CLIP
(C) ID=7 L=20
0-95234-635-0
01
1
1511-
434
CLIP
(B) ID=16 L=20
0-95235-536-0
02
1
1511-
434
CLIP
(A) L=350
1-09707-183-0
01
1
1511-
435
BOLT; CLIP
(B) M8X20 FLANGE
0-28650-820-0
01
1
1511-
435
BOLT; CLIP
(A) M8X25 FLANGE
0-28650-825-0
02
1
1511-
436
NUT; CLIP
M8 FLANGE
0-91180-108-0
01
1
1511-
436
NUT; CLIP
M8 FLANGE
0-91180-108-0
02
1
1511-
