3-46 — AIR DRYER
(#170388) — 56 parça
◀

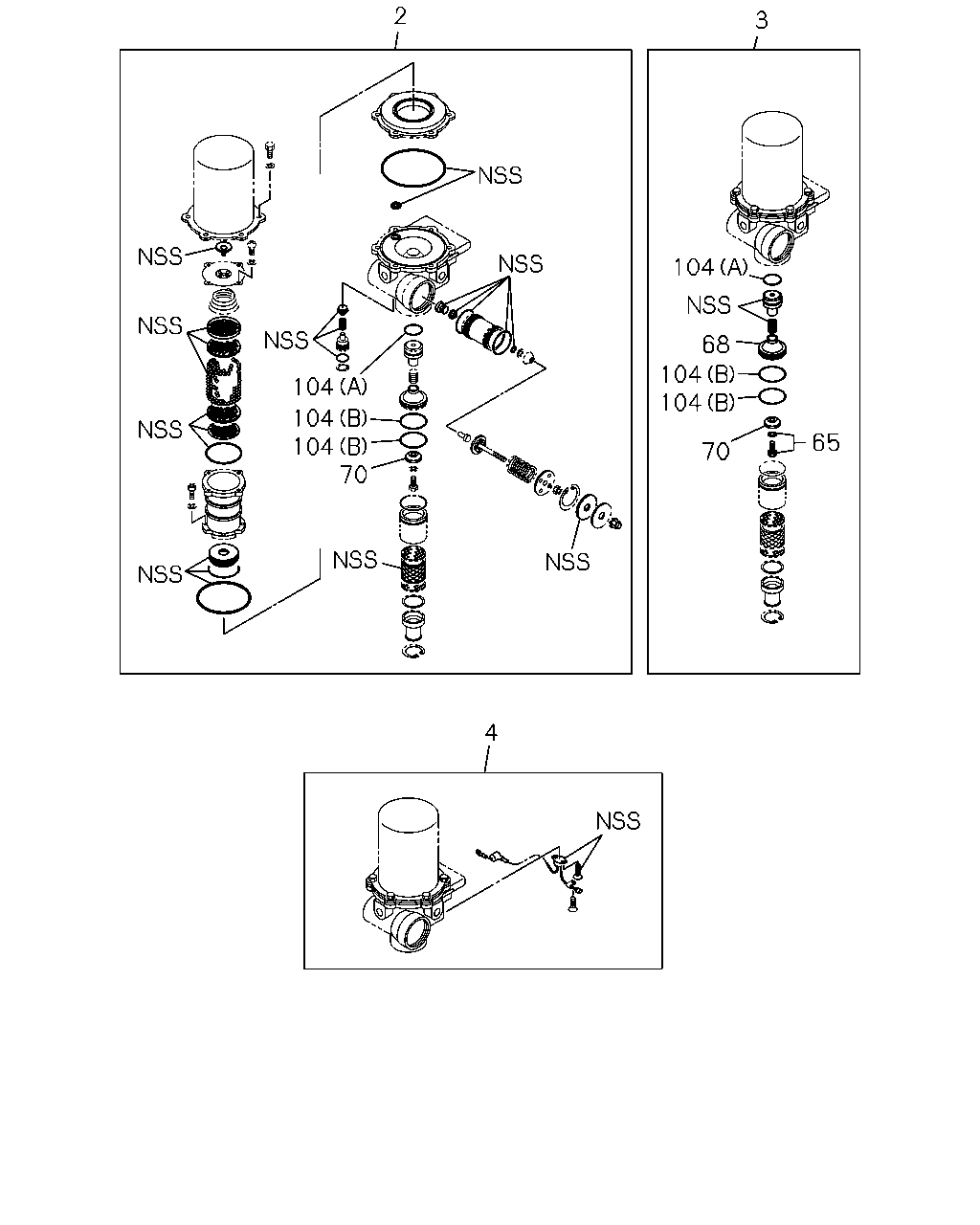

[346A] REPAIR,PISTON AND THERMOSTAT KIT (8 parça)

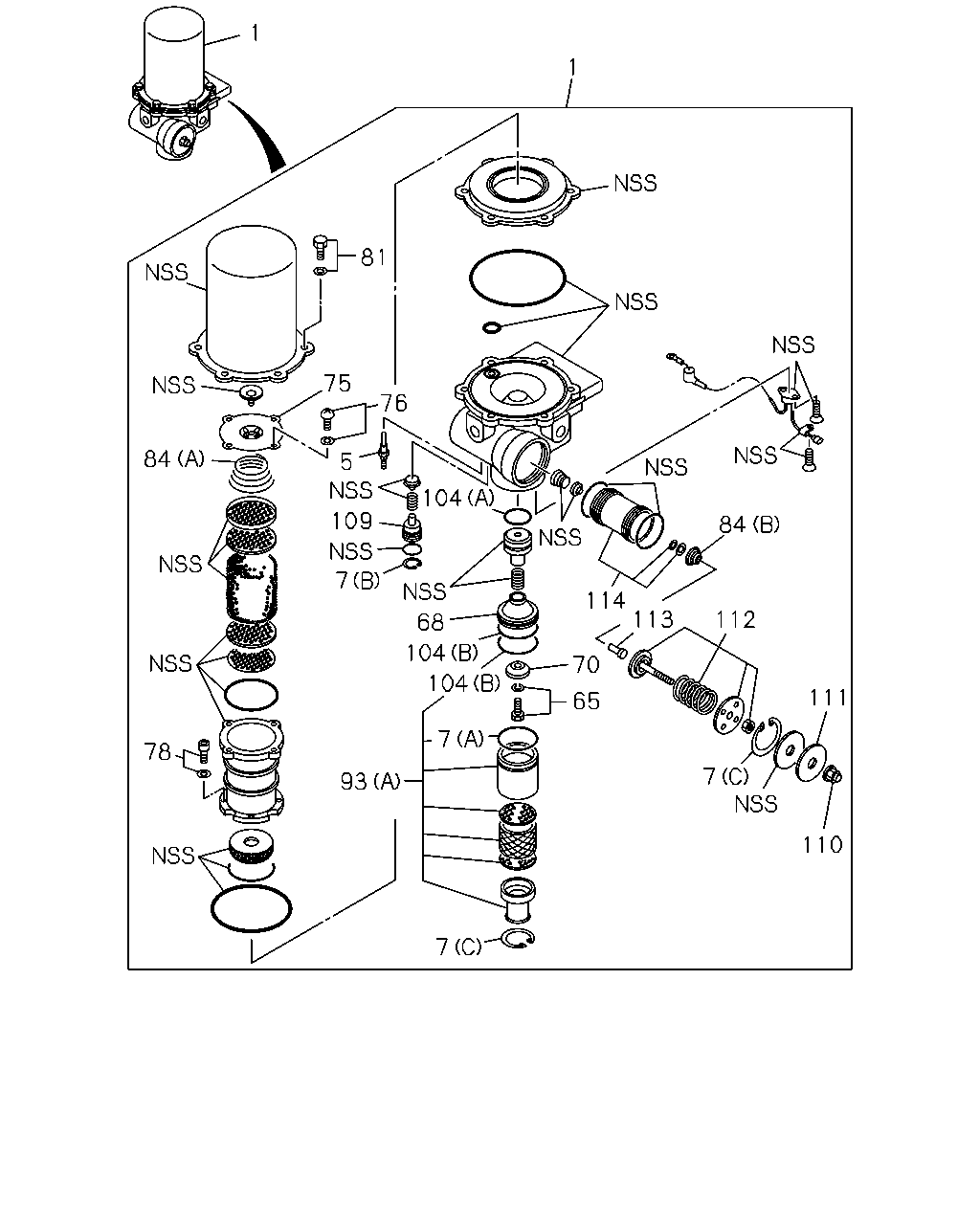

[346A] COMPONENT (25 parça)

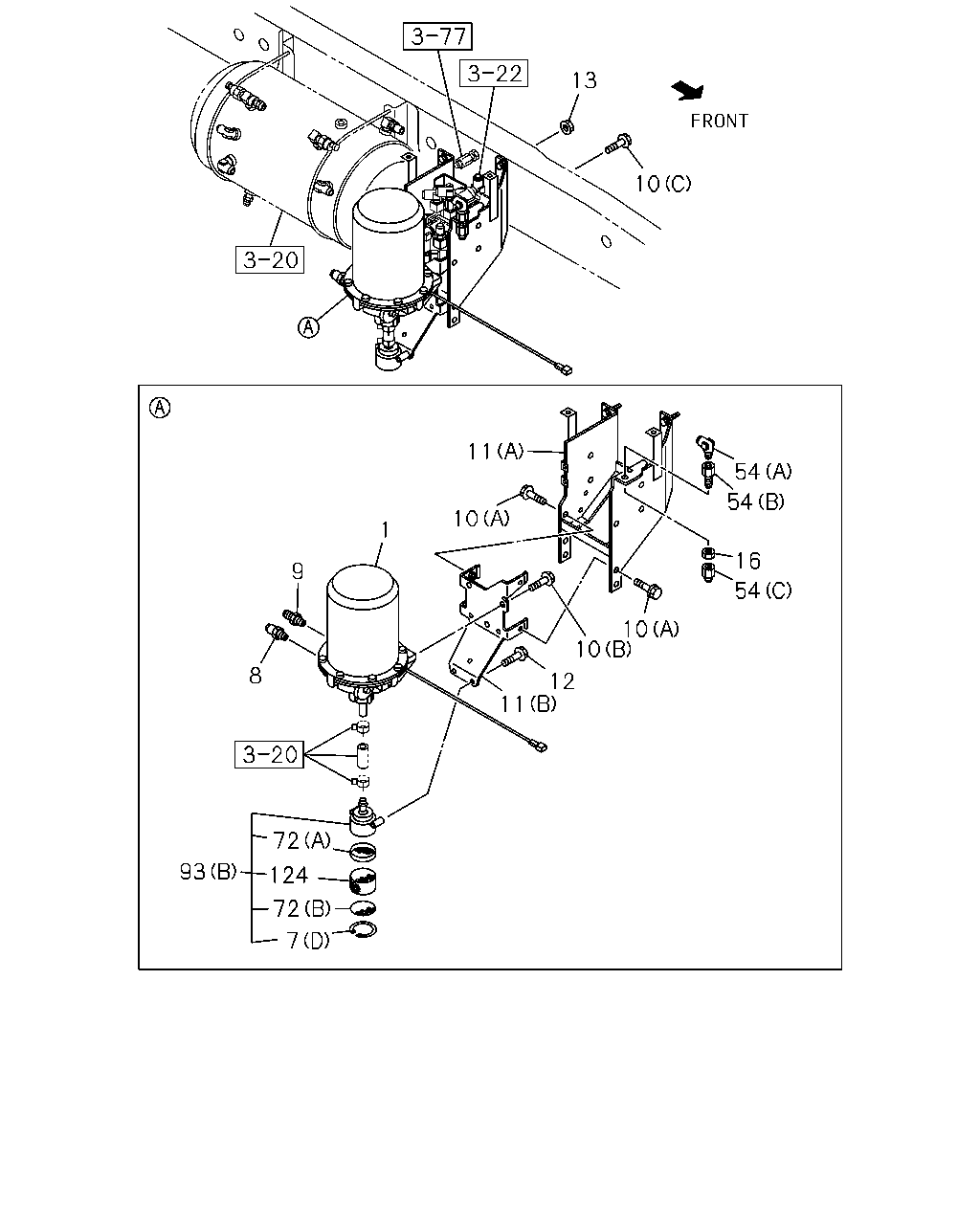

[346A] FIXING (23 parça)
▶
2
3
104
104
104
70
104
68
104
104
70
65
4
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
REPAIR KIT; AIR DRYER
8-98226-328-0
01
1
1511-
3
PISTON KIT; AIR DRYER
8-98226-322-0
01
1
1511-
4
THERMOSTAT KIT; AIR DRYER
1-85576-444-0
01
1
1511-
65
BOLT; PURGE VLV
1-48199-517-0
01
1
1511-
68
BODY; VALVE
1-48199-515-0
01
1
1511-
70
VALVE; AIR DRYER
1-48199-504-0
01
1
1511-
104
GASKET
(B)
1-48199-496-0
02
1
1511-
104
GASKET
(A)
8-98226-321-0
01
1
1511-
1
1
81
75
84
78
5
76
109
7
104
104
68
104
7
93
7
65
114
70
113
112
7
110
111
84
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
DRYER; AIR
8-98225-292-0
01
1
1511-
5
HEATER ASM; AIR DRYER
1-48199-530-0
01
1
1511-
7
RING; SNAP,AIR DRYER
(D)
1-47769-017-0
01
1
1511-
7
RING; SNAP,AIR DRYER
(C)
1-48199-520-0
02
1
1511-
7
RING; SNAP,AIR DRYER
(B)
1-48199-529-0
01
1
1511-
7
RING; SNAP,AIR DRYER
(A)
1-48199-579-0
01
1
1511-
65
BOLT; PURGE VLV
1-48199-517-0
01
1
1511-
68
BODY; VALVE
1-48199-515-0
01
1
1511-
70
VALVE; AIR DRYER
1-48199-504-0
01
1
1511-
75
COVER; CASE,AIR DRYER
1-48199-562-0
01
1
1511-
76
BOLT; COVER,AIR DRYER
1-48199-561-0
06
1
1511-
78
BOLT; OIL FILTER,AIR DRYER
1-48199-557-0
04
1
1511-
81
BOLT; CASE,AIR DRYER
1-48199-436-0
08
1
1511-
84
SPRING; AIR DRYER
(B)
1-48199-523-0
01
1
1511-
84
SPRING; AIR DRYER
(A)
1-48199-564-0
01
1
1511-
93
SILENCER; AIR DRYER
(B)
1-48199-581-0
01
1
1511-
93
SILENCER; AIR DRYER
(A)
1-48199-619-0
01
1
1511-
104
GASKET
(B)
1-48199-496-0
02
1
1511-
104
GASKET
(A)
8-98226-321-0
01
1
1511-
109
STOPPER; CHECK VALVE
1-48199-539-0
01
1
1511-
110
NUT; CAP
1-48199-527-0
01
1
1511-
111
PLATE; GOVERNOR
1-48199-526-0
01
1
1511-
112
SCREW & SPRING ASM; AIR DRYER
1-48199-524-0
01
1
1511-
113
STEM; EXHAUST
1-48199-522-0
01
1
1511-
114
PISTON ASM; GOVERNOR
1-48199-521-0
01
1
1511-
13
10
11
10
11
10
12
10
16
54
54
1
9
8
54
72
124
72
7
93
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
DRYER; AIR
8-98225-292-0
01
1
1511-
7
RING; SNAP,AIR DRYER
(D)
1-47769-017-0
01
1
1511-
7
RING; SNAP,AIR DRYER
(C)
1-48199-520-0
02
1
1511-
7
RING; SNAP,AIR DRYER
(B)
1-48199-529-0
01
1
1511-
7
RING; SNAP,AIR DRYER
(A)
1-48199-579-0
01
1
1511-
8
CONNECTOR; OUT,AIR DRYER
DIN12 & R1/2 STRAIGHT
1-09660-966-0
01
1
1511-
9
CONNECTOR; PIPE,AIR DRYER
M22 & PT1/2 FLARE
0-92121-815-0
01
1
1511-
10
BOLT; AIR DRYER
(A) M10X25 FLANGE
0-28051-025-0
04
1
1511-
10
BOLT; AIR DRYER
(B) M12X25 FLANGE
0-28051-225-0
03
1
1511-
10
BOLT; AIR DRYER
(C) M10X30 FLANGE
0-28651-030-0
02
1
1511-
11
BRACKET; AIR DRYER
(B)
8-98303-790-0
01
1
1511-
11
BRACKET; AIR DRYER
(A)
8-98324-950-0
01
1
1511-
12
BOLT; BRKT
M8X20 FLANGE
0-28650-820-0
02
1
1511-
13
NUT; AIR DRYER
M10 FLANGE
0-91180-210-0
02
1
1511-
16
NUT; BRKT
M16
0-91111-516-0
01
1
1511-
54
CONNECTOR
(C) DIN12 & M16 STRAIGHT
1-09660-876-0
01
1
1511-
54
CONNECTOR
(A) DIN12 & R3/8 ELBOW
1-09660-959-0
01
1
1511-
54
CONNECTOR
(B) PT3/8 & M16 STRAIGHT
8-98202-001-0
01
1
1511-
72
PLATE; FILTER,AIR DRYER
(A)
1-48199-585-0
01
1
1511-
72
PLATE; FILTER,AIR DRYER
(B)
1-48199-602-0
01
1
1511-
93
SILENCER; AIR DRYER
(B)
1-48199-581-0
01
1
1511-
93
SILENCER; AIR DRYER
(A)
1-48199-619-0
01
1
1511-
124
FILTER; SILENCER
1-48199-465-0
01
1
1511-
