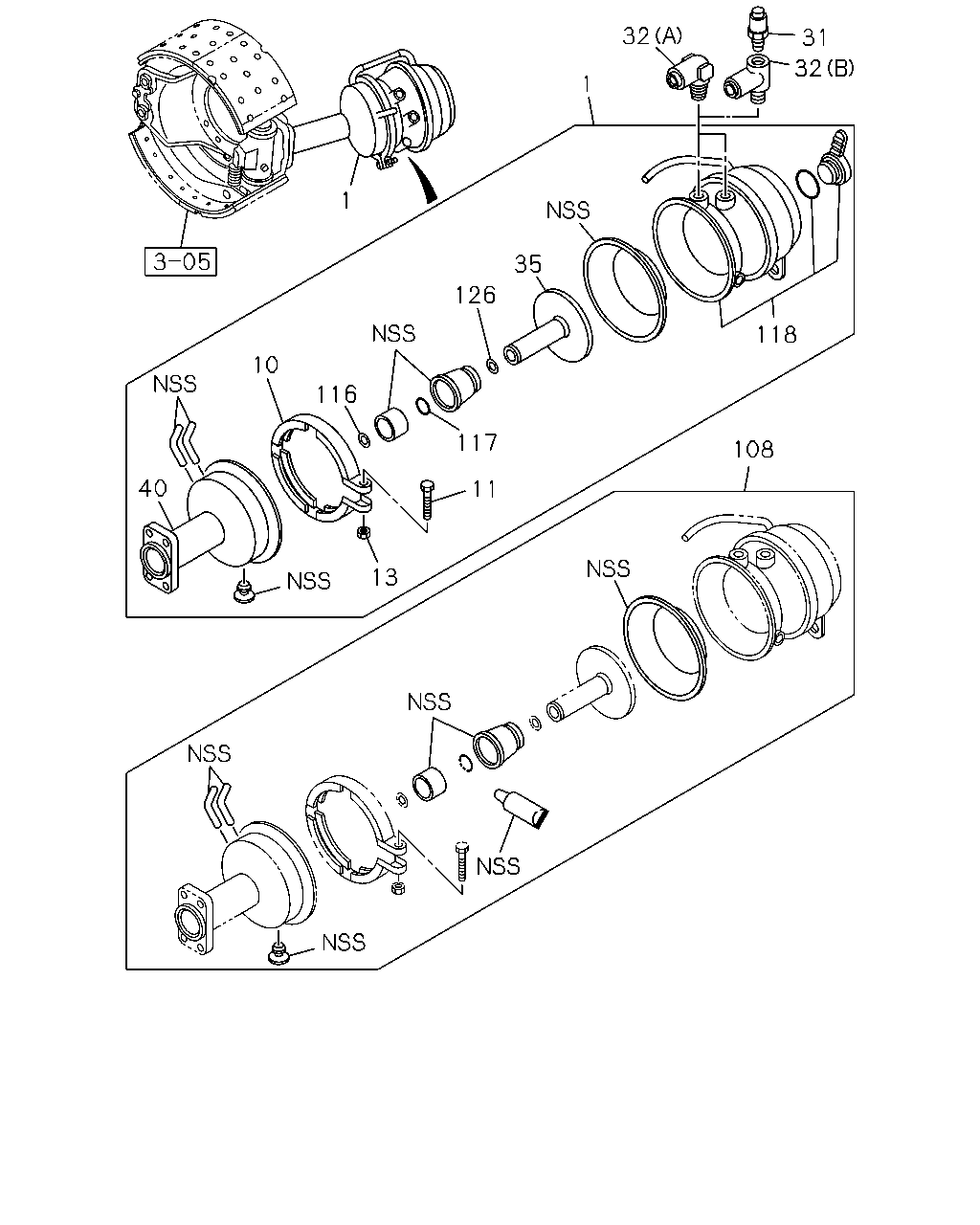

3-41 — REAR BRAKE POWER CHAMBER
(#170387) — 17 parça
10
40
116
126
35
32
31
32
118
108
117
13
11
1
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
CHAMBER ASM; SPRING
1-87412-501-0
01
1
1511-
1
CHAMBER ASM; SPRING
1-87412-502-0
01
1
1511-
10
RING; CLAMP,SPR CHAMBER
8-98167-056-0
02
1
1511-
11
BOLT; CLAMP RING
1-48269-257-0
02
1
1511-
13
NUT; CLAMP RING
1-48269-147-0
02
1
1511-
31
CONNECTOR
R1/4 & M16 TEST CONNECTOR
1-47459-013-1
02
1
1511-
32
CONNECTOR; SPR CHAMBER
(A) DIN12 & R3/8 ELBOW
1-09660-959-0
02
1
1511-
32
CONNECTOR; SPR CHAMBER
(B) DIN12 & R3/8 & RC1/4 3WAY
1-09661-776-1
02
1
1511-
35
PLATE; ROD END,SPR CHAMBER
8-98146-973-1
02
1
1511-
40
COVER ASM; LWR,SPR CHAMBER
8-98284-804-0
01
1
1511-
40
COVER ASM; LWR,SPR CHAMBER
8-98284-805-0
01
1
1511-
108
REPAIR KIT; SPR CHAMBER
8-98146-981-0
02
1
1511-
116
GUIDE; SPR CHAMBER
8-98146-963-1
02
1
1511-
117
RING; SPR CHAMBER
8-98146-966-0
02
1
1511-
118
CHAMBER; PIGGY BACK
1-87412-109-0
01
1
1511-
118
CHAMBER; PIGGY BACK
1-87412-110-0
01
1
1511-
126
SHIM
8-98146-965-0
AR
1
1511-
