2-30 — GEAR SHIFTER AND QUADRANT BOX (#170370) — 105 parça

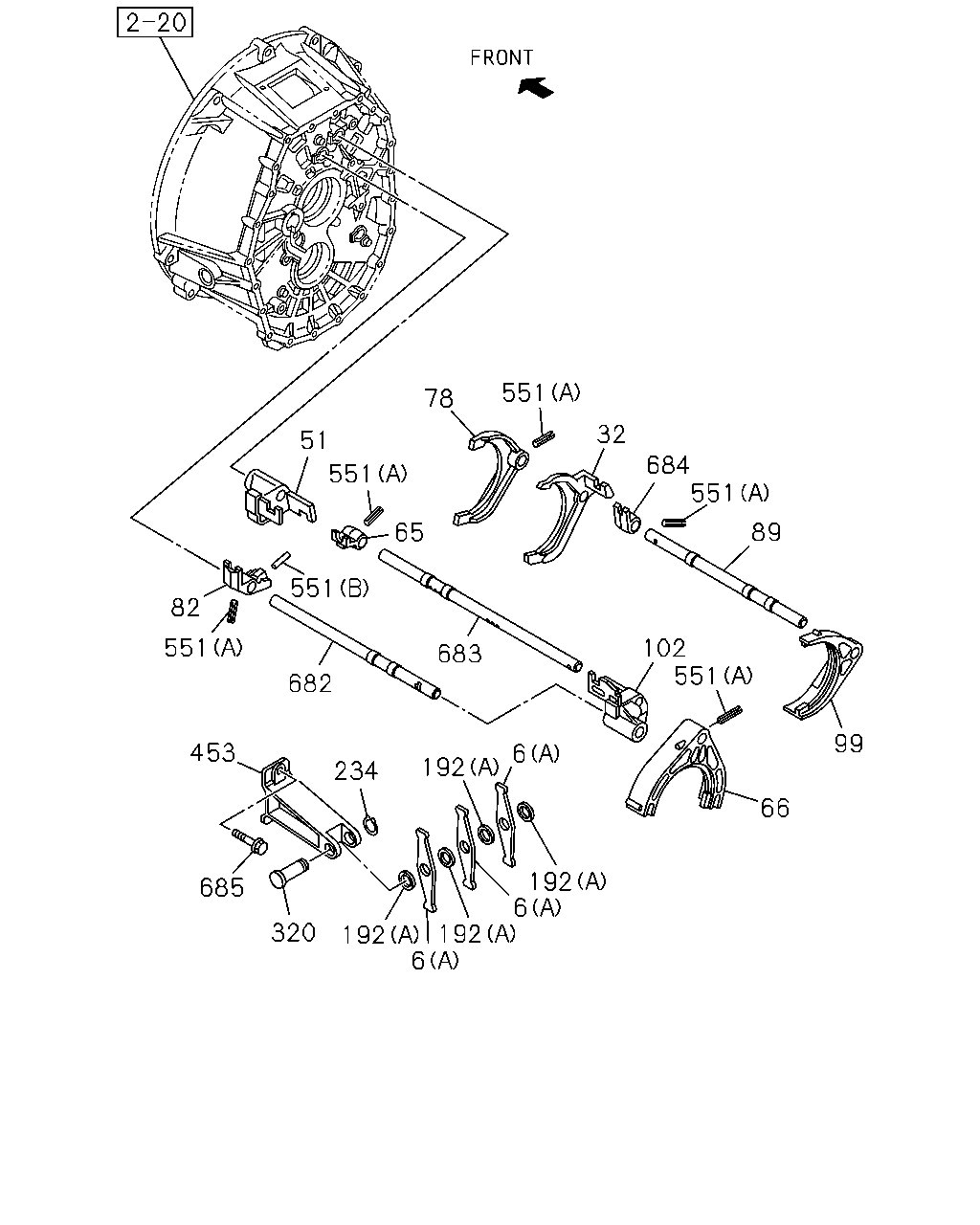

78 551 551 51 551 682 683 551 453 82 6 192 234 685 320 192 6 192 6 192 66 99 551 102 89 551 684 32 65

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
6	LEVER; RELAY (A)	8-97241-342-0	03	1	1511-
6	LEVER; RELAY (B)	8-98022-855-0	01	1	1511-
32	ARM; SHIFT,1ST & 2ND	8-98236-424-1	01	1	1511-
51	BLOCK; SHIFT,1ST & 2ND	8-98074-457-1	01	1	1511-
65	BLOCK ASM; SHIFT,5TH & 6TH	8-97388-980-1	01	1	1511-
66	ARM; SHIFT,5TH & 6TH	8-97388-981-0	01	1	1511-
78	ARM; SHIFT,REV	8-97388-975-1	01	1	1511-
82	BLOCK; SHIFT,REV	8-97388-969-0	01	1	1511-
89	ROD; SHIFT,REV	8-98062-172-0	01	1	1511-
99	ARM; SHIFT,4TH & 3RD	8-98309-861-0	01	1	1511-
102	BLOCK; SHIFT,3RD & 4TH	8-97388-978-2	01	1	1511-
192	WASHER; PL (A) ID=18.2 OD=29	1-09503-032-0	04	1	1511-
192	WASHER; PL (B)	8-97305-661-0	02	1	1511-
234	RING; SNAP ID=16.5	0-91800-618-0	01	1	1511-
320	SHAFT; LEVER	8-97377-928-0	01	1	1511-
453	BLOCK; RELAY LEVER	8-97377-927-1	01	1	1511-
551	PIN; SPRING (C) L=25 OD=5	1-09748-032-0	01	1	1511-
551	PIN; SPRING (A) L=32	8-97011-596-2	05	1	1511-
551	PIN; SPRING (B) L=20	8-97241-340-0	01	1	1511-
682	ROD; SHIFT,REV,SUB	8-97388-974-0	01	1	1511-
683	ROD; SHIFT,5TH & 6TH	8-98062-173-1	01	1	1511-
684	BLOCK; SHIFT,REV,SUB	8-97388-970-0	01	1	1511-
685	BOLT; BLOCK M8X30 FLANGE	8-98034-764-0	02	1	1511-

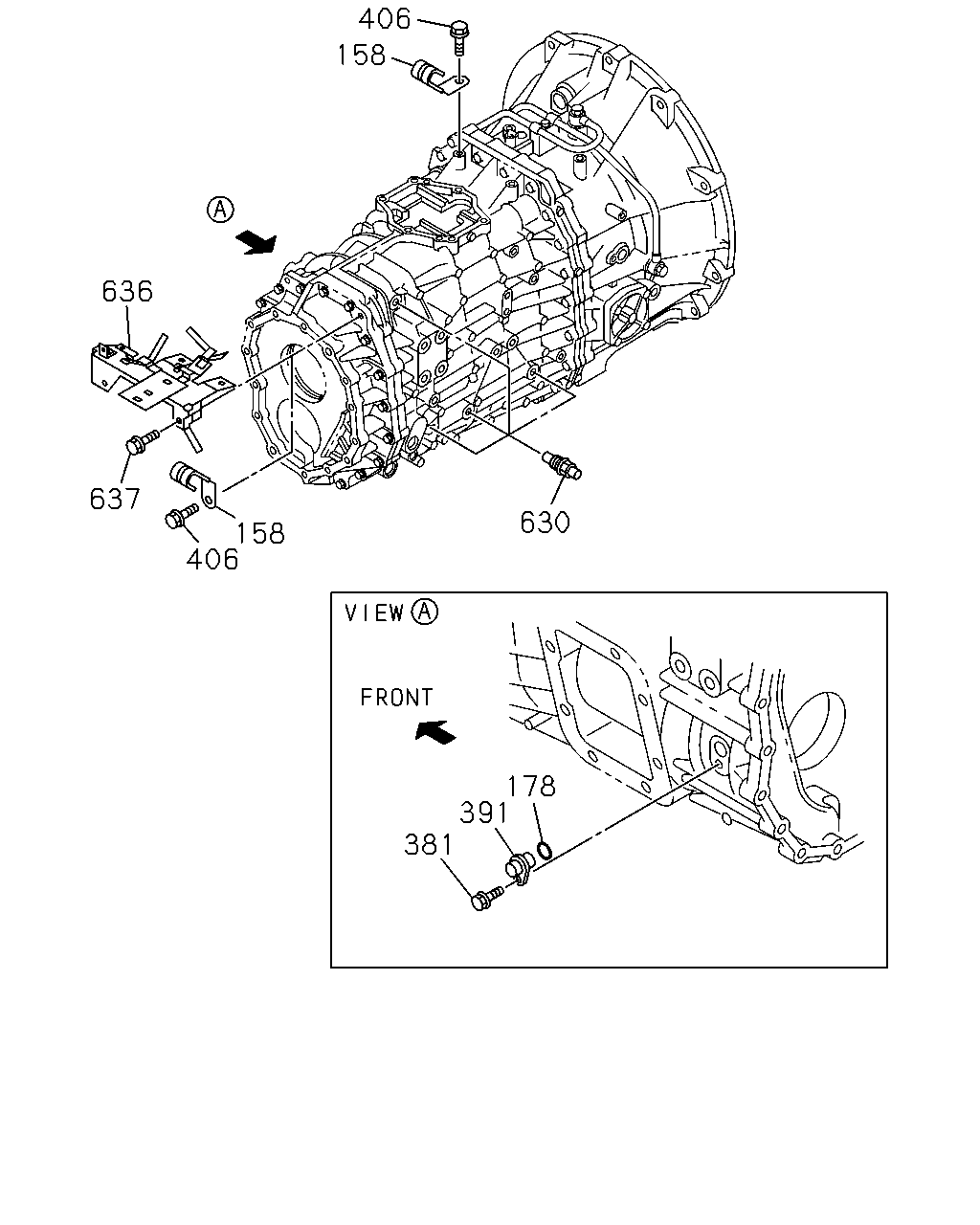

406 158 636 637 406 158 630 391 381 178

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
158	CLIP; HARNESS ID=12 VINYL CHLORIDE	8-97367-984-1	02	1	1511-
178	GASKET; PLUG ALSO INCLUDED IN GASKET SET(M/T).	9-09567-113-0	01	1	1511-
381	BOLT M6X16 FLANGE	0-28650-616-0	01	1	1511-
391	PLUG; SW HOLE	8-97300-273-1	01	1	1511-
406	BOLT; HARNESS CLIP M8X16 FLANGE	0-28050-816-0	02	1	1511-
630	DETENT ASM	8-98019-536-0	04	1	1511-
636	BRACKET; CLIP	8-97610-096-2	01	1	1511-
637	BOLT; BRACKET M8X16 FLANGE	0-28050-816-0	02	1	1511-

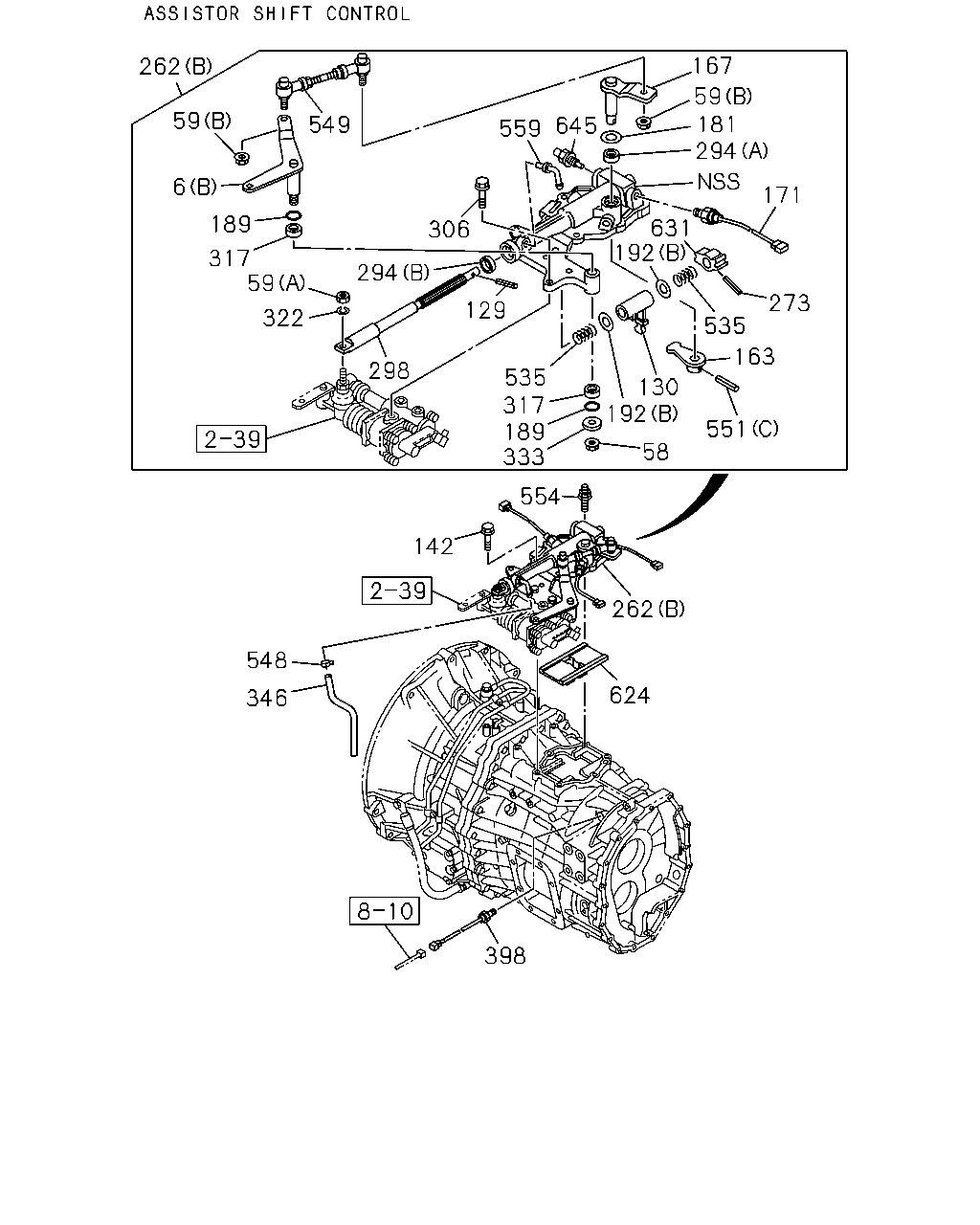

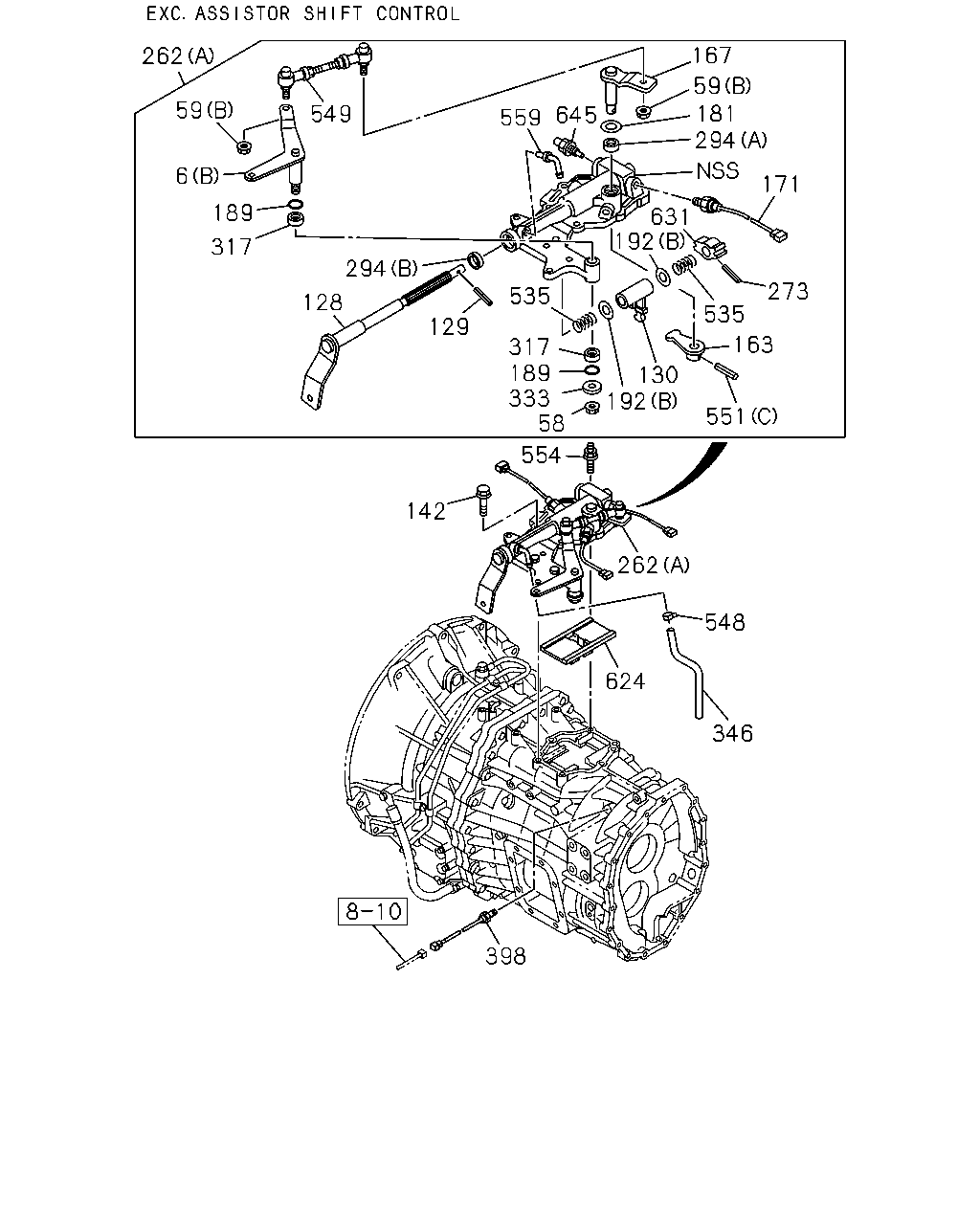

398 346 624 548 262 142 554 551 163 273 535 130 192 58 333 189 317 535 129 294 128 317 189 6 59 262 549 559 645 181 171 294 59 167 192 631

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
6	LEVER; RELAY (A)	8-97241-342-0	03	1	1511-
6	LEVER; RELAY (B)	8-98022-855-0	01	1	1511-
58	NUT M10 FLANGE	0-91180-110-0	01	1	1511-
59	NUT (B) M8 FLANGE	0-91180-108-0	02	1	1511-
59	NUT ASSISTOR SHIFT CONTROL<WX8> (A) M12	0-91110-512-0	01	1	1511-
128	LEVER; SHIFT,EXTERNAL EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98305-346-0	01	1	1511-
129	PIN; SPR,SHIFT L=30 OD=4	1-09748-031-0	01	1	1511-
130	LEVER; SHIFT,INTERNAL	8-97306-647-0	01	1	1511-
142	BOLT; QUAD BOX M8X22 FLANGE	8-97365-376-0	04	1	1511-
163	LEVER; SELECT,INTERNAL	8-97305-663-0	01	1	1511-
167	LEVER; SELECT,EXTERNAL	8-98022-857-0	01	1	1511-
171	SWITCH; NEUTRAL	8-98324-878-0	01	1	1511-
181	WASHER; PL,SELECT LEVER	8-97367-327-0	01	1	1511-
189	GASKET; SELECT LEVER,CONT BOX	1-09623-594-0	02	1	1511-
192	WASHER; PL (A) ID=18.2 OD=29	1-09503-032-0	04	1	1511-
192	WASHER; PL (B)	8-97305-661-0	02	1	1511-
262	BOX ASM; SHIFT CONT ASSISTOR SHIFT CONTROL<WX8> (B)	8-98305-335-1	01	1	1511-
262	BOX ASM; SHIFT CONT EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	8-98305-336-1	01	1	1511-
273	PIN; SPR,STOPPER D=4.2 L=25	8-97103-142-0	01	1	1511-
294	SEAL; OIL,SELECT ALSO INCLUDED IN GASKET SET(M/T). (A)	8-97305-662-0	01	1	1511-
294	SEAL; OIL,SELECT ALSO INCLUDED IN GASKET SET(M/T). (B)	8-97363-225-0	01	1	1511-
317	BUSHING; LEVER	1-09330-119-0	02	1	1511-
333	WASHER; PL,LEVER ID=10.5	0-91610-710-0	01	1	1511-
346	HOSE; AIR	8-97309-855-0	01	1	1511-
398	SWITCH; REV LAMP	8-98242-173-1	01	1	1511-
535	SPRING; LEVER	8-97385-713-0	02	1	1511-
548	CLIP; HOSE	8-97031-674-0	01	1	1511-
549	ROD; LINK	8-98022-841-0	01	1	1511-
551	PIN; SPRING (C) L=25 OD=5	1-09748-032-0	01	1	1511-
551	PIN; SPRING (A) L=32	8-97011-596-2	05	1	1511-
551	PIN; SPRING (B) L=20	8-97241-340-0	01	1	1511-
554	STUD; CONT BOX M8X15,M8X25 L=49	8-97365-378-0	02	1	1511-
559	PIPE; BREATHER	8-97358-318-0	01	1	1511-
624	PLATE; INTER LOCK	8-97241-317-3	01	1	1511-
631	STOPPER; SPRING	8-97305-666-0	01	1	1511-
645	DETENT ASM	8-98019-536-0	01	1	1511-

262 59 6 317 322 59 549 189 294 306 559 645 167 181 59 294 171 273 535 551 163 130 58 192 535 129 317 333 189 298 398 624 262 554 142 548 346 192 631

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
6	LEVER; RELAY (A)	8-97241-342-0	03	1	1511-
6	LEVER; RELAY (B)	8-98022-855-0	01	1	1511-
58	NUT M10 FLANGE	0-91180-110-0	01	1	1511-
59	NUT (B) M8 FLANGE	0-91180-108-0	02	1	1511-
59	NUT ASSISTOR SHIFT CONTROL<WX8> (A) M12	0-91110-512-0	01	1	1511-
129	PIN; SPR,SHIFT L=30 OD=4	1-09748-031-0	01	1	1511-
130	LEVER; SHIFT,INTERNAL	8-97306-647-0	01	1	1511-
142	BOLT; QUAD BOX M8X22 FLANGE	8-97365-376-0	04	1	1511-
163	LEVER; SELECT,INTERNAL	8-97305-663-0	01	1	1511-
167	LEVER; SELECT,EXTERNAL	8-98022-857-0	01	1	1511-
171	SWITCH; NEUTRAL	8-98324-878-0	01	1	1511-
181	WASHER; PL,SELECT LEVER	8-97367-327-0	01	1	1511-
189	GASKET; SELECT LEVER,CONT BOX	1-09623-594-0	02	1	1511-
192	WASHER; PL (A) ID=18.2 OD=29	1-09503-032-0	04	1	1511-
192	WASHER; PL (B)	8-97305-661-0	02	1	1511-
262	BOX ASM; SHIFT CONT ASSISTOR SHIFT CONTROL<WX8> (B)	8-98305-335-1	01	1	1511-
262	BOX ASM; SHIFT CONT EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	8-98305-336-1	01	1	1511-
273	PIN; SPR,STOPPER D=4.2 L=25	8-97103-142-0	01	1	1511-
294	SEAL; OIL,SELECT ALSO INCLUDED IN GASKET SET(M/T). (A)	8-97305-662-0	01	1	1511-
294	SEAL; OIL,SELECT ALSO INCLUDED IN GASKET SET(M/T). (B)	8-97363-225-0	01	1	1511-
298	SHAFT; SHIFT LEVER ASSISTOR SHIFT CONTROL<WX8>	8-98305-342-0	01	1	1511-
306	BOLT; SHIFT ASSISTOR ASSISTOR SHIFT CONTROL<WX8> M10X50 FLANGE	0-28051-050-0	03	1	1511-
317	BUSHING; LEVER	1-09330-119-0	02	1	1511-
322	WASHER; LK ASSISTOR SHIFT CONTROL<WX8>	8-98031-750-0	01	1	1511-
333	WASHER; PL,LEVER ID=10.5	0-91610-710-0	01	1	1511-
346	HOSE; AIR	8-97309-855-0	01	1	1511-
398	SWITCH; REV LAMP	8-98242-173-1	01	1	1511-
535	SPRING; LEVER	8-97385-713-0	02	1	1511-
548	CLIP; HOSE	8-97031-674-0	01	1	1511-
549	ROD; LINK	8-98022-841-0	01	1	1511-
551	PIN; SPRING (C) L=25 OD=5	1-09748-032-0	01	1	1511-
551	PIN; SPRING (A) L=32	8-97011-596-2	05	1	1511-
551	PIN; SPRING (B) L=20	8-97241-340-0	01	1	1511-
554	STUD; CONT BOX M8X15,M8X25 L=49	8-97365-378-0	02	1	1511-
559	PIPE; BREATHER	8-97358-318-0	01	1	1511-
624	PLATE; INTER LOCK	8-97241-317-3	01	1	1511-
631	STOPPER; SPRING	8-97305-666-0	01	1	1511-
645	DETENT ASM	8-98019-536-0	01	1	1511-
