2-05 — CLUTCH PIPING (#170363) — 28 parça

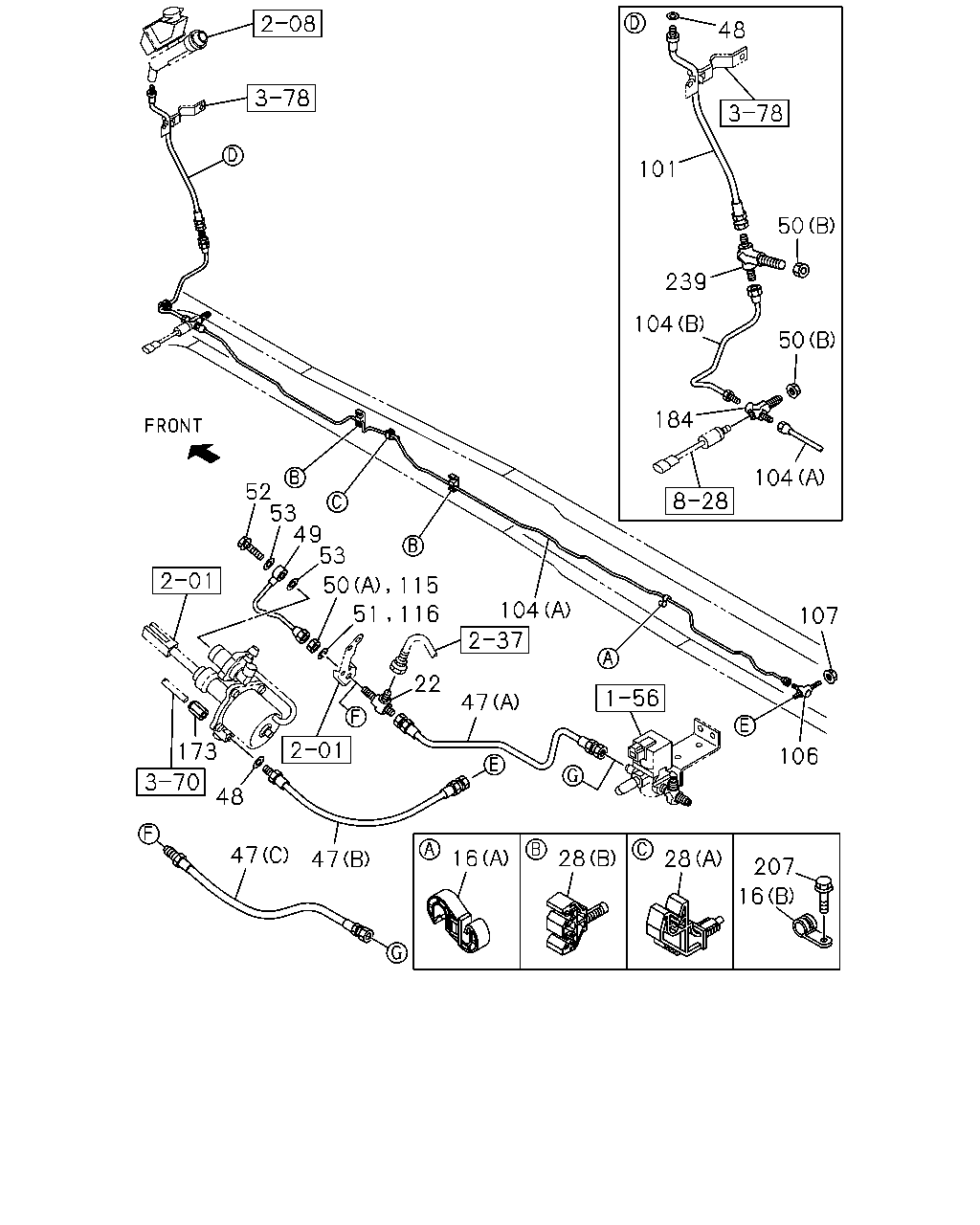

çizim 500810
16 207 28 28 16 47 47 48 173 22 47 106 107 116 115 51 50 53 49 53 52 104 104 184 50 104 239 50 101 48
BalonParca AdiParca NoAdetTipApplied Date
16 CLIP; FLEX HOSE
(B) ID=18 L=28 		1-09701-067-0 01 1 1511-
16 CLIP; FLEX HOSE
(A) ID=10 & 12 		1-09709-278-1 01 1 1511-
22 UNION; CLU PIPE
ASSISTOR SHIFT CONTROL<WX8> M12 3WAY 		0-92138-706-0 01 1 1511-
28 CLIP; OIL PIPE
(A) ID=6.35 		1-09701-247-1 05 1 1511-
28 CLIP; OIL PIPE
(B) 		8-98012-254-1 03 1 1511-
47 HOSE; FLEX,CLU CONT
(B) L=430 		8-98072-351-0 01 1 1511-
47 HOSE; FLEX,CLU CONT
ASSISTOR SHIFT CONTROL<WX8> (A) L=540 		1-09363-736-0 01 1 1511-
47 HOSE; FLEX,CLU CONT
EXC. ASSISTOR SHIFT CONTROL<WX8> (C) L=620 		8-98325-063-0 01 1 1511-
48 GASKET; FLEX HOSE,CLU CONT
ID=10.2 OD=16.0 		9-09571-410-0 01 1 1511-
48 GASKET; FLEX HOSE,CLU CONT
ID=10.2 OD=16.0 		9-09571-410-0 01 1 1511-
49 PIPE; AIR,FLEX HOSE TO CLU BOOSTER
L=239 		1-49117-401-0 01 1 1511-
50 NUT; UNION
(B) M12 		0-91111-512-0 02 1 1511-
50 NUT; UNION
ASSISTOR SHIFT CONTROL<WX8> (A) M12 		9-09840-280-0 01 1 1511-
51 WASHER; LK
ASSISTOR SHIFT CONTROL<WX8> ID=12.2 		0-91510-812-0 01 1 1511-
52 BOLT; EYE,AIR PIPE
M14X27 FLANGE 		1-09675-086-0 01 1 1511-
53 GASKET; JOINT BOLT
ID=14.2 OD=19.2 		8-98251-345-0 02 1 1511-
101 HOSE; FLEX,OIL PIPE TO OIL PIPE
L=570 		8-98116-741-0 01 1 1511-
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
(A) L=2597 SERVICED BY L=2650 		1-47428-743-0 01 1 1511-
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
(B) L=1450 		8-98281-680-0 01 1 1511-
106 UNION; OIL PIPE
M12 2WAY 		1-09654-059-2 01 1 1511-
107 NUT; UNION,OIL PIPE
M12 		0-91111-512-0 01 1 1511-
115 NUT; FLEX HOSE,CLU CONT
ASSISTOR SHIFT CONTROL<WX8> M12 		9-09840-280-0 01 1 1511-
115 NUT; FLEX HOSE,CLU CONT
EXC. ASSISTOR SHIFT CONTROL<WX8> M12 		9-09840-280-0 02 1 1511-
116 WASHER; FLEX HOSE,CLU CONT
EXC. ASSISTOR SHIFT CONTROL<WX8> ID=12.2 		0-91510-812-0 01 1 1511-
173 CONNECTOR
DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 1511-
184 UNION; FLEX HOSE 8-98150-865-0 01 1 1511-
207 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 1511-
239 UNION; CLU HOSE
M12 2WAY 		1-09654-059-2 01 1 1511-
