Isuzu WW
▶
TRUCKS
▶
FSR
▶
11724 - FSR LHD EURO5 EXC.SPACECAB
▶
2 - Clutch, Transmission, Trans Axle
▶
2-03 - CLUTCH PEDAL AND CONTROL
▶

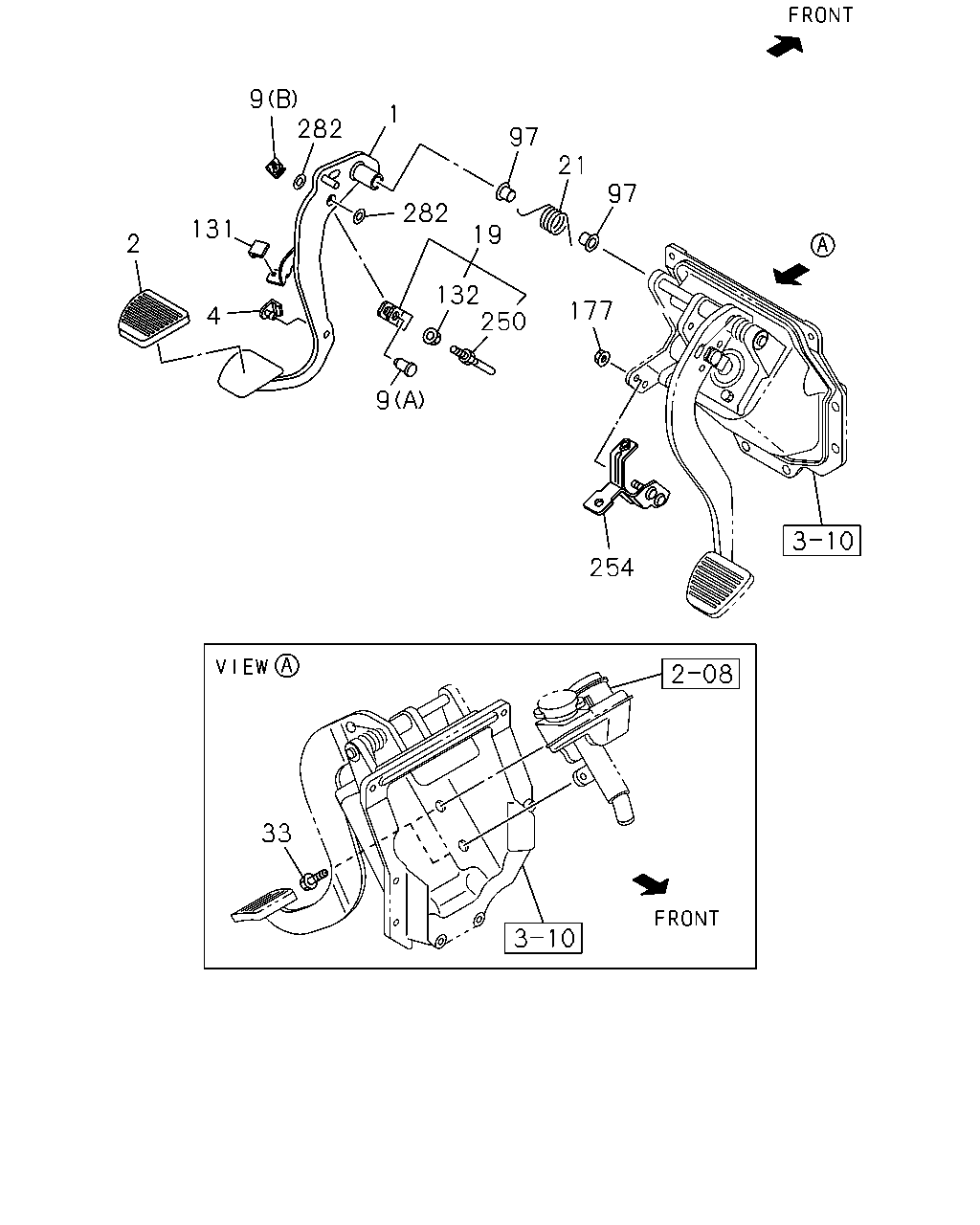

2-03 — CLUTCH PEDAL AND CONTROL
(#170362) — 15 parça
282
9
131
2
4
282
132
19
97
1
21
97
177
250
9
254
33
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
PEDAL; CLU
8-98064-605-1
01
1
1511-
2
COVER; CLU PEDAL
8-98056-865-0
01
1
1511-
4
STOPPER; CLU PEDAL
8-98079-251-0
01
1
1511-
9
PIN; CLU PEDAL
(B)
8-98007-161-0
01
1
1511-
9
PIN; CLU PEDAL
(A)
8-98147-657-0
01
1
1511-
19
ROD ASM; PUSH,CLU
8-98021-406-1
01
1
1511-
21
SPRING; RETURN,CLU PEDAL
8-98021-560-0
01
1
1511-
33
BOLT; CLU M/CYL TO BRKT
M12X20 FLANGE
0-28051-220-0
02
1
1511-
97
BUSHING; CLU PEDAL SHAFT
8-94238-596-0
02
1
1511-
131
STOPPER; CLU SW
8-97302-305-0
01
1
1511-
132
NUT; LK,PUSH ROD
M8 FLANGE
0-91180-108-0
01
1
1511-
177
NUT; BRKT
M8 FLANGE
0-91180-108-0
02
1
1511-
250
ROD; PUSH,CLU
8-97615-589-0
01
1
1511-
254
BRACKET; CLU SENSOR
8-98021-377-1
01
1
1511-
282
SPACER; CLU PEDAL
8-98070-329-0
02
1
1511-
