1-56 — EXHAUST BRAKE SYSTEM (#170360) — 13 parça

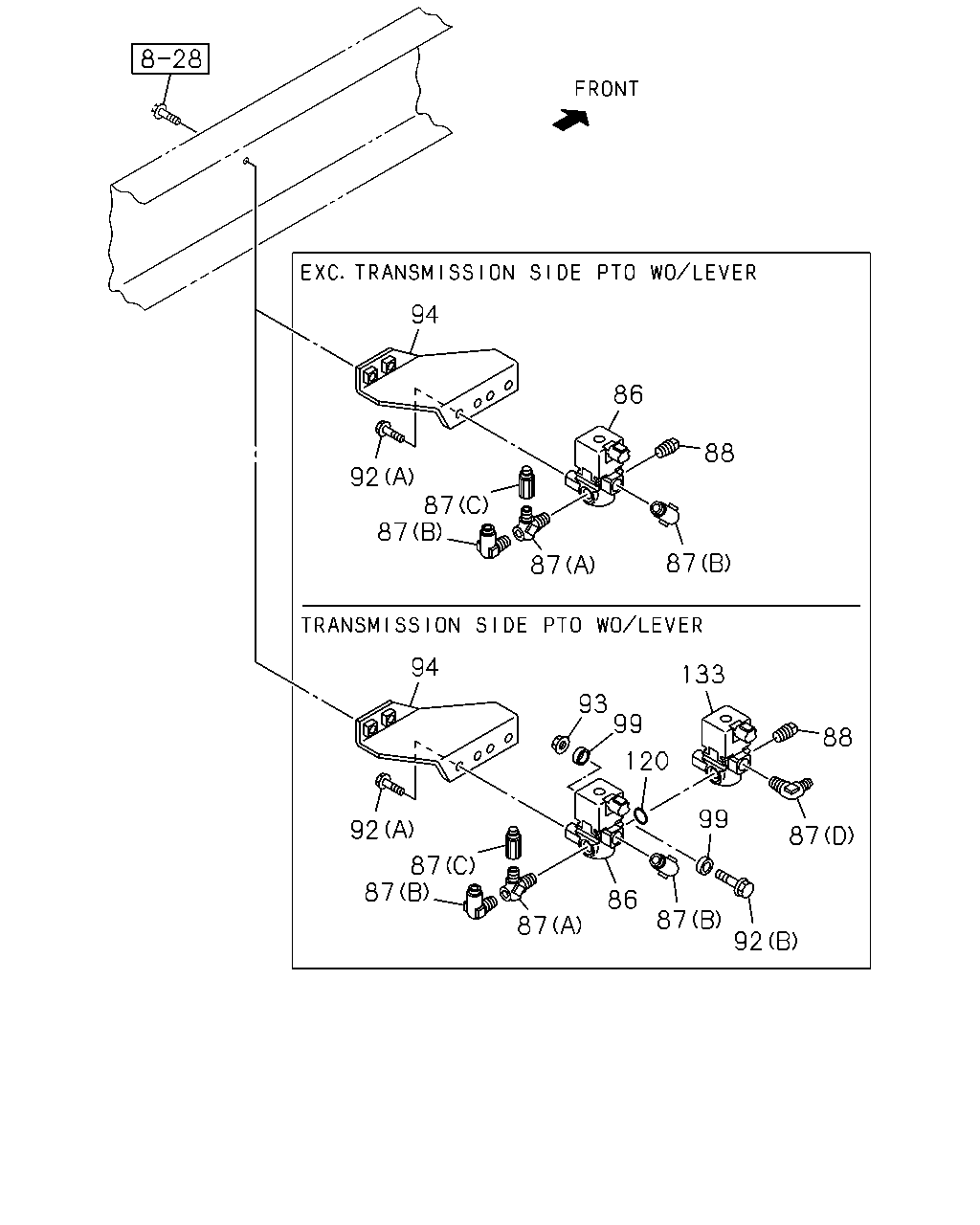

çizim 500765
94 92 87 87 87 87 88 86 133 88 87 92 99 87 86 87 87 87 92 94 93 99 120
BalonParca AdiParca NoAdetTipApplied Date
86 VALVE; MAG,EXH BRK 1-82563-871-2 01 1 1511-
87 CONNECTOR
(A) M12 & PT1/4 3WAY 		1-09656-586-1 01 1 1511-
87 CONNECTOR
(B) DIN8 & R1/4 ELBOW 		1-09660-956-0 02 1 1511-
87 CONNECTOR
(C) DIN6 & M12 STRAIGHT 		1-09661-379-0 01 1 1511-
87 CONNECTOR
TRANSMISSION SIDE PTO WO/LEVER(SH5) (D) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 1511-
88 PLUG
PT1/4 		9-99204-513-0 01 1 1511-
92 BOLT; MAG VLV
(A) M8X20 FLANGE 		0-28650-820-0 02 1 1511-
92 BOLT; MAG VLV
TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) M6X50 FLANGE 		0-28050-650-0 01 1 1511-
93 NUT; MAG VLV
TRANSMISSION SIDE PTO WO/LEVER(SH5) M6 FLANGE 		0-91180-106-0 01 1 1511-
94 BRACKET; MAG VLV,EXH BRAKE 8-98328-750-0 01 1 1511-
99 WASHER; MAG VLV
TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-82569-266-0 02 1 1511-
120 GASKET; MAG VLV
TRANSMISSION SIDE PTO WO/LEVER(SH5) ID=16.8 		9-09565-117-0 01 1 1511-
133 VALVE; MAG,PTO CONT
TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-82563-871-2 01 1 1511-
