Isuzu WW
▶
TRUCKS
▶
FSR
▶
11724 - FSR LHD EURO5 EXC.SPACECAB
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶

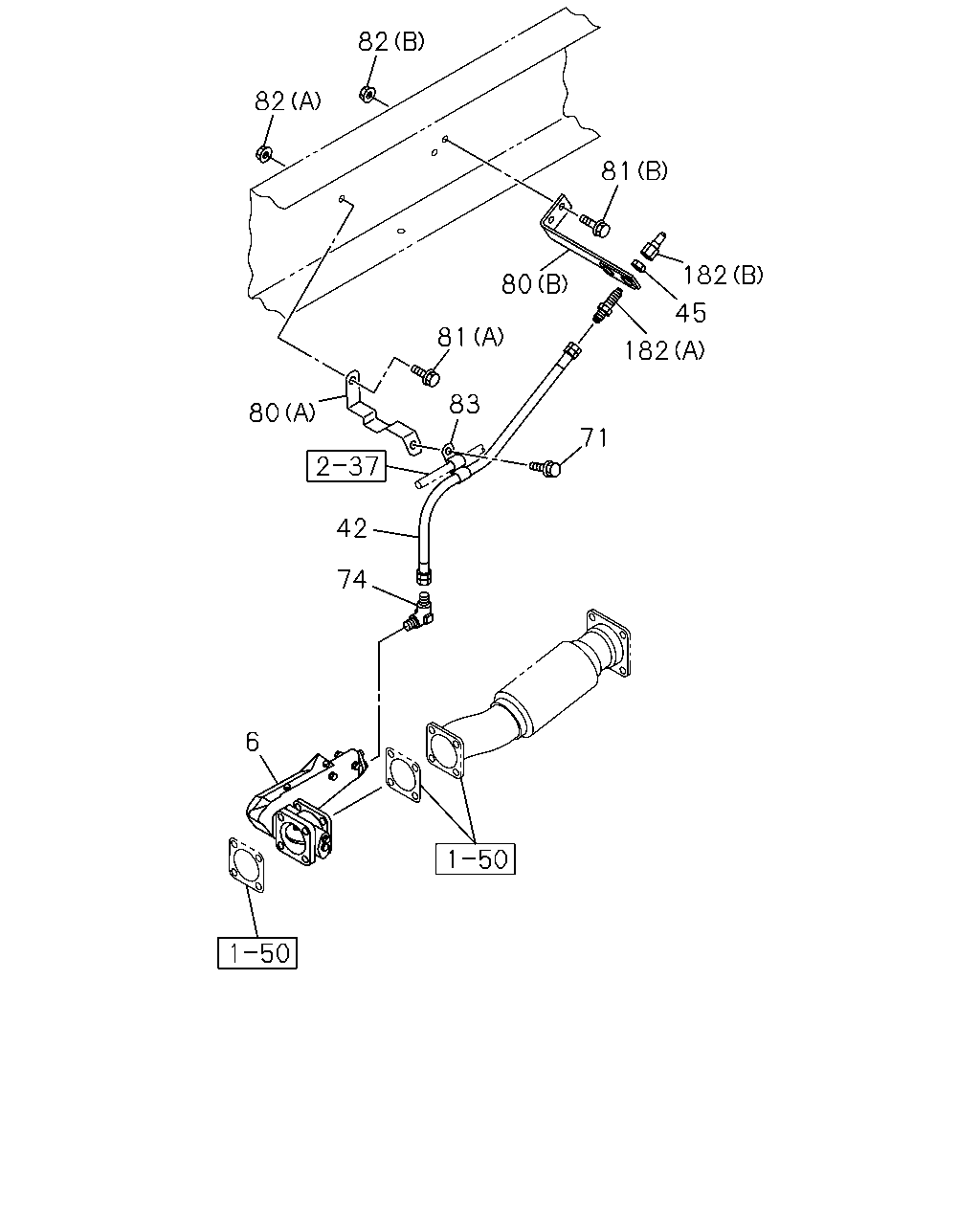

1-55 - EXHAUST BRAKE VALVE AND CONTROL CYLINDER
▶
1-55 — EXHAUST BRAKE VALVE AND CONTROL CYLINDER
(#170359) — 14 parça
82
82
81
182
45
182
80
81
83
71
80
42
74
6
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
6
VALVE; EXH BRAKE
8-98233-801-0
01
1
1511-
42
HOSE; FLEX,EXH BRK
L=450
1-09363-965-0
01
1
1511-
45
NUT; FLEX HOSE
M12
9-09840-280-0
01
1
1511-
71
BOLT; CLIP
M8X20 FLANGE
0-28650-820-0
01
1
1511-
74
CONNECTOR; EXH BRK VLV
M12 & PT1/4 ELBOW
1-09650-430-0
01
1
1511-
80
BRACKET; FLEX HOSE
(A)
8-98078-153-0
01
1
1511-
80
BRACKET; FLEX HOSE
(B)
8-98180-225-0
01
1
1511-
81
BOLT; HOSE BRKT
(B) M8X30 FLANGE
0-28650-830-0
02
1
1511-
81
BOLT; HOSE BRKT
(A) M10X30 FLANGE
0-28651-030-0
01
1
1511-
82
NUT; HOSE BRKT
(B) M8 FLANGE
0-91180-108-0
02
1
1511-
82
NUT; HOSE BRKT
(A) M10 FLANGE
0-91180-210-0
01
1
1511-
83
CLIP; FLEX HOSE
ID=11X2 L=16
1-09700-820-0
01
1
1511-
182
CONNECTOR
(A) M12 L=56.5
0-92113-106-0
01
1
1511-
182
CONNECTOR
(B) DIN8 & M12 STRAIGHT
1-09660-873-0
01
1
1511-
