Isuzu WW
▶
TRUCKS
▶
FSR
▶
11724 - FSR LHD EURO5 EXC.SPACECAB
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-40 - FUEL TANK
▶

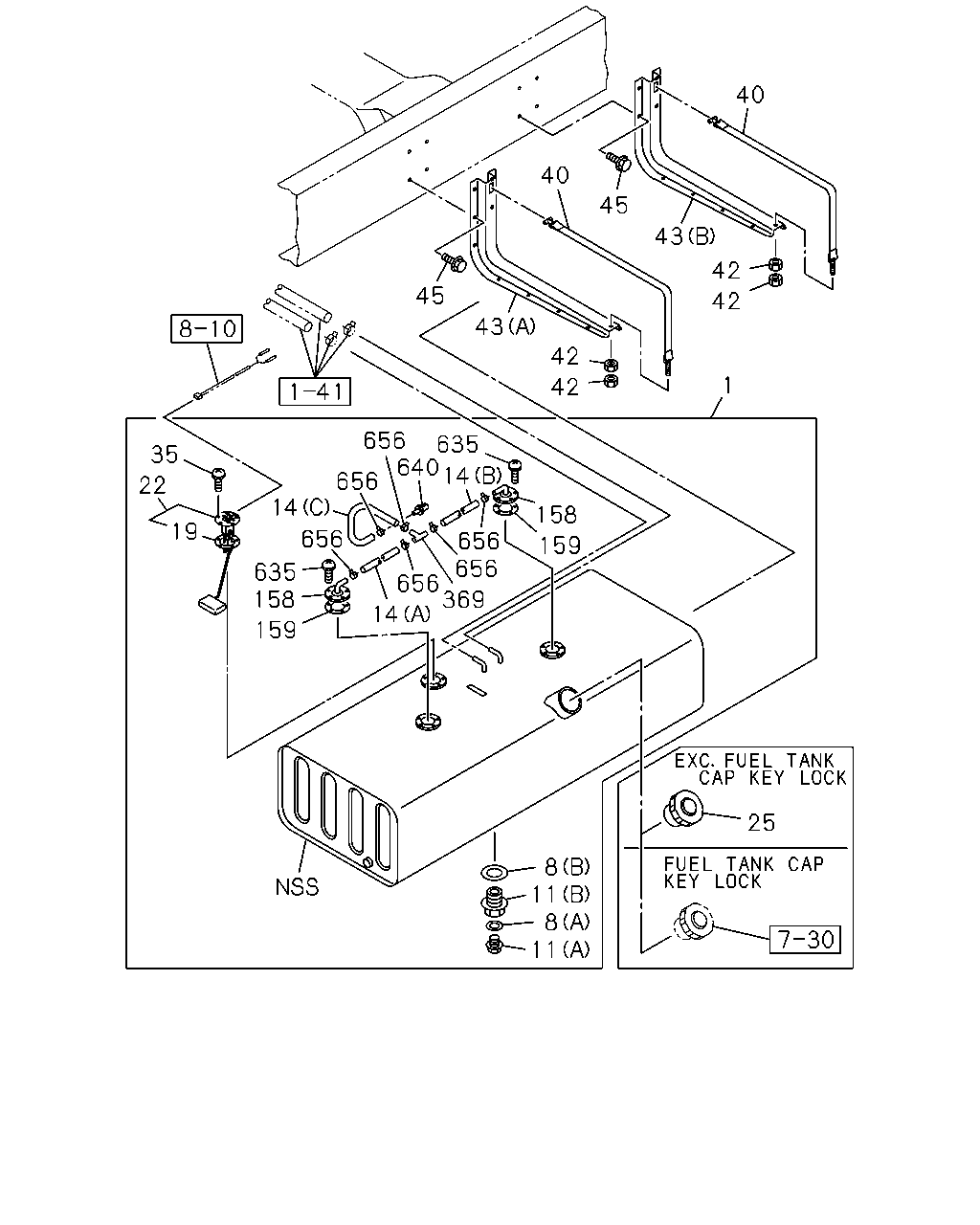

1-40 — FUEL TANK
(#170355) — 23 parça
40
43
42
42
45
40
45
42
42
43
1
656
635
158
159
14
640
656
656
369
656
14
159
635
158
656
656
35
55
19
14
25
11
8
11
8
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
TANK; FUEL
1345X532X322 200L
8-98243-997-0
01
1
1511-
8
GASKET; DRAIN PLUG,FUEL TANK
(B) ID=30
8-98067-041-0
01
1
1511-
8
GASKET; DRAIN PLUG,FUEL TANK
(A) ID=18.2 OD=26.0
9-09571-418-0
01
1
1511-
11
PLUG; DRAIN,FUEL TANK
(B) M30
8-98067-038-0
01
1
1511-
11
PLUG; DRAIN,FUEL TANK
(A) M18
8-98068-006-0
01
1
1511-
14
HOSE; BREATHER,OUTLET
(A) L=430
8-98131-037-0
01
1
1511-
14
HOSE; BREATHER,OUTLET
(B) L=90
8-98304-415-0
01
1
1511-
14
HOSE; BREATHER,OUTLET
(C) L=540
8-98304-417-0
01
1
1511-
19
GASKET; FUEL TANK UNIT
ID=42 OD=71
5-83148-001-0
01
1
1511-
22
UNIT; FUEL TANK
8-98099-320-0
01
1
1511-
25
CAP; FILLER,FUEL TANK
EXC. FUEL TANK CAP KEY LOCK<N05>
8-97387-179-0
01
1
1511-
35
SCREW; FUEL TANK UNIT
M5X12 W/LK WASHER
0-36220-512-0
05
1
1511-
40
BELT; SUPPORT,FUEL TANK
L=880
8-98042-715-1
02
1
1511-
42
NUT; SUPPORT BELT
M12
0-91110-512-0
04
1
1511-
43
BRACKET; FUEL TANK
(A)
8-98254-478-0
01
1
1511-
43
BRACKET; FUEL TANK
(B)
8-98254-479-0
01
1
1511-
45
BOLT; BRKT,FUEL TANK
M10X35 FLANGE
0-28651-035-0
12
1
1511-
158
VALVE; ROLL OVER & FLOAT
8-98067-039-0
02
1
1511-
159
SEAL; ROLL OVER & FLOAT VALVE
ID=45 OD=67
1-83149-003-0
02
1
1511-
369
JOINT; HOSE
8-98067-080-0
01
1
1511-
635
SCREW; ROLL OVER & FLOAT VALVE
M5X10 W/LK WASHER
0-36220-510-0
10
1
1511-
640
VENTILATOR; HOSE,BREATHER
8-98092-398-0
01
1
1511-
656
CLAMP; FUEL TANK
8-98304-416-0
06
1
1511-
