Isuzu WW
▶
TRUCKS
▶
FSR
▶
11724 - FSR LHD EURO5 EXC.SPACECAB
▶
0 - Engine, Emission, Engine Electrical
▶
0-50 - OIL COOLER AND OIL FILTER
▶

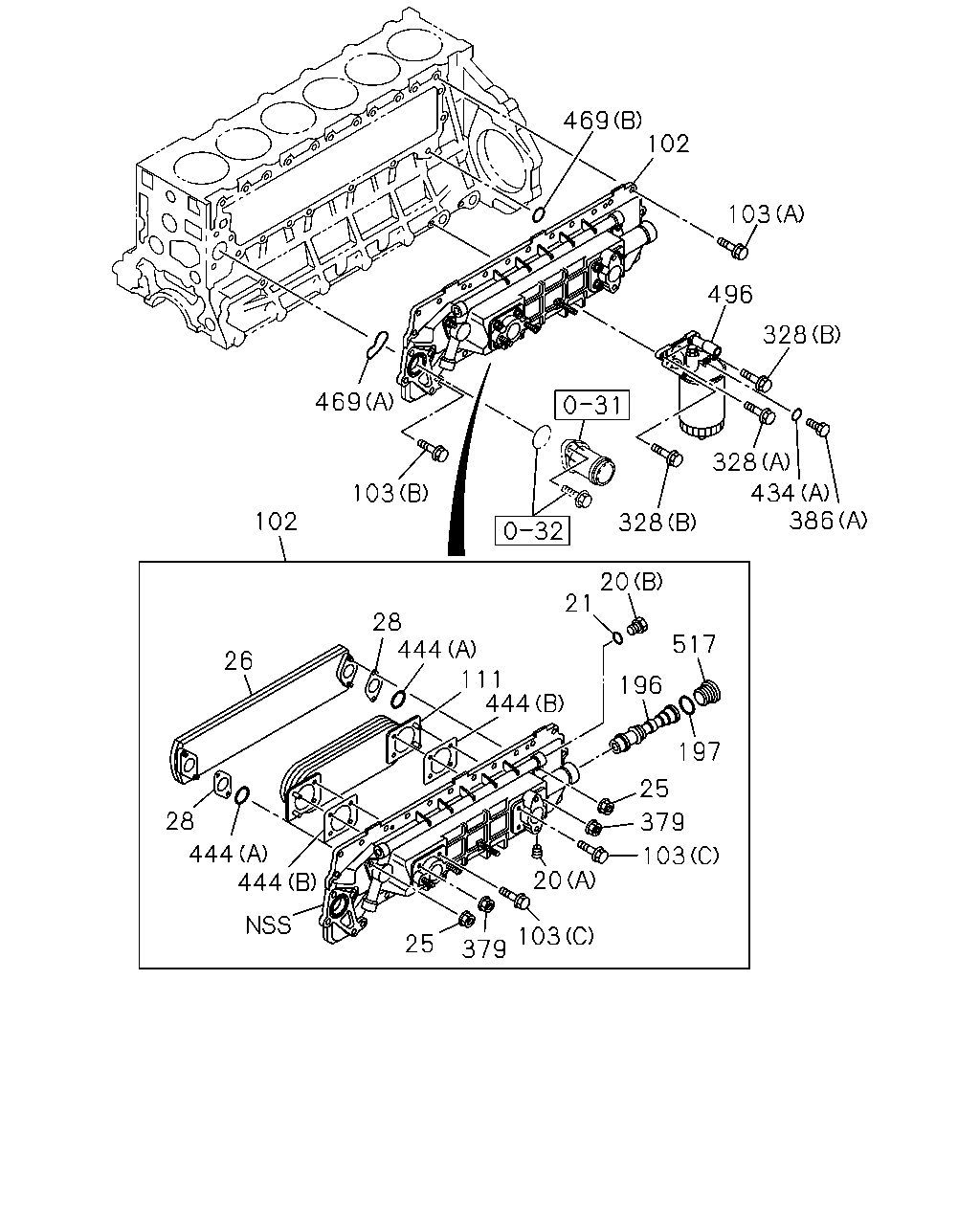

0-50 — OIL COOLER AND OIL FILTER
(#170341) — 38 parça
◀
[050A] OIL FILTER (12 parça)
[050A] OIL COOLER ASM (26 parça)
▶
321
321
321
265
2
265
13
66
434
386
496
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
ELEMENT; OIL FILTER
8-94391-049-4
01
1
1511-
2
ELEMENT; OIL FILTER
BEST VALUE PARTS
1-87610-064-0
01
1
1511-
13
VALVE; RELIEF
8-98238-944-0
01
1
1511-
66
SPRING; VLV
8-98238-943-0
01
1
1511-
265
BODY; OIL FILTER
8-98238-939-0
01
1
1511-
321
GASKET; OIL FILTER TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=9.8
8-94399-339-0
01
1
1511-
321
GASKET; OIL FILTER TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=22.1
8-94399-399-0
02
1
1511-
386
PLUG; OIL FILTER
(A) M10X10
1-09604-074-0
01
1
1511-
386
PLUG; OIL FILTER
(B)
8-98238-941-0
01
1
1511-
434
GASKET; PLUG,OIL FILTER
(A) ID=10.2 OD=15.2
1-09630-083-0
01
1
1511-
434
GASKET; PLUG,OIL FILTER
(B)
8-98238-942-0
01
1
1511-
496
FILTER ASM; OIL
8-98236-649-0
01
1
1511-
469
103
102
496
328
328
386
434
328
103
102
469
28
444
444
111
21
20
517
196
197
25
379
103
20
103
379
25
444
444
28
26
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
20
PLUG; COOLER BODY
(A)
1-13219-240-0
02
1
1511-
20
PLUG; COOLER BODY
(B)
8-97608-567-0
02
1
1511-
21
GASKET; PLUG
ID=17.8
8-97608-568-0
02
1
1511-
25
NUT; CORE TO BODY
M10 FLANGE
1-13219-324-0
04
1
1511-
26
CORE ASM; OIL COOLER
8-98062-207-0
01
1
1511-
28
GASKET; CORE TO BODY
8-94394-930-0
02
1
1511-
102
COOLER ASM; OIL
8-98236-650-0
01
1
1511-
103
BOLT; OIL COOLER
(B) M8X35 FLANGE
0-28050-835-0
03
1
1511-
103
BOLT; OIL COOLER
(A) M8X30 FLANGE
0-28650-830-0
24
1
1511-
103
BOLT; OIL COOLER
(C) M8X18 FLANGE
8-98251-758-0
04
1
1511-
111
CORE; OIL COOLER
8-98063-863-0
01
1
1511-
196
THERMOSTAT; OIL COOLER
90 CELSIUS
8-97600-936-0
01
1
1511-
197
GASKET; THERMOSTAT
8-94391-728-0
01
1
1511-
328
BOLT; OIL FILTER
(A) M10X30 FLANGE
0-28151-030-0
02
1
1511-
328
BOLT; OIL FILTER
(B) M10X90 FLANGE
0-28151-090-0
02
1
1511-
379
NUT; OIL COOLER
M8 FLANGE
0-91180-108-0
04
1
1511-
386
PLUG; OIL FILTER
(A) M10X10
1-09604-074-0
01
1
1511-
386
PLUG; OIL FILTER
(B)
8-98238-941-0
01
1
1511-
434
GASKET; PLUG,OIL FILTER
(A) ID=10.2 OD=15.2
1-09630-083-0
01
1
1511-
434
GASKET; PLUG,OIL FILTER
(B)
8-98238-942-0
01
1
1511-
444
GASKET; ELEMENT TO BODY
(A) ID=38.7
1-09623-299-0
02
1
1511-
444
GASKET; ELEMENT TO BODY
(B)
8-97601-801-0
02
1
1511-
469
GASKET; OIL COOLER TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). (A)
8-94399-002-0
01
1
1511-
469
GASKET; OIL COOLER TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=20
8-98045-449-0
01
1
1511-
496
FILTER ASM; OIL
8-98236-649-0
01
1
1511-
517
PLUG; THERMOSTAT,OIL COOLER
8-94391-731-0
01
1
1511-
