Isuzu WW
▶
TRUCKS
▶
FSR
▶
11724 - FSR LHD EURO5 EXC.SPACECAB
▶
0 - Engine, Emission, Engine Electrical
▶
0-40 - FUEL INJECTION SYSTEM
▶
0-40 — FUEL INJECTION SYSTEM
(#170339) — 67 parça
◀

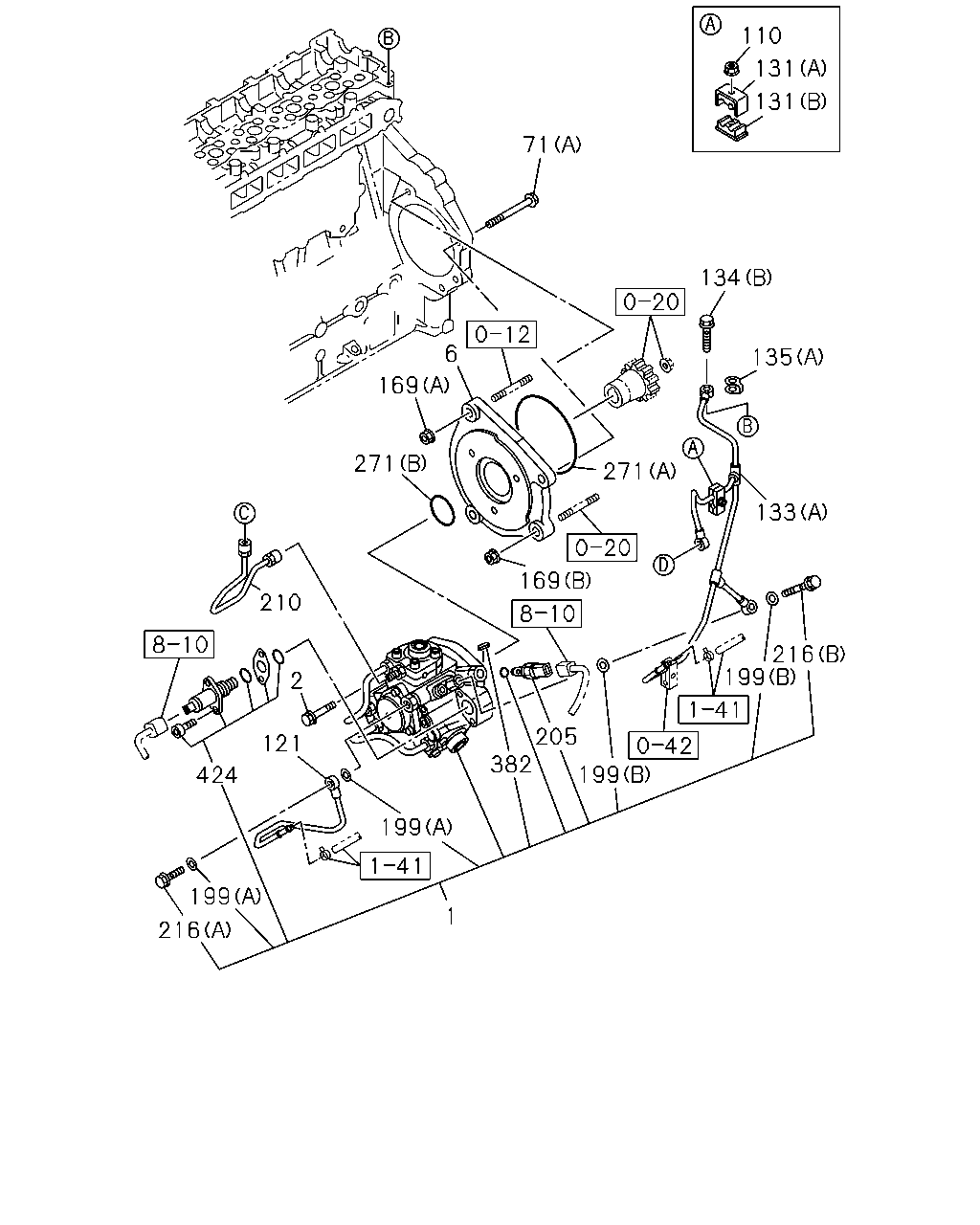

[040A] INJ PUMP (29 parça)

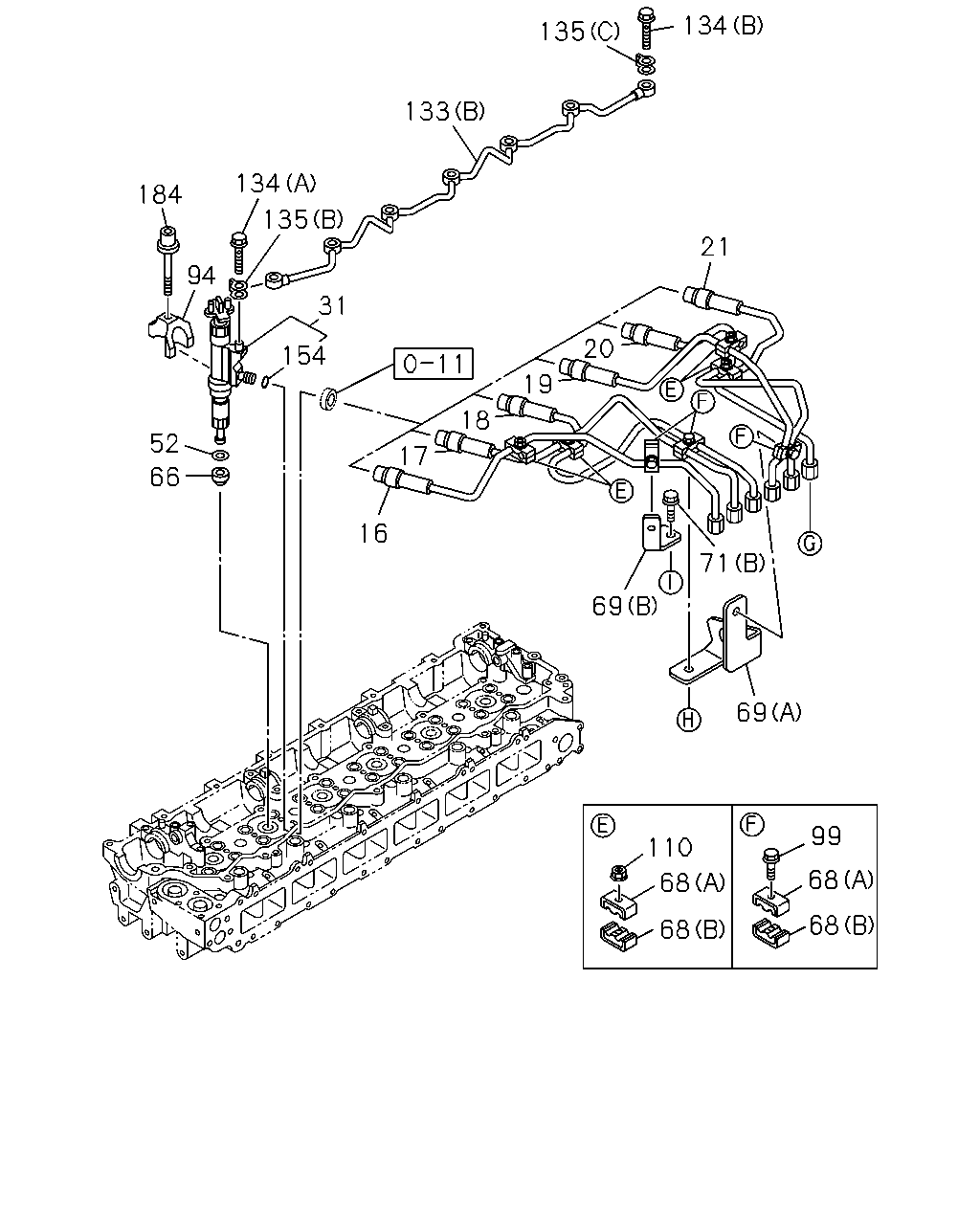

[040A] NOZZLE AND INJ PIPE (27 parça)

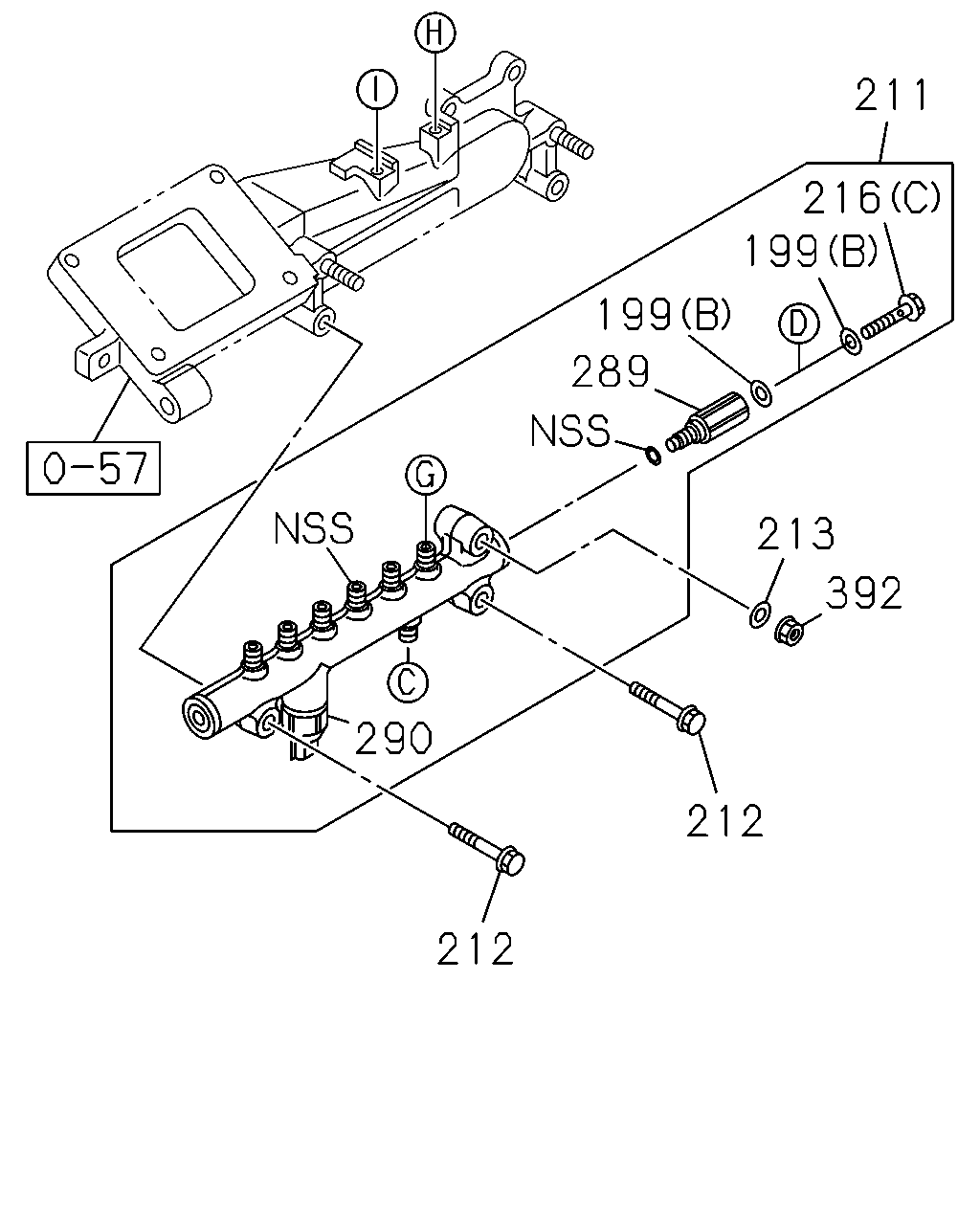

[040A] COMMON RAIL (11 parça)
▶
131
131
110
71
134
135
133
271
216
199
199
205
382
199
1
199
216
424
121
2
210
271
169
6
169
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
PUMP ASM; INJ
8-98239-521-1
01
1
1511-
2
BOLT; INJ PUMP
M8X28
8-94399-256-0
03
1
1511-
6
BRACKET; INJ PUMP TO C/BL
8-97601-154-1
01
1
1511-
71
BOLT; BRKT
(B) M8X16 FLANGE
0-28050-816-0
02
1
1511-
71
BOLT; BRKT
(A) M12X100 FLANGE
0-28151-200-0
01
1
1511-
110
NUT; CLIP
M6 FLANGE
0-91180-106-0
05
1
1511-
121
PIPE; FUEL,FEED PUMP,SUCTION
8-98126-331-0
01
1
1511-
131
CLIP; OVERFLOW LEAK OFF
(A) ID=7 & 9 L=25
8-98000-010-2
01
1
1511-
131
CLIP; OVERFLOW LEAK OFF
(B) ID=7 & 9 L=25
8-98000-011-2
01
1
1511-
133
PIPE; INJ NOZZLE LEAK OFF
(A)
8-98163-854-1
01
1
1511-
133
PIPE; INJ NOZZLE LEAK OFF
(B)
8-98203-705-1
01
1
1511-
134
BOLT; JOINT,LEAK OFF PIPE
(A) M8X18 EYE-BOLT
1-09675-037-1
06
1
1511-
134
BOLT; JOINT,LEAK OFF PIPE
(B) M10X21 FLANGE
8-94396-711-0
02
1
1511-
135
GASKET; JOINT BOLT,LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=8.3 OD=15.0
8-98065-992-0
06
1
1511-
135
GASKET; JOINT BOLT,LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=10.2 OD=17
8-98079-755-0
01
1
1511-
135
GASKET; JOINT BOLT,LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (C) ID=10.6
8-98231-393-0
01
1
1511-
169
NUT; BRKT
(A) M10 FLANGE
0-91180-110-0
02
1
1511-
169
NUT; BRKT
(B) M12 FLANGE
0-91180-112-0
01
1
1511-
199
GASKET; EYE BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). (A)
1-15619-507-0
02
1
1511-
199
GASKET; EYE BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). (B)
8-97602-218-0
04
1
1511-
205
SENSOR; FUEL TEMP
8-98023-581-0
01
1
1511-
210
PIPE; INJ,C/R
8-98242-356-0
01
1
1511-
216
BOLT; EYE
(A)
5-15759-003-0
01
1
1511-
216
BOLT; EYE
(B)
8-97351-388-0
01
1
1511-
216
BOLT; EYE
(C)
8-98035-828-0
01
1
1511-
271
GASKET; INJ PUMP
(A) ID=139.6
1-09623-464-0
01
1
1511-
271
GASKET; INJ PUMP
(B) ID=52
8-98031-844-0
01
1
1511-
382
KEY; DRIVE SHAFT
8-98161-995-0
01
1
1511-
424
OVERHAUL KIT; SUPPLY PUMP
8-98145-449-1
01
1
1511-
99
68
68
110
68
68
69
71
69
21
20
19
18
17
16
31
154
52
66
184
94
134
133
135
135
134
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
16
PIPE; INJ NO.1
8-98242-350-0
01
1
1511-
17
PIPE; INJ NO.2
8-98242-351-0
01
1
1511-
18
PIPE; INJ NO.3
8-98242-352-0
01
1
1511-
19
PIPE; INJ NO.4
8-98242-353-0
01
1
1511-
20
PIPE; INJ NO.5
8-98242-354-0
01
1
1511-
21
PIPE; INJ NO.6
8-98242-355-0
01
1
1511-
31
NOZZLE ASM; INJ
8-98207-435-0
06
1
1511-
52
GASKET; SLEEVE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=23.3
8-94173-412-0
06
1
1511-
66
GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=9.2 T=8.1
8-98079-248-0
06
1
1511-
68
CLIP; INJ PIPE
(A) ID=7 & 7 L=22
8-97330-118-3
07
1
1511-
68
CLIP; INJ PIPE
(B) ID=7 & 7 L=22
8-97330-119-3
07
1
1511-
69
BRACKET; INJ PIPE CLIP
(B)
8-98038-940-0
01
1
1511-
69
BRACKET; INJ PIPE CLIP
(A)
8-98241-203-0
01
1
1511-
71
BOLT; BRKT
(B) M8X16 FLANGE
0-28050-816-0
02
1
1511-
71
BOLT; BRKT
(A) M12X100 FLANGE
0-28151-200-0
01
1
1511-
94
BRACKET; INJ NOZZLE
8-98028-999-1
06
1
1511-
99
BOLT; CLIP,INJ,PIPE
M6X35 FLANGE
0-28050-635-0
03
1
1511-
110
NUT; CLIP
M6 FLANGE
0-91180-106-0
05
1
1511-
133
PIPE; INJ NOZZLE LEAK OFF
(A)
8-98163-854-1
01
1
1511-
133
PIPE; INJ NOZZLE LEAK OFF
(B)
8-98203-705-1
01
1
1511-
134
BOLT; JOINT,LEAK OFF PIPE
(A) M8X18 EYE-BOLT
1-09675-037-1
06
1
1511-
134
BOLT; JOINT,LEAK OFF PIPE
(B) M10X21 FLANGE
8-94396-711-0
02
1
1511-
135
GASKET; JOINT BOLT,LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=8.3 OD=15.0
8-98065-992-0
06
1
1511-
135
GASKET; JOINT BOLT,LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=10.2 OD=17
8-98079-755-0
01
1
1511-
135
GASKET; JOINT BOLT,LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (C) ID=10.6
8-98231-393-0
01
1
1511-
154
GASKET; CONNECTOR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=11.0
0-95690-111-0
06
1
1511-
184
BOLT; NOZZLE HOLDER
M8X54
8-98008-895-0
06
1
1511-
392
213
212
212
290
211
216
199
199
289
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
199
GASKET; EYE BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). (A)
1-15619-507-0
02
1
1511-
199
GASKET; EYE BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). (B)
8-97602-218-0
04
1
1511-
211
RAIL ASM; COMMON
8-98239-520-0
01
1
1511-
212
BOLT; RAIL ASM
M10X55 FLANGE
8-97365-449-0
02
1
1511-
213
WASHER; RAIL ASM
ID=10.5 OD=22 T=4
1-09503-045-0
01
1
1511-
216
BOLT; EYE
(A)
5-15759-003-0
01
1
1511-
216
BOLT; EYE
(B)
8-97351-388-0
01
1
1511-
216
BOLT; EYE
(C)
8-98035-828-0
01
1
1511-
289
LIMITER; FUEL PRESS
8-98138-695-0
01
1
1511-
290
SENSOR; PRESS
8-98138-736-0
01
1
1511-
392
NUT; RAIL ASM
M10 FLANGE
0-91180-110-0
01
1
1511-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
