Isuzu WW
▶
TRUCKS
▶
FSR
▶
11724 - FSR LHD EURO5 EXC.SPACECAB
▶
0 - Engine, Emission, Engine Electrical
▶
0-38 - AIR COMPRESSOR PIPING; ENGINE SIDE
▶

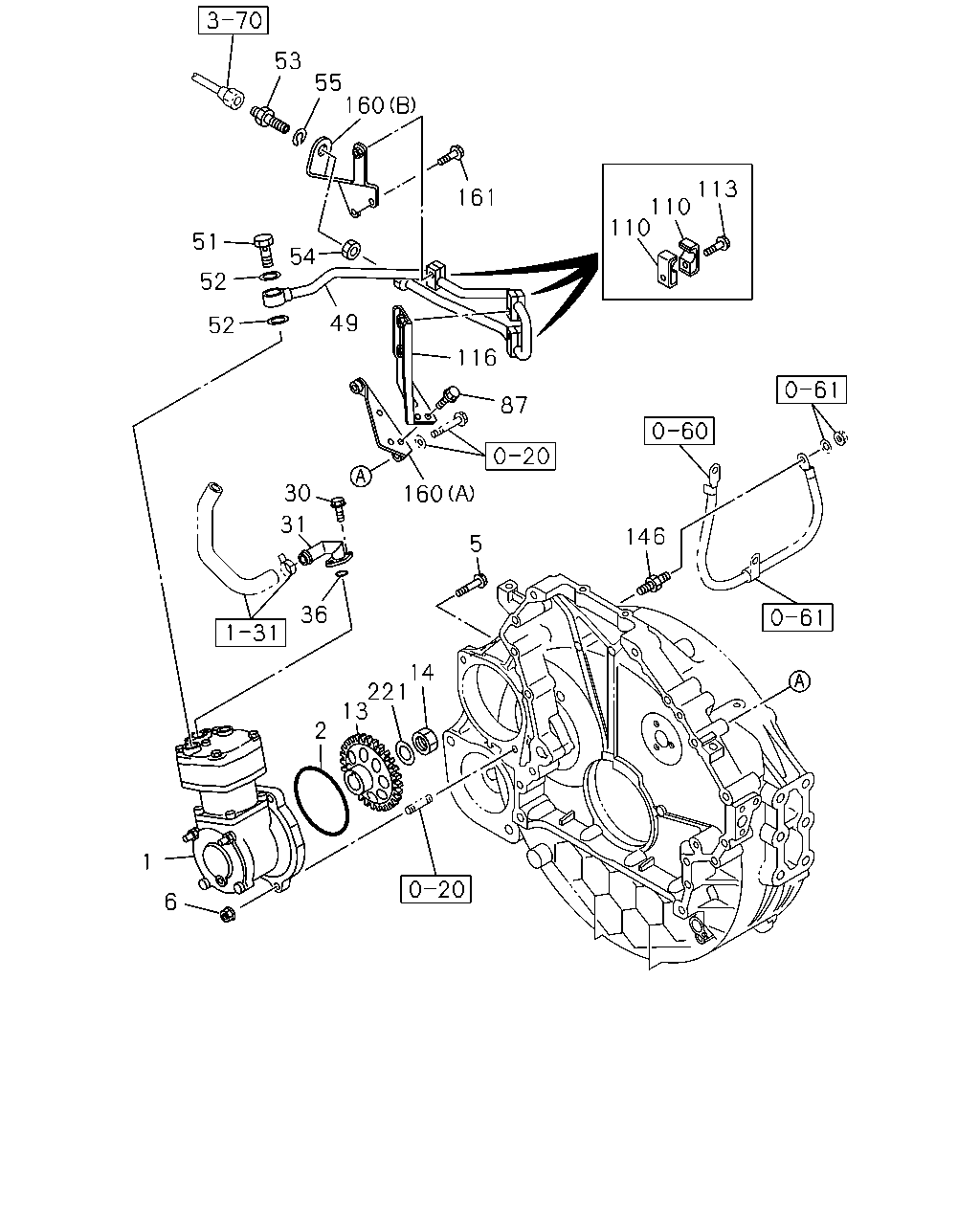

0-38 — AIR COMPRESSOR PIPING; ENGINE SIDE
(#170337) — 24 parça
55
160
161
110
110
113
53
51
52
52
54
49
116
87
160
30
31
36
14
221
13
2
1
6
5
146
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
COMPRESSOR ASM; AIR
SEE FIG-NO 0-39 FOR COMPONENT.
8-98187-304-1
01
1
1511-
2
GASKET; AIR CMPR
ALSO INCLUDED IN GASKET SET(ENGINE). ID=162
1-09623-570-0
01
1
1511-
5
BOLT; AIR CMPR FIX
M12X70 FLANGE
0-28151-270-0
02
1
1511-
6
NUT; AIR CMPR
M12 FLANGE
0-91180-212-0
01
1
1511-
13
GEAR; AIR CMPR DRIVE
Z=49
8-94394-511-4
01
1
1511-
14
NUT; GEAR
M20
0-91110-520-0
01
1
1511-
30
BOLT; PIPE CLIP
M8X20 FLANGE
0-28650-820-0
02
1
1511-
31
PIPE; AIR,AIR CMPR SUCTION
8-97620-948-0
01
1
1511-
36
GASKET; AIR PIPE TO AIR CMPR
ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.4
1-09623-057-0
01
1
1511-
49
PIPE; AIR,CHARGE
8-98052-612-0
01
1
1511-
51
BOLT; EYE,AIR PIPE TO CMPR
M24X39
1-09675-175-2
01
1
1511-
52
GASKET; EYE BOLT,AIR PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32
9-09571-424-0
02
1
1511-
53
UNION; CHARGE PIPE
M22 & M26 L=79 STRAIGHT
1-09654-318-1
01
1
1511-
54
NUT; PIPE UNION
M22
0-91111-522-0
01
1
1511-
55
WASHER; LK,PIPE UNION
ID=22.5
0-91510-522-0
01
1
1511-
87
BOLT; BRKT FIX
M8X20 FLANGE
0-28050-820-0
03
1
1511-
110
CLIP; AIR PIPE
ID=17 L=17
1-09701-284-0
06
1
1511-
113
BOLT; CLIP,AIR PIPE
M8X45 FLANGE
0-28050-845-0
03
1
1511-
116
BRACKET; AIR PIPE
8-97614-183-1
01
1
1511-
146
STUD; AIR CMPR
M10X16,M12X70 L=97.7
1-09049-038-1
01
1
1511-
160
BRACKET; AIR PIPE
(A)
8-97614-182-2
01
1
1511-
160
BRACKET; AIR PIPE
(B)
8-98042-844-1
01
1
1511-
161
BOLT; BRKT,AIR PIPE
M8X16 FLANGE
0-28050-816-0
02
1
1511-
221
WASHER; PL,GEAR
ID=21
0-91610-520-0
01
1
1511-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
