Isuzu WW
▶
TRUCKS
▶
FSR
▶
11724 - FSR LHD EURO5 EXC.SPACECAB
▶
0 - Engine, Emission, Engine Electrical
▶
0-28 - VENTILATION SYSTEM
▶

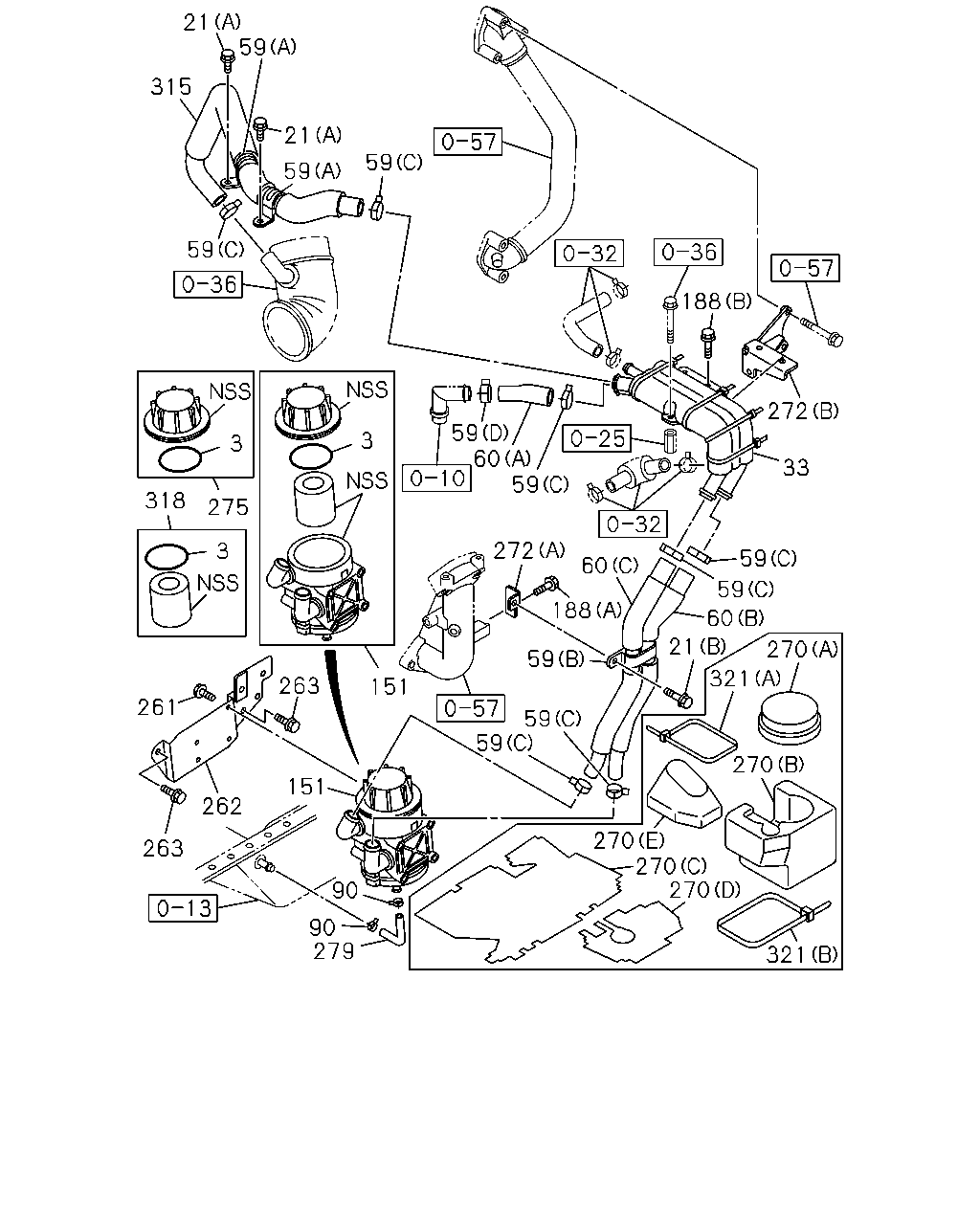

0-28 — VENTILATION SYSTEM
(#170330) — 31 parça
21
315
59
21
59
59
59
59
3
3
275
318
151
188
272
33
59
59
60
59
272
60
188
59
59
21
321
270
270
321
270
270
270
59
151
263
261
263
262
90
90
279
3
60
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
3
GASKET; BODY TO CAP
8-97385-921-0
01
1
1511-
21
BOLT; CLIP
(A) M8X12 FLANGE
0-28050-812-0
02
1
1511-
21
BOLT; CLIP
(B) M8X16 FLANGE
0-28050-816-0
02
1
1511-
33
PIPE; VENTILATOR
8-98229-122-1
01
1
1511-
59
CLIP; HOSE
(A) ID=31 H=30 L=35
1-09700-994-0
02
1
1511-
59
CLIP; HOSE
(B) ID=30X2 L=28
1-09701-266-0
01
1
1511-
59
CLIP; HOSE
(C) ID=28.5
1-09707-150-0
07
1
1511-
59
CLIP; HOSE
(D) ID=31.2
8-97237-146-0
01
1
1511-
60
HOSE; RUBBER,PCV
(A)
8-98229-127-0
01
1
1511-
60
HOSE; RUBBER,PCV
(B)
8-98229-128-0
01
1
1511-
60
HOSE; RUBBER,PCV
(C)
8-98229-129-0
01
1
1511-
90
CLIP; RUBBER HOSE
ID=14
1-09704-102-0
02
1
1511-
151
SEPARATOR; OIL,PCV
8-97602-262-2
01
1
1511-
188
BOLT; BRKT
(A) M8X16 FLANGE
0-28050-816-0
01
1
1511-
188
BOLT; BRKT
(B) M8X20 FLANGE
0-28050-820-0
03
1
1511-
261
BOLT; SEPARETOR
M8X16 FLANGE
0-28050-816-0
04
1
1511-
262
BRACKET; OIL SEPARETOR
8-97610-919-1
01
1
1511-
263
BOLT; BRKT,OIL SEPARETOR
M10X25 FLANGE
0-28751-025-0
02
1
1511-
270
COVER; VENTILATOR
(A)
8-98046-874-0
01
1
1511-
270
COVER; VENTILATOR
(B)
8-98232-599-0
01
1
1511-
270
COVER; VENTILATOR
(C)
8-98232-600-1
01
1
1511-
270
COVER; VENTILATOR
(D)
8-98232-601-1
01
1
1511-
270
COVER; VENTILATOR
(E)
8-98232-602-0
01
1
1511-
272
BRACKET; PIPE
(A)
8-97607-396-1
01
1
1511-
272
BRACKET; PIPE
(B)
8-98229-125-0
01
1
1511-
275
CAP; PCV
8-97606-319-0
01
1
1511-
279
HOSE; RUBBER,OIL DRAIN
L=160
0-02709-160-0
01
1
1511-
315
HOSE; RUBBER
8-98308-212-0
01
1
1511-
318
ELEMENT KIT; PCV
8-97606-318-0
01
1
1511-
321
CLIP; HOSE,SEPARATOR
(A) L=300
1-09707-001-1
01
1
1511-
321
CLIP; HOSE,SEPARATOR
(B) L=700
1-09707-190-0
02
1
1511-
