Isuzu WW
▶
TRUCKS
▶
FSR
▶
11724 - FSR LHD EURO5 EXC.SPACECAB
▶
0 - Engine, Emission, Engine Electrical
▶
0-27 - EXHAUST MANIFOLD
▶

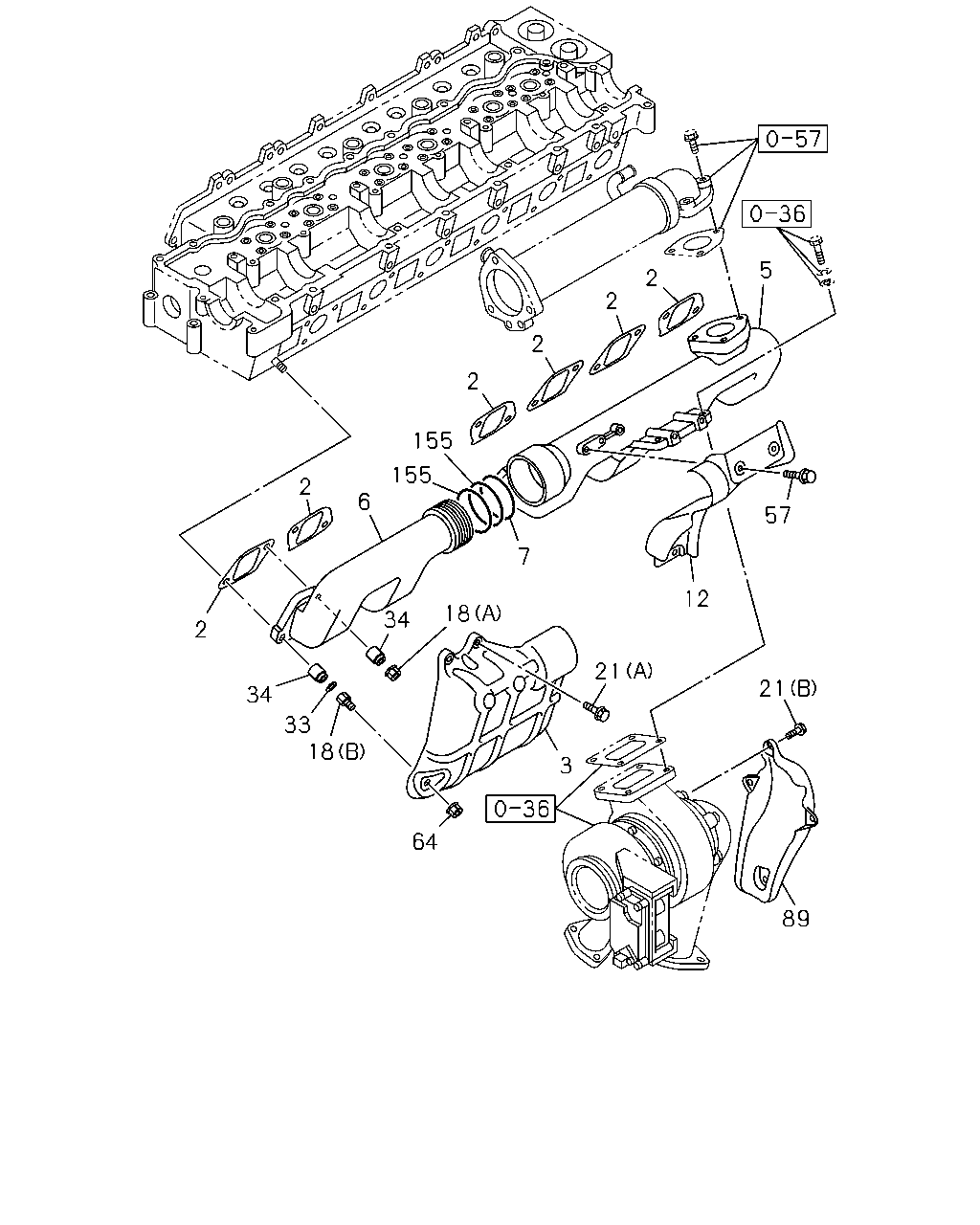

0-27 — EXHAUST MANIFOLD
(#170329) — 16 parça
2
2
2
2
5
57
12
21
21
3
64
18
33
34
2
2
155
155
6
7
18
34
89
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
8-94393-672-4
06
1
1511-
3
PROTECTOR; HEAT,EXH MANIF
8-98205-395-0
01
1
1511-
5
MANIFOLD; EXH,FRT
8-97604-942-1
01
1
1511-
6
MANIFOLD; EXH,RR
8-97604-944-0
01
1
1511-
7
RING; SEAL,EXH MANIF
STAMP RH
1-14149-151-0
01
1
1511-
12
PROTECTOR; HEAT,TURBOCHARGER,EXH MANIF
8-97610-717-3
01
1
1511-
18
NUT; EXH MANIF
(A) M10 LOCK NUT
0-91370-010-0
10
1
1511-
18
NUT; EXH MANIF
(B) M10
8-98205-394-0
02
1
1511-
21
BOLT; HEAT PROTECTOR
(A) M8X16 FLANGE
0-28050-816-0
02
1
1511-
21
BOLT; HEAT PROTECTOR
(B) M8X14 FLANGE
8-97378-075-0
04
1
1511-
33
WASHER; EXH MANIF
T=2.2
1-09556-015-0
02
1
1511-
34
COLLAR; DIST,EXH MANIF
L=28
8-97250-073-1
12
1
1511-
57
BOLT; HEAT PROTECTOR,EXH MANIF
M8X14 FLANGE
8-97378-075-0
03
1
1511-
64
NUT; HEAT PROTECTOR
M10 FLANGE
0-91180-210-0
02
1
1511-
89
PROTECTOR; HEAT
8-97611-985-3
01
1
1511-
155
RING; SEAL,EXH MANIF
1-14149-184-0
02
1
1511-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
