Isuzu WW
▶
TRUCKS
▶
FSR
▶
11724 - FSR LHD EURO5 EXC.SPACECAB
▶
0 - Engine, Emission, Engine Electrical
▶
0-11 - CYLINDER HEAD
▶
0-11 — CYLINDER HEAD
(#170321) — 38 parça
◀

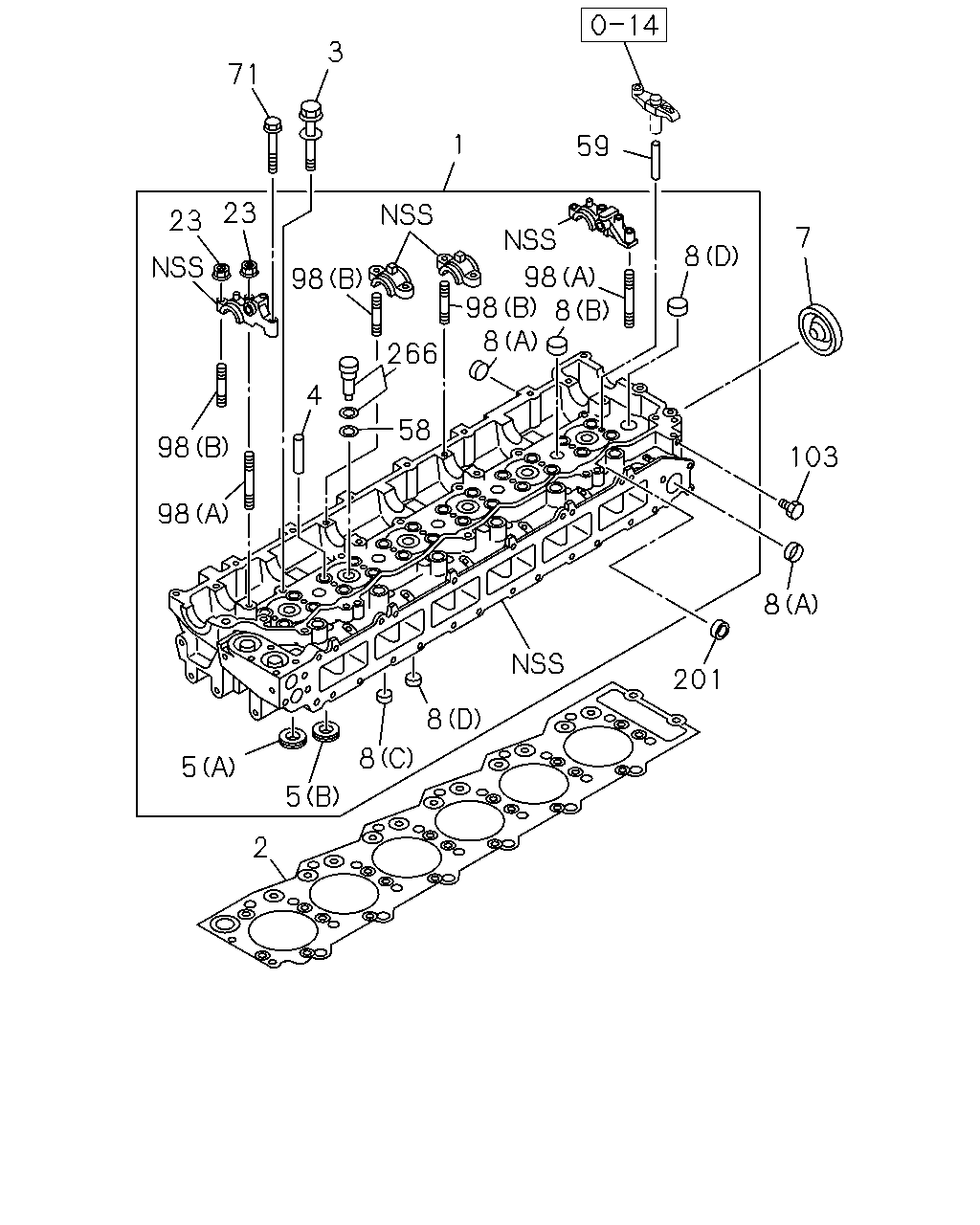

[011A] CYL HEAD COMPONENT (20 parça)

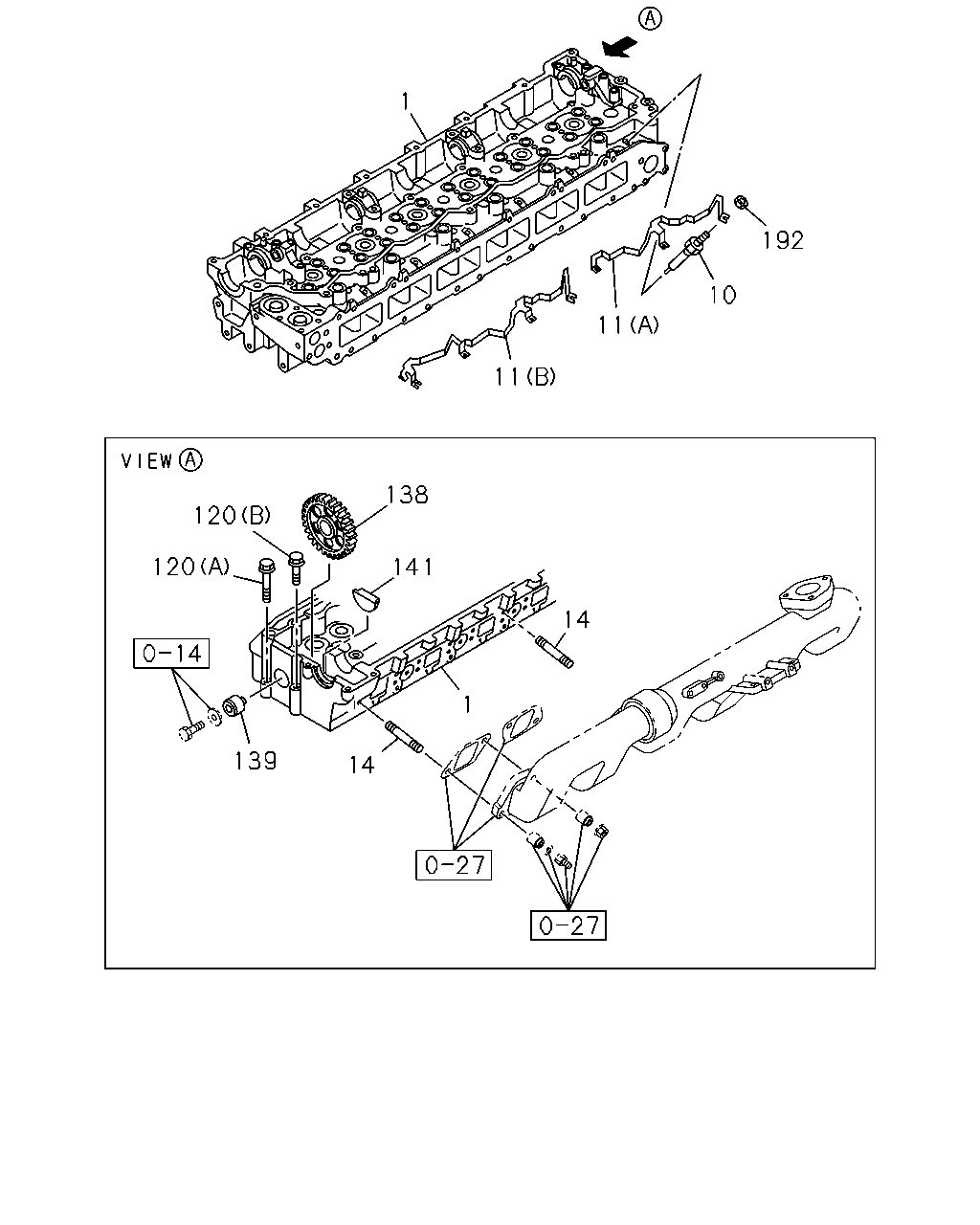

[011A] GLOW PLUG AND IDLE GEAR (11 parça)

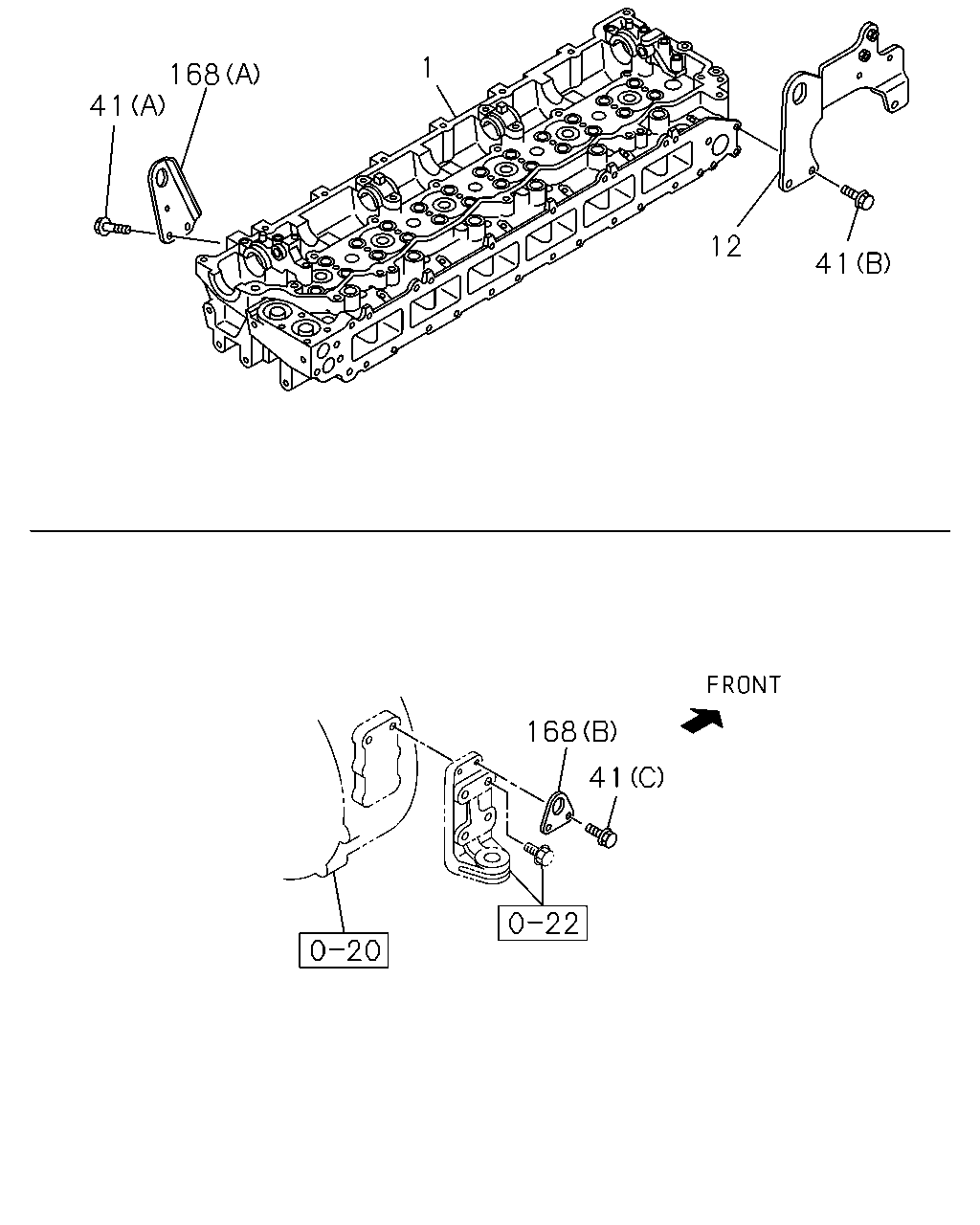

[011A] FIXING; ENG HANGER (7 parça)
▶
23
23
71
3
1
59
7
8
103
8
201
8
8
5
2
5
98
98
4
98
266
58
8
98
98
8
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
HEAD ASM; CYL
8-98243-823-0
01
1
1511-
2
GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
8-97601-819-5
01
1
1511-
3
BOLT; CYL HD TO BLOCK
M14X115 W/FLANGE
8-98260-005-0
26
1
1511-
4
GUIDE; VLV
L=57
8-97376-719-2
24
1
1511-
5
SEAT; VLV INSERT
(A) INLET ID=32 OD=38
8-98028-874-0
12
1
1511-
5
SEAT; VLV INSERT
(B) EXHAUST ID=31 OD=38
8-98028-875-0
12
1
1511-
7
CUP; SEALING,CYL HEAD
OD=51
8-97096-826-0
01
1
1511-
8
CUP; SEALING,WATER JACKET
(A) OD=32
1-09600-012-2
07
1
1511-
8
CUP; SEALING,WATER JACKET
(B) OD=25
1-09600-016-0
06
1
1511-
8
CUP; SEALING,WATER JACKET
(C) OD=16
5-11129-006-0
07
1
1511-
8
CUP; SEALING,WATER JACKET
(D) OD=20
9-11129-128-0
11
1
1511-
23
NUT; CAM BRKT
M8 FLANGE
0-91180-208-0
08
1
1511-
58
GASKET; SLEEVE,NOZZLE HOLDER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=26.4
8-97604-916-0
06
1
1511-
59
GUIDE; BRIDGE
8-97381-603-1
12
1
1511-
71
BOLT; CAM BRKT
M8X35 FLANGE
0-28050-835-0
02
1
1511-
98
STUD; CAM BRKT
(A) M8X54 L=79
8-94322-512-2
02
1
1511-
98
STUD; CAM BRKT
(B) M8X41 L=66
8-94322-513-2
06
1
1511-
103
PLUG; HD
M8X10
8-98003-416-0
01
1
1511-
201
GASKET; SLEEVE,INJ PUMP
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) OD=30
1-09639-034-0
06
1
1511-
266
SLEEVE ASM; NOZZLE HOLDER
8-98018-462-0
06
1
1511-
1
11
11
10
192
14
1
14
139
141
138
120
120
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
HEAD ASM; CYL
8-98243-823-0
01
1
1511-
10
PLUG; GLOW
NGK
8-94390-777-6
06
1
1511-
11
CONNECTOR; GLOW PLUG
(B)
8-98040-648-0
01
1
1511-
11
CONNECTOR; GLOW PLUG
(A)
8-98040-649-0
01
1
1511-
14
STUD; EXH MANIF
M10X60 L=75
8-94397-286-0
12
1
1511-
120
BOLT; CYL HD TO HSG
(A) M10X73
8-94399-554-0
01
1
1511-
120
BOLT; CYL HD TO HSG
(B) M10X43
8-94399-555-0
01
1
1511-
138
GEAR; IDLE
Z=41
8-98058-321-1
01
1
1511-
139
SHAFT; IDLE GEAR
8-97606-990-1
01
1
1511-
141
PLUG; RUBBER,CYL HD
8-98163-813-0
02
1
1511-
192
NUT; GLOW PLUG
M4 FLANGE
8-97368-853-0
06
1
1511-
168
41
1
12
41
168
41
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
HEAD ASM; CYL
8-98243-823-0
01
1
1511-
12
HANGER; ENG,RR
8-98088-059-0
01
1
1511-
41
BOLT; ENG HANGER
(A) M10X20 FLANGE
0-28151-020-0
03
1
1511-
41
BOLT; ENG HANGER
(C) M10X25 FLANGE
0-28751-025-0
02
1
1511-
41
BOLT; ENG HANGER
(B) M12X25 FLANGE
0-28751-225-0
02
1
1511-
168
HANGER; ENG,FRT
(B)
8-94394-398-1
01
1
1511-
168
HANGER; ENG,FRT
(A)
8-98043-134-0
01
1
1511-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
