Isuzu WW
▶
TRUCKS
▶
FRREXC
▶
11162 - FRREXC.SCAB S.AFRICA
▶
3 - Brakes, Brake System
▶
3-78 - FIXING PARTS; AIR PIPING
▶
3-78 — FIXING PARTS; AIR PIPING
(#17031) — 35 parça
◀

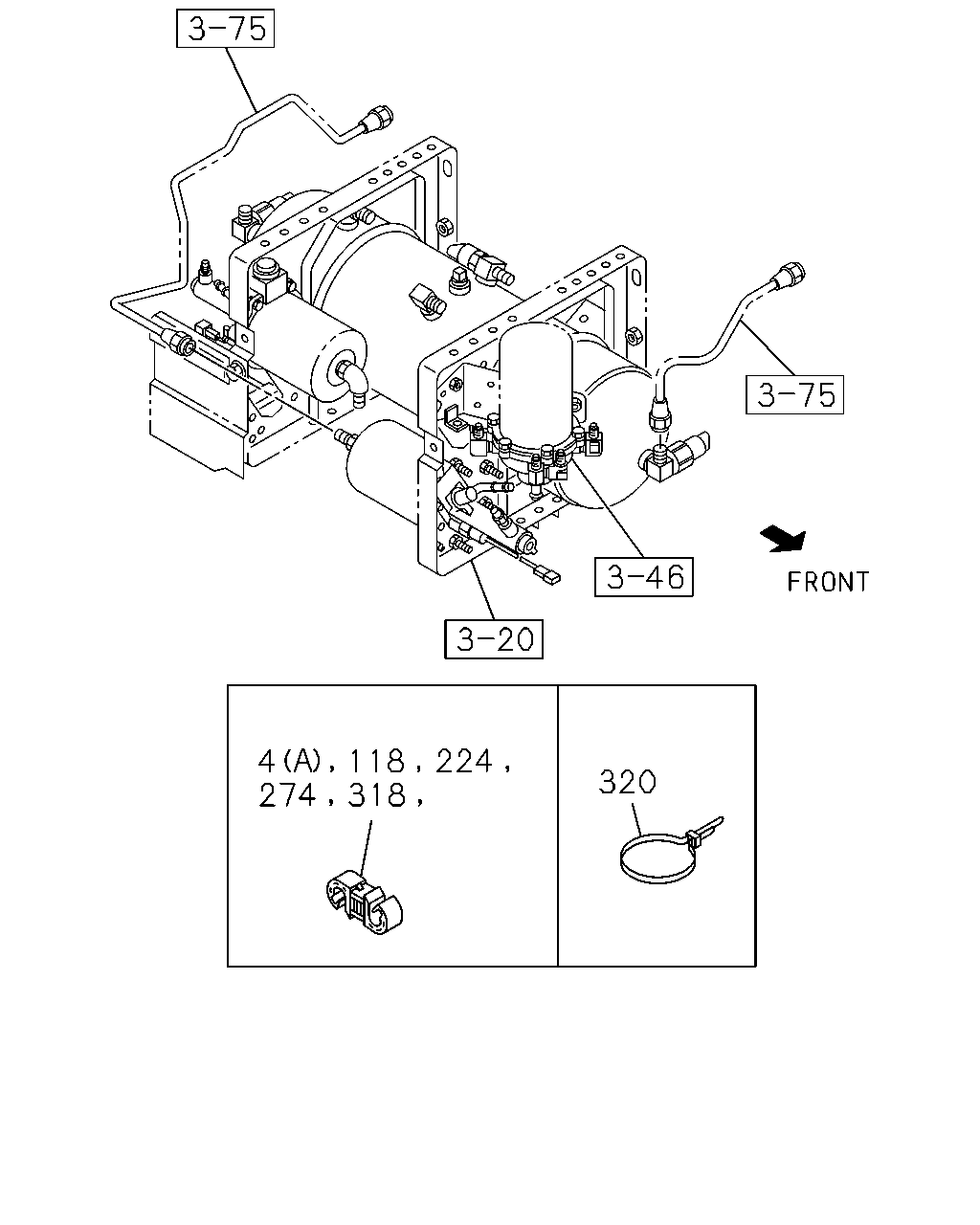

[378A] NO.2 (13 parça)

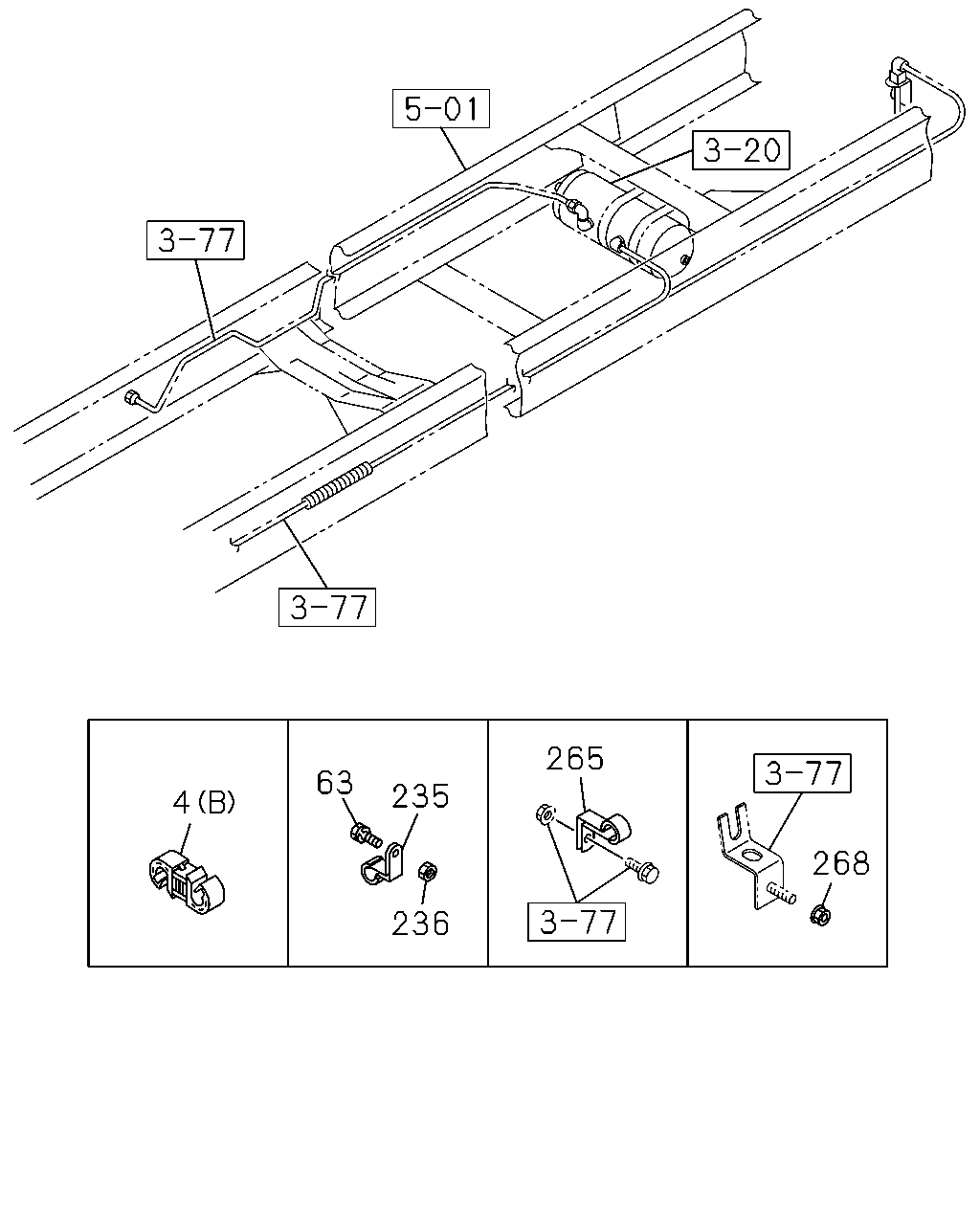

[378A] NO.3 (7 parça)

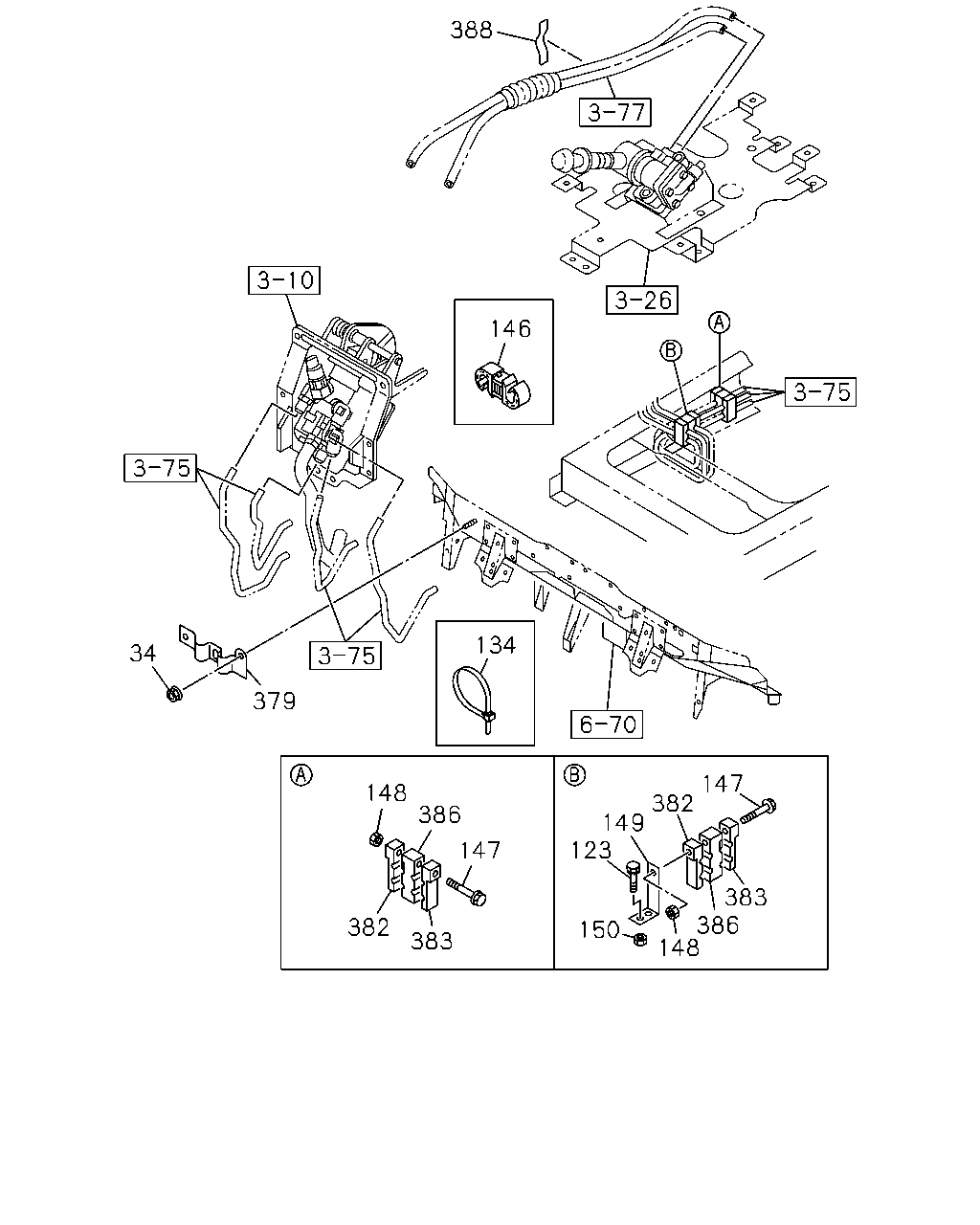

[378A] NO.1 (15 parça)
▶
4
320
118
224
274
318
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
4
CLIP; AIR PIPE
(B) ID=6.35 & 10.0
1-09709-274-1
02
1
1001-
4
CLIP; AIR PIPE
(A) ID=10 & 10
1-09709-277-1
03
1
1001-
118
CLIP; AIR PIPE
ID=6.35 & 12
1-09709-275-1
01
1
1001-
118
CLIP; AIR PIPE
AIR DRYER<PS7> ID=4.76 & 6.35
1-09709-304-0
01
1
1001-
224
CLIP; AIR PIPE
ID=10 & 10
1-09709-277-1
01
1
1001-
224
CLIP; AIR PIPE
H.S.A SYSTEM<6EP> ID=10 & 10
1-09709-277-1
01
1
1001-
274
CLIP; AIR PIPE
H.S.A SYSTEM<6EP> EXC. THROTTLE CONTROL SYSTEM(6XH) ID=6.35 & 10.0
1-09709-274-1
02
1
1001-
274
CLIP; AIR PIPE
THROTTLE CONTROL SYSTEM(6XH) ID=6.35 & 10.0
1-09709-274-1
03
1
1001-
274
CLIP; AIR PIPE
THROTTLE CONTROL SYSTEM(6XH) ID=10 & 10
1-09709-277-1
01
1
1001-
274
CLIP; AIR PIPE
THROTTLE CONTROL SYSTEM(6XH) ID=10 & 10
1-09709-277-1
05
1
1001-
274
CLIP; AIR PIPE
THROTTLE CONTROL SYSTEM(6XH) ID=4.76 & 10.0
1-09709-305-0
01
1
1001-
318
CLIP; AIR PIPE
ID=6.35 & 15
1-09709-276-1
01
1
1001-
320
CLIP; BAND,FLEX FIX
L=250 SOU
5-09707-030-1
01
1
1001-
265
63
235
4
268
236
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
4
CLIP; AIR PIPE
(B) ID=6.35 & 10.0
1-09709-274-1
02
1
1001-
4
CLIP; AIR PIPE
(A) ID=10 & 10
1-09709-277-1
03
1
1001-
63
BOLT; CLIP
M8X25 FLANGE SOU
0-28650-825-0
04
1
1001-
235
CLIP; AIR PIPE
ID=11 H=20 L=20
8-98033-780-0
04
1
1001-
236
NUT; CLIP
M8 FLANGE SOU
0-91180-108-0
04
1
1001-
265
CLIP; NYLON TUBE
ID=21 H=25.5 L=26
8-94176-806-0
01
1
1001-
268
NUT; CLIP BRKT
M10 FLANGE SOU
0-91180-210-0
01
1
1001-
388
146
134
34
379
147
382
149
123
148
386
147
383
386
148
382
150
383
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
34
NUT; BRKT
M6 FLANGE SOU
0-91180-106-0
02
1
1001-
123
BOLT; PIPE CLIP
M8X20 FLANGE
0-28650-820-0
02
1
1001-
134
CLIP; AIR PIPE
L=350
1-09707-183-0
01
1
1001-
146
CLIP; AIR PIPE
ID=10 & 10
1-09709-277-1
04
1
1001-
146
CLIP; AIR PIPE
ID=10 & 10
1-09709-277-1
04
1
1001-
147
BOLT; PIPE CLIP
M8X70 FLANGE SOU
0-28050-870-0
04
1
1001-
148
NUT; PIPE CLIP
M8 FLANGE SOU
0-91180-108-0
04
1
1001-
149
BRACKET; PIPE CLIP
1-47476-792-0
01
1
1001-1409
149
BRACKET; PIPE CLIP
8-98296-534-0
01
1
1410-
150
NUT; CLIP BRKT
M8 FLANGE SOU
0-91180-108-0
02
1
1001-
379
BRACKET; NYLON TUBE
8-98044-013-0
01
1
1001-
382
CLIP; UPR
ID=10 & 10 SOU
1-09709-241-0
04
1
1001-
383
CLIP; LWR
ID=10 & 10 SOU
1-09709-241-0
04
1
1001-
386
CLIP; CENTER
ID=10 SOU
1-09709-242-0
04
1
1001-
388
SEAL
100X40 SOU
1-72498-022-1
03
1
1001-
