8-21 — METER ASM (#170301) — 17 parça

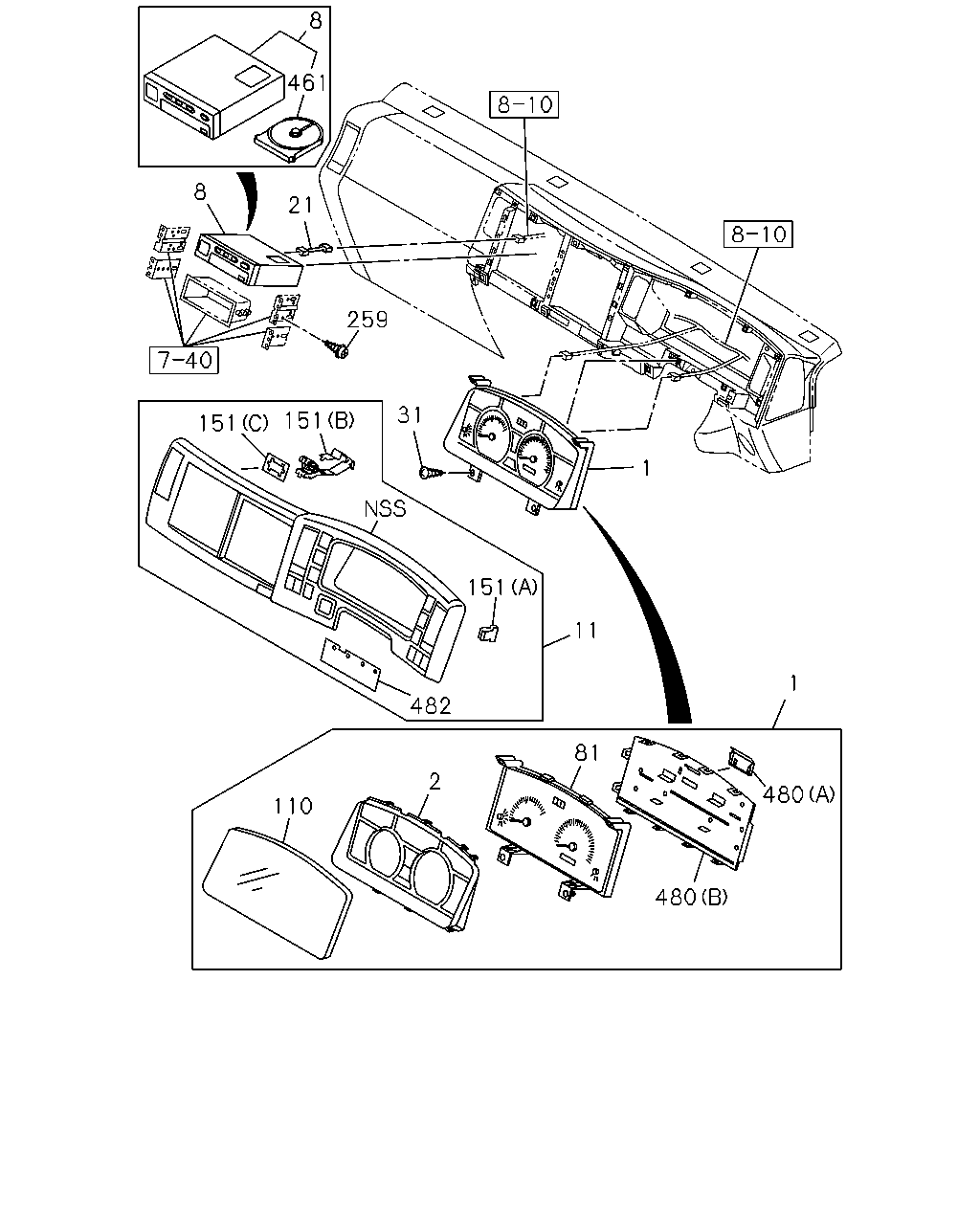

çizim 503504
8 461 21 8 259 151 151 31 1 151 482 11 1 81 2 110 480 480
BalonParca AdiParca NoAdetTipApplied Date A B
1 METER COMPL; CLUSTER 8-98299-441-0 01 1 1511- ● ●
2 PANEL; CLUSTER 8-98054-638-0 01 1 1511- ● ●
8 TACHOGRAPH; CLUSTER METER
TACHOGRAPH 140KM/H<WC7> 		8-97387-082-2 01 1 1511- ● ●
11 CLUSTER ASM; METER
DARK GRAY 		8-97418-532-1 01 1 1511- ● ●
21 HARNESS; TACHOGRAPH
TACHOGRAPH 140KM/H<WC7> 		8-98225-657-0 01 1 1511- ● ●
21 HARNESS; TACHOGRAPH
EXC. TACHOGRAPH 140KM/H<WC7> 		8-98204-881-1 01 1 1511- ● ●
31 SCREW; METER,INST PANEL
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 04 1 1511- ● ●
81 METER SUB ASM 8-98310-001-0 01 1 1511- ● ●
110 GLASS; CLUSTER METER 8-98054-642-0 01 1 1511- ● ●
151 CLIP; METER CLUSTER
(A) 		8-98021-271-0 12 1 1511- ● ●
151 CLIP; METER CLUSTER
(B) 		8-98152-030-0 01 1 1511- ● ●
151 CLIP; METER CLUSTER
(C) 		8-98152-031-0 01 1 1511- ● ●
259 SCREW; TACHOGRAPH
TACHOGRAPH 140KM/H<WC7> M5X7 HEXALOBULAR SOCKET 		8-98063-767-0 04 1 1511- ● ●
461 CARTRIDGE ASM; TACHOGRAPH
TACHOGRAPH 140KM/H<WC7> 		1-83129-433-0 01 1 1511- ● ●
480 COVER; METER
(A) BLACK DOT MATRIX FOR FPC PROTECTION 		8-98054-881-0 01 1 1511- ● ●
480 COVER; METER
(B) 		8-98151-362-0 01 1 1511- ● ●
482 SEAL; CLUSTER METER 8-98116-842-0 01 1 1511- ● ●
