◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTS ▶ 11723 - FTS AUST/NZ EURO5 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-20 - METER CABLE ▶
8-20 — METER CABLE (#170300) — 11 parça

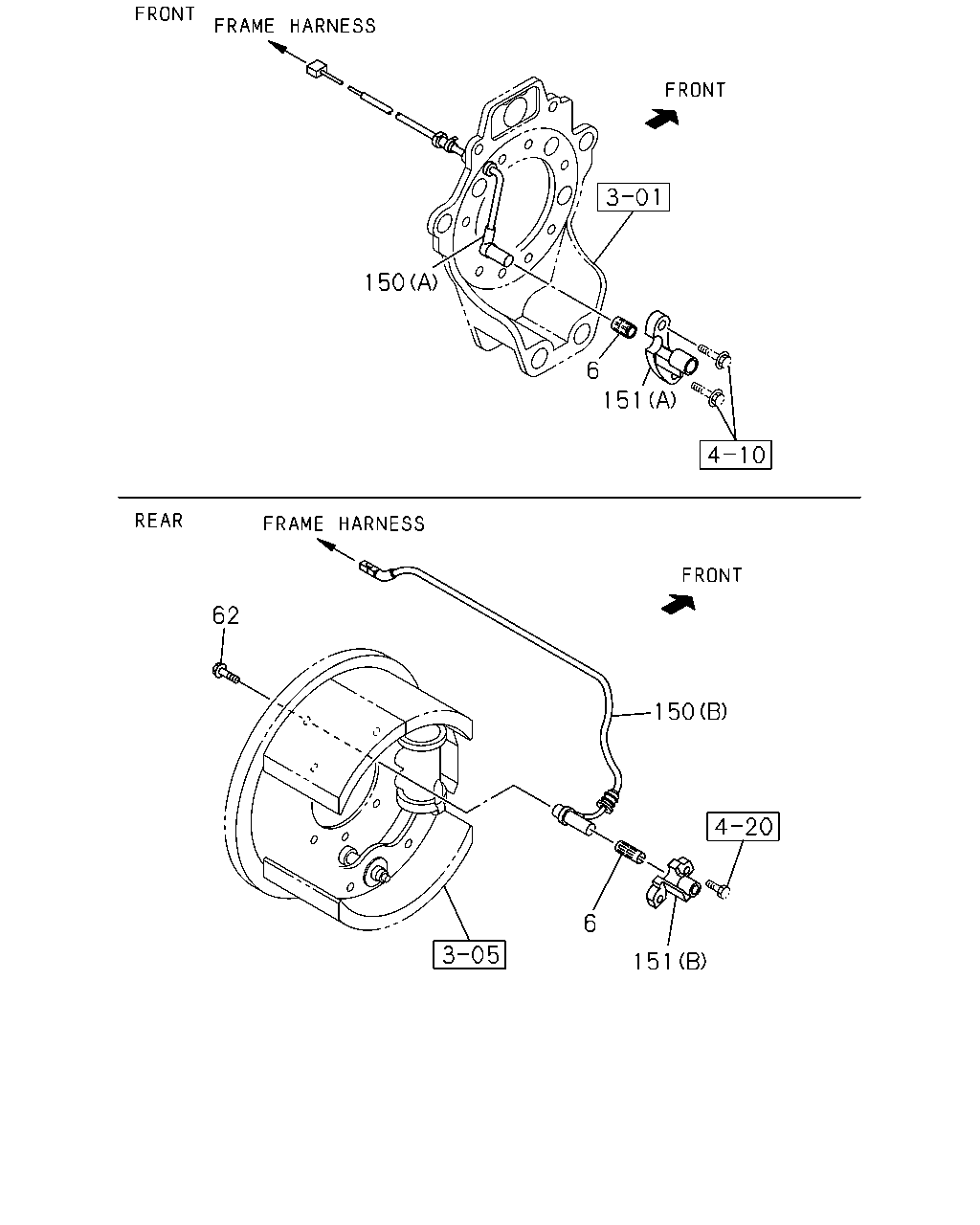

çizim 503414
150 6 151 62 6 151 150
BalonParca AdiParca NoAdetTipApplied Date A B
6 HOLDER; SPD SENSOR
FINAL GEAR 43/7 15.5"(W1R),FINAL GEAR 39/7 15.5"(W3K),FINAL GEAR 41/7 15.5"(W3S) EXC. LIMITED SLIP DIFF VAR2<G86> 		1-83129-260-1 02 1 1511- ● ●
6 HOLDER; SPD SENSOR
LIMITED SLIP DIFF VAR2<G86> 		1-83129-260-1 02 1 1511- ● ●
6 HOLDER; SPD SENSOR 1-83129-260-1 02 1 1511- ● ●
62 BOLT; SENSOR
M8X16 HEX SOCKET 		0-58330-816-0 02 1 1511- ● ●
150 SENSOR; SPEED,ABS
(A) 		8-98228-028-0 02 1 1511- ● ●
150 SENSOR; SPEED,ABS
(B) 		8-98274-490-0 01 1 1511- ● ●
150 SENSOR; SPEED,ABS
(B) 		8-98274-491-0 01 1 1511- ● ●
151 BRACKET; SPD SENSOR
(A) 		8-98043-892-1 01 1 1511- ● ●
151 BRACKET; SPD SENSOR
(A) 		8-98043-893-1 01 1 1511- ● ●
151 BRACKET; SPD SENSOR
(B) 		8-98043-976-1 01 1 1511- ● ●
151 BRACKET; SPD SENSOR
(B) 		8-98043-977-1 01 1 1511- ● ●
