Isuzu WW
▶
TRUCKS
▶
FSS
▶
10634 - FSS/FTS-RHD
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-80 - WINDSHIELD WIPER AND WASHER
▶
8-80 — WINDSHIELD WIPER AND WASHER
(#1703) — 59 parça
Tümü
A - FSS5MC
B - FSS5MF
C - FTS5MC
D - FTS5MF
E - FTS5WF
◀

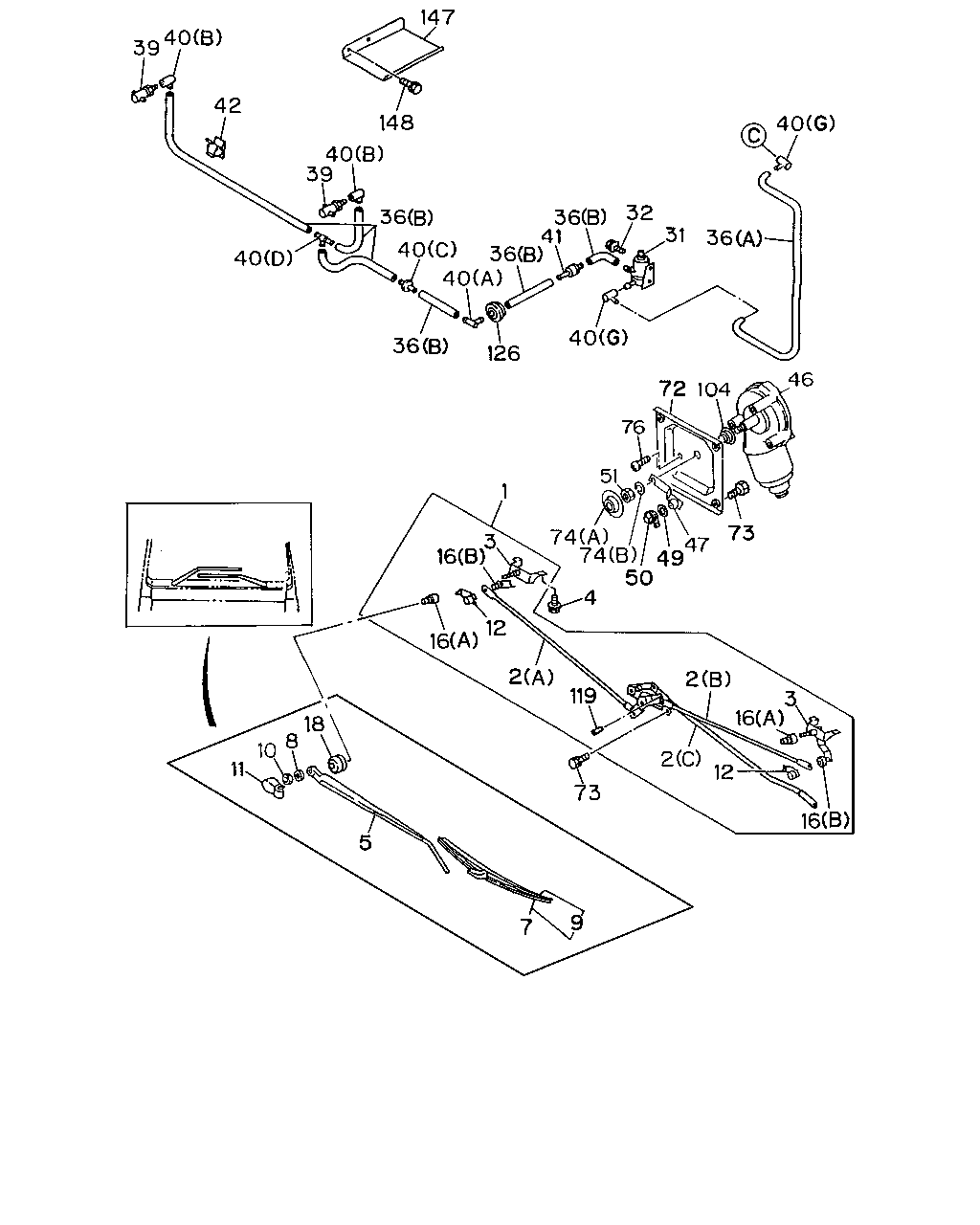

[880A] NO.1 (46 parça)

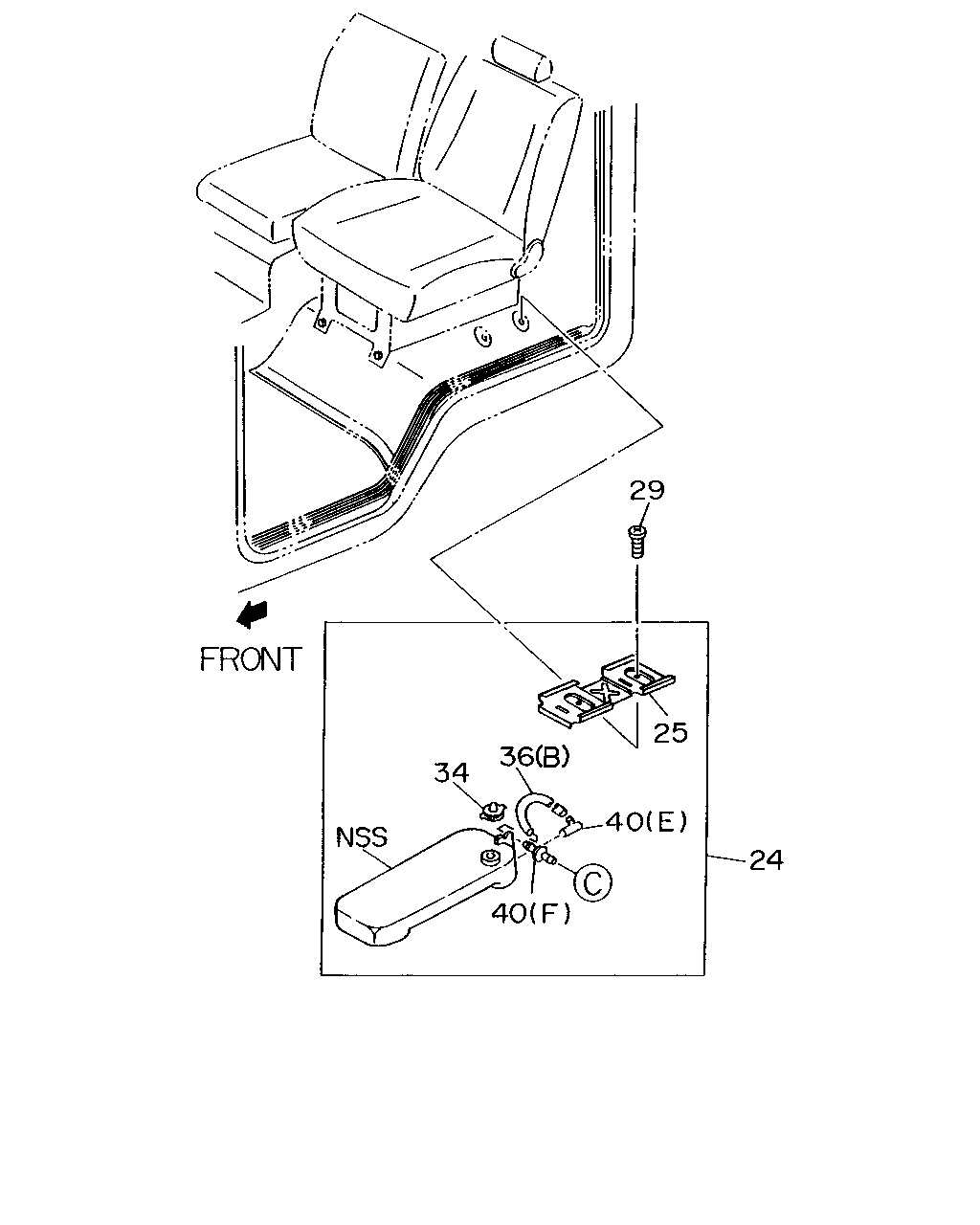

[880A] NO.2 (13 parça)
▶
39
40
42
147
148
40
39
40
36
40
36
126
40
36
41
36
32
31
40
36
40
46
104
72
76
51
74
74
50
49
47
73
1
3
16
16
12
4
2
119
73
2
2
16
3
12
16
9
7
5
11
10
8
18
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
E
1
LINK ASM; FRT WIPER
1-83312-057-2
01
1
9207-
●
●
●
●
●
2
LINK; FRT WIPER
(B)
1-83312-060-0
01
1
9207-
●
●
●
●
●
2
LINK; FRT WIPER
(A)
1-83312-061-0
01
1
9207-
●
●
●
●
●
2
LINK; FRT WIPER
(C)
1-83312-062-0
01
1
9207-
●
●
●
●
●
3
PIVOT ASM; FRT WIPER
1-83313-069-0
02
1
9207-
●
●
●
●
●
4
BOLT; WIPER LINK TO BODY
M6X20 W/LK&PL WASHER
1-09980-490-0
04
1
9207-
●
●
●
●
●
5
ARM; WIPER
1-83314-075-0
01
1
9207-
●
●
●
●
●
5
ARM; WIPER
1-83314-074-0
01
1
9207-
●
●
●
●
●
7
BLADE; WIPER
1-83315-028-0
02
1
9207-
●
●
●
●
●
8
WASHER; LK,PIVOT
ID=10.2
9-09150-510-0
02
1
9207-
●
●
●
●
●
9
RUBBER; FRT WIPER BLADE
1-83355-003-0
02
1
9207-
●
●
●
●
●
10
NUT; WIPER ARM TO WIPER PIVOT
M10
9-09111-410-0
02
1
9207-
●
●
●
●
●
11
COVER; WIPER ARM
1-83319-015-0
02
1
9207-
●
●
●
●
●
12
RETAINER; BALL JOINT,FRT WIPER LINK
1-83318-026-0
03
1
9207-
●
●
●
●
●
16
SEAL; BALL JOINT
(A)
1-83318-022-0
02
1
9207-
●
●
●
●
●
16
SEAL; BALL JOINT
(B)
8-94235-628-0
03
1
9207-
●
●
●
●
●
18
GROMMET; WIPER PIVOT HOLE
1-09983-060-1
02
1
9207-
●
●
●
●
●
31
PUMP ASM; WINDSHIELD WASHER
1-83331-005-1
01
1
9207-
●
●
●
●
●
32
BOLT; WASHER PUMP
M6X20 W/LK&PL WASHER
1-09980-493-0
02
1
9207-
●
●
●
●
●
36
HOSE; WASHER
(A) L=10000
8-94153-780-0
01
1
9207-
●
●
●
●
●
36
HOSE; WASHER
(B) L=10000
9-09914-906-0
AR
1
9207-
●
●
●
●
●
39
NOZZLE; WINDSHIELD WASHER
1-83334-028-0
02
1
9207-
●
●
●
●
●
40
JOINT; WASHER HOSE
(B)
1-83338-003-0
02
1
9207-
●
●
●
●
●
40
JOINT; WASHER HOSE
(C)
1-83338-004-0
01
1
9207-
●
●
●
●
●
40
JOINT; WASHER HOSE
(D) 3WAY
1-83338-005-0
01
1
9207-
●
●
●
●
●
40
JOINT; WASHER HOSE
(A)
1-83338-006-0
01
1
9207-
●
●
●
●
●
40
JOINT; WASHER HOSE
(F)
1-83339-006-0
01
1
9207-
●
●
●
●
●
40
JOINT; WASHER HOSE
(G)
5-83363-006-0
02
1
9207-
●
●
●
●
●
40
JOINT; WASHER HOSE
(E)
5-83363-006-0
02
1
9207-
●
●
●
●
●
41
VALVE; CHECK,WASHER TANK
1-83338-007-1
01
1
9207-
●
●
●
●
●
42
CLIP; WASHER HOSE
1 SET=5 PIECE
1-09987-214-0
09
1
9207-
●
●
●
●
●
46
MOTOR ASM; FRT WINDSHIELD WIPER
1-83311-046-0
01
1
9207-
●
●
●
●
●
47
ARM; CRANK,WIPER MOTOR
1-83314-125-0
01
1
9207-
●
●
●
●
●
49
SEAL; BALL JOINT,CRANK ARM,FRT WIPER
1-83319-035-0
01
1
9207-
●
●
●
●
●
50
RETAINER; BALL JOINT,CRANK ARM,FRT WIP
1-83318-026-0
01
1
9207-
●
●
●
●
●
51
NUT; WIPER MOTOR LINK
M8
9-09111-408-0
01
1
9207-
●
●
●
●
●
72
BRACKET; WIPER MOTOR
1-83318-029-0
01
1
9207-
●
●
●
●
●
73
BOLT
M6X20 W/LK&PL WASHER
1-09980-490-0
07
1
9207-
●
●
●
●
●
74
WASHER; ARM TO MOTOR
(B)
1-83319-005-1
01
1
9207-
●
●
●
●
●
74
WASHER; ARM TO MOTOR
(A)
9-09150-508-0
01
1
9207-
●
●
●
●
●
76
SCREW; BRKT TO WIPER MOTOR
8-94232-910-0
03
1
9207-
●
●
●
●
●
104
SEAL; ARM,FRT WIPER MOTOR
1-83318-020-0
01
1
9207-
●
●
●
●
●
119
STOPPER; WIPER LINK
1-83318-030-0
01
1
9207-
●
●
●
●
●
126
GROMMET; FRT WASHER TANK HOSE
1-83338-009-0
01
1
9207-
●
●
●
●
●
147
PROTECTOR; WASHER TANK
1-73948-007-1
01
1
9207-
●
148
SCREW; PROTECTOR
M16X16
1-09981-402-0
02
1
9207-
●
29
25
36
34
40
24
40
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
E
24
TANK ASM; WASHER
1-83332-022-4
01
1
9207-
●
●
●
●
●
25
BRACKET; WASHER TANK
1-83338-012-1
01
1
9207-
●
●
●
●
●
29
SCREW; WASHER TANK TO BODY
M6X14 W/LK&PL WASHER
9-03920-614-0
02
1
9207-
●
●
●
●
●
34
CAP; WASHER TANK
1-83362-013-0
01
1
9207-
●
●
●
●
●
36
HOSE; WASHER
(A) L=10000
8-94153-780-0
01
1
9207-
●
●
●
●
●
36
HOSE; WASHER
(B) L=10000
9-09914-906-0
AR
1
9207-
●
●
●
●
●
40
JOINT; WASHER HOSE
(B)
1-83338-003-0
02
1
9207-
●
●
●
●
●
40
JOINT; WASHER HOSE
(C)
1-83338-004-0
01
1
9207-
●
●
●
●
●
40
JOINT; WASHER HOSE
(D) 3WAY
1-83338-005-0
01
1
9207-
●
●
●
●
●
40
JOINT; WASHER HOSE
(A)
1-83338-006-0
01
1
9207-
●
●
●
●
●
40
JOINT; WASHER HOSE
(F)
1-83339-006-0
01
1
9207-
●
●
●
●
●
40
JOINT; WASHER HOSE
(G)
5-83363-006-0
02
1
9207-
●
●
●
●
●
40
JOINT; WASHER HOSE
(E)
5-83363-006-0
02
1
9207-
●
●
●
●
●
