7-70 — SEPARATER AND BED (#170294) — 12 parça

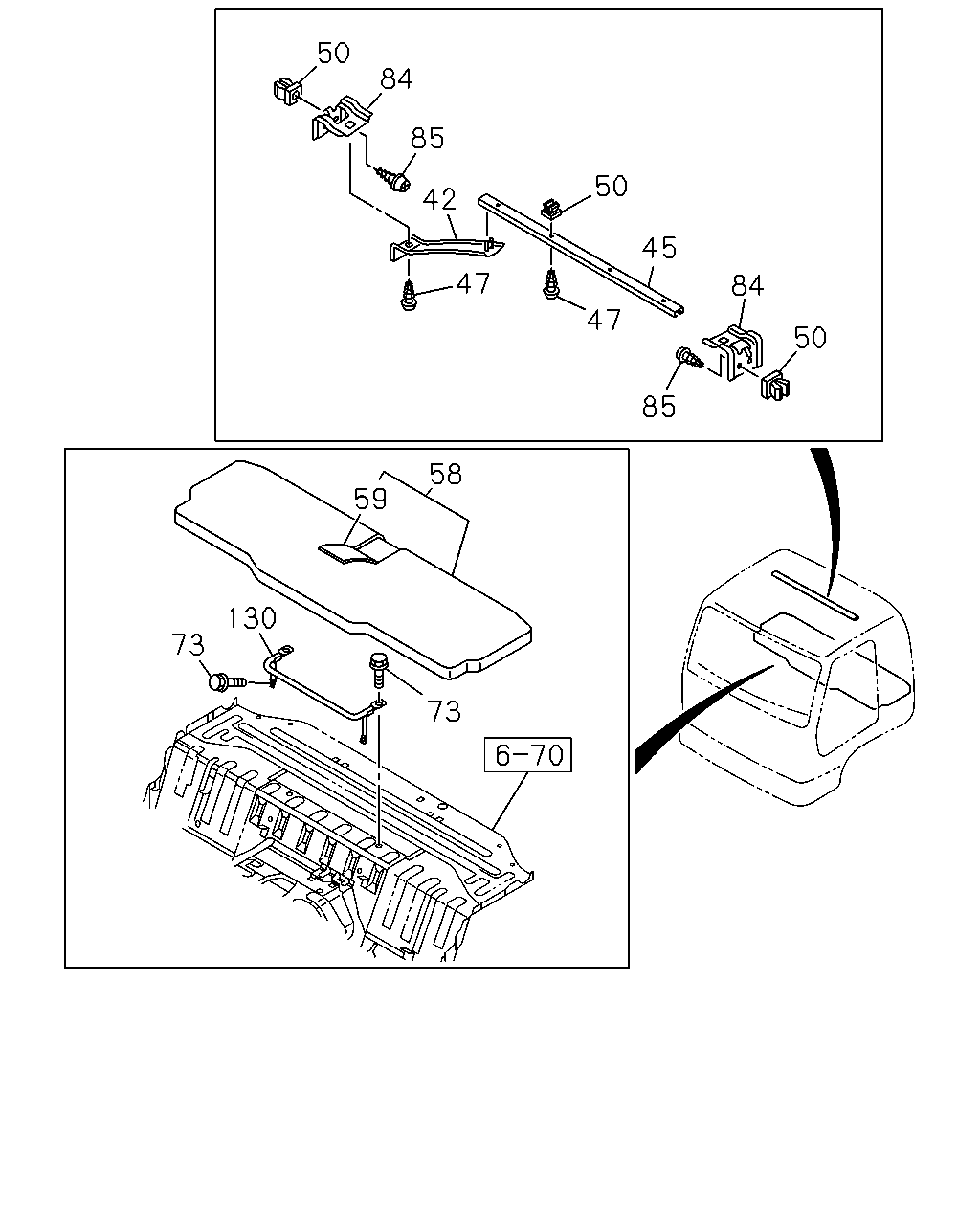

çizim 503130
50 85 84 42 47 50 45 47 84 85 50 58 59 130 73 73
BalonParca AdiParca NoAdetTipApplied Date A B
42 STOPPER; CURTAIN RAIL
DARK GRAY 		8-97407-972-2 01 1 1511- ● ●
42 STOPPER; CURTAIN RAIL
DARK GRAY 		8-97407-499-2 01 1 1511- ● ●
45 RAIL; CURTAIN,FRT
DARK GRAY 		8-97407-486-0 01 1 1511- ● ●
47 SCREW; CURTAIN RAIL
M5X20 		5-09981-059-0 06 1 1511- ● ●
50 GROMMET; SCREW,CURTAIN RAIL
D=8.6X7.7 L=7.5 		8-94279-078-0 02 1 1511- ● ●
50 GROMMET; SCREW,CURTAIN RAIL
D=8.6X7.7 L=7.5 		8-94279-078-0 06 1 1511- ● ●
58 BED; MAT
MATTRESS SLEEPER CAB<E40> DARK GRAY 		8-97407-384-2 01 1 1511- ●
59 COVER ASM; TRIM,BED MAT
MATTRESS SLEEPER CAB<E40> DARK GRAY 		8-97412-043-1 01 1 1511- ●
73 BOLT; GUARD PIPE
MATTRESS SLEEPER CAB<E40> M8X20 FLANGE 		0-28450-820-0 04 1 1511- ●
84 BRACKET; CURTAIN RAIL 8-98042-152-0 02 1 1511- ● ●
85 SCREW; BRKT
M5X20 		5-09981-059-0 02 1 1511- ● ●
130 PIPE; GUARD,BED
MATTRESS SLEEPER CAB<E40> 		8-98014-968-0 01 1 1511- ●
