◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTS ▶ 11723 - FTS AUST/NZ EURO5 ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-60 - SEAT BELT ▶
7-60 — SEAT BELT (#170293) — 33 parça
çizim 501947
123
BalonParca AdiParca NoAdetTipApplied Date A B
123 BELT ASM; SEAT
AIR BAG DRIVER & PASSENGER<AK5> DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> (B) 		8-98097-970-0 01 1 1511- ● ●
123 BELT ASM; SEAT
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> EXC. AIR BAG DRIVER & PASSENGER<AK5> (B) 		8-98333-917-0 01 1 1511- ● ●
123 BELT ASM; SEAT
(A) 		8-98097-971-0 01 1 1511- ● ●

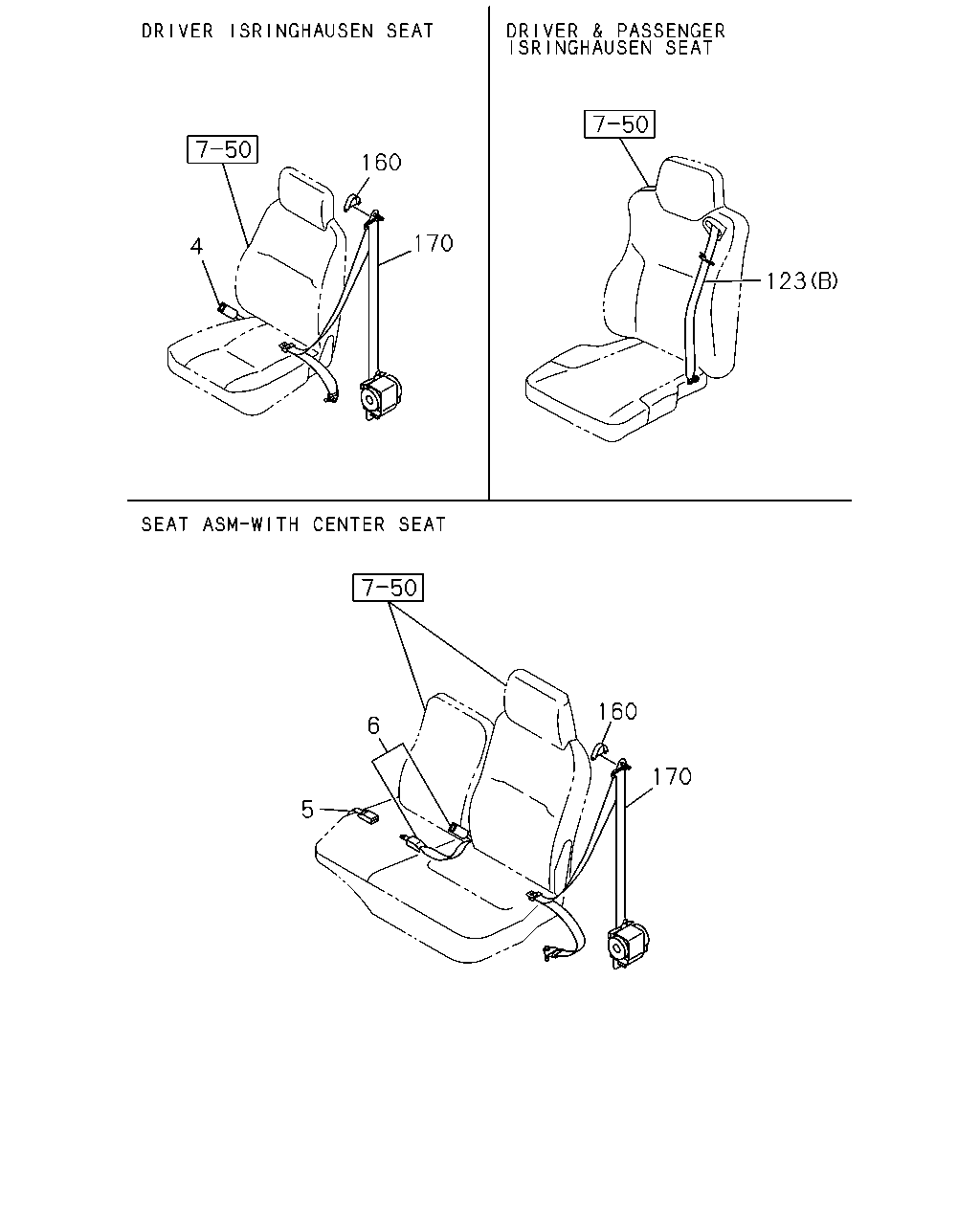

çizim 503462
123 170 160 4 160 170 6 5
BalonParca AdiParca NoAdetTipApplied Date A B
4 BELT; PASSENGER SEAT,BUCKLE SIDE
DRIVER ISRINGHAUSEN SEAT<SJA> EXC. SEAT ASM - WITH CENTER SEAT<7BC> GRAY 		8-97407-376-1 01 1 1511- ●
5 BELT; CENTER SEAT,BUCKLE SIDE
SEAT ASM - WITH CENTER SEAT<7BC> GRAY 		8-97407-377-1 01 1 1511- ●
5 BELT; CENTER SEAT,BUCKLE SIDE
GRAY 		8-97407-377-1 01 1 1511- ●
6 BELT; CENTER SEAT,TONGUE SIDE
DRIVER ISRINGHAUSEN SEAT<SJA> SEAT ASM - WITH CENTER SEAT<7BC> GRAY 		8-97423-515-1 01 1 1511- ●
6 BELT; CENTER SEAT,TONGUE SIDE
DRIVER ISRINGHAUSEN SEAT<SJA> GRAY 		8-97423-515-1 01 1 1511- ●
6 BELT; CENTER SEAT,TONGUE SIDE
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> SEAT ASM - WITH CENTER SEAT<7BC> GRAY 		8-97466-402-0 01 1 1511- ●
6 BELT; CENTER SEAT,TONGUE SIDE
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> GRAY 		8-97466-402-0 01 1 1511- ●
123 BELT ASM; SEAT
AIR BAG DRIVER & PASSENGER<AK5> DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> (B) 		8-98097-970-0 01 1 1511- ● ●
123 BELT ASM; SEAT
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> EXC. AIR BAG DRIVER & PASSENGER<AK5> (B) 		8-98333-917-0 01 1 1511- ● ●
123 BELT ASM; SEAT
(A) 		8-98097-971-0 01 1 1511- ● ●
160 COVER; THROUGH ANCHOR
DRIVER ISRINGHAUSEN SEAT<SJA> GRAY 		8-97405-991-0 01 1 1511- ● ●
160 COVER; THROUGH ANCHOR
GRAY 		8-97405-991-0 02 1 1511- ●
170 BELT; PASSENGER SEAT,TONGUE SIDE
AIR BAG DRIVER & PASSENGER<AK5> DRIVER ISRINGHAUSEN SEAT<SJA> GRAY 		8-97428-394-0 01 1 1511- ● ●
170 BELT; PASSENGER SEAT,TONGUE SIDE
DRIVER ISRINGHAUSEN SEAT<SJA> EXC. AIR BAG DRIVER & PASSENGER<AK5> GRAY 		8-97428-435-0 01 1 1511- ● ●
çizim 503525
169 88 169
BalonParca AdiParca NoAdetTipApplied Date A B
88 PLUG; HOLE
DARK GRAY 		8-97411-466-0 01 1 1511- ●
88 PLUG; HOLE
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> DARK GRAY 		8-97411-466-0 01 1 1511- ●
169 SEAL
EXC. SEAT ASM - WITH CENTER SEAT<7BC> (A) OD=25 BLACK 		1-76798-019-0 01 1 1511- ●
169 SEAL
BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLORFIRE RED(915),BODY COLOR HIGHWAY ORANGE(944),BODY COLOR GREEN(989),BODY COLOR TRANS BLUE(999) DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC>,DRIVER ISRINGHAUSEN SEAT<SJA> (B) OD=36 T=0.05 BLACK 		5-76777-035-0 02 1 1511- ●
169 SEAL
BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLORFIRE RED(915),BODY COLOR HIGHWAY ORANGE(944),BODY COLOR GREEN(989),BODY COLOR TRANS BLUE(999) DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> (B) OD=36 T=0.05 BLACK 		5-76777-035-0 02 1 1511- ●
169 SEAL
BODY COLOR ARC WHITE(729),BODY COLOR POLAR WHITE(982) DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC>,DRIVER ISRINGHAUSEN SEAT<SJA> (B) OD=36 WHITE 		8-94271-620-1 02 1 1511- ●
169 SEAL
BODY COLOR ARC WHITE(729),BODY COLOR POLAR WHITE(982) DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> (B) OD=36 WHITE 		8-94271-620-1 02 1 1511- ●
çizim 503549
160 19 18 20 20 19 21 21 12 12 160 18
BalonParca AdiParca NoAdetTipApplied Date A B
12 SCREW; RETRACTOR COVER,SEAT BELT
M4X14 TAPPING 		0-74360-414-0 04 1 1511- ●
18 BELT; SEAT,RR
GRAY 		8-97466-948-0 02 1 1511- ●
19 BELT; RR SEAT,BUCKLE SIDE
GRAY 		8-97466-945-0 02 1 1511- ●
20 BELT; RR SEAT CTR,TONGUE SIDE
GRAY 		8-97466-949-0 01 1 1511- ●
20 BELT; RR SEAT CTR,TONGUE SIDE
GRAY 		8-97466-950-0 01 1 1511- ●
21 BELT; RR SEAT CTR,BUCKLE SIDE
GRAY 		8-97466-946-0 01 1 1511- ●
21 BELT; RR SEAT CTR,BUCKLE SIDE
GRAY 		8-97466-947-0 01 1 1511- ●
160 COVER; THROUGH ANCHOR
DRIVER ISRINGHAUSEN SEAT<SJA> GRAY 		8-97405-991-0 01 1 1511- ● ●
160 COVER; THROUGH ANCHOR
GRAY 		8-97405-991-0 02 1 1511- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
