Isuzu WW
▶
TRUCKS
▶
FTS
▶
11723 - FTS AUST/NZ EURO5
▶
7 - Interior Trim, Emblems / Labels, Seats, Mirrors
▶
7-55 - REAR SEAT
▶

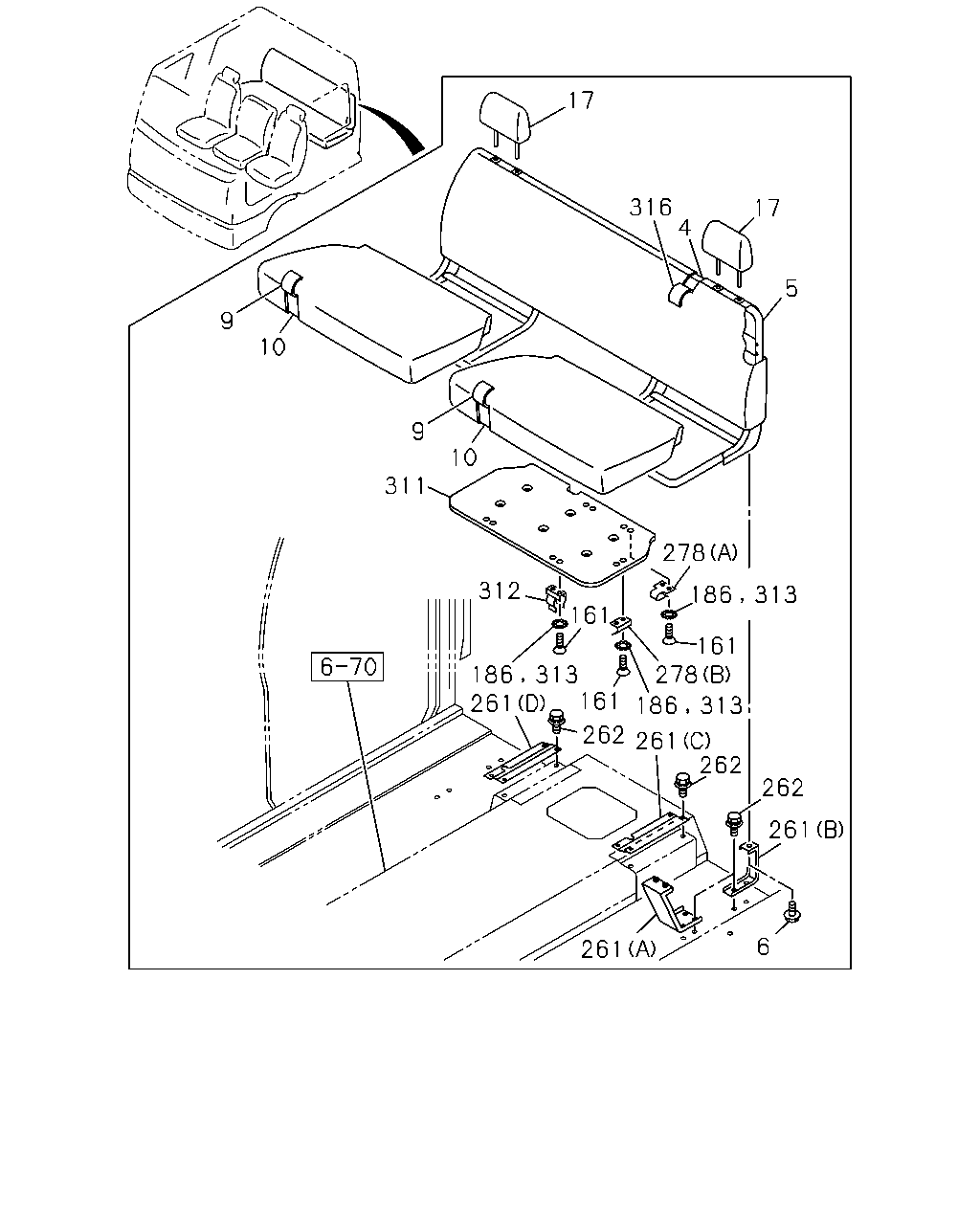

7-55 — REAR SEAT
(#170292) — 22 parça
17
316
17
5
9
9
10
10
311
312
278
186
313
4
161
161
186
313
261
161
262
261
262
313
278
186
262
261
261
6
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
4
PAD; RR,SEAT BACK
8-98055-738-0
01
1
1511-
5
FRAME ASM; RR SEAT BACK
8-98055-732-0
01
1
1511-
6
BOLT; RR SEAT
M8X20 FLANGE
0-28450-820-0
08
1
1511-
9
COVER ASM; TRIM,RR,CUSHION
DARK GRAY
8-97466-580-0
01
1
1511-
9
COVER ASM; TRIM,RR,CUSHION
DARK GRAY
8-97466-581-0
01
1
1511-
10
PAD; CUSHION,RR SEAT
DARK GRAY
8-97466-583-0
01
1
1511-
10
PAD; CUSHION,RR SEAT
DARK GRAY
8-97466-584-0
01
1
1511-
17
REST; HD,RR SEAT
DARK GRAY
8-97466-586-0
02
1
1511-
161
SCREW; RR SEAT BRKT
M6X16 CK-HEAD
9-03090-616-0
28
1
1511-
186
WASHER; LK,RR SEAT BRKT
ID=6.4 TOOTH LK COUNTERSUNK
9-09152-706-0
14
1
1511-
261
STAND; RR SEAT
(A)
8-98307-015-0
02
1
1511-
261
STAND; RR SEAT
(B)
8-98307-017-0
02
1
1511-
261
STAND; RR SEAT
(D)
8-98307-020-0
01
1
1511-
261
STAND; RR SEAT
(C)
8-98307-021-0
01
1
1511-
262
BOLT; STAND TO FLOOR
M8X20 FLANGE
0-28450-820-0
12
1
1511-
278
BRACKET; RR SEAT CUSHION
(A)
9-61407-082-0
04
1
1511-
278
BRACKET; RR SEAT CUSHION
(B)
9-61407-083-0
06
1
1511-
311
PAN ASM; SEAT CUSH,RR SEAT
8-98320-897-0
01
1
1511-
311
PAN ASM; SEAT CUSH,RR SEAT
8-98320-898-0
01
1
1511-
312
BRACKET; STOPPER,RR SEAT
8-94276-841-1
04
1
1511-
313
WASHER; LK,BRKT PAN
ID=6.4 TOOTH LK COUNTERSUNK
9-09152-706-0
14
1
1511-
316
COVER ASM; TRIM,RR SEAT
DARK GRAY
8-97421-446-0
01
1
1511-
