7-43 — SUN VISOR AND ASSIST GRIP (#170289) — 80 parça

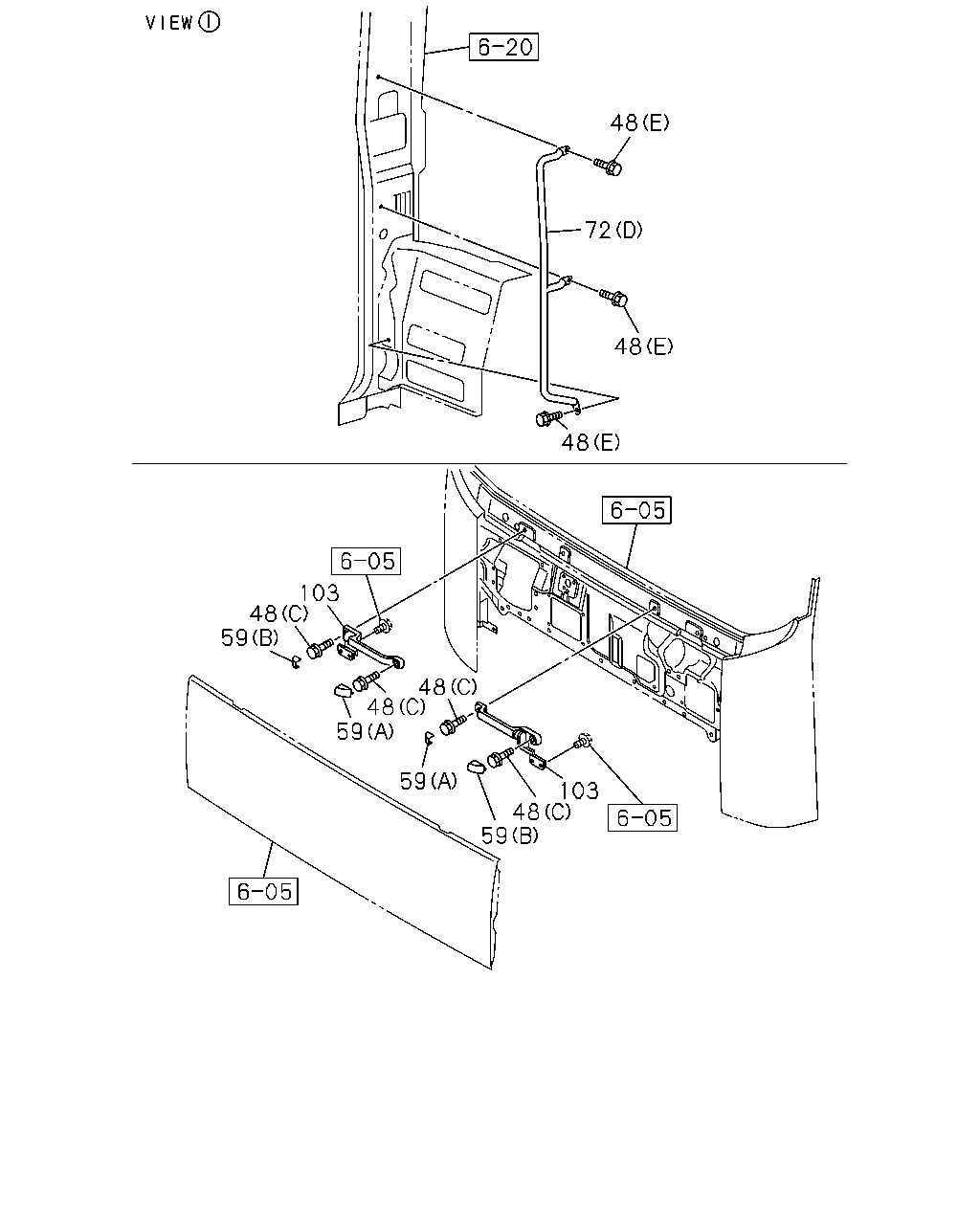

çizim 502717
103 48 59 59 59 103 48 59 48 48 48 48 72 48
BalonParca AdiParca NoAdetTipApplied Date A B
48 BOLT; ASSIST GRIP
(D) M8X16 FLANGE 		0-28060-816-0 04 1 1511- ● ●
48 BOLT; ASSIST GRIP
(C) M8X30 FLANGE 		0-28660-830-0 04 1 1511- ● ●
48 BOLT; ASSIST GRIP
(B) M6X10 FLANGE 		0-28050-610-0 04 1 1511- ●
48 BOLT; ASSIST GRIP
(A) M6X20 FLANGE 		0-28650-620-0 01 1 1511- ●
48 BOLT; ASSIST GRIP
(E) M8X20 FLANGE 		0-28650-820-0 06 1 1511- ●
59 COVER; ASSIST GRIP
(B) 		1-71998-789-2 02 1 1511- ● ●
59 COVER; ASSIST GRIP
(A) 		1-71998-790-2 02 1 1511- ● ●
59 COVER; ASSIST GRIP
(C) DARK GRAY 		8-97407-417-1 02 1 1511- ● ●
72 GRIP; ASSIST,CAB ENTRY,BACK
(A) 		8-97386-939-0 02 1 1511- ● ●
72 GRIP; ASSIST,CAB ENTRY,BACK
(B) 		8-97583-745-3 01 1 1511- ●
72 GRIP; ASSIST,CAB ENTRY,BACK
(C) 		8-98080-429-0 04 1 1511- ●
72 GRIP; ASSIST,CAB ENTRY,BACK
(D) 		8-98080-432-0 01 1 1511- ●
72 GRIP; ASSIST,CAB ENTRY,BACK
(D) 		8-98080-431-0 01 1 1511- ●
103 GRIP; ASSIST,FRT PNL 8-98036-565-1 01 1 1511- ● ●
103 GRIP; ASSIST,FRT PNL 8-98036-566-1 01 1 1511- ● ●

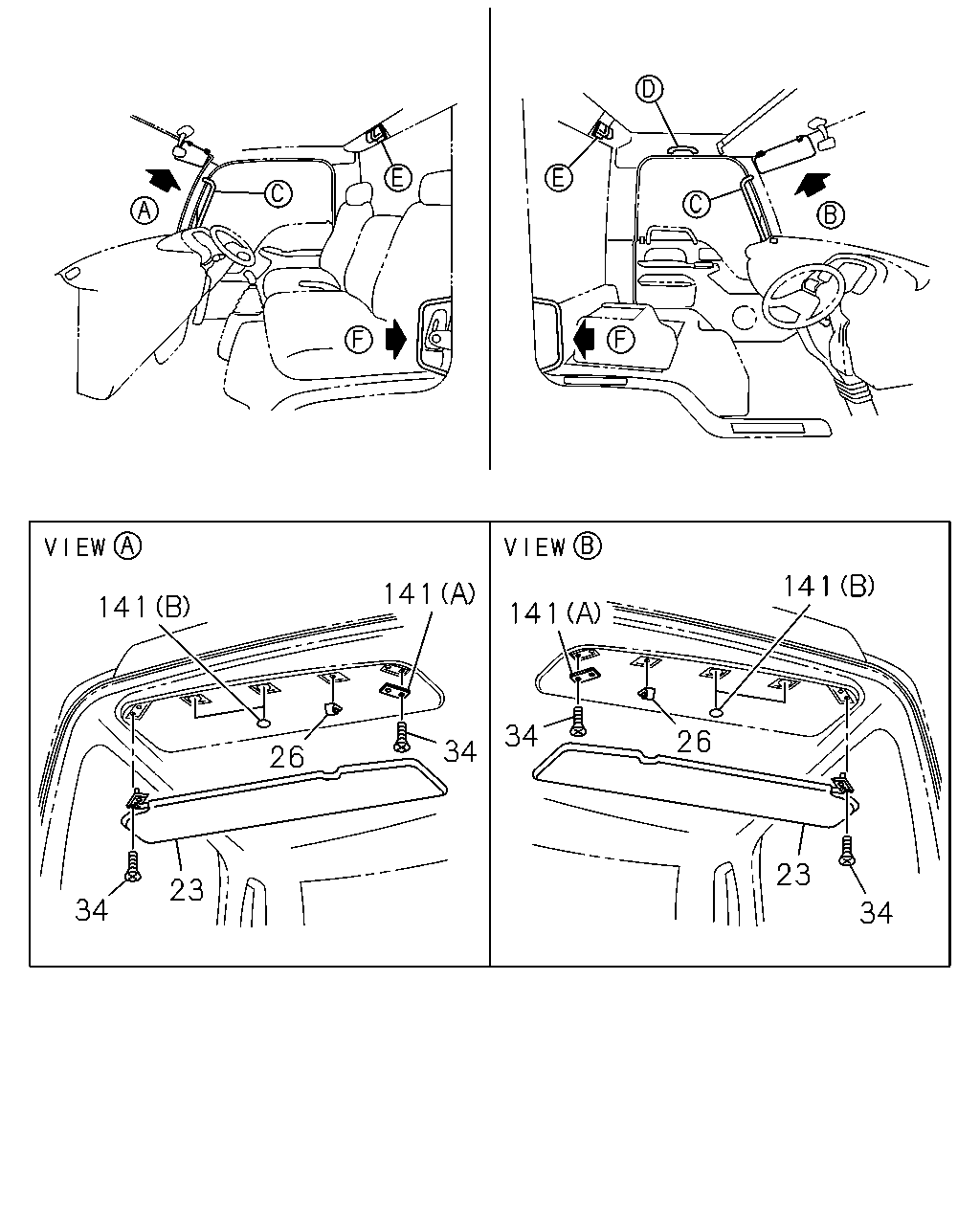

çizim 502856
141 34 23 26 141 34 34 26 141 141 34 23
BalonParca AdiParca NoAdetTipApplied Date A B
23 SUN VISOR
H.S.A SYSTEM<6EP> HEADER CONSOLE DRIVER & PASSENGER<EDG> DARK GRAY 		8-97413-097-1 01 1 1511- ● ●
23 SUN VISOR
HEADER CONSOLE DRIVER & PASSENGER<EDG> DARK GRAY 		8-97405-170-3 01 1 1511- ● ●
23 SUN VISOR
HEADER CONSOLE DRIVER & PASSENGER<EDG> EXC. H.S.A SYSTEM<6EP> DARK GRAY 		8-97407-373-2 01 1 1511- ● ●
26 HOLDER; SUN VISOR
HEADER CONSOLE DRIVER & PASSENGER<EDG> DARK GRAY 		8-97405-171-0 02 1 1511- ● ●
34 SCREW; SUN VISOR
HEADER CONSOLE DRIVER & PASSENGER<EDG> M6X26 		8-98033-674-0 08 1 1511- ● ●
141 COVER; SUN VISOR
HEADER CONSOLE DRIVER & PASSENGER<EDG> (A) L=66 B=30 DARK GRAY 		8-97408-029-0 02 1 1511- ● ●
141 COVER; SUN VISOR
HEADER CONSOLE DRIVER & PASSENGER<EDG> (B) OD=30 T=0.05 DARK GRAY 		8-97408-030-0 04 1 1511- ● ●

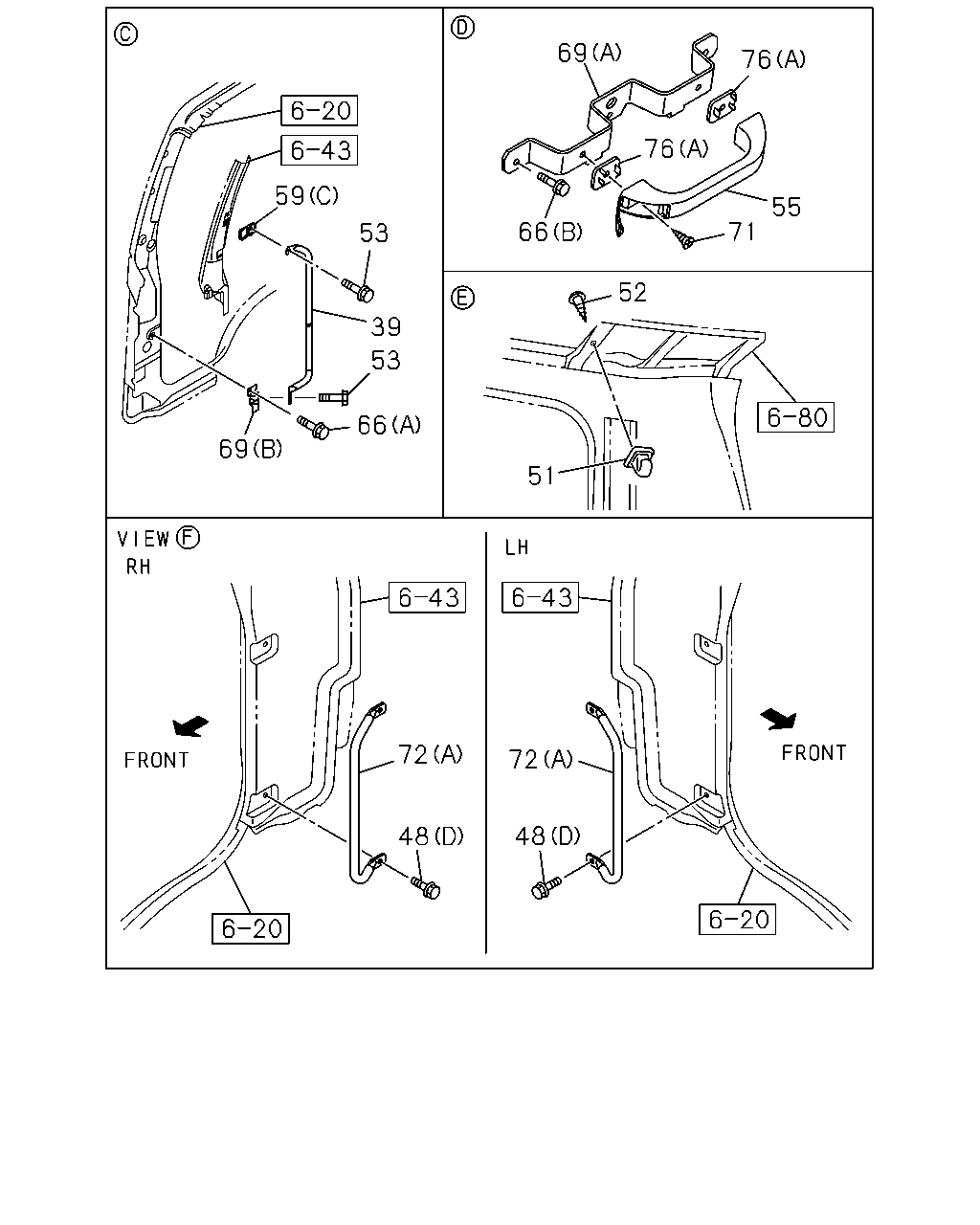

çizim 502982
59 53 39 53 66 69 48 72 72 48 51 52 66 71 55 76 76 69
BalonParca AdiParca NoAdetTipApplied Date A B
39 HANDLE; ASSIST,A-POST
DARK GRAY 		8-97407-943-2 01 1 1511- ● ●
39 HANDLE; ASSIST,A-POST
DARK GRAY 		8-97407-942-2 01 1 1511- ● ●
48 BOLT; ASSIST GRIP
(D) M8X16 FLANGE 		0-28060-816-0 04 1 1511- ● ●
48 BOLT; ASSIST GRIP
(C) M8X30 FLANGE 		0-28660-830-0 04 1 1511- ● ●
48 BOLT; ASSIST GRIP
(B) M6X10 FLANGE 		0-28050-610-0 04 1 1511- ●
48 BOLT; ASSIST GRIP
(A) M6X20 FLANGE 		0-28650-620-0 01 1 1511- ●
48 BOLT; ASSIST GRIP
(E) M8X20 FLANGE 		0-28650-820-0 06 1 1511- ●
51 HOOK; COAT HANGER
DARK GRAY 		8-97409-845-0 02 1 1511- ●
52 SCREW; HOOK
M4X20 TAPPING OVAL-HEAD 		0-70540-420-0 02 1 1511- ●
53 SCREW; ASSIST HANDLE
M8X20 FLANGE 		0-28650-820-0 04 1 1511- ● ●
55 GRIP; ASSIST,CAB SIDE UPR
DARK GRAY 		8-97405-285-2 01 1 1511- ● ●
59 COVER; ASSIST GRIP
(B) 		1-71998-789-2 02 1 1511- ● ●
59 COVER; ASSIST GRIP
(A) 		1-71998-790-2 02 1 1511- ● ●
59 COVER; ASSIST GRIP
(C) DARK GRAY 		8-97407-417-1 02 1 1511- ● ●
66 BOLT; ASSIST GRIP BRKT
(A) M8X16 FLANGE 		0-28050-816-0 04 1 1511- ● ●
66 BOLT; ASSIST GRIP BRKT
(B) M6X12 FLANGE 		8-97108-669-0 06 1 1511- ● ●
69 BRACKET; ASSIST GRIP
(A) 		8-98014-094-0 02 1 1511- ● ●
69 BRACKET; ASSIST GRIP
(B) 		8-98057-972-2 01 1 1511- ● ●
69 BRACKET; ASSIST GRIP
(B) 		8-98057-971-2 01 1 1511- ● ●
71 SCREW
M6X28 		8-98004-344-0 02 1 1511- ● ●
72 GRIP; ASSIST,CAB ENTRY,BACK
(A) 		8-97386-939-0 02 1 1511- ● ●
72 GRIP; ASSIST,CAB ENTRY,BACK
(B) 		8-97583-745-3 01 1 1511- ●
72 GRIP; ASSIST,CAB ENTRY,BACK
(C) 		8-98080-429-0 04 1 1511- ●
72 GRIP; ASSIST,CAB ENTRY,BACK
(D) 		8-98080-432-0 01 1 1511- ●
72 GRIP; ASSIST,CAB ENTRY,BACK
(D) 		8-98080-431-0 01 1 1511- ●
76 SPACER; ASSIST GRIP
(A) DARK GRAY 		8-97405-286-0 02 1 1511- ● ●
76 SPACER; ASSIST GRIP
(B) 		8-98081-584-0 02 1 1511- ●

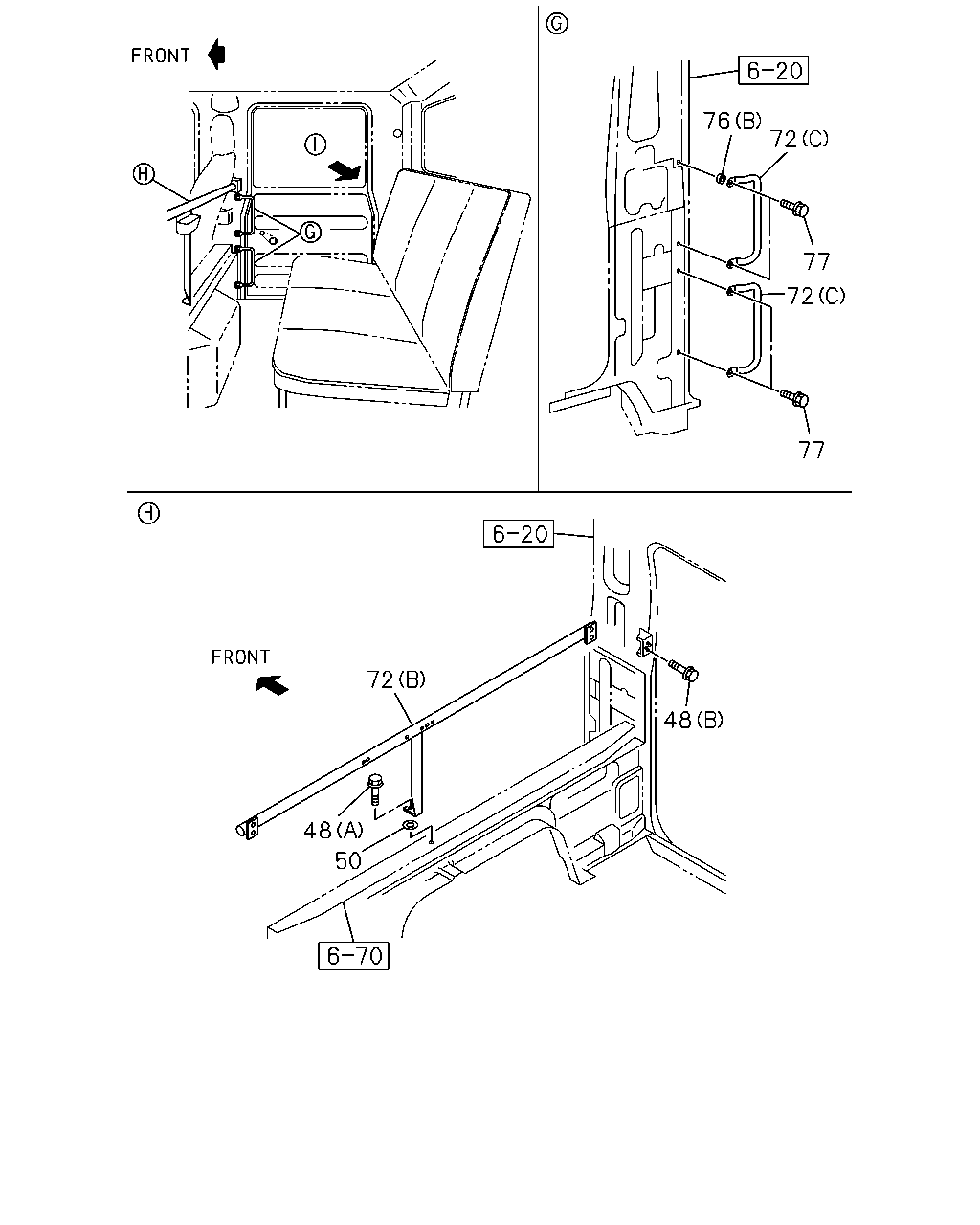

çizim 503065
48 72 48 50 76 77 72 77 72
BalonParca AdiParca NoAdetTipApplied Date A B
48 BOLT; ASSIST GRIP
(D) M8X16 FLANGE 		0-28060-816-0 04 1 1511- ● ●
48 BOLT; ASSIST GRIP
(C) M8X30 FLANGE 		0-28660-830-0 04 1 1511- ● ●
48 BOLT; ASSIST GRIP
(B) M6X10 FLANGE 		0-28050-610-0 04 1 1511- ●
48 BOLT; ASSIST GRIP
(A) M6X20 FLANGE 		0-28650-620-0 01 1 1511- ●
48 BOLT; ASSIST GRIP
(E) M8X20 FLANGE 		0-28650-820-0 06 1 1511- ●
50 WASHER; PL,ASSIST GRIP
ID=8.4 OD=16 		0-91610-508-0 01 1 1511- ●
72 GRIP; ASSIST,CAB ENTRY,BACK
(A) 		8-97386-939-0 02 1 1511- ● ●
72 GRIP; ASSIST,CAB ENTRY,BACK
(B) 		8-97583-745-3 01 1 1511- ●
72 GRIP; ASSIST,CAB ENTRY,BACK
(C) 		8-98080-429-0 04 1 1511- ●
72 GRIP; ASSIST,CAB ENTRY,BACK
(D) 		8-98080-432-0 01 1 1511- ●
72 GRIP; ASSIST,CAB ENTRY,BACK
(D) 		8-98080-431-0 01 1 1511- ●
76 SPACER; ASSIST GRIP
(A) DARK GRAY 		8-97405-286-0 02 1 1511- ● ●
76 SPACER; ASSIST GRIP
(B) 		8-98081-584-0 02 1 1511- ●
77 SCREW; ASSIST GRIP
M6X25 W/LK&PL WASHER 		0-50640-625-0 08 1 1511- ●

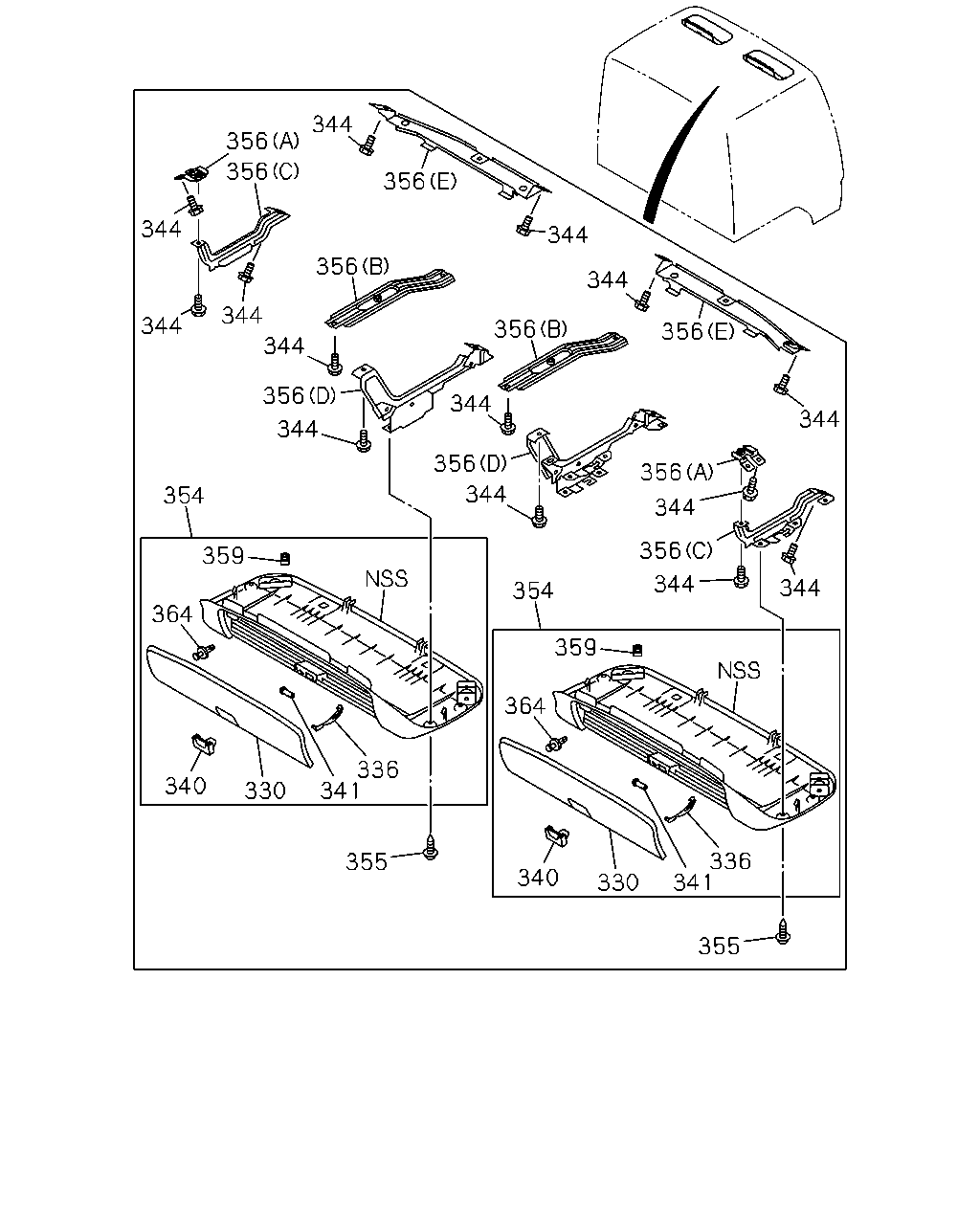

çizim 503685
344 356 356 356 344 344 344 356 344 356 344 356 344 344 356 344 356 344 356 344 344 356 344 344 354 359 364 340 330 341 336 355 355 336 341 330 340 364 359 354
BalonParca AdiParca NoAdetTipApplied Date A B
330 LID; HEADER SHELF
HEADER CONSOLE DRIVER & PASSENGER<EDG> DARK GRAY 		8-97407-834-1 02 1 1511- ● ●
336 STAY; LID
HEADER CONSOLE DRIVER & PASSENGER<EDG> 		1-72448-379-3 04 1 1511- ● ●
340 LOCK; HEADER SHELF
HEADER CONSOLE DRIVER & PASSENGER<EDG> 		1-72448-376-0 02 1 1511- ● ●
341 HINGE; LID,HEADER SHELF
HEADER CONSOLE DRIVER & PASSENGER<EDG> 		8-98025-428-2 04 1 1511- ● ●
344 BOLT; BRKT,FRT
HEADER CONSOLE DRIVER & PASSENGER<EDG> M6X12 FLANGE 		8-97108-669-0 20 1 1511- ● ●
354 TRAY; HEADER ROOF
HEADER CONSOLE DRIVER & PASSENGER<EDG> DARK GRAY 		8-97428-821-0 02 1 1511- ● ●
355 SCREW; TRAY
HEADER CONSOLE DRIVER & PASSENGER<EDG> M5X16 TAPPING HEXALOBULAR 		0-72380-516-0 08 1 1511- ● ●
356 BRACKET; ROOF OUTER
HEADER CONSOLE DRIVER & PASSENGER<EDG> (A) 		8-97386-874-1 02 1 1511- ● ●
356 BRACKET; ROOF OUTER
HEADER CONSOLE DRIVER & PASSENGER<EDG> (B) 		8-98010-059-0 02 1 1511- ● ●
356 BRACKET; ROOF OUTER
HEADER CONSOLE DRIVER & PASSENGER<EDG> (C) 		8-98016-871-3 01 1 1511- ● ●
356 BRACKET; ROOF OUTER
HEADER CONSOLE DRIVER & PASSENGER<EDG> (D) 		8-98042-009-2 01 1 1511- ● ●
356 BRACKET; ROOF OUTER
HEADER CONSOLE DRIVER & PASSENGER<EDG> (E) 		8-98042-016-3 01 1 1511- ● ●
356 BRACKET; ROOF OUTER
HEADER CONSOLE DRIVER & PASSENGER<EDG> (C) 		8-98014-088-3 01 1 1511- ● ●
356 BRACKET; ROOF OUTER
HEADER CONSOLE DRIVER & PASSENGER<EDG> (D) 		8-98023-257-2 01 1 1511- ● ●
356 BRACKET; ROOF OUTER
HEADER CONSOLE DRIVER & PASSENGER<EDG> (E) 		8-98042-015-3 01 1 1511- ● ●
359 HOLDER; HEADER TRAY
HEADER CONSOLE DRIVER & PASSENGER<EDG> 		8-98041-754-0 08 1 1511- ● ●
364 STOPPER; LID
HEADER CONSOLE DRIVER & PASSENGER<EDG> 		8-98010-867-1 06 1 1511- ● ●
