◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTS ▶ 11723 - FTS AUST/NZ EURO5 ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-40 - INSTRUMENT PANEL AND BOX ▶
7-40 — INSTRUMENT PANEL AND BOX (#170287) — 116 parça

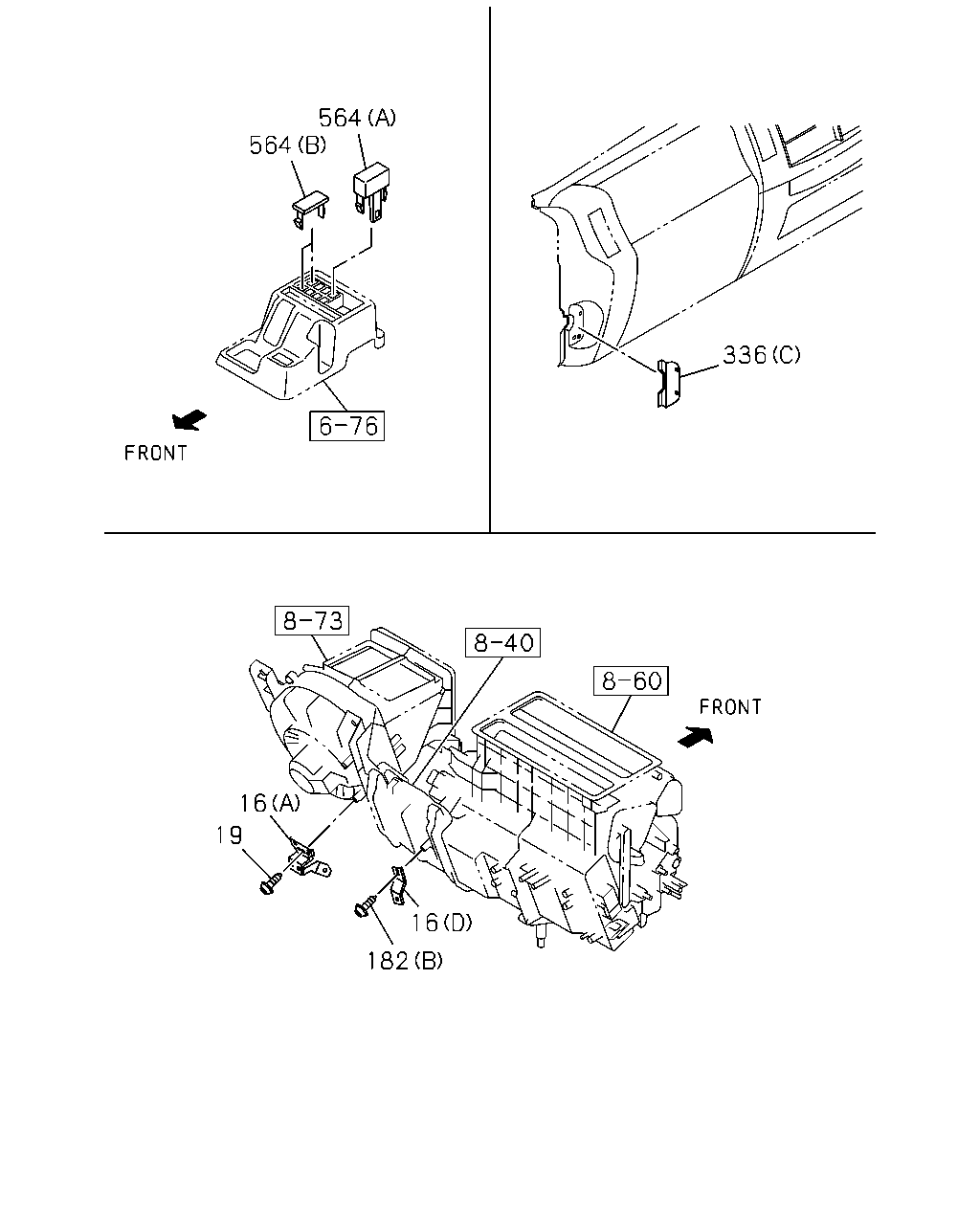

çizim 501485
564 564 336 16 19 16 182
BalonParca AdiParca NoAdetTipApplied Date A B
16 BRACKET; INST PNL
(A) 		8-97585-612-2 01 1 1511- ● ●
16 BRACKET; INST PNL
(C) 		8-98053-711-0 01 1 1511- ● ●
16 BRACKET; INST PNL
(D) 		8-98180-277-1 01 1 1511- ● ●
16 BRACKET; INST PNL
(B) 		8-98017-204-1 01 1 1511- ● ●
16 BRACKET; INST PNL
(B) 		8-98017-202-1 01 1 1511- ● ●
19 SCREW; BRKT
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1511- ● ●
182 BOLT; BRKT,INST PANEL
(D) M8X16 FLANGE 		0-28050-816-0 04 1 1511- ● ●
182 BOLT; BRKT,INST PANEL
(A) M6X12 W/LK&PL WASHER 		0-52000-612-0 02 1 1511- ● ●
182 BOLT; BRKT,INST PANEL
(B) SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1511- ● ●
182 BOLT; BRKT,INST PANEL
(C) M8X25 W/LK&PL WASHER 		8-98018-439-0 01 1 1511- ● ●
336 COVER; INST PANEL SIDE
(A) GRAY 		8-97407-420-1 01 1 1511- ● ●
336 COVER; INST PANEL SIDE
(D) GRAY 		8-97407-427-4 01 1 1511- ● ●
336 COVER; INST PANEL SIDE
(C) GRAY 		8-97409-491-1 01 1 1511- ● ●
336 COVER; INST PANEL SIDE
(B) GRAY 		8-97422-653-1 01 1 1511- ● ●
564 COVER; SW
MIRROR - O/SIDE RR VIEW,HEATED<7SV> (A) 		1-82359-069-2 06 1 1511- ● ●
564 COVER; SW
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (B) 		8-97043-732-1 02 1 1511- ● ●

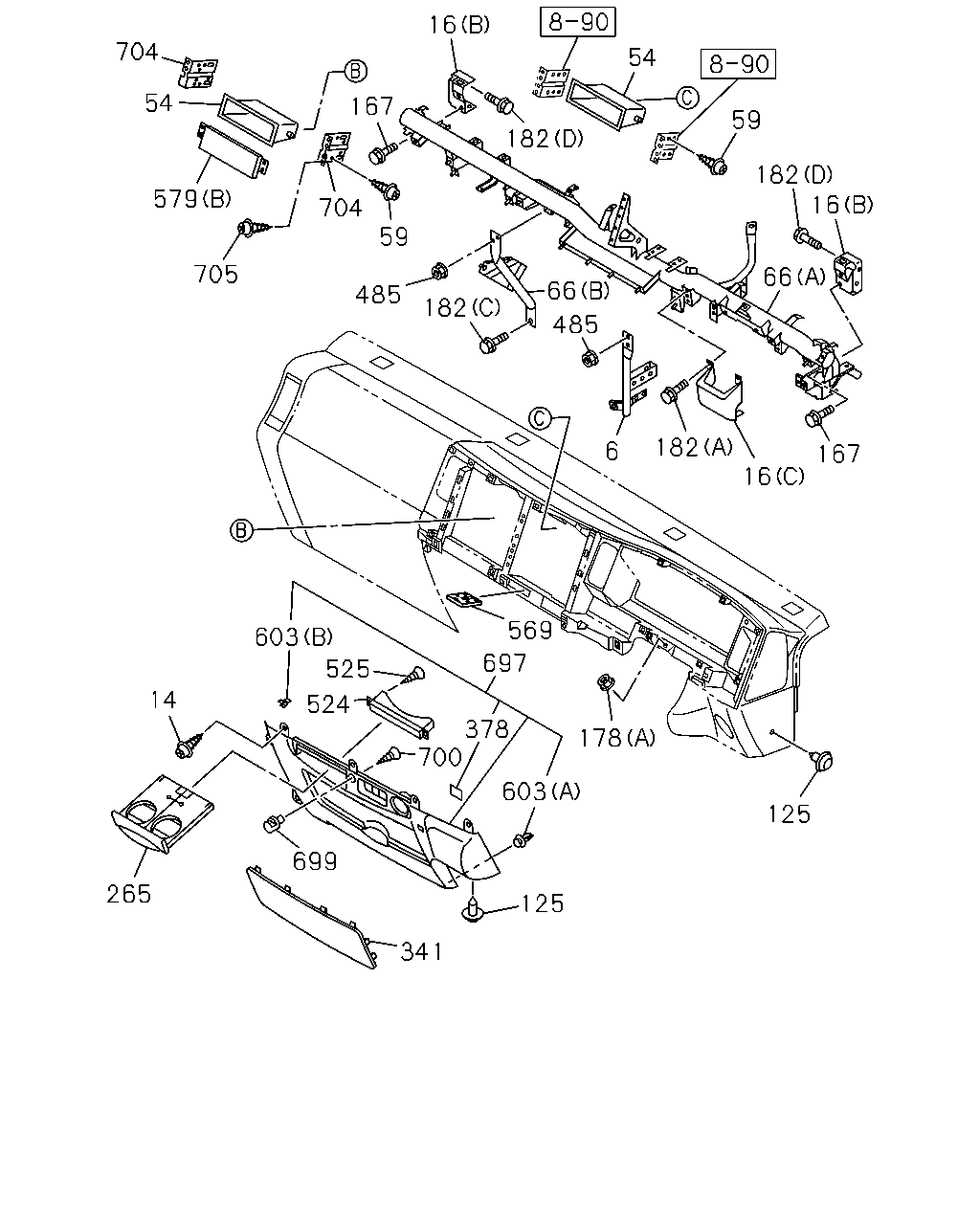

çizim 501608
704 54 579 705 704 485 59 182 66 485 6 182 16 167 66 16 182 59 54 16 167 182 603 525 697 569 178 125 603 125 341 699 14 265 524 378 700
BalonParca AdiParca NoAdetTipApplied Date A B
6 SUPPORT; INST PANEL 8-98196-255-0 01 1 1511- ● ●
14 SCREW; INST PNL
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 04 1 1511- ● ●
16 BRACKET; INST PNL
(A) 		8-97585-612-2 01 1 1511- ● ●
16 BRACKET; INST PNL
(C) 		8-98053-711-0 01 1 1511- ● ●
16 BRACKET; INST PNL
(D) 		8-98180-277-1 01 1 1511- ● ●
16 BRACKET; INST PNL
(B) 		8-98017-204-1 01 1 1511- ● ●
16 BRACKET; INST PNL
(B) 		8-98017-202-1 01 1 1511- ● ●
54 POCKET; CENTER CLUSTER
H=58.4 BLACK 		8-97408-864-3 01 1 1511- ● ●
54 POCKET; CENTER CLUSTER
H=58.4 BLACK 		8-97408-864-3 01 1 1511- ● ●
59 SCREW; CLUSTER POCKET
T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 1511- ● ●
59 SCREW; CLUSTER POCKET
EXC. TACHOGRAPH 140KM/H<WC7> T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 1511- ● ●
59 SCREW; CLUSTER POCKET
T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 1511- ● ●
66 REINFORCEMENT; INST PANEL
(B) 		8-97585-580-2 01 1 1511- ● ●
66 REINFORCEMENT; INST PANEL
AIR BAG DRIVER & PASSENGER<AK5> EXC. H.S.A SYSTEM<6EP> (A) 		8-98240-608-0 01 1 1511- ● ●
66 REINFORCEMENT; INST PANEL
AIR BAG DRIVER<AJ3> EXC. H.S.A SYSTEM<6EP> (A) 		8-98240-609-0 01 1 1511- ● ●
66 REINFORCEMENT; INST PANEL
H.S.A SYSTEM<6EP> AIR BAG DRIVER & PASSENGER<AK5> (A) 		8-98248-348-1 01 1 1511- ● ●
66 REINFORCEMENT; INST PANEL
H.S.A SYSTEM<6EP> AIR BAG DRIVER<AJ3> (A) 		8-98248-346-1 01 1 1511- ● ●
125 CLIP; INST PANEL
GRAY 		8-97408-817-0 04 1 1511- ● ●
167 BOLT; REINF TO INST
M8X23 FLANGE 		8-97264-766-0 04 1 1511- ● ●
178 NUT; INST PANEL
(A) M6 FLANGE 		0-91180-106-0 01 1 1511- ● ●
178 NUT; INST PANEL
(B) 		8-98037-629-0 15 1 1511- ● ●
182 BOLT; BRKT,INST PANEL
(D) M8X16 FLANGE 		0-28050-816-0 04 1 1511- ● ●
182 BOLT; BRKT,INST PANEL
(A) M6X12 W/LK&PL WASHER 		0-52000-612-0 02 1 1511- ● ●
182 BOLT; BRKT,INST PANEL
(B) SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1511- ● ●
182 BOLT; BRKT,INST PANEL
(C) M8X25 W/LK&PL WASHER 		8-98018-439-0 01 1 1511- ● ●
265 HOLDER; CUP
GRAY 		8-97418-528-0 01 1 1511- ● ●
341 LID; FUSE BOX
GRAY 		8-97422-209-0 01 1 1511- ● ●
378 SEAL; INST PANEL
5X30 		8-98176-199-0 01 1 1511- ● ●
485 NUT; SUPPORT CLIP,HARNESS
M6 FLANGE 		0-91180-106-0 04 1 1511- ● ●
524 STAND ASM; CUP,INST 8-98054-414-0 01 1 1511- ● ●
525 SCREW; CUP STAND
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 03 1 1511- ● ●
569 HOLDER; CARD 8-97410-276-1 01 1 1511- ● ●
579 COVER; INST PNL
(A) GRAY 		8-97409-853-2 01 1 1511- ● ●
579 COVER; INST PNL
(B) BLACK 		8-97466-735-0 01 1 1511- ● ●
603 CLIP; COVER
(A) 		8-98004-025-0 01 1 1511- ● ●
603 CLIP; COVER
(B) 		8-98021-271-0 04 1 1511- ● ●
603 CLIP; COVER
(B) 		8-98021-271-0 04 1 1511- ● ●
603 CLIP; COVER
(C) 		8-98152-030-0 03 1 1511- ● ●
603 CLIP; COVER
(D) 		8-98152-031-0 03 1 1511- ● ●
603 CLIP; COVER
(E) 		8-98167-222-0 02 1 1511- ● ●
697 PANEL; INST CENTER
GRAY 		8-97422-207-1 01 1 1511- ● ●
699 HOOK; INST PANEL
GRAY 		8-97408-927-0 01 1 1511- ● ●
700 BOLT; HOOK
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1511- ● ●
704 BRACKET; CENTER POCKET 8-97585-618-2 02 1 1511- ● ●
705 SCREW; BRACKET CENTER POCKET
M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 04 1 1511- ● ●

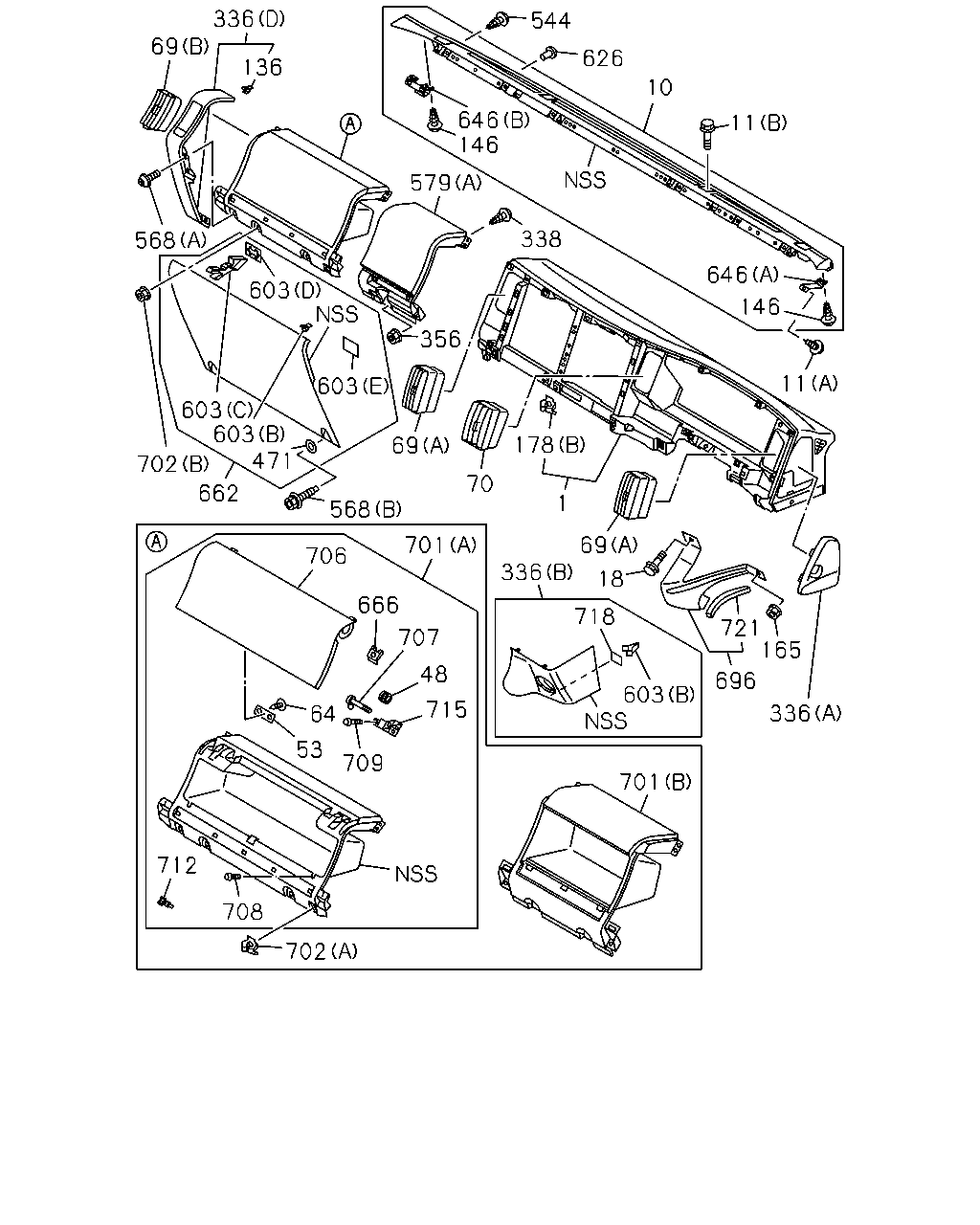

çizim 502689
544 626 10 11 646 146 11 165 336 696 721 18 69 178 70 1 336 701 568 706 666 707 48 715 709 53 64 708 712 702 662 471 603 603 603 69 356 338 579 146 646 136 336 69 568 603 702 701 603 718
BalonParca AdiParca NoAdetTipApplied Date A B
1 PANEL; INST
GRAY 		8-97407-418-8 01 1 1511- ● ●
10 PANEL ASM; GARNISH
GRAY 		8-97422-097-1 01 1 1511- ● ●
11 BOLT; INST PNL
(A) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 08 1 1511- ● ●
11 BOLT; INST PNL
(B) M6X25 W/LK&PL WASHER 		8-98018-440-0 04 1 1511- ● ●
18 BOLT; BRKT
M6X12 W/LK&PL WASHER 		0-52000-612-0 01 1 1511- ● ●
48 SPRING; GLOVE BOX LID
EXC. AIR BAG DRIVER & PASSENGER<AK5> 		8-98270-763-0 01 1 1511- ● ●
48 SPRING; GLOVE BOX LID
EXC. AIR BAG DRIVER & PASSENGER<AK5> 		8-98270-764-0 01 1 1511- ● ●
53 STRIKER; GLOVE BOX
EXC. AIR BAG DRIVER & PASSENGER<AK5> 		8-98270-765-0 01 1 1511- ● ●
64 SCREW; STRIKER
EXC. AIR BAG DRIVER & PASSENGER<AK5> M4X85 		8-97926-404-0 02 1 1511- ● ●
69 GRILLE; SIDE,AIR OUTLET
(A) 		8-98028-561-2 02 1 1511- ● ●
69 GRILLE; SIDE,AIR OUTLET
(B) 		8-98028-562-2 01 1 1511- ● ●
70 GRILLE; CENTER,AIR OUTLET 8-98028-563-2 01 1 1511- ● ●
136 CLIP; INST COVER 8-98076-254-0 02 1 1511- ● ●
146 SCREW; TAP
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 03 1 1511- ● ●
165 NUT; BRKT KNEE PAD
M6 FLANGE 		0-91180-106-0 01 1 1511- ● ●
178 NUT; INST PANEL
(A) M6 FLANGE 		0-91180-106-0 01 1 1511- ● ●
178 NUT; INST PANEL
(B) 		8-98037-629-0 15 1 1511- ● ●
336 COVER; INST PANEL SIDE
(A) GRAY 		8-97407-420-1 01 1 1511- ● ●
336 COVER; INST PANEL SIDE
(D) GRAY 		8-97407-427-4 01 1 1511- ● ●
336 COVER; INST PANEL SIDE
(C) GRAY 		8-97409-491-1 01 1 1511- ● ●
336 COVER; INST PANEL SIDE
(B) GRAY 		8-97422-653-1 01 1 1511- ● ●
338 SCREW; COVER
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 04 1 1511- ● ●
356 NUT; COVER
M6 FLANGE 		0-91180-106-0 01 1 1511- ● ●
471 WASHER; PL 8-98179-641-0 02 1 1511- ● ●
544 SCREW; TRAY
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 03 1 1511- ● ●
568 BOLT; COVER
(A) SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1511- ● ●
568 BOLT; COVER
(B) M6X20 W/LK&PL WASHER 		8-98031-842-0 02 1 1511- ● ●
568 BOLT; COVER
(B) M6X20 W/LK&PL WASHER 		8-98031-842-0 02 1 1511- ● ●
579 COVER; INST PNL
(A) GRAY 		8-97409-853-2 01 1 1511- ● ●
579 COVER; INST PNL
(B) BLACK 		8-97466-735-0 01 1 1511- ● ●
603 CLIP; COVER
(A) 		8-98004-025-0 01 1 1511- ● ●
603 CLIP; COVER
(B) 		8-98021-271-0 04 1 1511- ● ●
603 CLIP; COVER
(B) 		8-98021-271-0 04 1 1511- ● ●
603 CLIP; COVER
(C) 		8-98152-030-0 03 1 1511- ● ●
603 CLIP; COVER
(D) 		8-98152-031-0 03 1 1511- ● ●
603 CLIP; COVER
(E) 		8-98167-222-0 02 1 1511- ● ●
626 RETAINER
OD=15 BLACK 		8-94279-804-0 02 1 1511- ● ●
646 BRACKET; GARNISH PANEL
(A) 		8-98051-490-2 01 1 1511- ● ●
646 BRACKET; GARNISH PANEL
(B) 		8-98051-492-2 01 1 1511- ● ●
662 COVER; LWR,INST PANEL
GRAY 		8-97422-092-2 01 1 1511- ● ●
666 INSERT; INST PANEL
EXC. AIR BAG DRIVER & PASSENGER<AK5> M5 		8-97926-400-0 04 1 1511- ● ●
696 BRACKET; KNEE 8-98066-085-1 01 1 1511- ● ●
701 TRAY; INST
AIR BAG DRIVER & PASSENGER<AK5> (B) GRAY 		8-97417-196-2 01 1 1511- ● ●
701 TRAY; INST
EXC. AIR BAG DRIVER & PASSENGER<AK5> (A) GRAY 		8-97429-703-1 01 1 1511- ● ●
702 NUT; TRAY
(B) M6 FLANGE 		0-91180-106-0 02 1 1511- ● ●
702 NUT; TRAY
(A) 		8-98037-629-0 01 1 1511- ● ●
706 LID; TRAY INST
EXC. AIR BAG DRIVER & PASSENGER<AK5> GRAY 		8-97429-992-0 01 1 1511- ● ●
707 SHAFT; TRAY INST LID
EXC. AIR BAG DRIVER & PASSENGER<AK5> 		8-97926-393-0 02 1 1511- ● ●
708 STOPPER; TRAY INST LID
EXC. AIR BAG DRIVER & PASSENGER<AK5> 		8-98010-867-1 02 1 1511- ● ●
709 SCREW; TRAY INST
EXC. AIR BAG DRIVER & PASSENGER<AK5> M5X16 TAPPING 		0-71040-516-0 04 1 1511- ● ●
712 LOCK; TRAY INST LID
EXC. AIR BAG DRIVER & PASSENGER<AK5> 		8-98031-846-0 01 1 1511- ● ●
715 SUPPORT; TRAY,HINGE
EXC. AIR BAG DRIVER & PASSENGER<AK5> 		8-97926-396-0 01 1 1511- ● ●
715 SUPPORT; TRAY,HINGE
EXC. AIR BAG DRIVER & PASSENGER<AK5> 		8-97926-397-0 01 1 1511- ● ●
718 SEAL; COVER
7X31 		8-98061-777-0 01 1 1511- ● ●
721 FINISHER; BRKT,KNEE
L=140 		8-97892-742-0 01 1 1511- ● ●
