◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTS ▶ 11723 - FTS AUST/NZ EURO5 ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-10 - CAUTION PLATE AND LABEL ▶
7-10 — CAUTION PLATE AND LABEL (#170284) — 9 parça

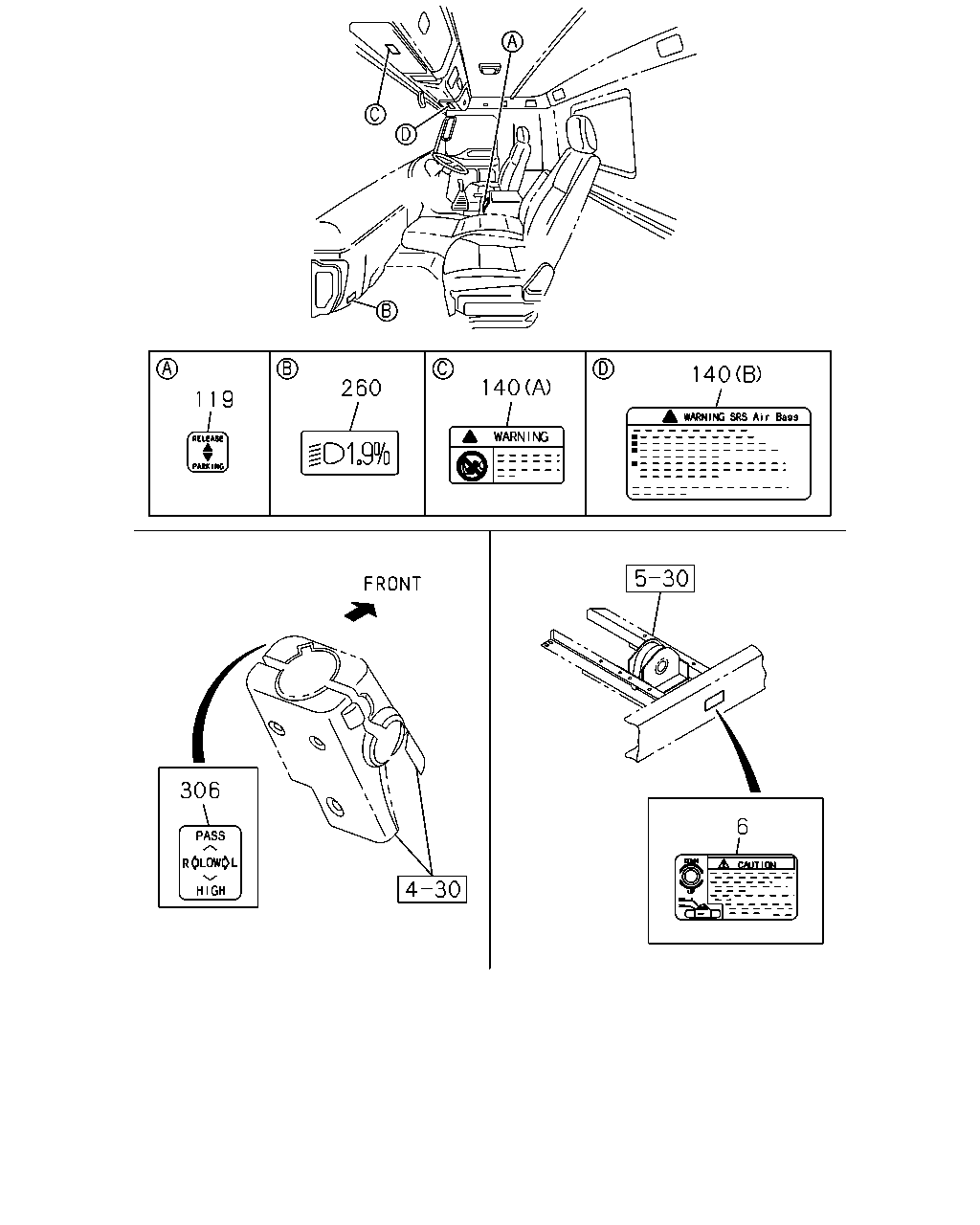

çizim 503027
6 306 119 260 140 140
BalonParca AdiParca NoAdetTipApplied Date A B
6 PLATE; CAUTION,SPARE TIRE 8-98082-437-0 01 1 1511- ● ●
119 PLATE; CAUTION,HAND BRK LEVER 1-85881-759-0 01 1 1511- ● ●
140 PLATE; CAUTION,SRS
AIR BAG DRIVER & PASSENGER<AK5> (A) 		8-98080-839-0 02 1 1511- ● ●
140 PLATE; CAUTION,SRS
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. H.S.A SYSTEM<6EP> (B) 		8-98139-964-0 01 1 1511- ● ●
260 PLATE; CAUTION,HEAD LAMP LEVELING 1-85878-501-1 01 1 1511- ● ●
306 LABEL; BEAM & PASS 8-98070-239-0 01 1 1511- ● ●

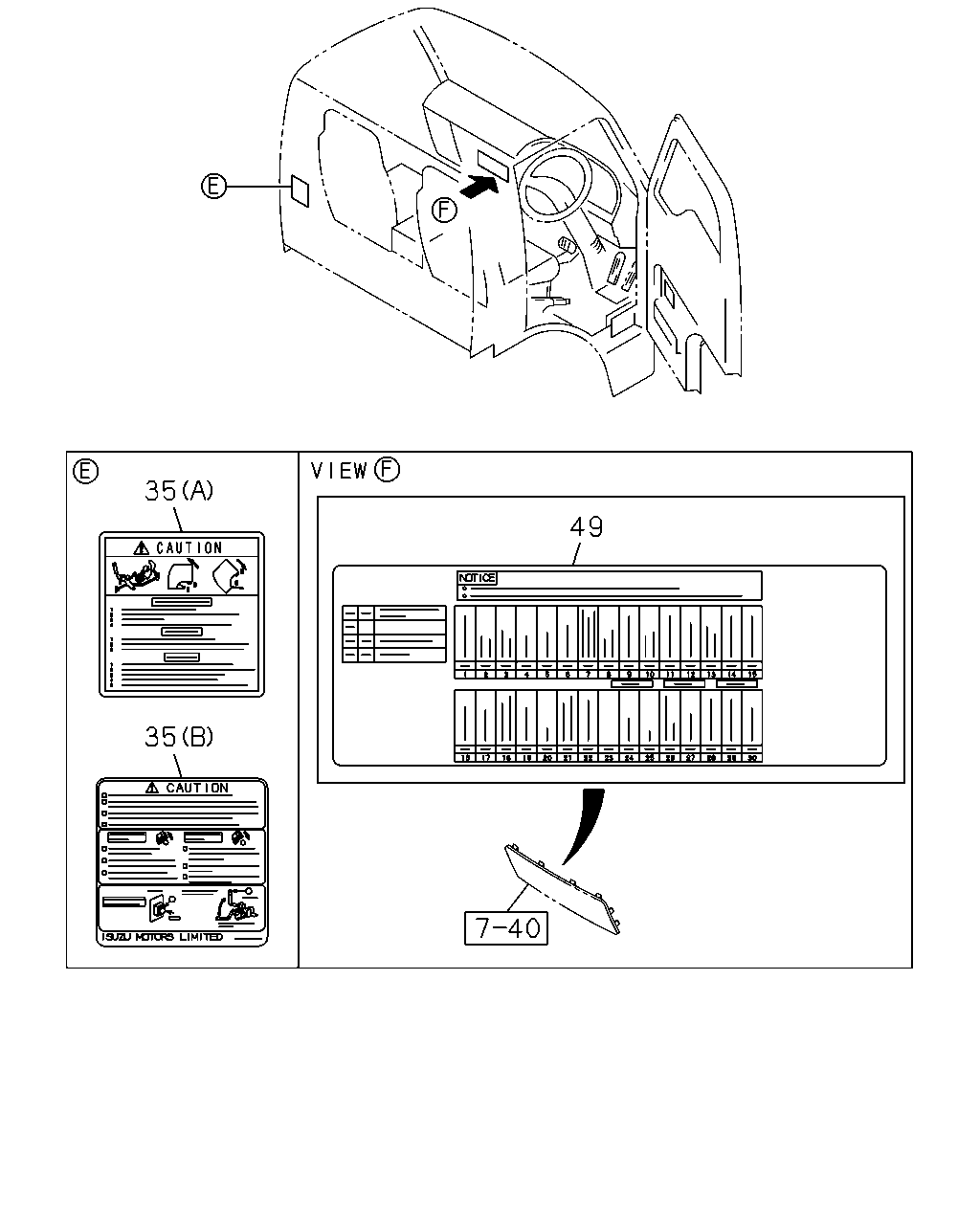

çizim 503058
49 35 35
BalonParca AdiParca NoAdetTipApplied Date A B
35 PLATE; CAUTION,CAB
(A) 		8-98065-363-0 01 1 1511- ●
35 PLATE; CAUTION,CAB
(B) 		8-98069-325-0 01 1 1511- ●
49 PLATE; CAUTION,FUSE BOX 8-98305-918-1 01 1 1511- ● ●
