◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTS ▶ 11723 - FTS AUST/NZ EURO5 ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-90 - REAR BUMPER ▶
6-90 — REAR BUMPER (#170282) — 14 parça

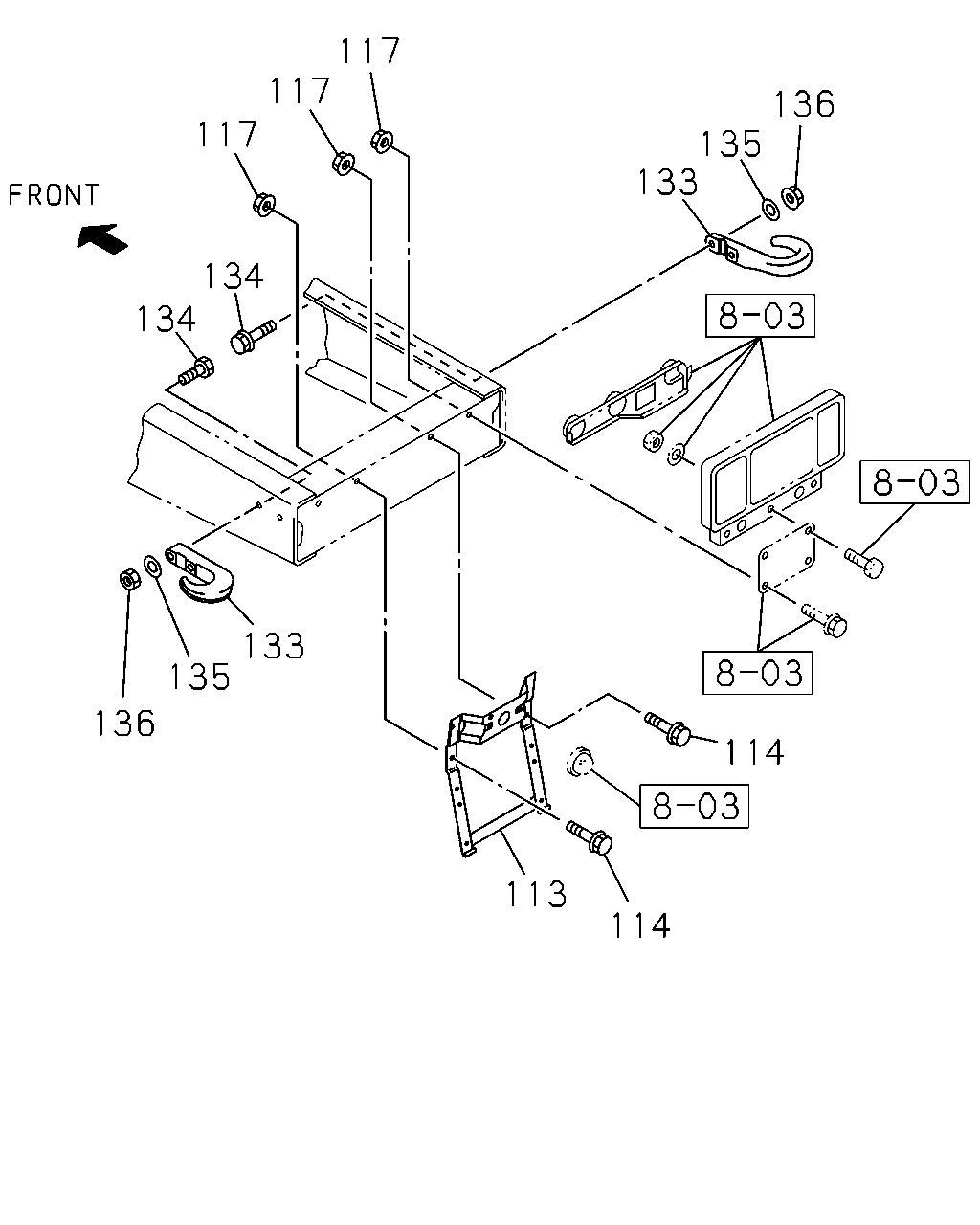

çizim 502930
136 135 133 117 117 117 134 134 133 135 136 113 114 114
BalonParca AdiParca NoAdetTipApplied Date A B
113 BRACKET; LICENSE PLATE
COUNTRY NEW ZEALAND<CX6> 		1-53485-074-0 01 1 1511- ● ●
114 BOLT; BRKT,LICENSE PLATE
COUNTRY NEW ZEALAND<CX6> M8X25 FLANGE 		0-28650-825-0 02 1 1511- ● ●
117 NUT; BRKT
REVERSING WARNING BUZZER<YM9> M8 FLANGE 		0-91180-108-0 02 1 1511- ● ●
117 NUT; BRKT
COUNTRY NEW ZEALAND<CX6> M8 FLANGE 		0-91180-108-0 02 1 1511- ● ●
133 HOOK
COUNTRY NEW ZEALAND<CX6> TOW HOOK<V76> 		1-57181-027-1 01 1 1511- ● ●
133 HOOK
REAR DOUBLE HOOK<PM1> 		1-57181-027-1 02 1 1511- ● ●
134 BOLT; HOOK
COUNTRY NEW ZEALAND<CX6> TOW HOOK<V76> M16X50 		0-20851-650-0 01 1 1511- ● ●
134 BOLT; HOOK
COUNTRY NEW ZEALAND<CX6> TOW HOOK<V76> M16X60 		0-20851-660-0 01 1 1511- ● ●
134 BOLT; HOOK
REAR DOUBLE HOOK<PM1> M16X50 		0-20851-650-0 02 1 1511- ● ●
134 BOLT; HOOK
REAR DOUBLE HOOK<PM1> M16X60 		0-20851-660-0 02 1 1511- ● ●
135 WASHER; LK,HOOK
COUNTRY NEW ZEALAND<CX6> TOW HOOK<V76> ID=16.2 		0-91510-816-0 02 1 1511- ● ●
135 WASHER; LK,HOOK
REAR DOUBLE HOOK<PM1> ID=16.2 		0-91510-816-0 04 1 1511- ● ●
136 NUT; HOOK
COUNTRY NEW ZEALAND<CX6> TOW HOOK<V76> M16 		0-91110-516-0 02 1 1511- ● ●
136 NUT; HOOK
REAR DOUBLE HOOK<PM1> M16 		0-91110-516-0 04 1 1511- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
