6-70 — FLOOR PANEL (#170275) — 186 parça

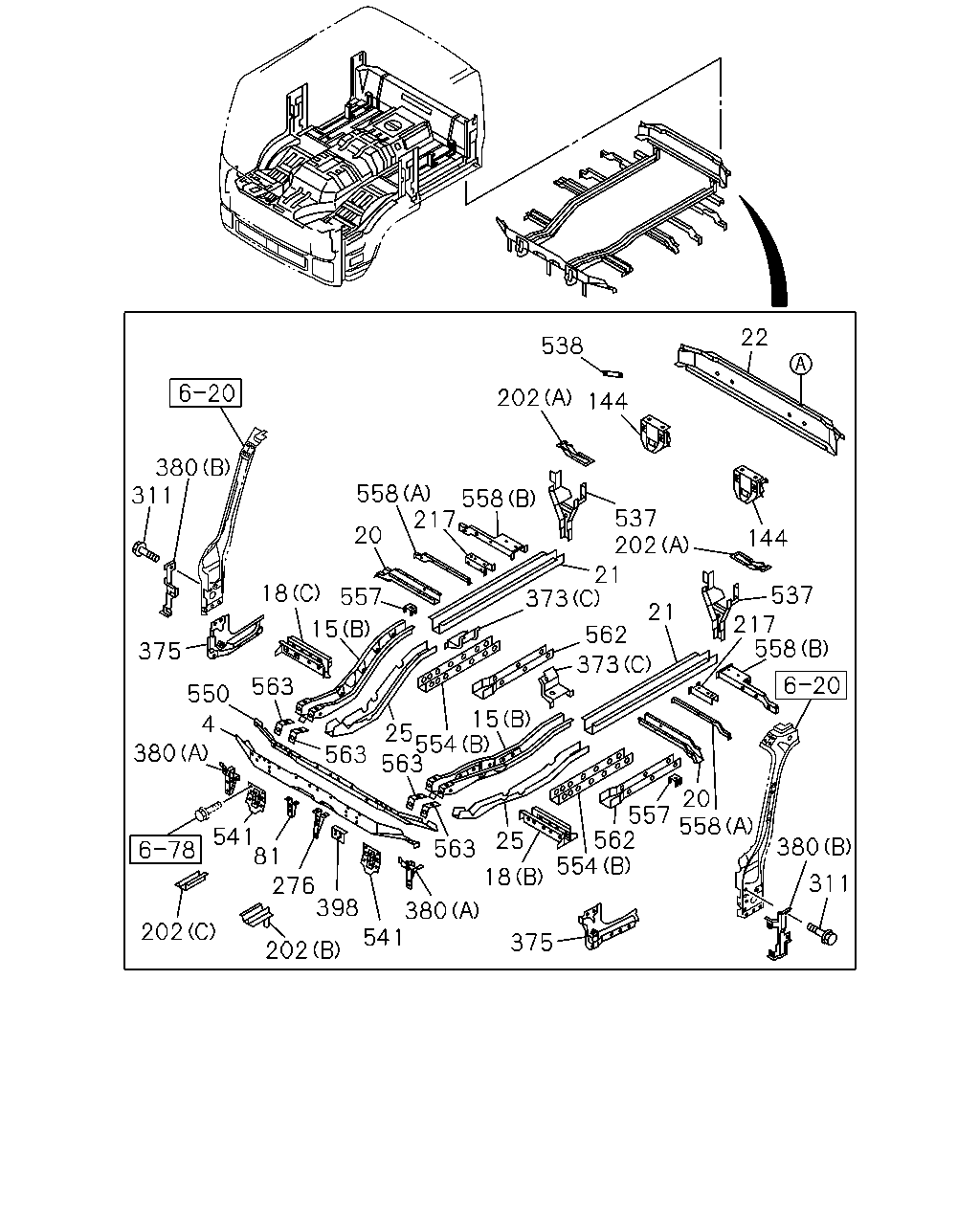

çizim 500971
538 202 558 20 18 380 311 375 550 380 563 4 541 81 276 202 202 398 380 541 563 563 563 15 557 217 558 144 22 537 21 202 144 537 217 558 557 373 562 15 25 554 25 18 375 554 558 20 562 380 311 373 21
BalonParca AdiParca NoAdetTipApplied Date A B
4 FRAME; FLOOR,FRT 8-98073-693-1 01 1 1511- ● ●
15 FRAME; UNDER
(A) 		8-97584-387-9 01 1 1511- ●
15 FRAME; UNDER
(A) 		8-97584-411-9 01 1 1511- ●
15 FRAME; UNDER
(B) 		8-97584-388-9 01 1 1511- ● ●
15 FRAME; UNDER
(B) 		8-97584-412-7 01 1 1511- ● ●
18 FRAME; FLOOR,CENTER SIDE
(A) 		8-97584-398-4 01 1 1511- ●
18 FRAME; FLOOR,CENTER SIDE
(B) 		8-97584-421-4 01 1 1511- ● ●
18 FRAME; FLOOR,CENTER SIDE
(C) 		8-97610-540-1 01 1 1511- ●
20 FRAME; FLOOR SIDE,REAR 8-97410-978-0 01 1 1511- ●
20 FRAME; FLOOR SIDE,REAR 8-97607-517-0 01 1 1511- ●
21 FRAME; FLOOR CENTER 8-97410-938-2 01 1 1511- ●
21 FRAME; FLOOR CENTER 8-97410-950-3 01 1 1511- ●
22 FRAME; FLOOR REAR 8-97584-431-5 01 1 1511- ●
22 FRAME; FLOOR REAR 8-97410-960-1 01 1 1511- ●
25 REINFORCEMENT; FRAME FLOOR,FRT 8-97610-225-4 01 1 1511- ●
25 REINFORCEMENT; FRAME FLOOR,FRT 8-97610-226-4 01 1 1511- ●
81 BRACKET; HARNESS SUPPORT 8-98041-333-3 01 1 1511- ● ●
144 BRACKET; MTG,RR 8-97584-432-6 01 1 1511- ● ●
144 BRACKET; MTG,RR 8-97589-666-6 01 1 1511- ● ●
202 PANEL; CENTER MTG REINF
(A) 		8-97584-427-0 02 1 1511- ●
202 PANEL; CENTER MTG REINF
(C) 		8-97607-514-0 01 1 1511- ●
202 PANEL; CENTER MTG REINF
(B) 		8-97607-515-0 01 1 1511- ●
217 PANEL; SEAT STAND 8-97410-945-1 02 1 1511- ●
276 BRACKET; RAD GRILLE 8-98253-712-0 01 1 1511- ● ●
311 BOLT; BRKT
M6X16 FLANGE 		0-28650-616-0 04 1 1511- ● ●
373 REINFORCEMENT; SEAT BELT
(A) 		8-97584-367-2 01 1 1511- ●
373 REINFORCEMENT; SEAT BELT
(A) 		8-97584-375-2 01 1 1511- ●
373 REINFORCEMENT; SEAT BELT
(B) 		8-98228-266-0 01 1 1511- ●
373 REINFORCEMENT; SEAT BELT
(C) 		8-97410-943-0 01 1 1511- ●
373 REINFORCEMENT; SEAT BELT
(C) 		8-97410-954-0 01 1 1511- ●
375 CLOSING; PILLAR 8-98044-897-3 01 1 1511- ● ●
375 CLOSING; PILLAR 8-98044-898-3 01 1 1511- ● ●
380 BRACKET; HEAD LAMP
(A) 		8-97584-460-2 01 1 1511- ● ●
380 BRACKET; HEAD LAMP
(A) 		8-97589-506-2 01 1 1511- ● ●
380 BRACKET; HEAD LAMP
(B) 		8-98032-615-1 01 1 1511- ● ●
380 BRACKET; HEAD LAMP
(B) 		8-98032-614-1 01 1 1511- ● ●
398 BRACKET; PIPE SUPPORT 8-97589-681-3 01 1 1511- ● ●
537 SUPPORT ASM; MTG RR 8-97584-391-4 01 1 1511- ●
537 SUPPORT ASM; MTG RR 8-97584-417-4 01 1 1511- ●
537 SUPPORT ASM; MTG RR 8-97410-940-1 01 1 1511- ●
537 SUPPORT ASM; MTG RR 8-97410-951-1 01 1 1511- ●
538 REINFORCEMENT ASM; AIR INT DUCT 8-97610-207-2 01 1 1511- ●
538 REINFORCEMENT ASM; AIR INT DUCT 8-97613-311-0 01 1 1511- ●
541 REINFORCEMENT; MTG,FRT 8-98067-903-0 02 1 1511- ● ●
550 CLOSING ASM; MTG,FRT 8-97584-615-4 01 1 1511- ● ●
554 REINFORCEMENT; FLOOR CENTER
(A) 		8-97584-351-2 01 1 1511- ● ●
554 REINFORCEMENT; FLOOR CENTER
(B) 		8-97610-063-2 01 1 1511- ●
554 REINFORCEMENT; FLOOR CENTER
(B) 		8-97610-064-2 01 1 1511- ●
557 PATCH; SEAT 8-98074-333-0 01 1 1511- ●
557 PATCH; SEAT
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> 		8-98306-616-0 01 1 1511- ●
558 REINFORCEMENT; STEP RR
(A) 		8-98057-202-0 01 1 1511- ●
558 REINFORCEMENT; STEP RR
(A) 		8-98057-203-0 01 1 1511- ●
558 REINFORCEMENT; STEP RR
(B) 		8-98057-207-1 01 1 1511- ●
558 REINFORCEMENT; STEP RR
(B) 		8-98057-210-1 01 1 1511- ●
562 REINFORCEMENT; FLOOR 8-97410-939-3 02 1 1511- ●
563 REINFORCEMENT; MTG FRT,RR 8-97589-579-2 04 1 1511- ● ●

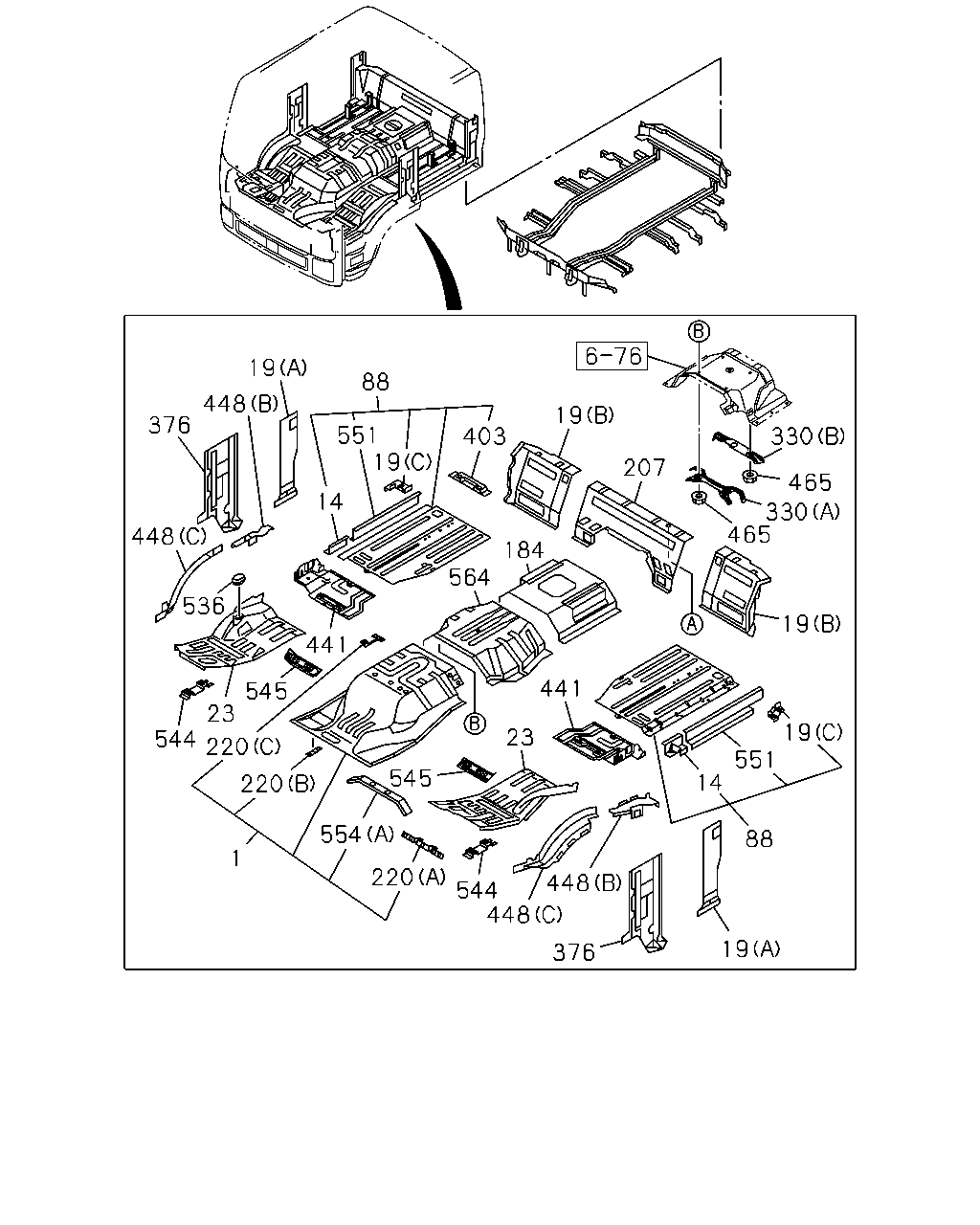

çizim 501423
330 465 330 465 19 19 551 14 88 19 376 448 544 448 220 554 1 220 220 544 23 545 441 564 184 207 19 403 19 14 551 88 19 448 376 448 536 23 441 545
BalonParca AdiParca NoAdetTipApplied Date A B
1 PANEL; FLOOR
LCT2500 A/T ALLISON(Y5W) 		8-98203-641-0 01 1 1511- ●
1 PANEL; FLOOR
MZW6P M/T(RSZ) 		8-97410-865-7 01 1 1511- ●
14 PANEL; FLOOR SIDE,FRT 8-98010-047-0 01 1 1511- ●
14 PANEL; FLOOR SIDE,FRT 8-98010-048-0 01 1 1511- ●
19 PANEL; FLOOR SIDE,REAR
(C) 		8-98010-051-1 01 1 1511- ●
19 PANEL; FLOOR SIDE,REAR
(C) 		8-98010-052-1 01 1 1511- ●
19 PANEL; FLOOR SIDE,REAR
(B) 		8-98067-477-3 01 1 1511- ●
19 PANEL; FLOOR SIDE,REAR
(B) 		8-98067-478-3 01 1 1511- ●
19 PANEL; FLOOR SIDE,REAR
(A) 		8-98079-963-1 01 1 1511- ●
19 PANEL; FLOOR SIDE,REAR
(A) 		8-98079-964-1 01 1 1511- ●
23 PANEL; FLOOR,SIDE 8-98073-691-1 01 1 1511- ●
23 PANEL; FLOOR,SIDE 8-97584-372-7 01 1 1511- ● ●
23 PANEL; FLOOR,SIDE 8-98216-752-0 01 1 1511- ●
88 BOARD ASM; FLOOR 8-97410-918-2 01 1 1511- ●
88 BOARD ASM; FLOOR 8-97410-922-3 01 1 1511- ●
184 HOOD ASM; ENG RR 8-97410-869-1 01 1 1511- ●
207 PANEL; FLOOR,RR CTR 8-97410-927-3 01 1 1511- ●
220 PATCH
(A) 		8-97588-840-4 01 1 1511- ● ●
220 PATCH
(B) 		8-97589-603-3 01 1 1511- ● ●
220 PATCH
(C) 		8-97589-627-2 01 1 1511- ● ●
330 REINFORCEMENT; FLOOR
(A) 		8-98248-128-0 01 1 1511- ●
330 REINFORCEMENT; FLOOR
(B) 		8-98248-129-0 01 1 1511- ●
376 CLOSING; PILLAR,LWR 8-97589-556-5 01 1 1511- ●
376 CLOSING; PILLAR,LWR 8-98199-228-0 01 1 1511- ●
376 CLOSING; PILLAR,LWR 8-97612-015-5 01 1 1511- ●
376 CLOSING; PILLAR,LWR 8-97612-016-5 01 1 1511- ●
403 PATCH; FIRE EXTINGUSHER 1-62183-077-1 01 1 1511- ●
441 PANEL; EXTENSION,FLOOR SIDE 8-97410-906-2 01 1 1511- ●
441 PANEL; EXTENSION,FLOOR SIDE
DRIVER ISRINGHAUSEN SEAT<SJA> 		8-97410-912-2 01 1 1511- ●
441 PANEL; EXTENSION,FLOOR SIDE
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> 		8-98306-400-0 01 1 1511- ●
448 CLOSING; ROCKER
(A) 		8-97589-551-2 01 1 1511- ●
448 CLOSING; ROCKER
(A) 		8-97589-552-2 01 1 1511- ●
448 CLOSING; ROCKER
(C) 		8-97610-658-1 01 1 1511- ●
448 CLOSING; ROCKER
(C) 		8-97610-659-1 01 1 1511- ●
448 CLOSING; ROCKER
(B) 		8-97611-856-0 01 1 1511- ●
448 CLOSING; ROCKER
(B) 		8-97611-857-0 01 1 1511- ●
465 NUT; REINFORCEMENT
M6 FLANGE 		0-91180-106-0 04 1 1511- ●
536 PLUG; CABLE,PTO 8-97612-074-1 01 1 1511- ● ●
544 BRACKET; DUMP CONT 8-97584-363-1 01 1 1511- ● ●
544 BRACKET; DUMP CONT 8-98049-529-0 01 1 1511- ● ●
545 BRACKET; SEAT FRT 8-98050-186-0 01 1 1511- ● ●
545 BRACKET; SEAT FRT
DRIVER ISRINGHAUSEN SEAT<SJA> 		8-97584-373-1 01 1 1511- ● ●
545 BRACKET; SEAT FRT
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> 		8-98050-188-0 01 1 1511- ● ●
551 PANEL; FLOOR SIDE,CTR 8-98010-049-2 01 1 1511- ●
551 PANEL; FLOOR SIDE,CTR 8-98010-050-2 01 1 1511- ●
554 REINFORCEMENT; FLOOR CENTER
(A) 		8-97584-351-2 01 1 1511- ● ●
554 REINFORCEMENT; FLOOR CENTER
(B) 		8-97610-063-2 01 1 1511- ●
554 REINFORCEMENT; FLOOR CENTER
(B) 		8-97610-064-2 01 1 1511- ●
564 PANEL; ENG HOOD EXT FRT 8-97610-271-1 01 1 1511- ●

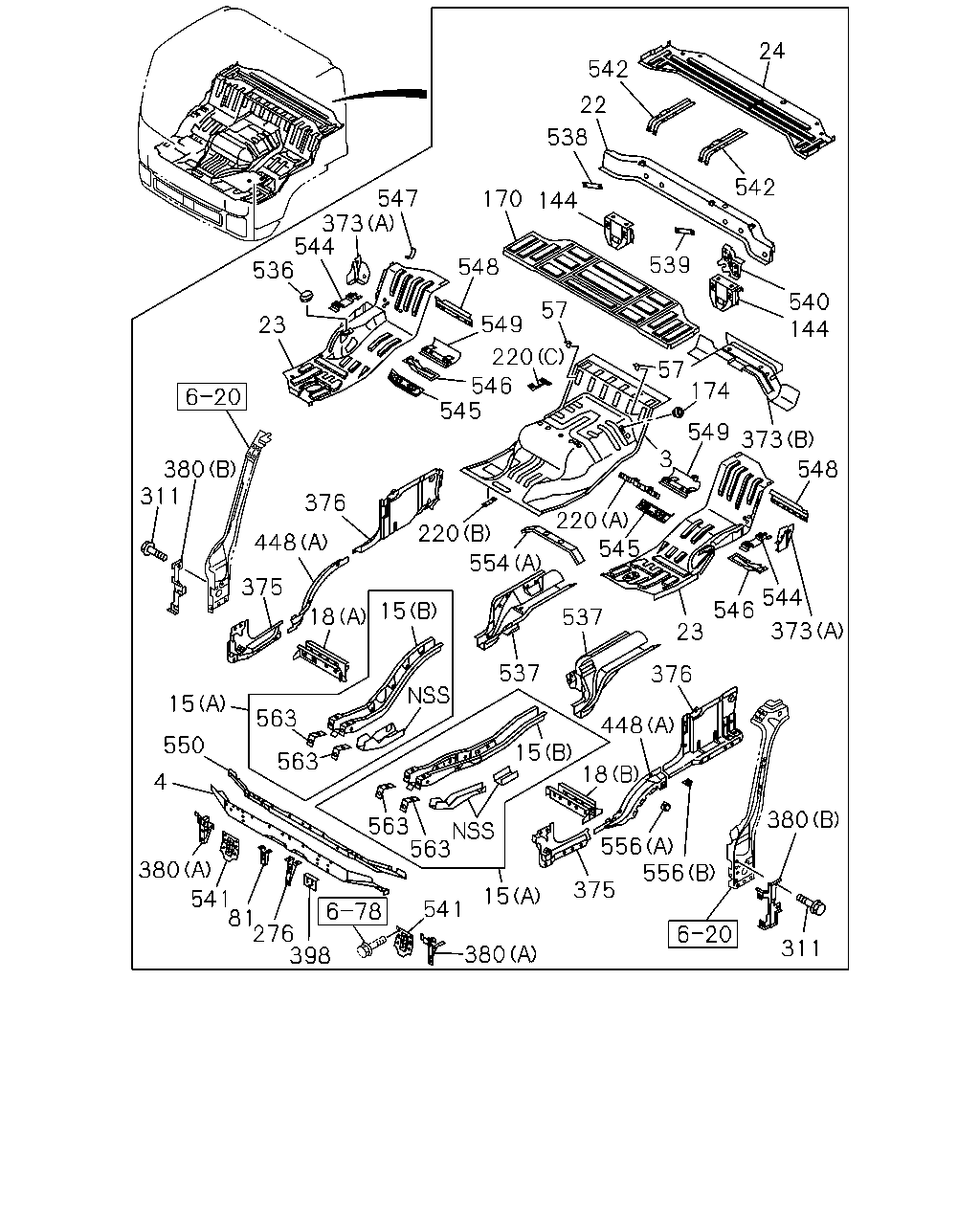

çizim 503683
24 542 539 538 22 542 170 144 540 144 174 57 549 548 544 373 546 23 376 448 18 556 556 375 220 220 448 549 548 547 373 544 536 23 380 311 375 376 18 15 15 550 563 563 4 380 541 81 276 398 541 563 563 537 537 545 3 373 220 546 545 554 15 380 15 57 311 380
BalonParca AdiParca NoAdetTipApplied Date A B
3 HOOD ASM; ENG
MZW6P M/T(RSZ) DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> 		8-98305-507-0 01 1 1511- ●
3 HOOD ASM; ENG
LCT2500 A/T ALLISON(Y5W) DRIVER ISRINGHAUSEN SEAT<SJA> 		8-98203-582-0 01 1 1511- ●
3 HOOD ASM; ENG
LCT2500 A/T ALLISON(Y5W) DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> 		8-98232-874-0 01 1 1511- ●
3 HOOD ASM; ENG
MZW6P M/T(RSZ) DRIVER ISRINGHAUSEN SEAT<SJA> 		8-98081-357-4 01 1 1511- ●
4 FRAME; FLOOR,FRT 8-98073-693-1 01 1 1511- ● ●
15 FRAME; UNDER
(A) 		8-97584-387-9 01 1 1511- ●
15 FRAME; UNDER
(A) 		8-97584-411-9 01 1 1511- ●
15 FRAME; UNDER
(B) 		8-97584-388-9 01 1 1511- ● ●
15 FRAME; UNDER
(B) 		8-97584-412-7 01 1 1511- ● ●
18 FRAME; FLOOR,CENTER SIDE
(A) 		8-97584-398-4 01 1 1511- ●
18 FRAME; FLOOR,CENTER SIDE
(B) 		8-97584-421-4 01 1 1511- ● ●
18 FRAME; FLOOR,CENTER SIDE
(C) 		8-97610-540-1 01 1 1511- ●
22 FRAME; FLOOR REAR 8-97584-431-5 01 1 1511- ●
22 FRAME; FLOOR REAR 8-97410-960-1 01 1 1511- ●
23 PANEL; FLOOR,SIDE 8-98073-691-1 01 1 1511- ●
23 PANEL; FLOOR,SIDE 8-97584-372-7 01 1 1511- ● ●
23 PANEL; FLOOR,SIDE 8-98216-752-0 01 1 1511- ●
24 PANEL; BED PAN 8-97584-378-6 01 1 1511- ●
57 BRACKET; SPARE TIRE 8-98038-970-1 02 1 1511- ●
81 BRACKET; HARNESS SUPPORT 8-98041-333-3 01 1 1511- ● ●
144 BRACKET; MTG,RR 8-97584-432-6 01 1 1511- ● ●
144 BRACKET; MTG,RR 8-97589-666-6 01 1 1511- ● ●
170 EXTENSION; RR FLOOR 8-97589-207-4 01 1 1511- ●
174 GROMMET; AIR PIPE
OD=35 		8-94122-971-0 01 1 1511- ●
220 PATCH
(A) 		8-97588-840-4 01 1 1511- ● ●
220 PATCH
(B) 		8-97589-603-3 01 1 1511- ● ●
220 PATCH
(C) 		8-97589-627-2 01 1 1511- ● ●
276 BRACKET; RAD GRILLE 8-98253-712-0 01 1 1511- ● ●
311 BOLT; BRKT
M6X16 FLANGE 		0-28650-616-0 04 1 1511- ● ●
373 REINFORCEMENT; SEAT BELT
(A) 		8-97584-367-2 01 1 1511- ●
373 REINFORCEMENT; SEAT BELT
(A) 		8-97584-375-2 01 1 1511- ●
373 REINFORCEMENT; SEAT BELT
(B) 		8-98228-266-0 01 1 1511- ●
373 REINFORCEMENT; SEAT BELT
(C) 		8-97410-943-0 01 1 1511- ●
373 REINFORCEMENT; SEAT BELT
(C) 		8-97410-954-0 01 1 1511- ●
375 CLOSING; PILLAR 8-98044-897-3 01 1 1511- ● ●
375 CLOSING; PILLAR 8-98044-898-3 01 1 1511- ● ●
376 CLOSING; PILLAR,LWR 8-97589-556-5 01 1 1511- ●
376 CLOSING; PILLAR,LWR 8-98199-228-0 01 1 1511- ●
376 CLOSING; PILLAR,LWR 8-97612-015-5 01 1 1511- ●
376 CLOSING; PILLAR,LWR 8-97612-016-5 01 1 1511- ●
380 BRACKET; HEAD LAMP
(A) 		8-97584-460-2 01 1 1511- ● ●
380 BRACKET; HEAD LAMP
(A) 		8-97589-506-2 01 1 1511- ● ●
380 BRACKET; HEAD LAMP
(B) 		8-98032-615-1 01 1 1511- ● ●
380 BRACKET; HEAD LAMP
(B) 		8-98032-614-1 01 1 1511- ● ●
398 BRACKET; PIPE SUPPORT 8-97589-681-3 01 1 1511- ● ●
448 CLOSING; ROCKER
(A) 		8-97589-551-2 01 1 1511- ●
448 CLOSING; ROCKER
(A) 		8-97589-552-2 01 1 1511- ●
448 CLOSING; ROCKER
(C) 		8-97610-658-1 01 1 1511- ●
448 CLOSING; ROCKER
(C) 		8-97610-659-1 01 1 1511- ●
448 CLOSING; ROCKER
(B) 		8-97611-856-0 01 1 1511- ●
448 CLOSING; ROCKER
(B) 		8-97611-857-0 01 1 1511- ●
536 PLUG; CABLE,PTO 8-97612-074-1 01 1 1511- ● ●
537 SUPPORT ASM; MTG RR 8-97584-391-4 01 1 1511- ●
537 SUPPORT ASM; MTG RR 8-97584-417-4 01 1 1511- ●
537 SUPPORT ASM; MTG RR 8-97410-940-1 01 1 1511- ●
537 SUPPORT ASM; MTG RR 8-97410-951-1 01 1 1511- ●
538 REINFORCEMENT ASM; AIR INT DUCT 8-97610-207-2 01 1 1511- ●
538 REINFORCEMENT ASM; AIR INT DUCT 8-97613-311-0 01 1 1511- ●
539 PATCH ASM; SAFTY HOOK 8-97584-440-2 01 1 1511- ●
540 BRACKET ASM; CAB LOCK LEVER 8-97584-438-1 01 1 1511- ●
541 REINFORCEMENT; MTG,FRT 8-98067-903-0 02 1 1511- ● ●
542 BOLSTER; BED PAN 8-97589-685-1 02 1 1511- ●
544 BRACKET; DUMP CONT 8-97584-363-1 01 1 1511- ● ●
544 BRACKET; DUMP CONT 8-98049-529-0 01 1 1511- ● ●
545 BRACKET; SEAT FRT 8-98050-186-0 01 1 1511- ● ●
545 BRACKET; SEAT FRT
DRIVER ISRINGHAUSEN SEAT<SJA> 		8-97584-373-1 01 1 1511- ● ●
545 BRACKET; SEAT FRT
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> 		8-98050-188-0 01 1 1511- ● ●
546 REINFORCEMENT; FLOOR SIDE 8-97584-427-0 02 1 1511- ●
547 BRACKET; JACK HANDLE 8-97588-843-1 01 1 1511- ●
548 BRACKET; MUD GUARD 8-97588-961-1 01 1 1511- ●
548 BRACKET; MUD GUARD 8-97588-962-1 01 1 1511- ●
549 BRACKET; SEAT RR 8-98050-187-1 01 1 1511- ●
549 BRACKET; SEAT RR
DRIVER ISRINGHAUSEN SEAT<SJA> 		8-97588-958-4 01 1 1511- ●
549 BRACKET; SEAT RR
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> 		8-98050-189-1 01 1 1511- ●
550 CLOSING ASM; MTG,FRT 8-97584-615-4 01 1 1511- ● ●
554 REINFORCEMENT; FLOOR CENTER
(A) 		8-97584-351-2 01 1 1511- ● ●
554 REINFORCEMENT; FLOOR CENTER
(B) 		8-97610-063-2 01 1 1511- ●
554 REINFORCEMENT; FLOOR CENTER
(B) 		8-97610-064-2 01 1 1511- ●
556 BRACKET; TILT HANDLE
(A) 		8-98077-605-1 01 1 1511- ●
556 BRACKET; TILT HANDLE
(B) 		8-98077-606-1 01 1 1511- ●
563 REINFORCEMENT; MTG FRT,RR 8-97589-579-2 04 1 1511- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
